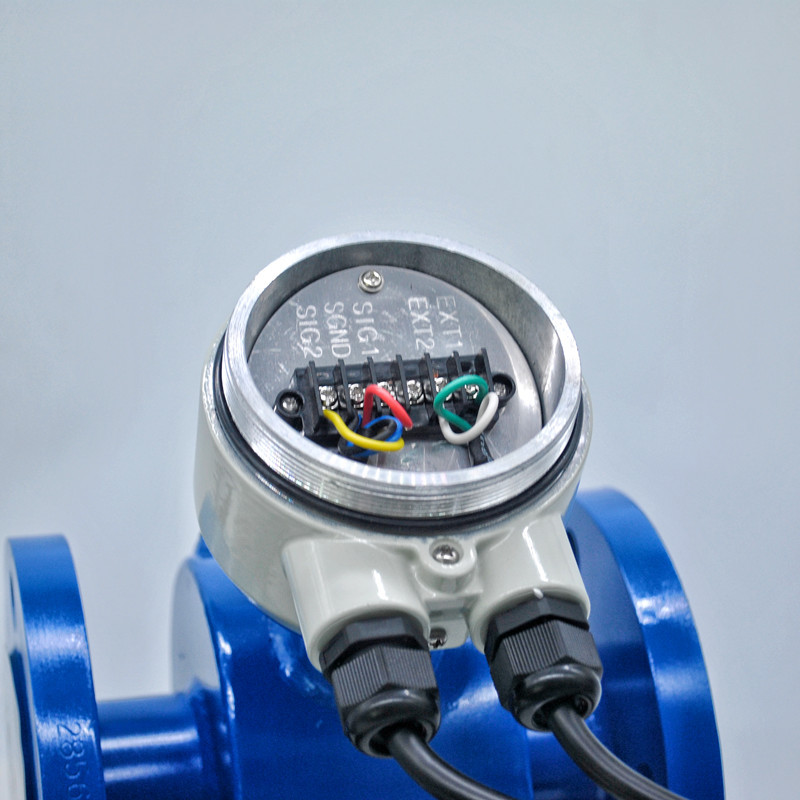

Magnetic Waste Water Flow Meter With Pulse Output
- Information
- Product Description
- Video
- Download

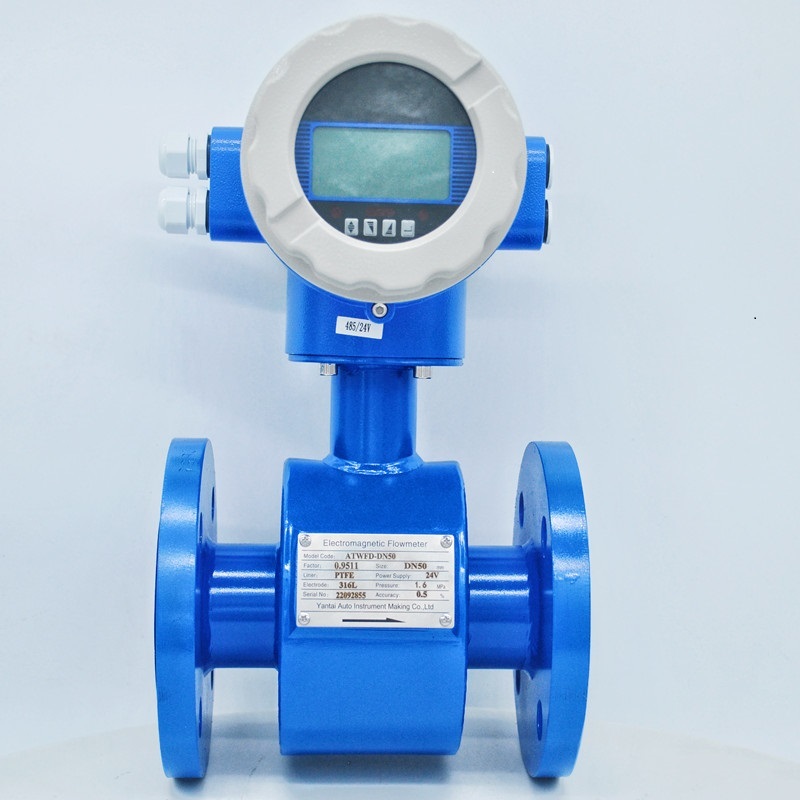

Product Description
Magnetic Flow Meter only have two non-moving parts that contact the measured fluid media- a liner which protect the flow body from the fluid and a pair of electrodes which detect the velocity of the flowing fluid.
Magnetic flow meter measurement design insuring it can be fabricated to be compatible with virtually any conductive liquids regardless density, viscosity, chemical composition or fluid condition/particulate count, and with features of long service life, less maintenance, low pressure drop, minimally invasive. It widely used in many industries and application including wasterwater / municipal, food / beverage, pulp/paper, etc.
Applicable Sizes In 1/8"-80″ (DN3-DN2000).
Wide Fluid Velocity Range Of 0-50 Feet/ Sec (0-15 M/S ) With Excellent Low-Flow Accuracy.
4-20Ma,0-5Khz Pulse And 2A Relay Outputs Available.
Hart, Rs485/Modbus Profibus-DP Communications Available.
Ip 68 Protection Class For Underground Submersible Application.
Easy-To-Read Oled Display; Visible In Low Light Environments And In Direct Sunlight.
Conductivity Of Measured Medium: ≥ 5 Μs/Cm.
Excellent Accuracy ±0.5% Of Reading.
Various Liner/Electrode Material Combinations Make Meter Chemically Compatibility With Different Fluids.
Empty Pipe Detection And Electrodes Resistance Measurement Diagnosing Empty Pipe And Electrodes Contamination Accurately.
......
Technical Parameters

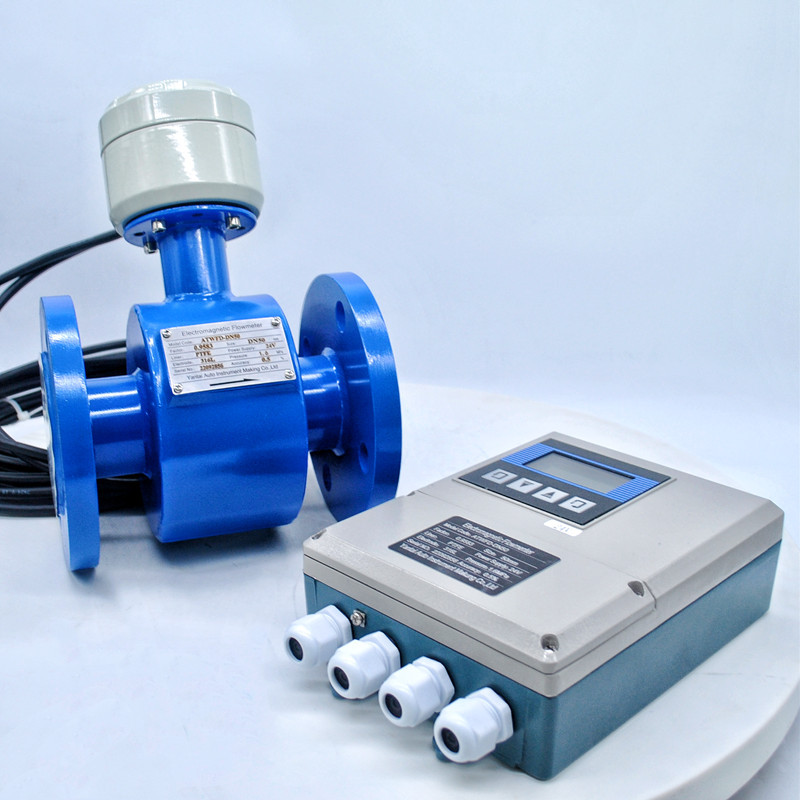

| Type | General Magnetic Flow Meter (Integral/ Remote Type) | Battery Powered Magnetic Flow Meter | Insertion Type Magnetic Flow Meter |
| Line Sizes | 3/8" - 80" (DN10 - DN2000) | 1/8" - 24" (DN3 - DN600 ) | 3/8" - 240" (DN10 - DN6000 ) |
| Accuracy | ±0.5% of Reading | ||
| Conductivity | must be ≥ 5 μS/cm | must be ≥ 5 μS/cm | must be ≥ 5 μS/cm |
| Process Temp. | -58-356°F (-50-180°C) | -40-300°F (-50-150°C) | -58-356°F (-50-180°C) |
| Housing Material | Carbon Steel / SS 304 / SS 316 | ||
| Electrode Material | SS 316L/ Hastelloy C/ Hastelloy Alloy B/ Nicke/Titanium/ Tantalum/ Tungsten Carbide | ||
| Lining Material | Neoprene(Chloroprene Rubber ) /PTFE / PFA / F46 Ceramic /Hard ubber(Ebonite) / Polyurethane | ||

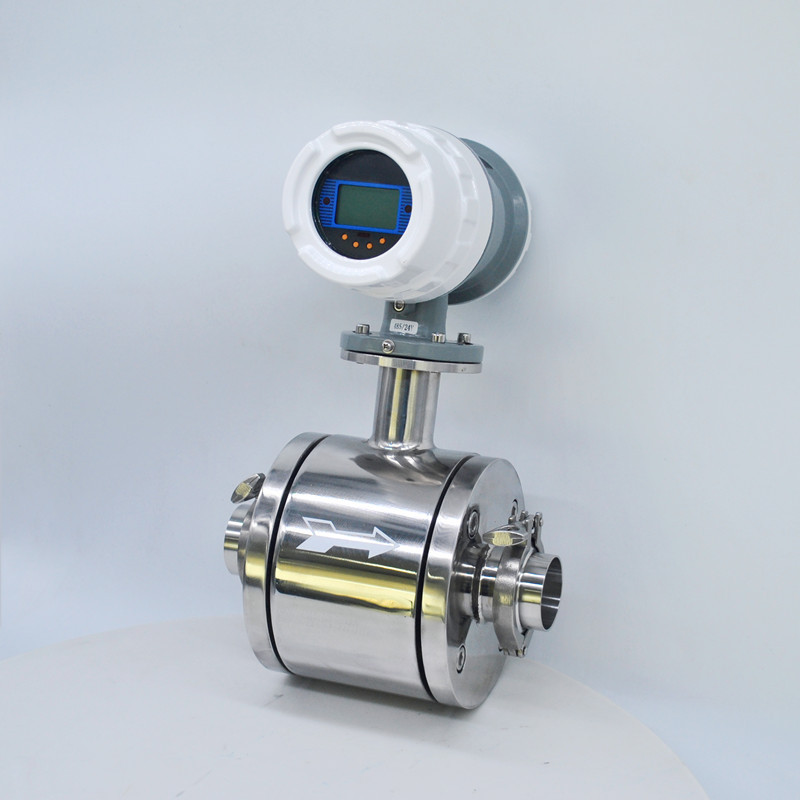

| Process Connection | Wafer Connection Thread Connection Flange Connection (ANSI, DIN, JIS) Tri-clamp On (Sanitary) | ||
| Grounding Resistance | < 10 Ω | ||
| Protection | IP 65 (Integrated Type) IP 68 (Remote Type) | ||
| Outputs | P-Pulse / 4-20mA / RS 485 / Hart | ||
| Power Supply | AC 220V / DC 24V | ||
| Ambient Temperature | -5 - +130 °F (-20 - 55 °C) | ||
| Relative Humidity | 5% to 90% R.H. | ||
| Application | must be ≥ 5 μS/cm | conductive fluid measurement in areas with no power available | large pipes where high accuracy is NOT needed |
Liner material | Applications | |
PTFE: | 1.The most steadiest material in plastics which is resistance to boiling hydrochloric acid ,vitriol and aqua regia as well as strong and organic impregnates. 2.Not be perfect in abrasion resistance. | Strong corrosive mediums such as strong acid and alkali. |
PTF: | Having the same abration resistance with PTFE .Having strong ability of load pressure resistance. | Applicable in state of load pressure. |
F46: | 1. Having the same abration resistance with PTFE. 2.Resistance for low abration.3.Having strong resistance to load pressure. | 1.The same as PTFE. 2.Applicable in medium of low abrasion. |
Neoprene: | Be of good elasticity ,retractility and abration resistance 2.Be resistance to low acid ,alkali and salt but not for oxidation medium. | Water,sewage and slurry ,mineral serosity of low abration. |
Neoprene: | 1.Be good of abration resistibility (equal to 10 times of caoutchouc). 2.Not be perfect in acid/alkali resistance. 3.Can;t be used for water mixted with organic impregnants. | Applicable in mineral serosity,slurry and coal slurry of high abration. |
Order sheet
Calibration line
Each of our instruments has been factory calibration and 100% inspection, and there is a perfect after-sales system.Different products have different packages because of their different sizes.We will ensure that each flow meter, safe and complete to your hands.
Magnetic flow meter applications
2. High & Low temperature tests, Different Humidity Test ,Make sure instruments can resist any harsh environments
3. LCD display with 4-20mA /pulse output,HART/MODBUS protocol
