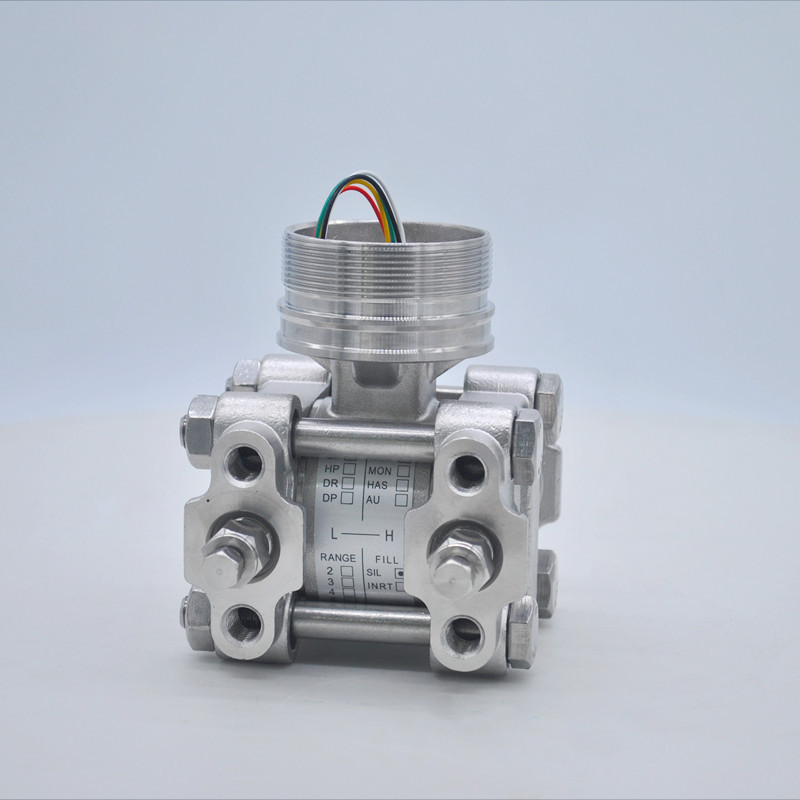

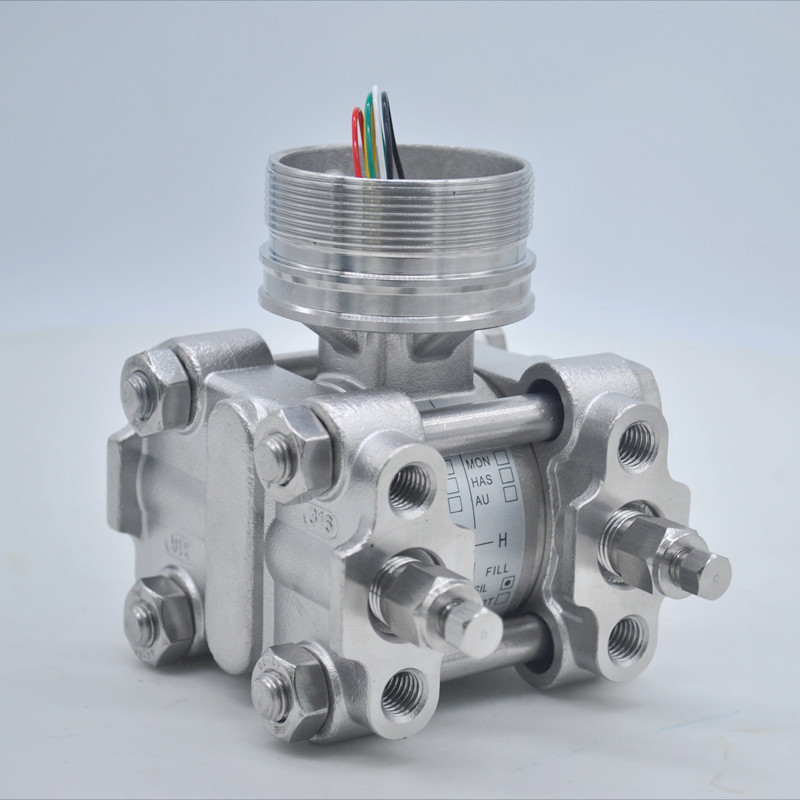

Differential Pressure Transmitter Device Spare Parts

These pressure transmitter parts undergo comprehensive testing, compensation, and pressure verification procedures to guarantee their operational effectiveness.

Following the assessment of the pressure sensors, we proceed with the assembly of the pressure transmitter device using pressure sensors and flanges. Subsequently, thorough testing and compensation are carried out.

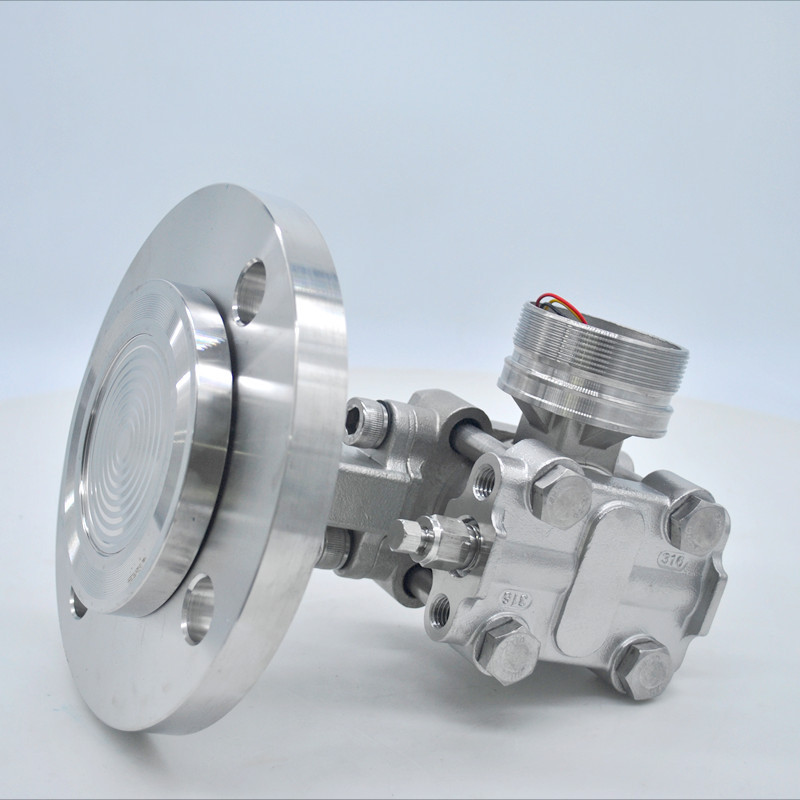

Customization of flange remote seal pressure transmitter parts is available to meet specific customer preferences and requirements.

1. Process fluid: liquid,gas,vapor

2. Display: 4 digits programmable&0-100%bargraph

3. Application: differential pressure,gauge pressure, absolute pressure

4. Measuring range: 0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum)

5. Current output: 4-20mA 2 wires Hart Protocol

6. Power supply: 9-36VDC

7. Max pressure: 40MPa

8. Mounting:bracket on 2” pipe

9. Electrical connections: 1/4”NPT (M20 Conduit threads)

10. Process connections: 1/4-18NPT, 1/2-14NPT(with adapter)
