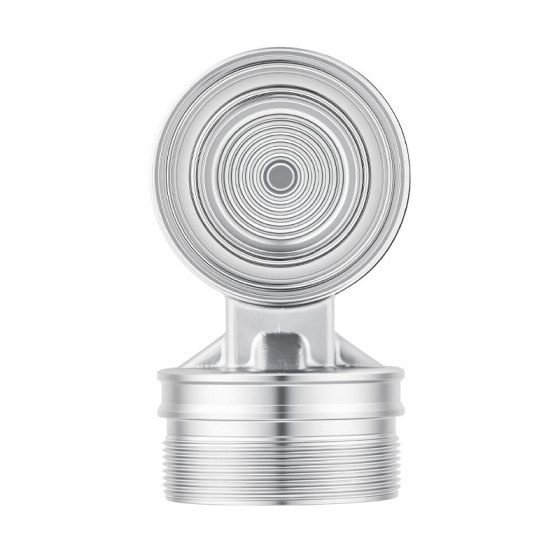

Dpt Pressure Sensor Pressure Transmitter Sensor
Get the latest price? We'll respond as soon as possible(within 12 hours)
- Information
- Product Description
- Video
- Download
Brief Introduction
The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density andpressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications.
Features
Stability:0.2%/Year
Range:250PF±20PF
Zero:130PF±20PF
Accuracy:Nominal Range 0.1%
Model Number:AT3051
- Process Temperature Range:-40 to 104°c
Stability:0.2%/Year
Fill Fluid:Silicone /Fluorine Oil
Wiring System:3-Wire,5-Wire
Housing Material:316SS
Overpressure Limit:AP GP 13.8Mpa DR DP HP
Application
Pressure Range
| Code | Range(kpa) | DR | AP | GP | DP | HP |
| 2E | 0-0.125-1.5kPa | * | * | |||
| 3E | 0-1.3-7.5kPa | * | * | |||
| 4E | 0-6.2-37.4kPa | * | * | * | * | |
| 5E | 0-31-186.8kPa | * | * | * | * | |
| 6E | 0-117-690kPa | * | * | * | * | |
| 7E | 0-345-2068kPa | * | * | * | * | |
| 8E | 0-1170-6890kPa | * | * | * | ||
| 9E | 0-3480-20680kPa | * |
Production Process
1.Dpt Pressure Sensor has super performance, use to measure pressure, differential pressure,liquid level, rate of flow.
2.Pressure Transmitter Sensor adopt computer control positioning and tensioning technology, make the center diaphragm accurate positioning, moderate tension, accuracy is greatly improved.
3.Dpt Pressure Sensor are applied in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
2.Pressure Transmitter Sensor adopt computer control positioning and tensioning technology, make the center diaphragm accurate positioning, moderate tension, accuracy is greatly improved.
3.Dpt Pressure Sensor are applied in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
