GUIDED WAVE RADAR LEVEL METER--(CONTACTING MEASUREMENT)
Measurement Principle:
Guided wave radar is measuring instrument based on the principle of time travel, the radar waves travel at the speed of light, the running time can be through the electronic components are converted into level signals. Probe a high frequency pulse and along the cable or rod probe propagation, when pulse meets the material surface is reflected back by the receiver instrument within the receiving and the distance signal into a signal.
Features：
As a result of advanced microprocessor and unique choDiscovery echo processing technology, guided wave radar level meter can be used in a variety of complex conditions.
Because of the type of process connections and detection components, making 70X Series Guided
Wave Radar Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media.
Pulsed work, guided wave radar level instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.
Radar Level Meters ready for delivery
Application
Guide Wave Radar Level Transmitter Level Meter
complicated process conditions
Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb
Measuring Range: 30m
Frequency: 500MHz-1.8GHz
Antenna: Single cable or single rod antenna
Accuracy: ±10mm
Process Temperature:（ -40～ 250） ℃
Process pressure:（ -0.1～ 4） MPa
Signal output:（ 4～ 20） mA/HART

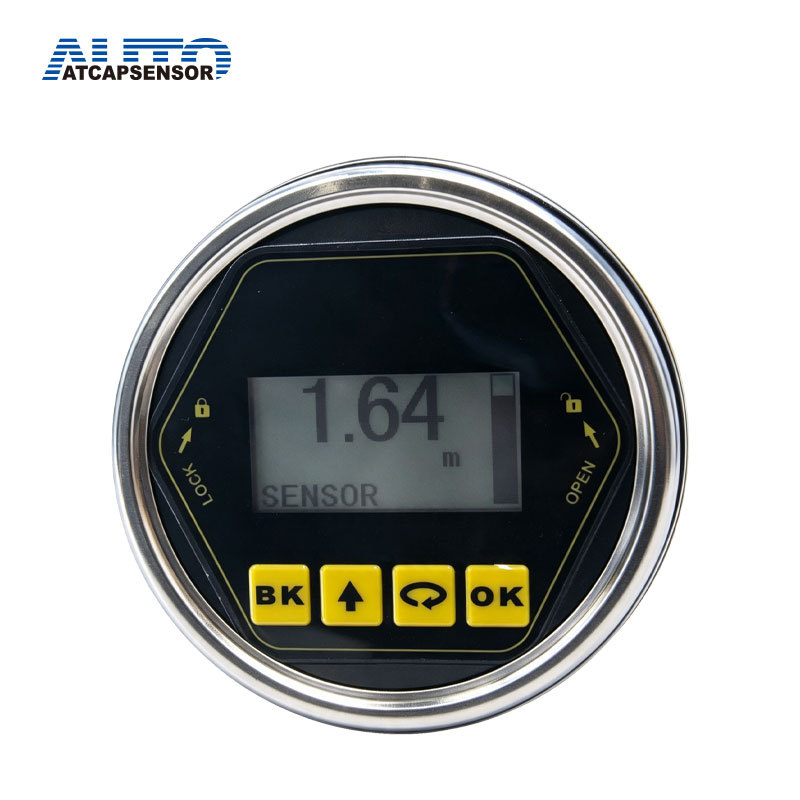

The Scene Display: Four LCD/Can be programmed
Power Source: Two-wire (DC24V)
Four-wire（ DC24V/AC220V）
Shell: Aluminum /Plastic
Connection: Flange (optional) / Thread
