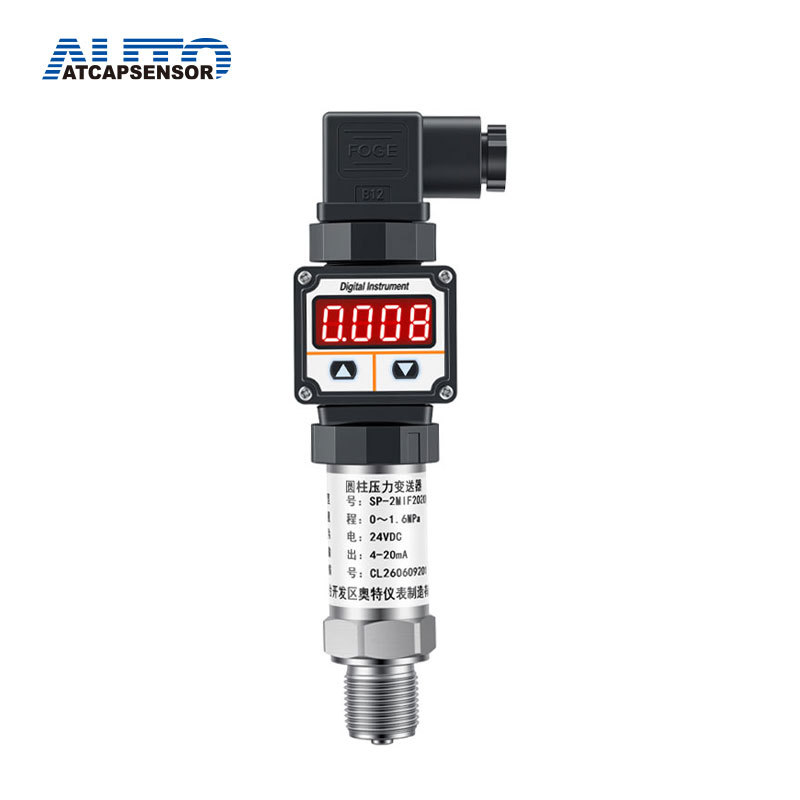

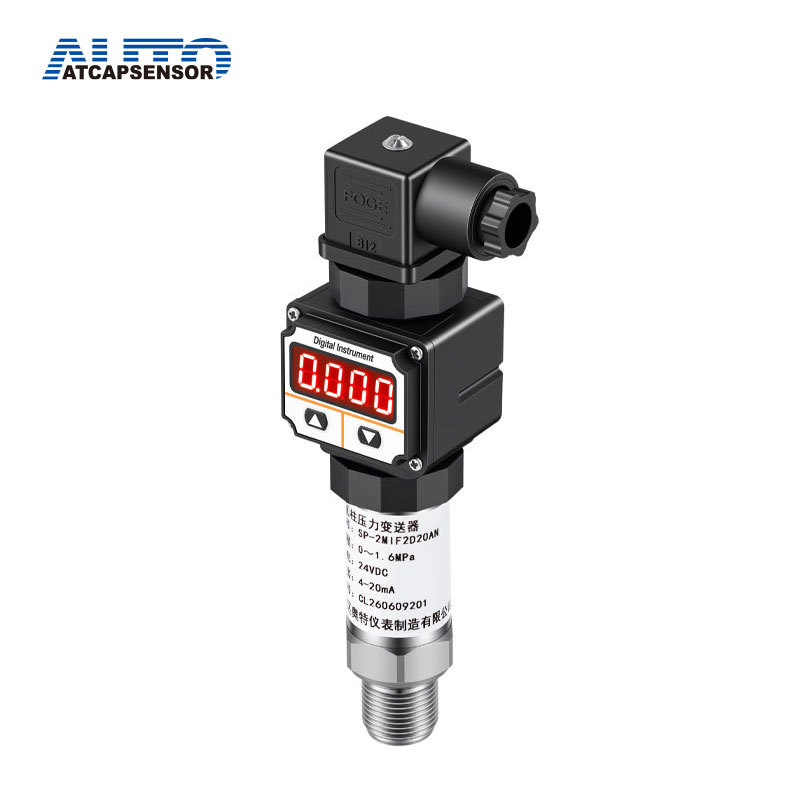

Stainless Steel Pen Type Pressure Transmitter
- Information
- Product Description
- Video
- Download
Introduction
SP SH series pressure transmitter is the introduction of foreign technology and products produced using imported components, can be used to process fluid (liquid, gas) measured continuously changes. Will be converted into a 4-20mA standard current measured pressure signal output, and combined with other monitoring and control units, constitute automatic control system. Widely used in petroleum, chemical, metallurgy, electricity, medicine, beer, water treatment and other industries process monitoring and control.
Features
• Reference Accuracy: 0.2%FS,0.5%FS
• Stability:Better Than 0.25% As Per Year
• Temperature Effect (-15-50'C)
• Operating Voltage:15V-30VDC
• Ambient Temperature:-10'C-70'C
• Medium Temperature:-40'C-120'C
• Storage Temperature:-40'C-110'C
• Compensation Temperature: -15'C-50'C
Industry Application
Dyeing Industry
Chemical Industry
Air Tightness Text
Vacuum Equipment
Medical Equipment
Order Sheet
| Item | Code | Specification |
| SP | Pressure Transmitter | |
| Process Connection Material | 1 | Stainless Steel |
Process Connection | R | G1/2'' |
| M | NPT1/2'' | |
| Y | Customize | |
| Sealing Material | IF | Fluoro Rubber(Standard) |
| IH | Fluoro Rubber Applied To Sensors(Over 10Mpa) | |
| Output | 2 | 4-20mA(Two Wire) |
| 3 | Customize | |

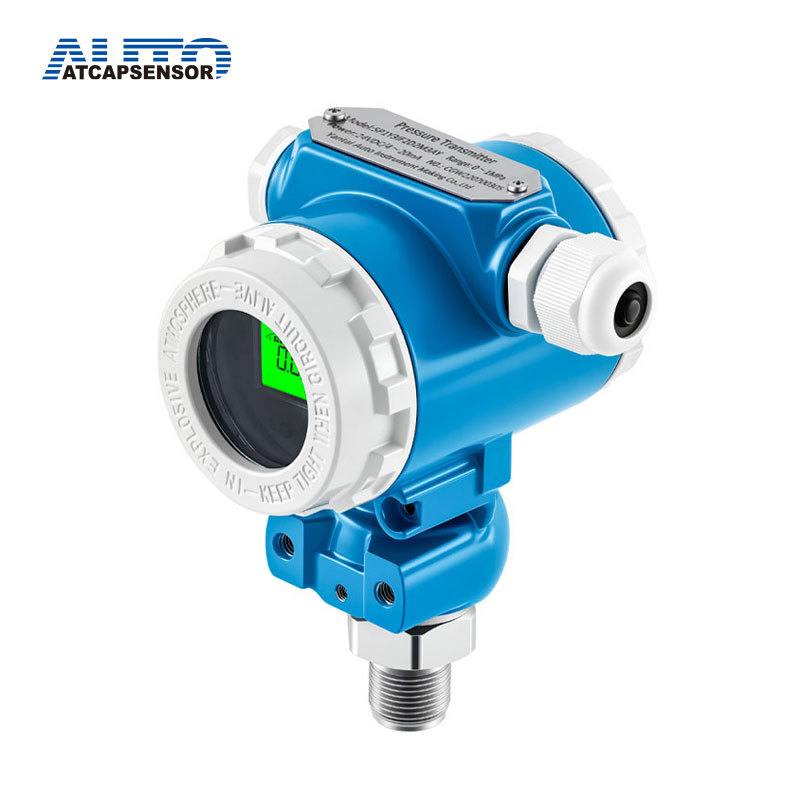

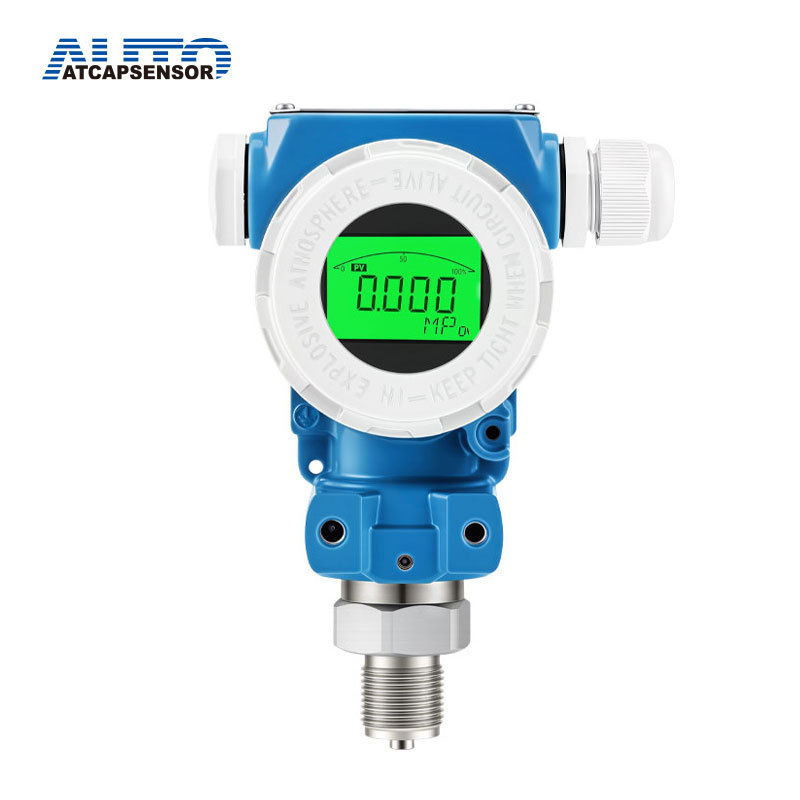

| Shell Material And Structure | A | Aluminum Shell PG16 Cable Sealing IP65 |
| B | Stainless Steel Shell Cylinder Structure | |
| Sensor Type | 1 | Diffused Silicon Type |
| 2 | Diffused Silicon Anti-Corrosion Type | |
| Explosion-Proof Requirements | D | No Explosion-Proof Required |
| E | Explosion-Proof Type | |
| Accuracy | 2 | 0.20% |
| 5 | 0.50% |
Electrical Connection
Different Pen Type Pressure Transmitter
Pen Type Pressure Transmitter Ready To Ship
2. SP SH series pressure transmitter can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc.
3. Pen Type Pressure Transmitter has a small size for easy installation，so it can be installed in small rooms.
