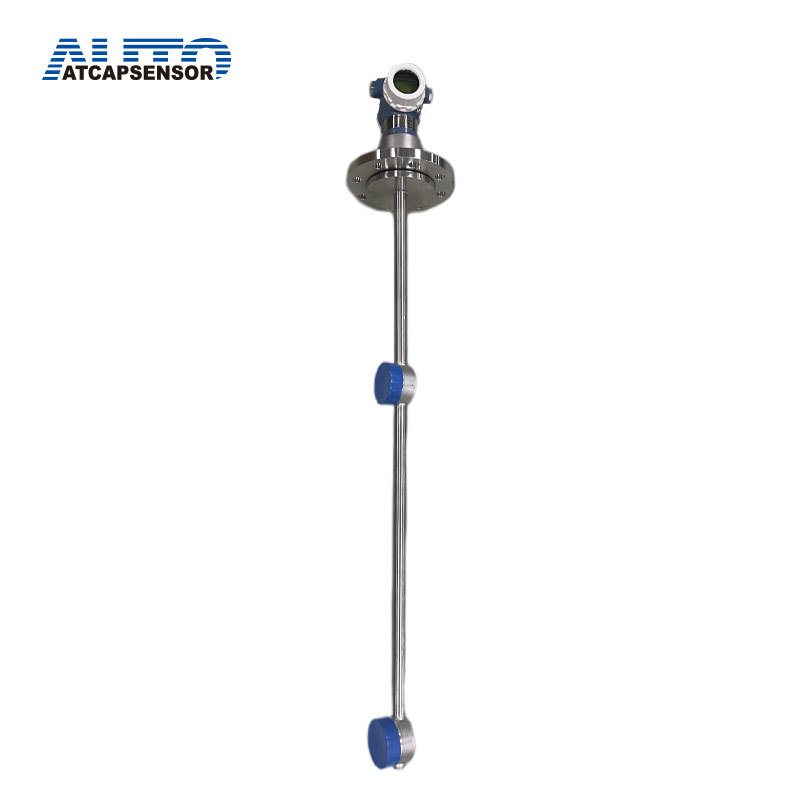

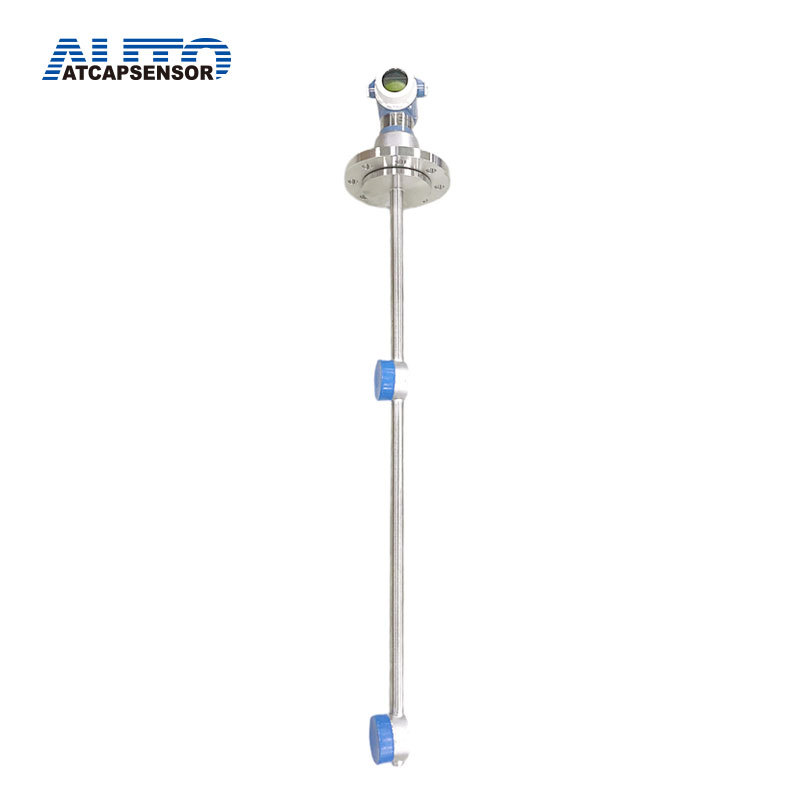

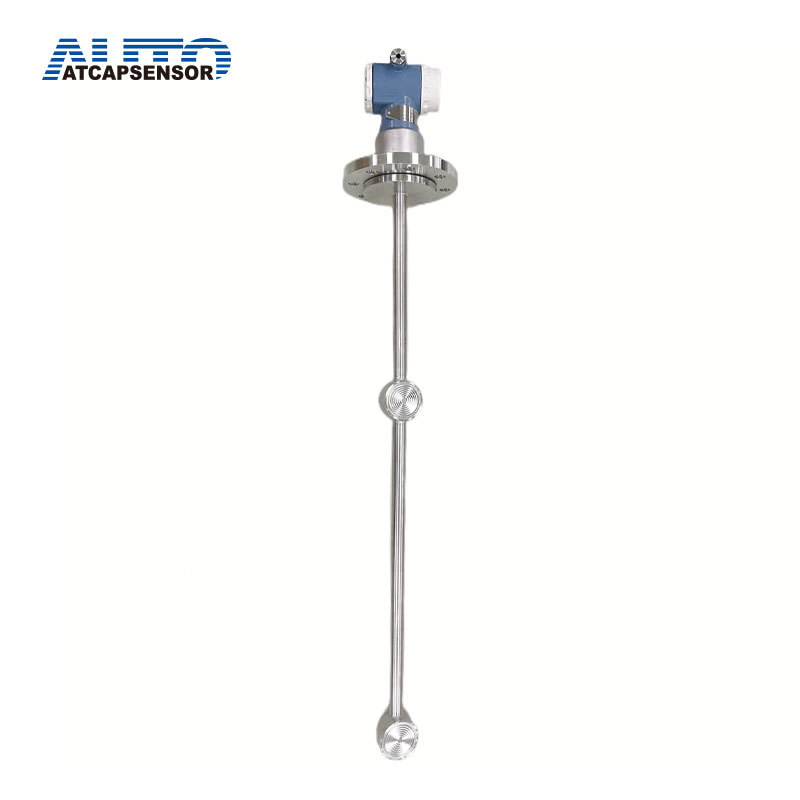

Industrial Online Liquid Density Meter 4-20mA HART
- Information
- Product Description
- Video
- Download
Product Introduction
MD-3051 series online liquid level density meter can be used for online density measurement of various liquid and liquid mixture. It is widely applied to the petrochemical industry, food industry, dairy industry, paper industry, chemical industry, biopharmaceutical industry and other production sites.
Product Features
Online density meter is applicable to flowing or static liquid, and is suitable for pipeline and tank installation.
Temperature and density can be displayed at the same time, which is convenient for industry standard density conversion
The density meter has several different liquid contacting materials.
The Online density meter generates the corresponding 4-20mA signal according to the concentration and density
Product Parameters
1. Current Output: 4 ~ 20mA
2. Digital Signal: HART protocol
3. Power Supply: 16 ~ 30V DC (24V DC is recommended)
4. Density Range:0 to 2 g/cm3 ,0 to 3 g/cm3
5. Accuracy:0.1g/cm3
6. Resolution: 0.01g / cm3
7. Temperature Range: 0 ~ 100 °C
8. Temperature Accuracy: 0.2 °C
9. Ambient Temperature: -10 ~ 60 °C
10. Humidity Range: 0 ~ 90%
Product installation
Product order sheet
Production line
2. The two-wire transmitter with integrated structure has no moving parts and is easy to maintain.
3. Continuous on-line measurement of liquid density and temperature without process interruption. It can be directly used for production process control.
4. The online density meter is a cost-effective, simple and practical measurement method, which is economical and accurate, with small maintenance workload, stable and reliable operation. Suitable for testing the density of flowing or static liquid, sanitary, high-temperature and anti-corrosion types are optional
