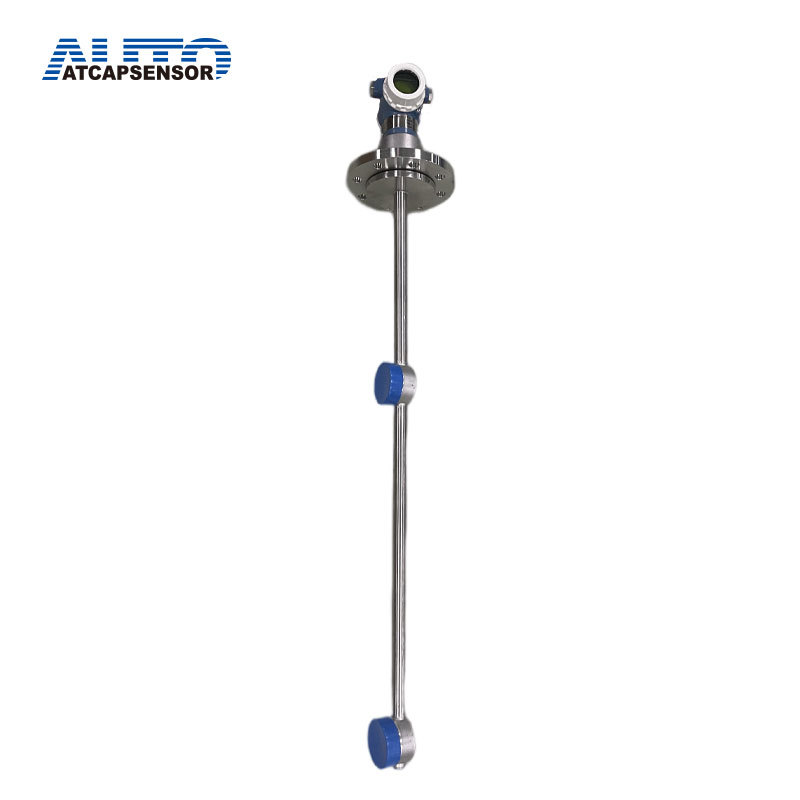

Slurry Density Meter Online Liquid Densitometer
- Information
- Product Description
- Video
Production Introduction

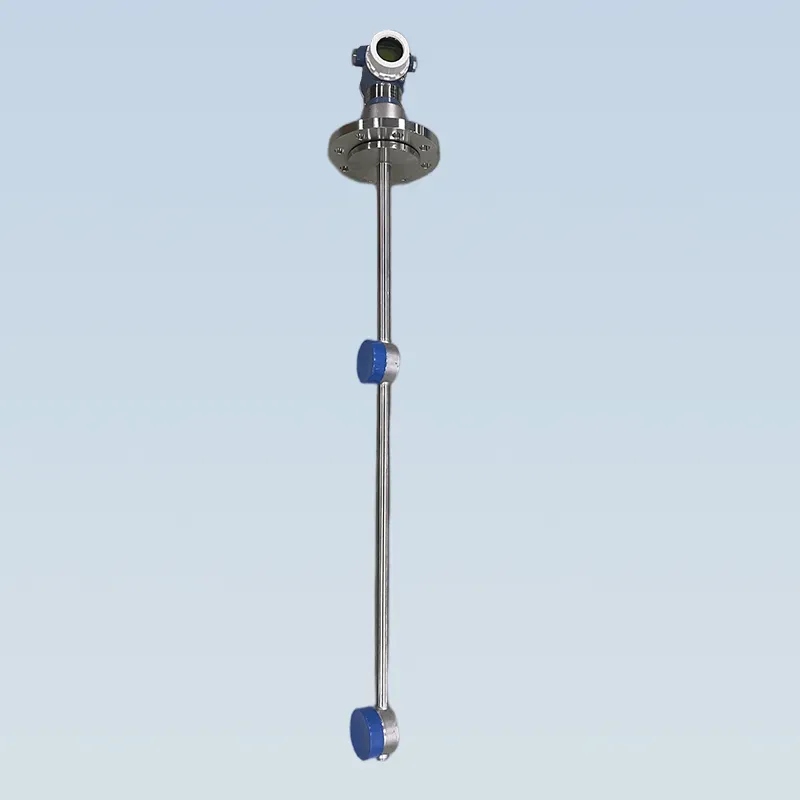

The industrial liquid density meter, mounted at the top, serves as a continuous online tool designed to gauge the density of liquids. Its primary application lies in the realm of industrial process automation and control. It produces a corresponding analog signal in the range of 4-20mA, reflecting alterations in the density of the medium. Furthermore, it can transmit a digital signal after conversion, allowing for remote calibration and monitoring purposes.
Production Features
Stainless steel wetted components, safe and reliable
It is easy to install and use, and the reading can be displayed by inserting liquid.
Simplify maintenance without regular cleaning.
Top mounted liquid densitiy meter calibration requires no standard reference source, no laboratory calibration and no process interruption.
Intrinsically safe type can be used in hazardous sites The sanitary type can be installed on the food production site.
Product Parameters
Measurement Range: | Density: 0.000 – 5.000 g/cm31 |
Accuracy: | Density 0.5–2 g/cm3 |
Resolution: | ±0.005 g/cm3 |
Calibration Method: | User performed |
Temperature Range (Sample): | 0 – 100 °C (32 – 212 °F) |
Communication: | 4 – 20 mA, HART Protocol |
Display: | Digital LCD |
Operating Environment: | Temperature: -10 – 60°C (14 – 140°F) |
Power Requirements: | 15 – 30 VDC (24 VDC recommended) |
Dimensions: | Individual dimensions vary depending on model, volumetric displacement no more than 0.15 cm3 (0.01 in3) |
Product order sheet
Product installation
Production line

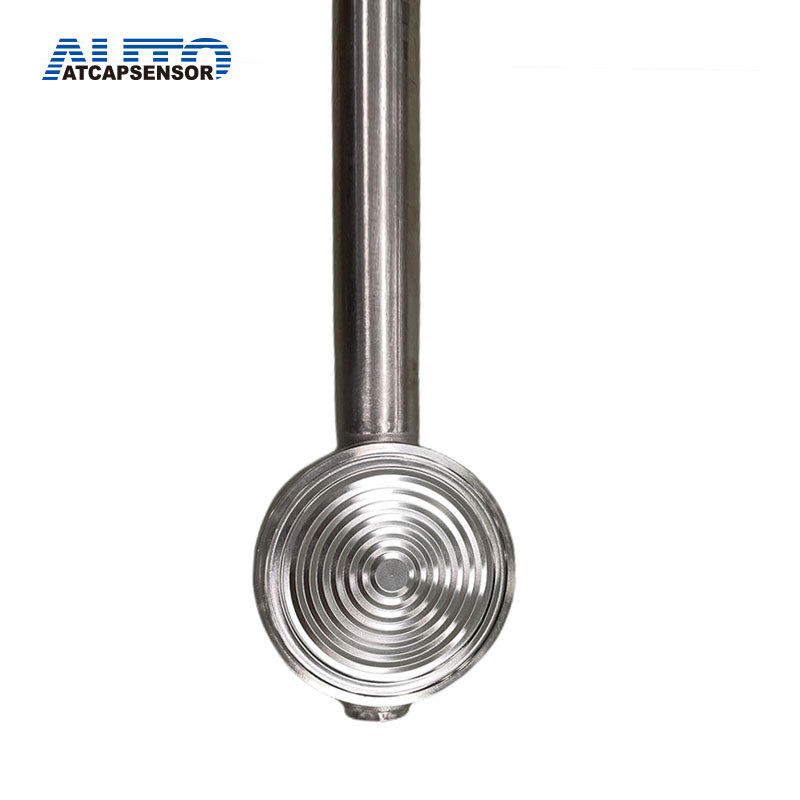

2. The configuration of a bell mouth shape between the online liquid density meter's measuring tube and diaphragm seat mitigates the possibility of medium or gas retention. This design choice also safeguards the diaphragm from direct fluid impact, thereby prolonging its operational lifespan.
3. When dealing with mediums experiencing significant temperature fluctuations, a temperature compensation mechanism is implemented to uphold the measurement accuracy of the density meter.
