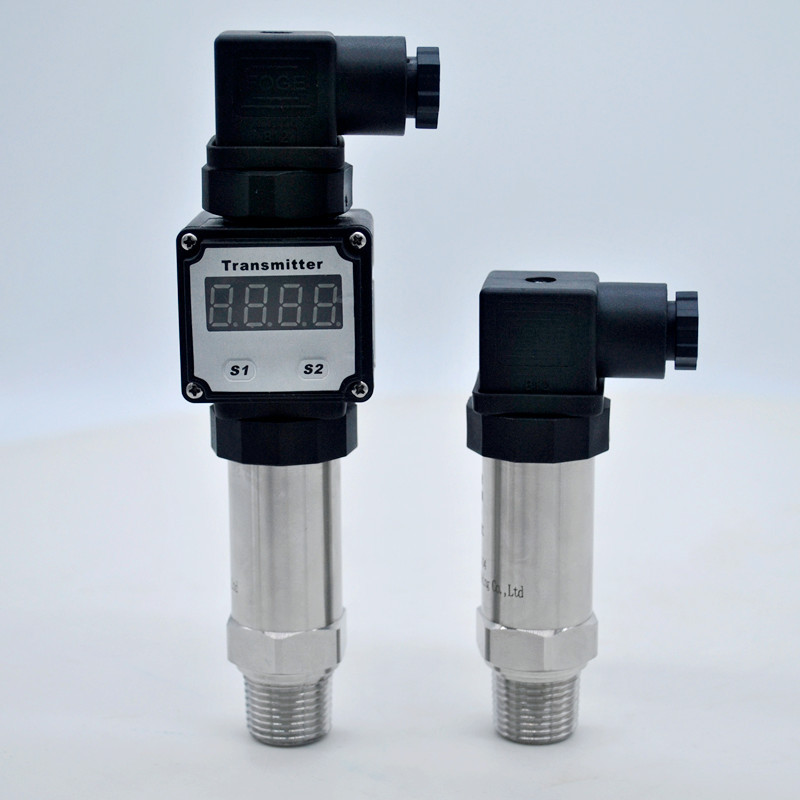

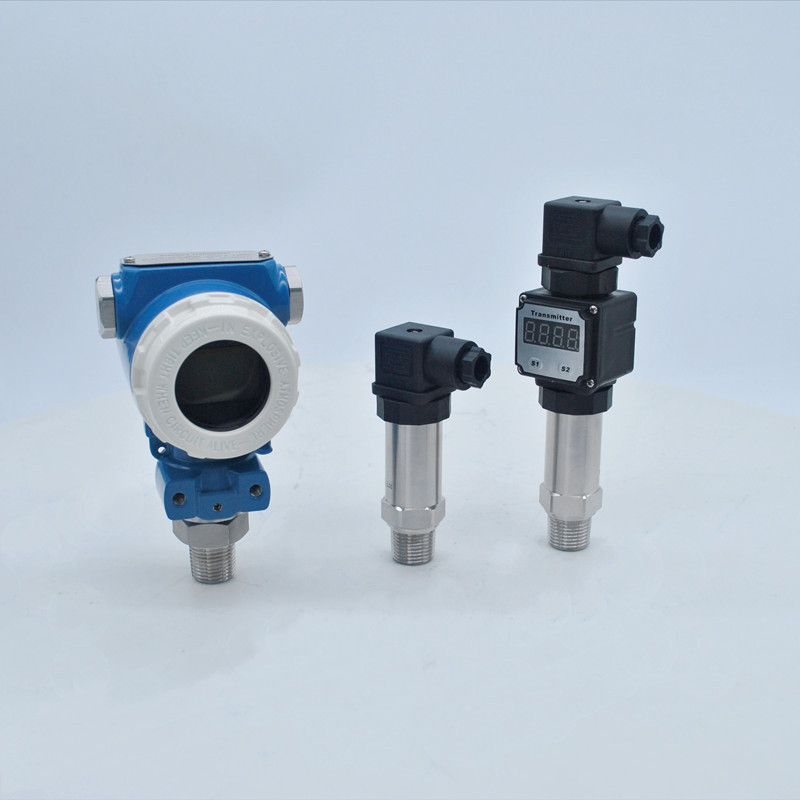

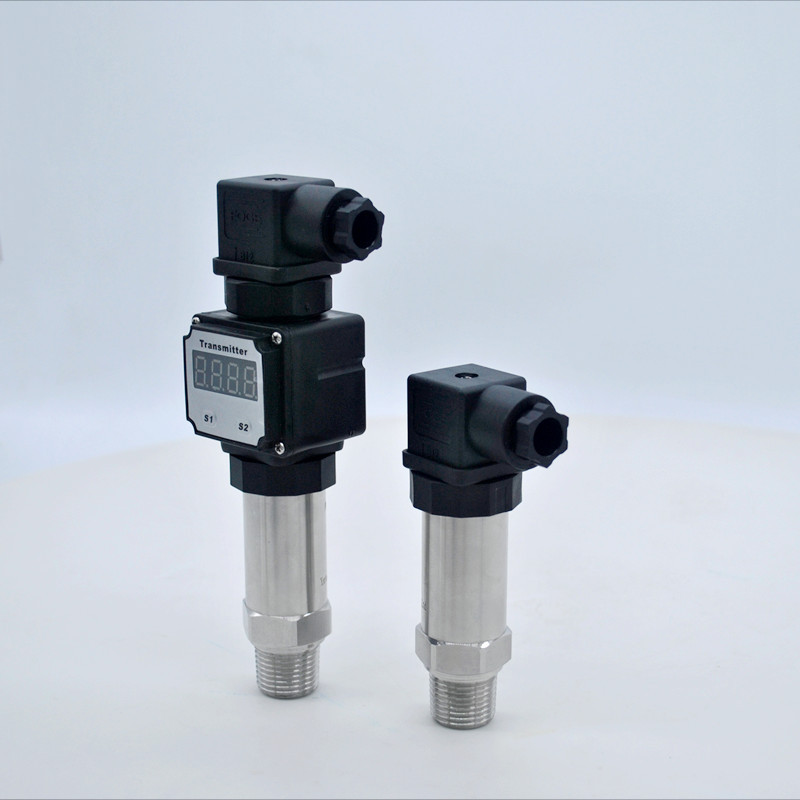

Diffused Silicon Sensor 4-20mA Output
- Information
- Product Description
- Video
Introduction
SP 2088 series pressure transmitter is the introduction of foreign technology and products produced using imported components, can be used to process fluid (liquid, gas) measured continuously changes. Will be converted into a 4-20mA standard current measured pressure signal output, and combined with other monitoring and control units, constitute automatic control system. Widely used in petroleum, chemical, metallurgy, electricity, medicine, beer, water treatment and other industries process monitoring and control.
Technical Parameters
Reference auuracy 0.2%FS. 0.5%FS
Stability better than 0.25%FS per year
Impact of installation location, no effect
Temperature effect (-15~50℃)
Less than 0.15%/10℃
Operating voltage: 15V~30V DC
Temperature Condition
Ambient Temperature: -10℃~70℃
Medium Temperature: -40℃~120℃
Storage Temperature: -40℃~110℃
Compensation Temperature: -15℃~50℃
Industry Application
Chemical Industry
Petroleum Industry
Metallurgy Industry
Thermal Equipment
Paper Making Industry
Order Sheet
| Item | Code | Specification |
| SP | Pressure Transmitter | |
| Process Connection Material | 1 | Stainless Steel |
Process Connection | R | G1/2'' |
| M | NPT1/2'' | |
| Y | Customize | |
| Sealing Material | IF | Fluoro Rubber(Standard) |
| IH | Fluoro Rubber Applied To Sensors(Over 10Mpa) | |
| Output | 2 | 4-20mA(Two Wire) |
| 3 | Customize | |
| Shell Material And Structure | A | Aluminum Shell PG16 Cable Sealing IP65 |
| B | Stainless Steel Shell Cylinder Structure | |
| Sensor Type | 1 | Diffused Silicon Type |
| 2 | Diffused Silicon Anti-Corrosion Type | |
| Explosion-Proof Requirements | D | No Explosion-Proof Required |
| E | Explosion-Proof Type | |
| Accuracy | 2 | 0.20% |
| 5 | 0.50% |
Ready To Delivery
