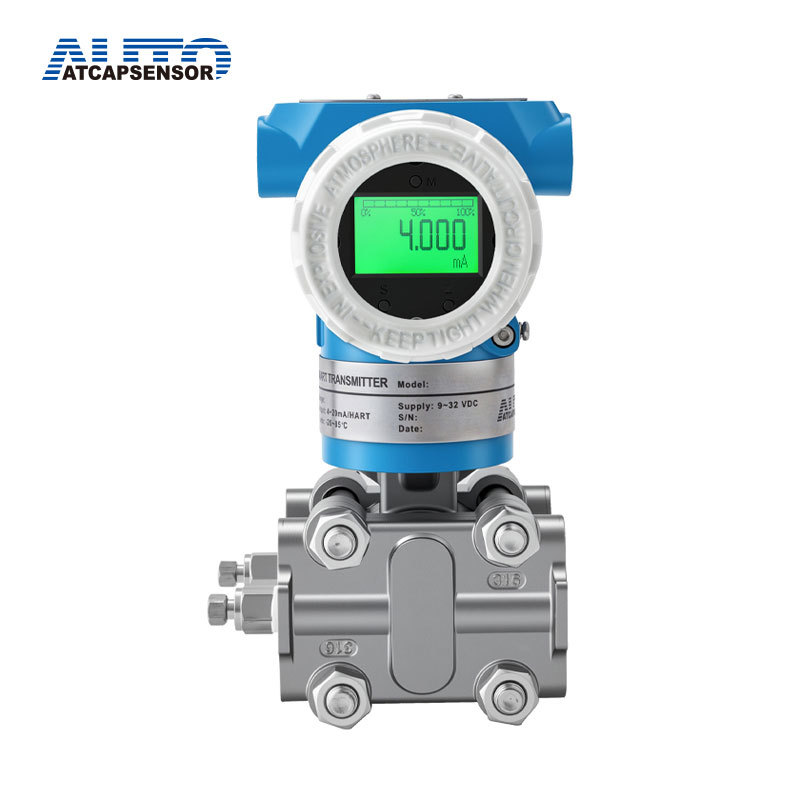

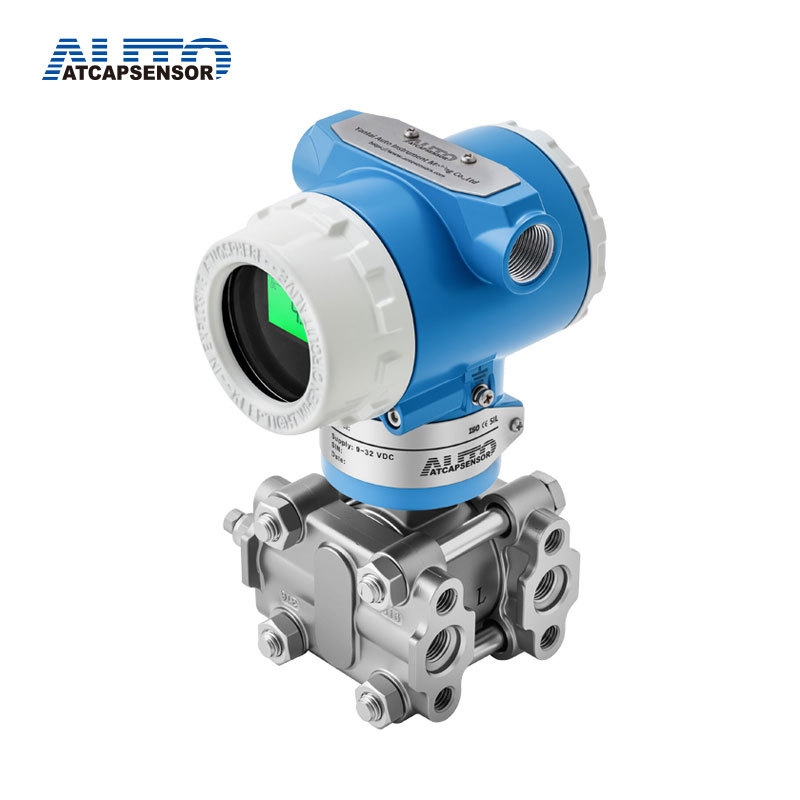

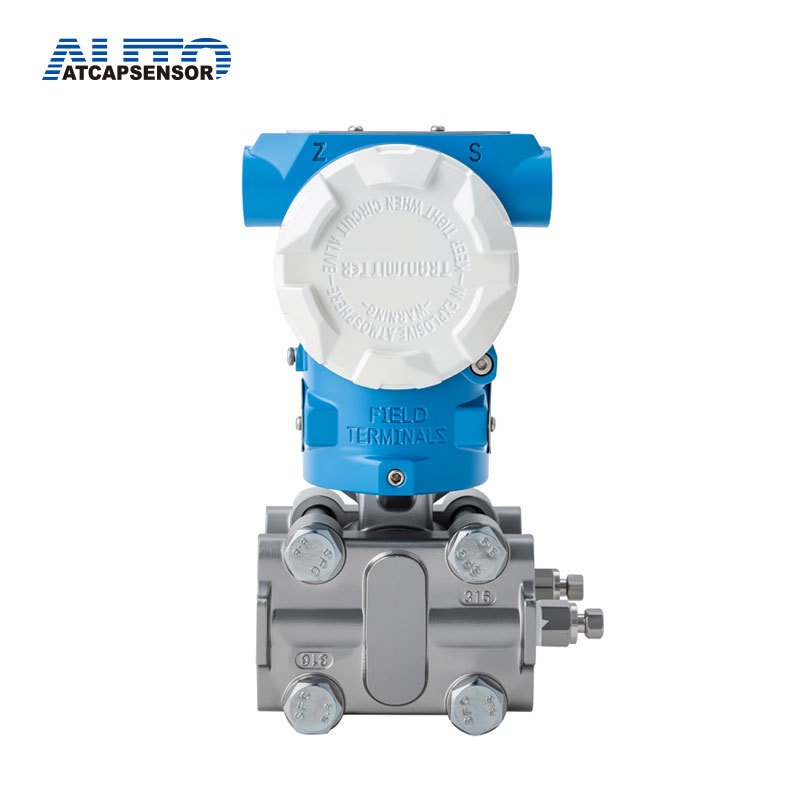

Digital Differential Pressure Transmitter 4-20mA
Introduction
The AT3051 DP is a high-performance differential pressure transmitter used to measure liquid, gas, or steam pressure. It measurements accurately, quickly, and reliably.
How Does a Differential Pressure Transmitter Work?
Differential Pressure (DP) transmitters measure the difference between two pressures. They use a reference point called the low-side pressure and compare it to the high-side pressure. Ports in the instrument are marked high-side and low-side. The DP level transmitter reading can be either negative or positive depending on whether the low-side or high-side is the larger value. A DP transmitter can be used as a gauge pressure transmitter if the low-side is left open to the atmosphere.
Digital Differential Pressure Transmitter
As part of a digital transformation, digital differential pressure transmitters can make data-gathering operations more efficient and safe for people.
Application:
1. Gauge and absolute pressure measurement of gas, vapour or liquid in various processing control fields
2. Level, volume or mass measurement in liquid;
3. Working with detecting elements to measure flow of gas, vapour and liquid ( volume and mass flow)
4. Highest measurement pressure up to 700bar.
Features:
Differential Pressure Transmitter Order Sheet
Product line
Digital Differential Pressure Transmitter 4-20mA
Application
Digital Differential Pressure Transmitter 4-20mA
1. High reference accuracy up to 0.1%.
2. Long-term drift ≤±0.25%URL for 1 year.

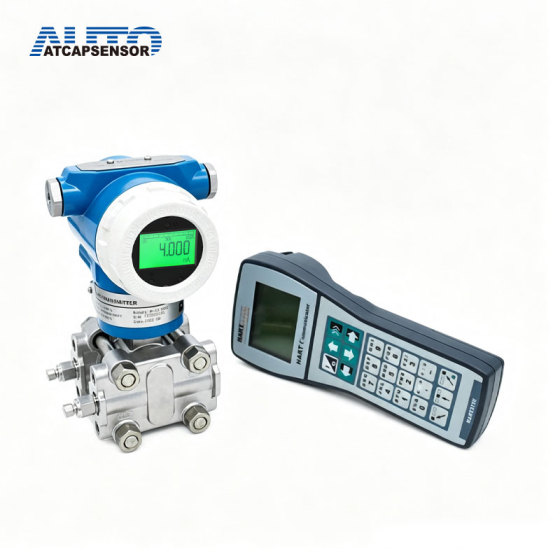

3. Hart protocol
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration
Product application
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.
