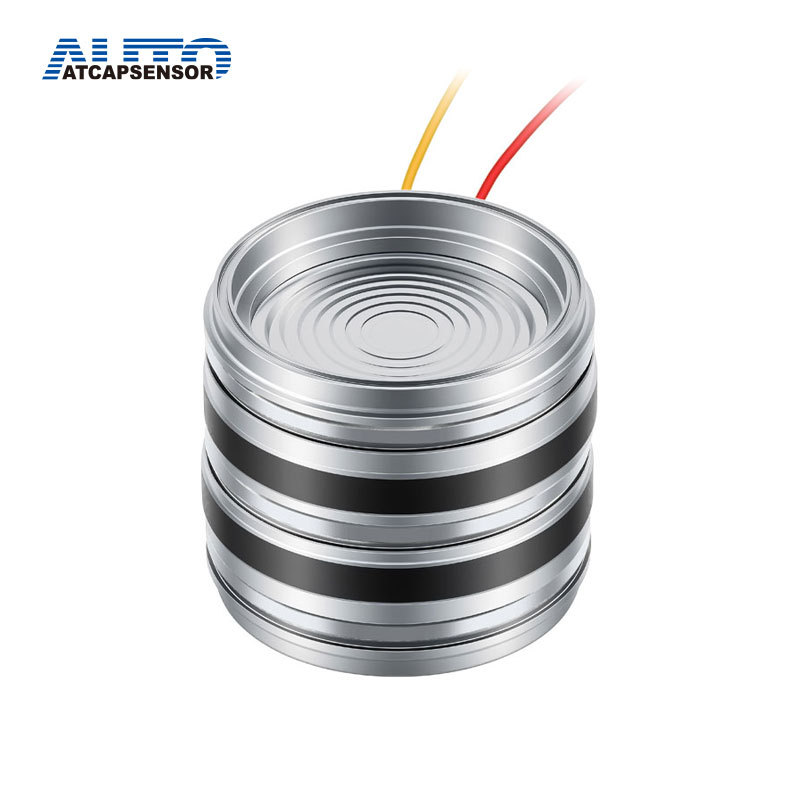

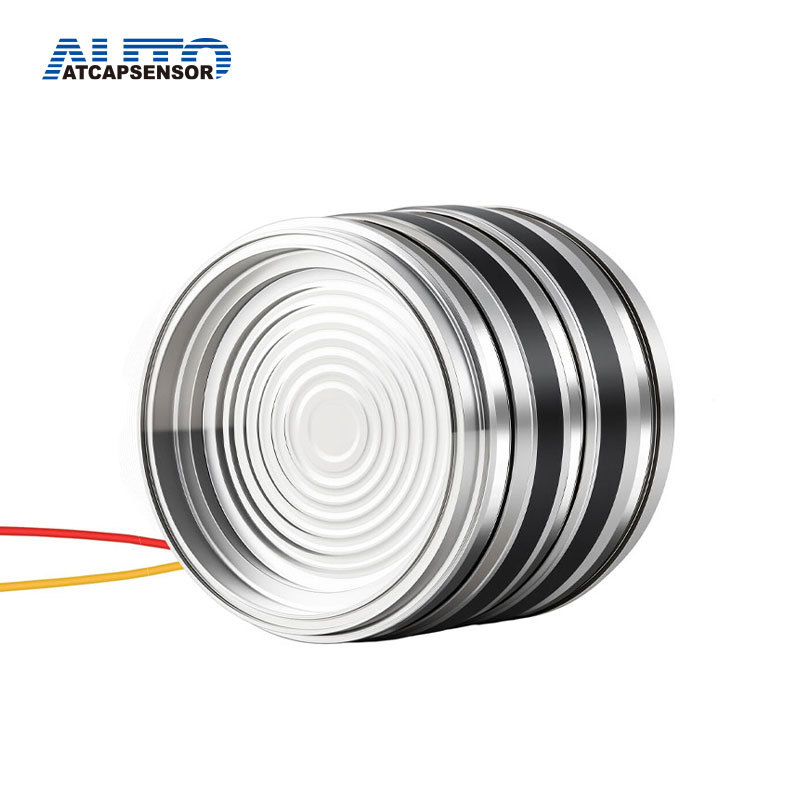

Dp Capacitance Type Pressure Sensor Transducer

Brief Introduction

The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor canalso measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

Features

• Stability:0.2%/Year


• Range:250pF ±20PF


• Zero:130pF ±20PF


• Accuracy:Nominal Range 0.1%


• Model Number:AT3051


• Process Temperature Range:-40 to 104°c

• Stability:0.2%/Year


• Fill Fluid：Silicone /Fluorine Oil

• Wiring System:3-Wire,5-Wire

• Housing Material:316SS

• Overpressure Limit:AP GP 13.8Mpa DR DP HP

Industry Application

Application:Excellent resistance against aggressive media
