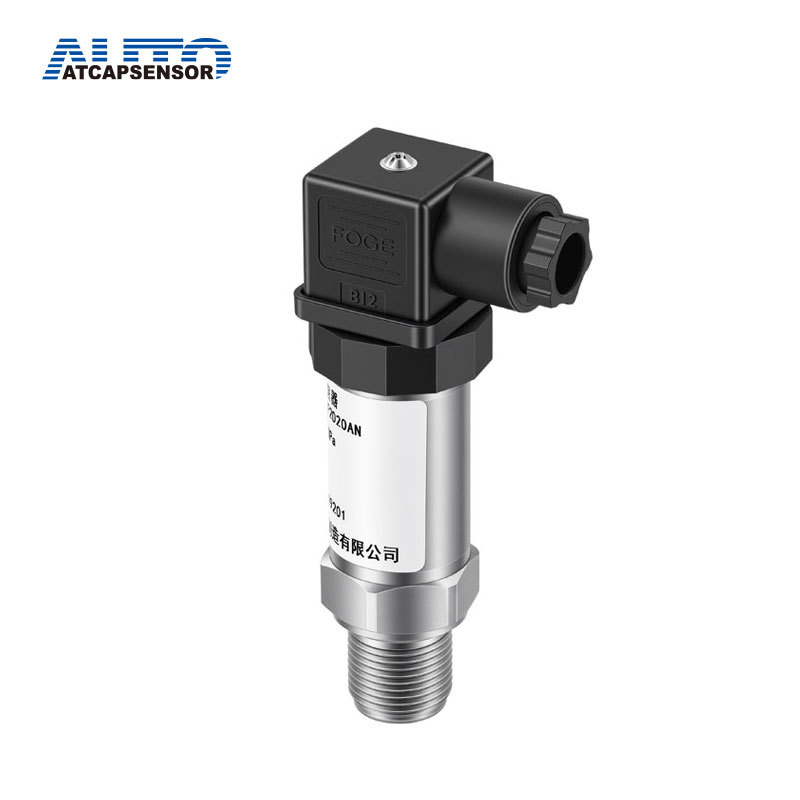

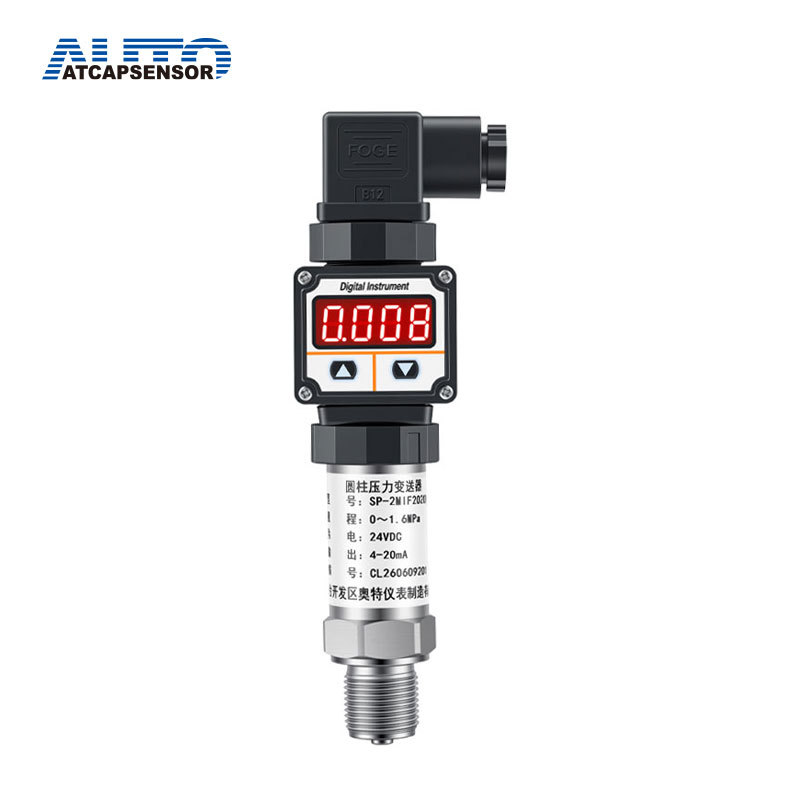

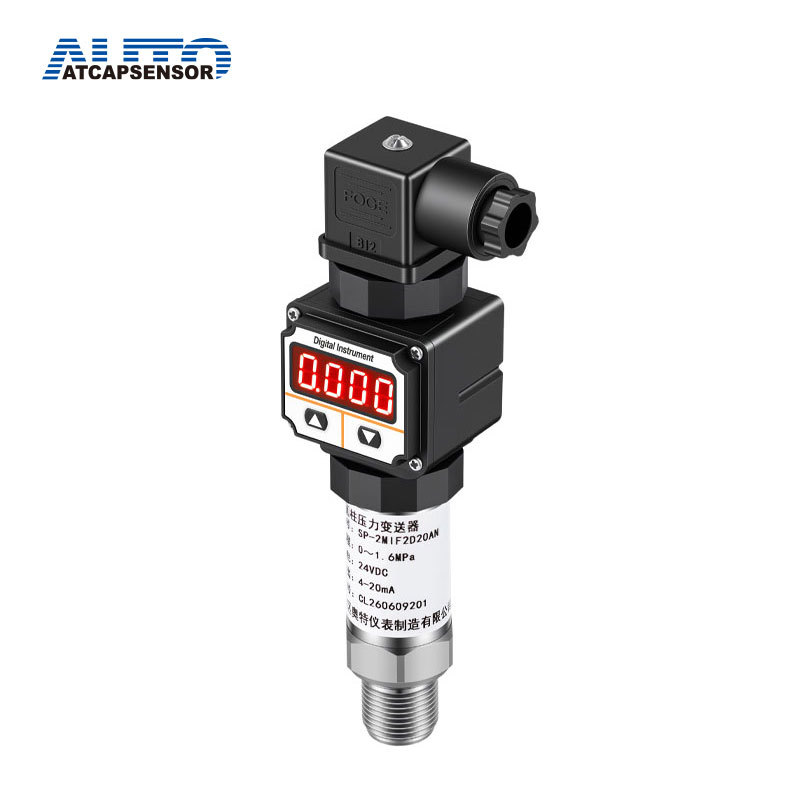

Electronic Steam Pressure Transducer 4-20mA
- Information
- Product Description
- Video
Introduction
SP series diffusion silicon pressure transmitter use isolated silicon piezoresistive sensor technology, modular compact structure design, convenient for science experiment user and instrument, machinery, facility, device, air compressor, oil equipment etc.usually connect with totalizer.
Diffusion silicon pressure transmitter is widely used for liquid, gas, steam measurement.
Features
Power Supply: 24VDC
Temperature Effect (-15-80℃)
Reference Accuracy: 0.2%FS, 0.5%FS
Measuring Medium: Liquid, Gas, Or Steam
Output Signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, Others
Process Connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M) As Required
Electrical Connections: 1/2”NPT Or M20*1.5
Industry Application
Process Control System
Petroleum Industry
Chemical Industry
Order Sheet
| Item | Code | Specification |
| SP | Pressure Transmitter | |
Process Connection Material | 1 | Stainless Steel |
Process Connection | R | G1/2'' |
| M | NPT1/2'' | |
| Y | Customize | |
| Sealing Material | IF | Fluoro Rubber(Standard) |
| IH | Fluoro Rubber Applied To Sensors(Over 10Mpa) | |
| Output | 2 | 4-20mA(Two Wire) |
| 3 | Customize | |
Shell Material And Structure | A | Aluminum Shell PG16 Cable Sealing IP65 |
| B | Stainless Steel Shell Cylinder Structure | |
| Sensor Type | 1 | Diffused Silicon Type |
| 2 | Diffused Silicon Anti-Corrosion Type | |
Explosion-Proof Requirements | D | No Explosion-Proof Required |
| E | Explosion-Proof Type | |
| Accuracy | 2 | 0.20% |
| 5 | 0.50% |
Production Line
Ready For Delivery
2.It serves as a versatile solution for the uninterrupted monitoring of pressure variables in liquids, gases, and steam.
3.In numerous sectors including petroleum, chemical, metallurgy, food, beverage, and textiles. Compact pressure transmitters with display find extensive application in process control and measurement.
