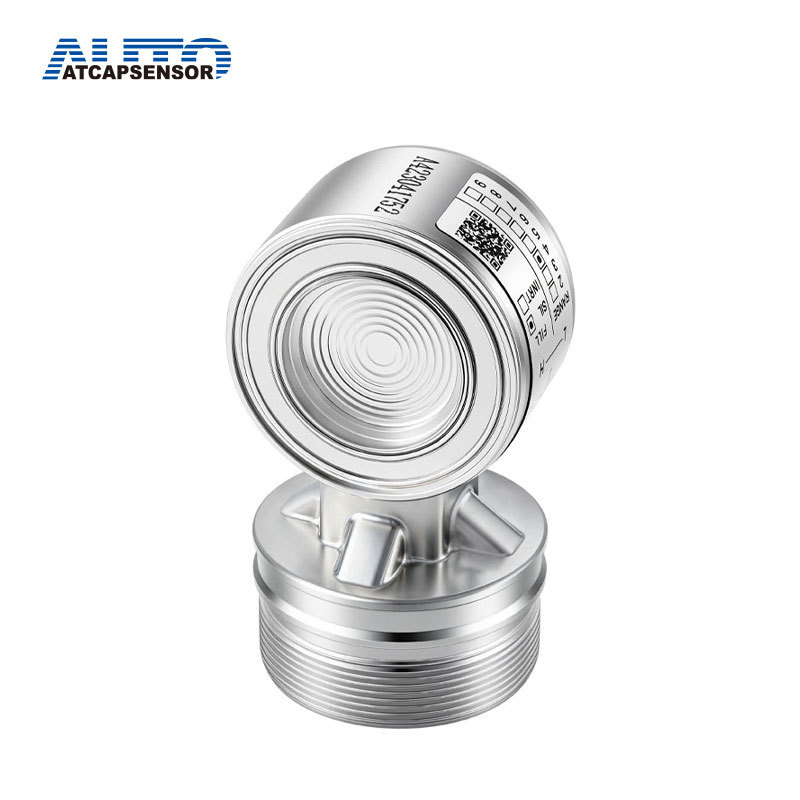

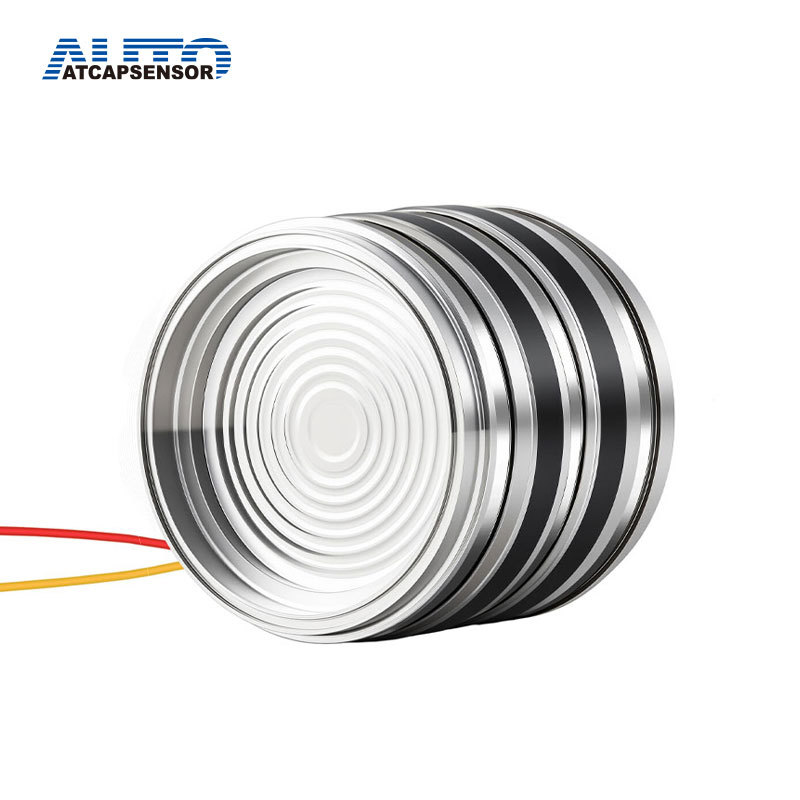

High Accuracy Capacitance Diaphragm Pressure Sensor
>

High Accuracy Capacitance Diaphragm Pressure Sensor

Get the latest price? We'll respond as soon as possible(within 12 hours)

Information
Product Description
Video

pressure transmitter sensor

Brief Introduction

The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor canalso measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

Features

Stability:0.2%/Year
Range:250pF ±20PF
Zero:130pF ±20PF
Accuracy:Nominal Range 0.1%
Model Number:AT3051
Process Temperature Range:-40 to 104°c

Stability:0.2%/Year

Fill Fluid：Silicone /Fluorine Oil
Wiring System:3-Wire,5-Wire
Housing Material:316SS
Overpressure Limit:AP GP 13.8Mpa DR DP HP

Parameters

Model	Stability	Temp Limit	Pressure Limit	Range
AT3051DP	±0.1% URL	-40~140℃	13.79MPa	1.3~6890KPa
AT3051GP	±0.1% URL	-40~140℃	13.79MPa	1.3~41370KPa
AT3051DR	±0.2% URL	-40~140℃	6.9MPa	0.125~1.5KPa
AT3051HP	±0.1% URL	-40~140℃	31.02MPa	6.2~2068KPa
AT3051AP	±0.1% URL	-40~140℃	13.79Mpa	6.2~6890KPa
AT3051LT	±0.2% URL	-40~140℃		635~70380mmH2O
AT3051DP	±0.1% URL	-40~149℃	13.79Mpa	635~6895KPa
AT3051GP	±0.1% URL	-40~149℃	51.71MPa	635~6895KPa
AT1151DP	±0.1% URL	-40~140℃	13.79Mpa	1.3~6890KPa
AT1151GP	±0.1% URL	-40~140℃	51.71MPa	1.3~41370KPa
AT1151DR	±0.2% URL	-40~140℃	6.9MPa	0.125~1.5KPa
AT1151HP	±0.1% URL	-40~140℃	31.02MPa	6.2~2068KPa
AT1151AP	±0.1% URL	-40~140℃	13.79MPa	6.2~6890KPa
AT1151LT	±0.1% URL	-40~140℃		635~70380mmH2O
AT1151DP	±0.1% URL	-40~140℃		6.2~6890KPa
AT1151GP	±0.1% URL	-40~140℃		6.2~6890KPa
AT2088	±0.5% URL	-40~120℃		-0.1~40MPa
SP	±0.5% URL	-20~80℃		-0.1~40MPa
SH-A	±0.5% URL	-20~80℃		0-20mm

Pressure Range

Product name	Code	Range
capacitive pressure sensor	2E	0-0.125-1.5kPa
	3E	0-1.3-7.5kPa
	4E	0-6.2-37.4kPa
	5E	0-31-186.8kPa
	6E	0-117-690kPa
	7E	0-345-2068kPa
	8E	0-1170-6890kPa
	9E	0-3480-20680kPa
	0E	0-6890-41370kPa

Production Line

dp pressure sensor

Related Product

dpt sensor

1.The dpt pressure sensor exhibits exceptional performance and is employed for measuring pressure, differential pressure, liquid levels, and flow rates.
2.The pressure transmitter sensor utilizes advanced computer-controlled positioning and tensioning techniques, ensuring precise center diaphragm alignment and optimal tension, resulting in a significant enhancement in accuracy.
3.The diff pressure sensors find applications across various industries, including but not limited to petroleum, chemical, electric power, metallurgy, hydrology, and process control.
