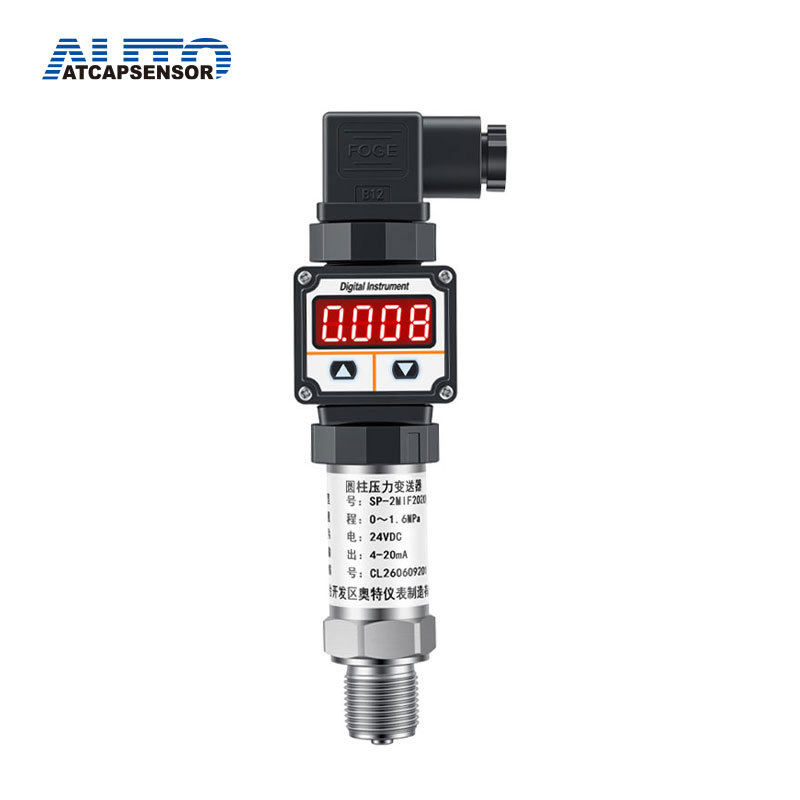

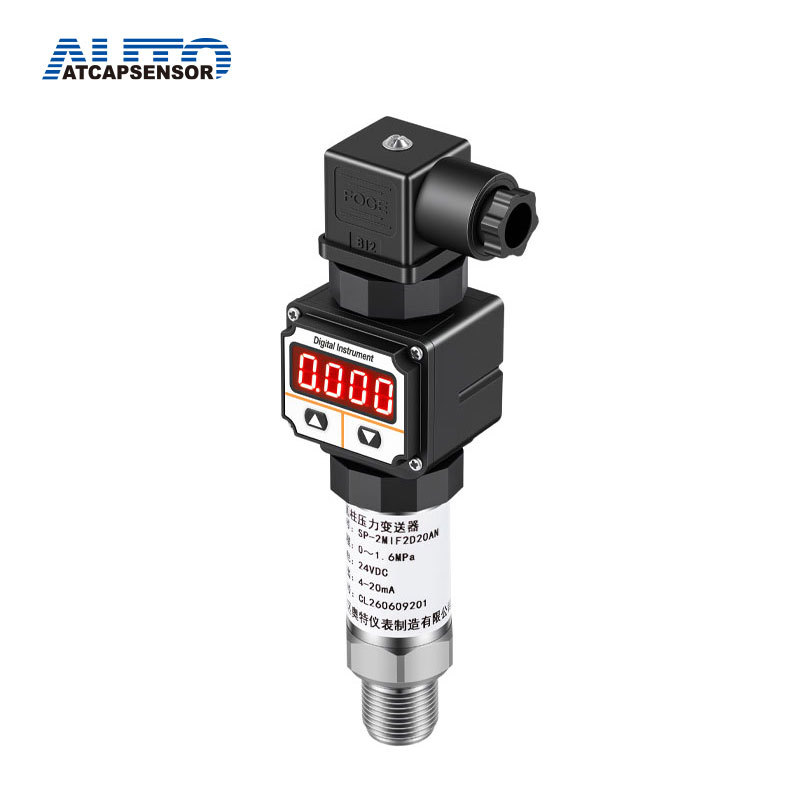

High Temperature 4-20mA Pressure Sensor Transducer
- Information
- Product Description
- Video
4-20mA Pressure Transducer for Liquid, Steam, and Gas
Introduction
Utilizing piezo-resistive silicon technology, this pressure sensor transducer employs an isolated stainless steel diaphragm as its sensing element. The 4-20ma pressure transducer sensor undergoes comprehensive computerized testing and laser trimming for zero sensitivity across a broad temperature range. Housed in stainless steel, the amplifier circuit transforms sensor signals into standard output signals. Known for its integrated construction, durability, high measuring accuracy, and long-term stability, this pressure sensor transducer is well-suited for pressure measurement in various general industry applications.
Pressure Sensor Transducer Feature
1. Compact construction,no moving parts,long service life
2. Low price,low cost
3. Diffused silicon sensor
4. High accuracy,stability
5. Easy installation,simple structure,economical type
Compact Pressure Transmitter Order Sheet
Name | Specification code | Explanation |
sp | Pressure Transmitter | |
Process Connection Material | 1 | Stainless Steel |
Process Connection Structure | R | external thread G1/2″ |
M | external thread M20×1.5 | |
Y | Customize | |
Sealing Material | IF | fluoro rubber(standard) |
IH | fluoro rubber applied to Sensors(Over 10MPa) | |
Electronic Components of Transmitters | 2 | Analog signal 4-20mA (two wire) |
3 | customize | |
Shell material and structure | A | Aluminum shell PG16 cable sealingIP65 |
B | Stainless steel shell cylinder structure | |
Sensor Type | 0 | Diffused Silicon Type |
1 | Diffusion silicon anti-corrosion type | |
Explosion-proof Requirements | D | No Explosion-proof Required |
E | Explosion-proof type | |
Accuracy | 2 | 0.2% |
5 | 0.5% |
High Temperature Compact Pressure Transmitter
