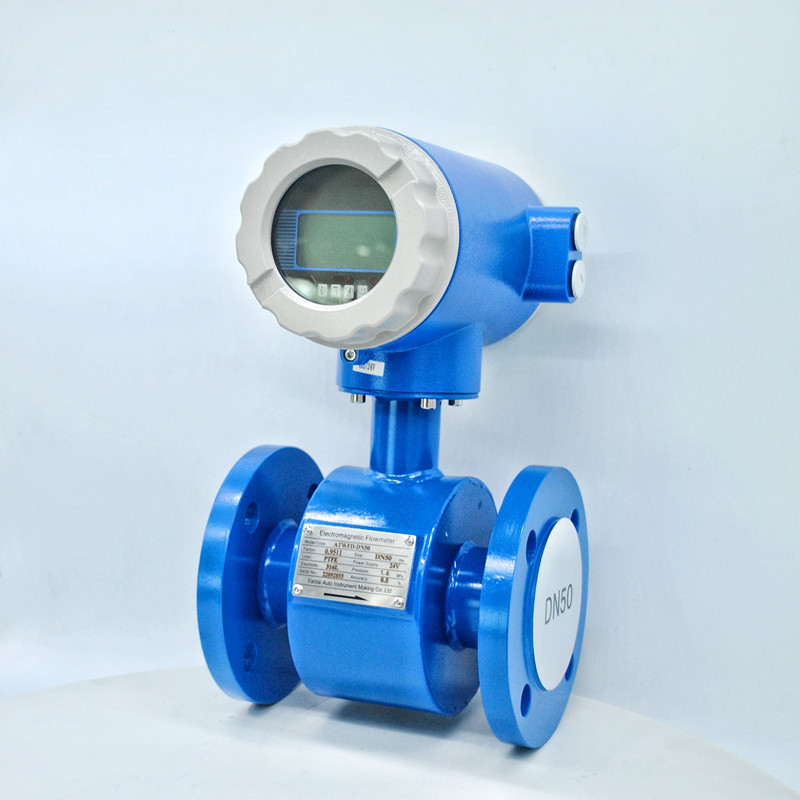

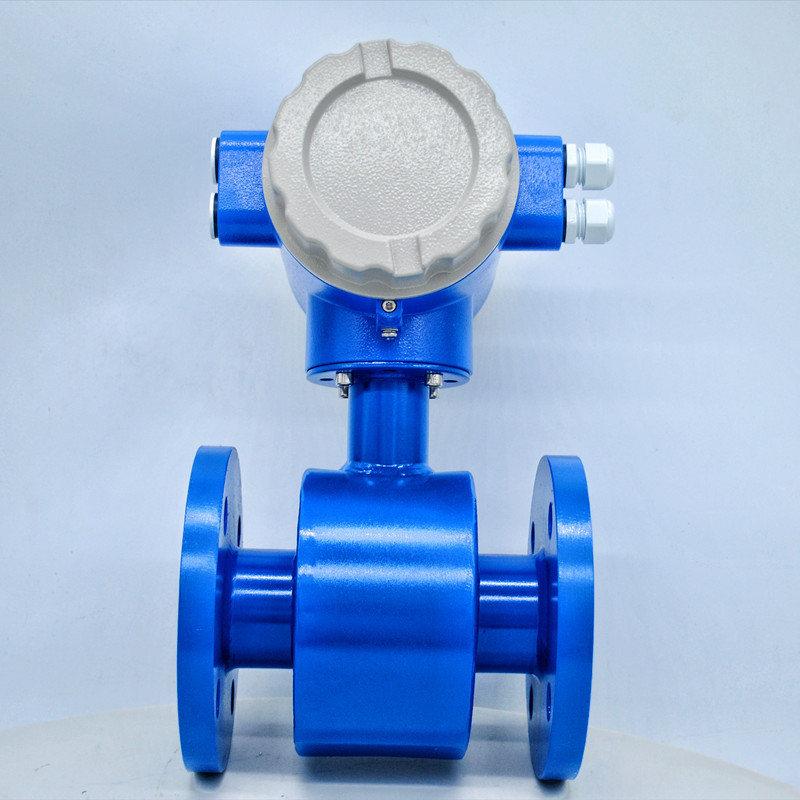

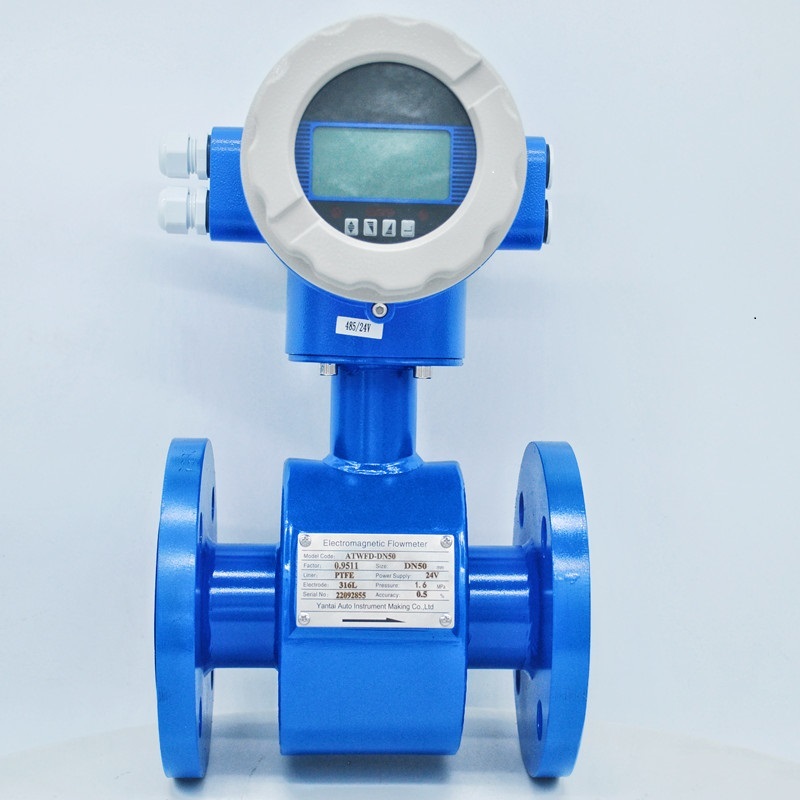

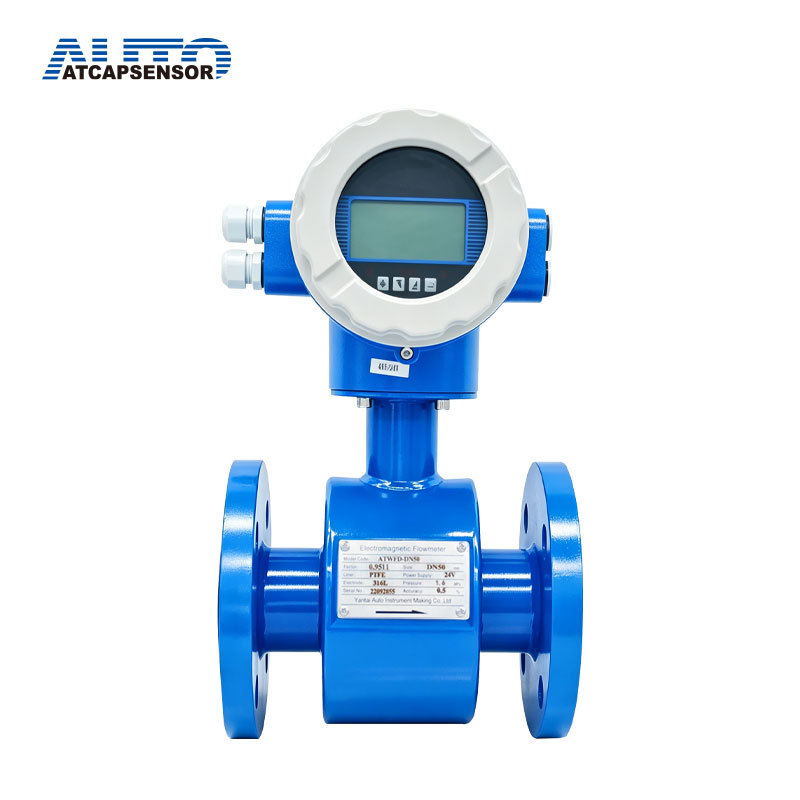

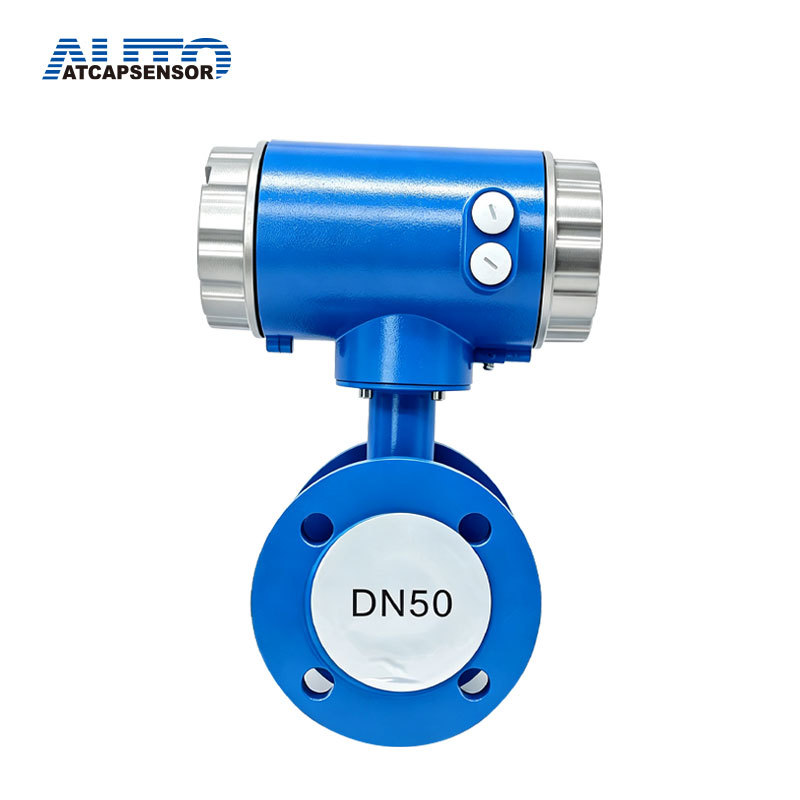

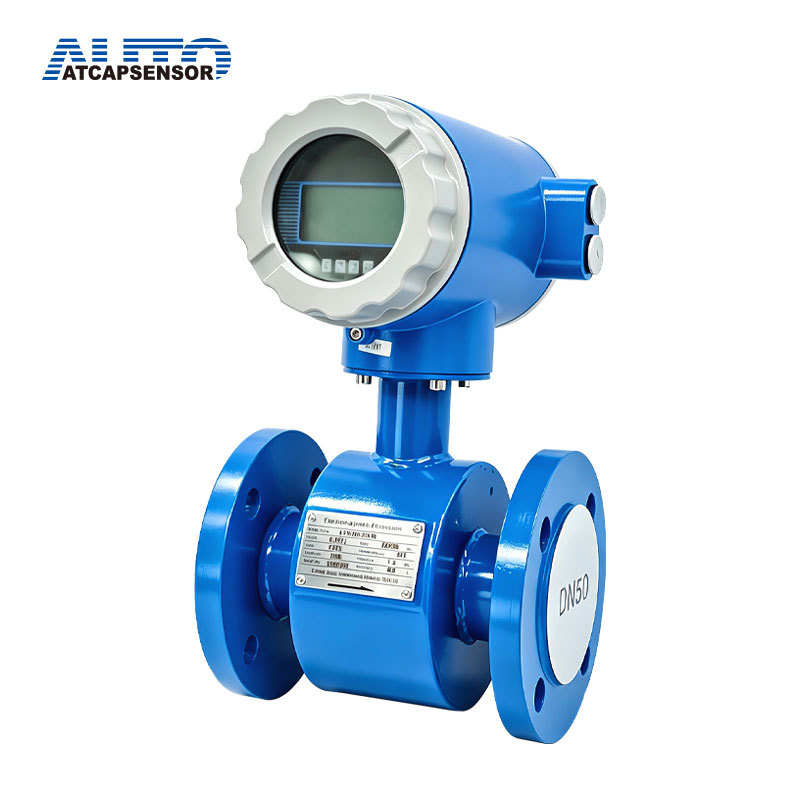

Hot Water Electromagnetic Flow Meter
- Information
- Product Description
- Video
- Download
Description
The hot water flow meter is an electromagnetic flowmeter with the characteristics of simple structure, light weight, high precision, good repeatability, sensitive response, convenient installation, maintenance and use, which has absorbed the advanced technology of flow meters at home and abroad and has been optimized. Displays total flow, instantaneous flow and percentage of flow full scale.
The battery adopts long-lasting lithium battery. The battery life of the single-function accumulating meter can reach more than 3 years. It can be matched with a display instrument with special functions, and can also perform quantitative control and over-amount alarm. It is an ideal instrument for flow measurement and energy saving. This type of electromagnetic flow product itself has the function of on-site display, and can also transmit the flow signal far away in the form of pulses. The instrument is cheap and highly integrated, especially suitable for use with computer control systems such as secondary display instrument, PLC, DCS, etc.
Application:
Conductive liquids and slurries,
Petrochemical
Ferrous Metallurgy
Water Supply and Sewerage
Water irrigation
Water treatment
Total control of environmental protection sewage
Electricity
Papermaking
Food
Features:
Simple structure and long working life.
Good stability, can be applied to automatic detection.
With bidirectional flow measurement
English menu operation, easy to operate
High definition LED display.
With self-test and self-diagnosis functions.
Type | Hot water flow meter (Integrated/ Spit ) | Battery Electromagnetic water flow meter | Insertion Magnetic Flow Meter |
Pipe | 3/8" - 80" (DN10 - DN2000) | 1/8" - 24" (DN3 - DN600 ) | 3/8" - 240" (DN10 - DN6000 ) |
Acc | ±0.5% | ||
Conductivity | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm |
Process Temp. | --50-180°C | -50-150°C | -50-180°C |
Housing | Carbon Steel | ||
Electrode | 316L/ HC/ HB/ Ti/ Tan | ||
Lining | Rubber/PTFE / PFA / F46 | ||

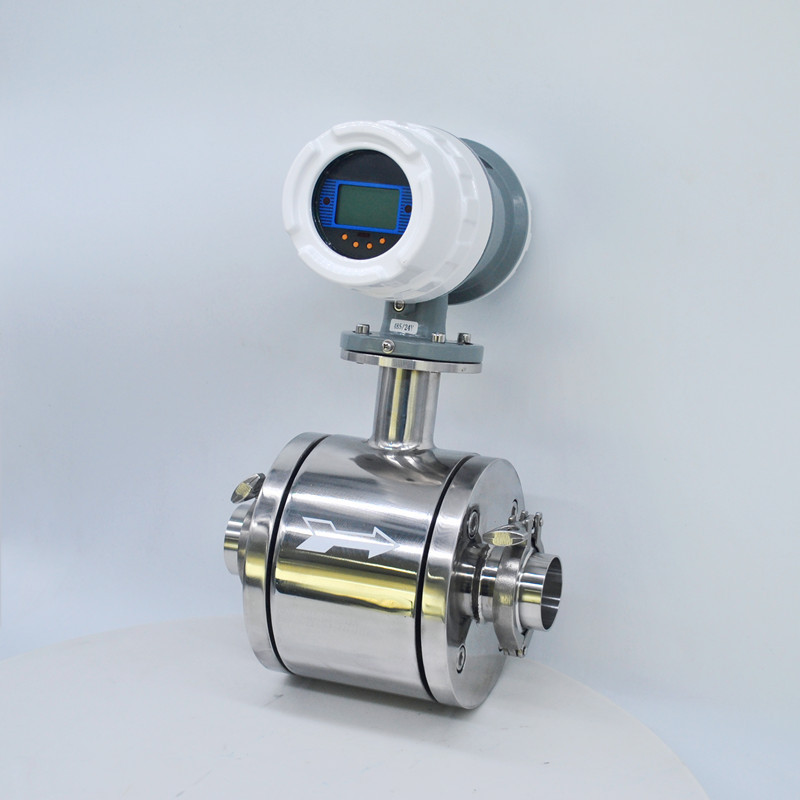

Process Connection | Wafer Thread Flange (ANSI, DIN, JIS) Tri-clamp On (Sanitary) | ||
Protection | IP 65 (Integrated Type) IP 68 (Remote Type) | ||
Powered | AC 220V / DC 24V | ||
Ambient Temperature | -20 - 55 °C |
Hot water flow meter Order Sheet
Model | Suffic code | Description | ||||||||
ATWFD | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Electromagnetic flow meter | |
Diameter | xx | Standard for diameter 0006:DN6;0015: DN15 0100:DN100;2200:DN2200 | ||||||||
Structure | S | Integrated type with LCD display
| ||||||||

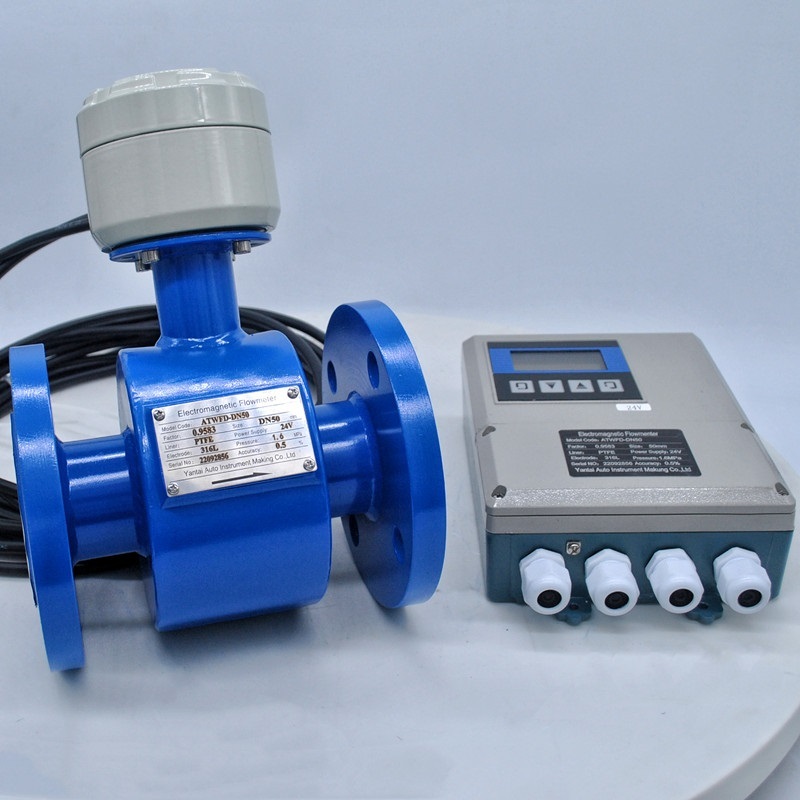

L | Remote type with 10 meter cable | |||||||||
Electrode material | M | Ss316 | ||||||||
T | Titanium | |||||||||
D | Tantalum | |||||||||
H | Hastelloy Alloy C | |||||||||
P | Plstinum-Iridium | |||||||||
Signal output | 0 | No output | ||||||||
1 | 4-20mA/Pulse | |||||||||
Liner material | X | Rubber | ||||||||
P | Propylene Oxide | |||||||||
F | PTFE | |||||||||
A | PFA | |||||||||
Power supply | 0 | 110-240VAC | ||||||||
1 | 24VDC(20-36VDC) | |||||||||
2 | Battery power supply | |||||||||
communication | 0 | NO communication | ||||||||
1 | Modbus RS485 | |||||||||
2 | Hart | |||||||||
3 | GPRS | |||||||||
connection | DXX | D16 DIN PN16 Flange, D25 DIN PN25 Flange..... | ||||||||
AXX | A15 ANSI150#Flange A30 ANSI300#Flange..... | |||||||||
JXX | J10 JIS 10K Flange J20 JIS 20K Flange...... | |||||||||
XXX | Other request | |||||||||
Body material | CS | Carbon steel | ||||||||
S4 | Stainless steel 304 |
Calibration line
Hot water flow meter applications
2. Using advanced non-volatile memory, the circuit reliability is higher, and the setting and measurement parameters are effectively protected
