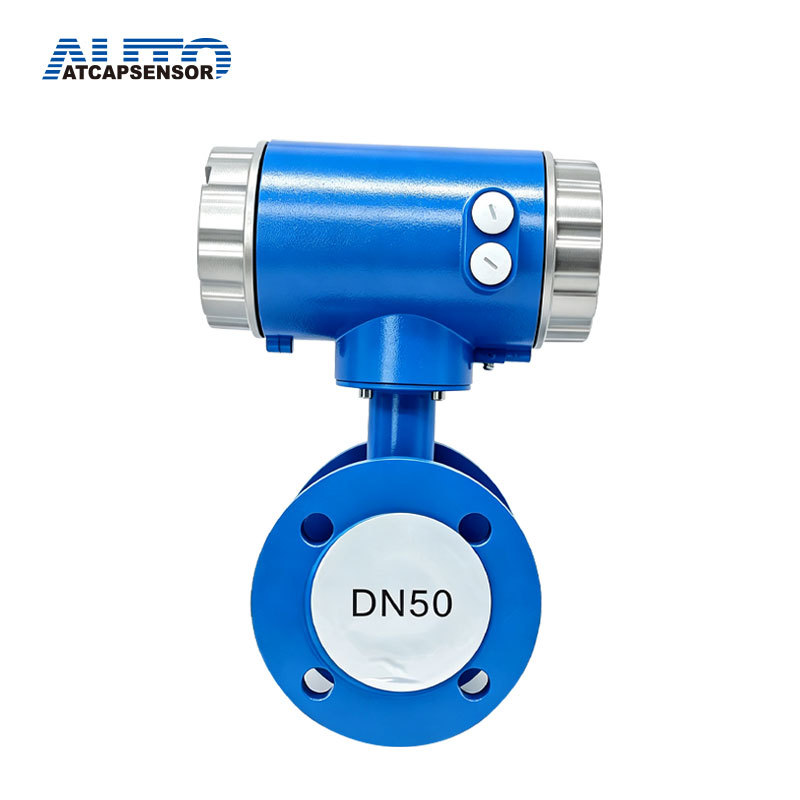

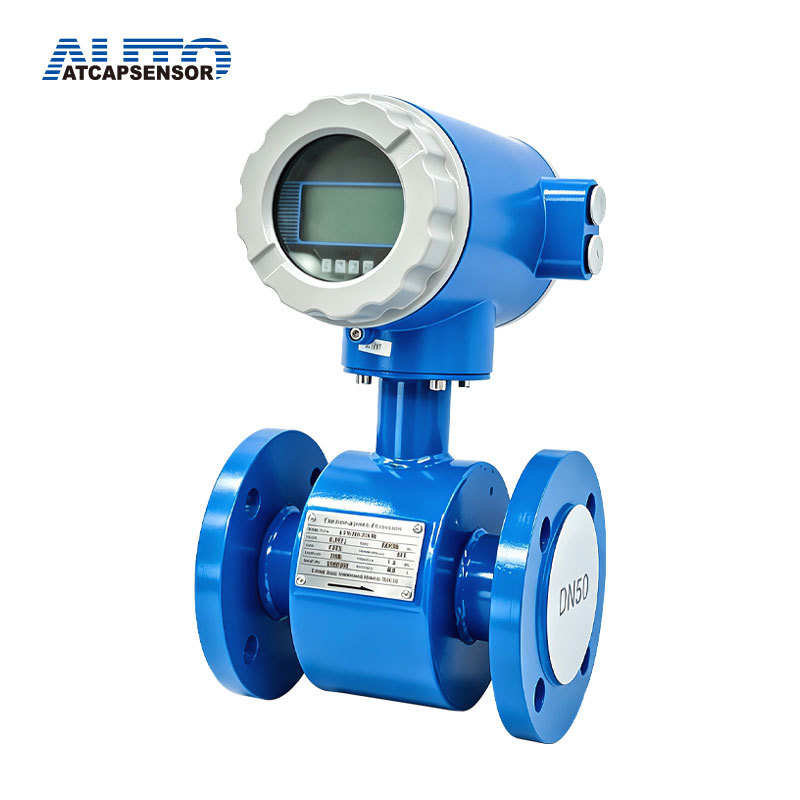

Inline Sea Water Electromagnetic Flow Meter
- Information
- Product Description
- Video
- Download
Electromagnetic flow meters are flowmeters that measure flow according to Faraday's law of electromagnetic induction. Electromagnetic flowmeters have the advantage of minimal pressure loss and a large range of measurable flow rates. The ratio of the maximum flow rate to the minimum flow rate is generally more than 20:1. The applicable industrial tube diameter is wide, up to 3 meters. The output signal and the measured flow rate are linear, and the accuracy is high. The conductivity can be measured ≥5μs/cm. Acid, alkali, salt solution, water, sewage, corrosive liquids, and fluid flow of mud, pulp, pulp, etc. However, it cannot measure the flow of gas, steam, and pure water.
CONVERTOR
Zero point stability,
low powerconsumption and high precisionLCD display,
Cumulative flow,lnstantaneous flow, Forward flow,Reverse flow, etc.
Units: L/h, U/m, L/s, m/h, m/m, m3/s, etc.Default Language: English.
BODY
Anticorrosive paint strict process..
Very shiny surface by polishing workmanship.
Various of flange standard,such as DIN,JIS,ANSI,ASME,BS,etc.
Lining and electrodes are selected regarding flow medium
Power Supply | 110-240Vac (Optional: 24 Vdc) |
Power Consumption | 10W |
Accuracy | 0.5% accuracy of rate from 0.3-10 m/s |
Repeatability | 0.2% |
Minimum Fluid Conductivity | 5.0 micromhos/cm |
Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
Analog Output | 4-20mA, 750ohms Max Load |
Output Frequency | Scaled Pulse output, (open collector) Max 5Khz |
Noise Damping | Programmable |
Pulse Width | Programmable up to 500ms |
Zero-point Stability | Automatic correction |
Ambient Temperature | -20 to 60 C |
Electrode Materials | SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
Liner Material | PTFE, FEP, Hard Rubber |
Fluid Temperature | PTFE: 120C Standard (Customized: 180C) Rubber: 60C |
Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
Coil Power | Pulsed DC |
Pipe Spool Material | SS316 |
Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
Flange | Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
Order sheet
Calibration line
Magnetic flow meter applications
Inline Sea Water Electromagnetic Flow Meter
WFD series electromagnetic flow meter are widely applied in, chemical, thermo electricity, mining and metallurgy, coal industry, food industry, sewage treatment and other industries. Our electromagnetic flow meter has two types: Integrated type electromagnetic flow meter and Split type electromagnetic flow meter.
