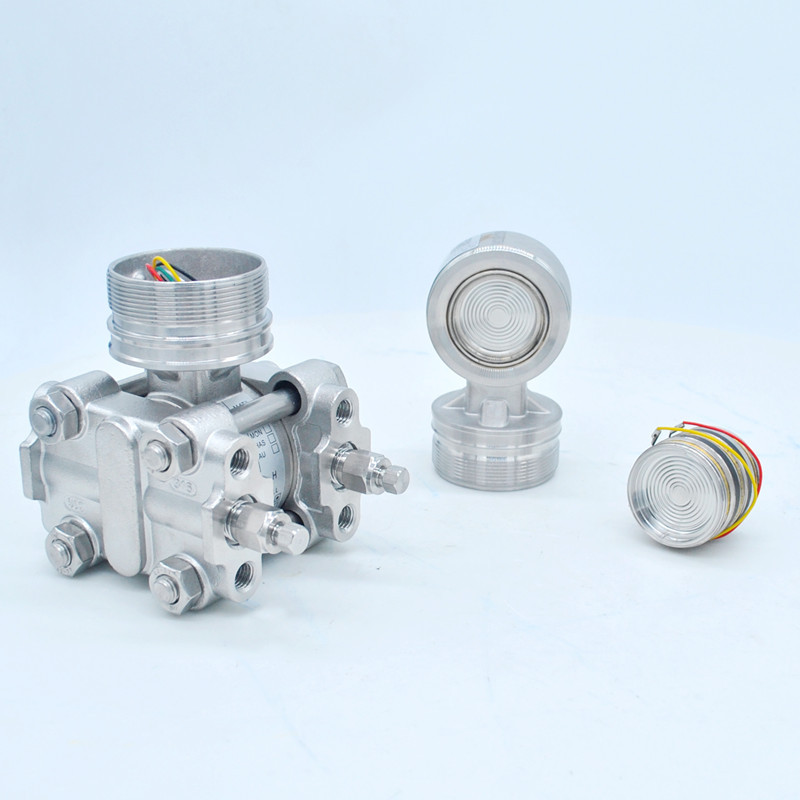

Metal Capacitive Differential Pressure Sensor
The medium pressure is transferred to the test diaphragm in the middle of δ room by the barrier diaphragm and Silicon oil. Since the test diaphragm of the dpt sensor is a securely flexible component, it responds to pressure discrepancies by generating displacement. The displacement of the diaphragm corresponds directly to the pressure difference. The maximum displacement measures 0.1mm. Subsequently, the differential capacitor connecting the test diaphragm and capacitive board is transitioned to the standard output by the Circuit Current.
Features
The pressure differential sensor:
Stability:0.2%/Year
Range:250pF ±20PF
Zero:130pF ±20PF
Accuracy:Nominal Range 0.1%

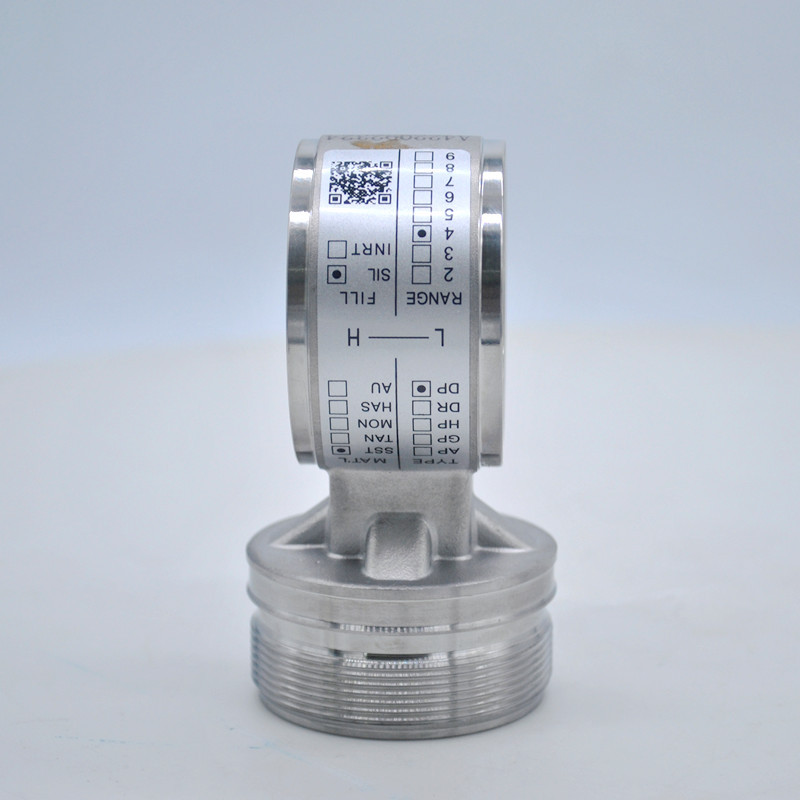

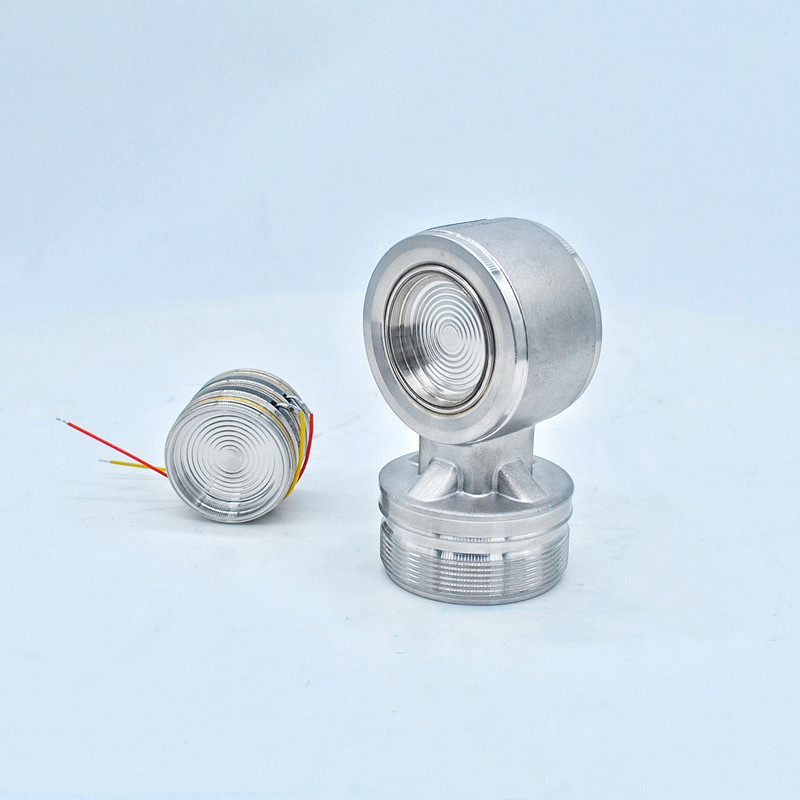

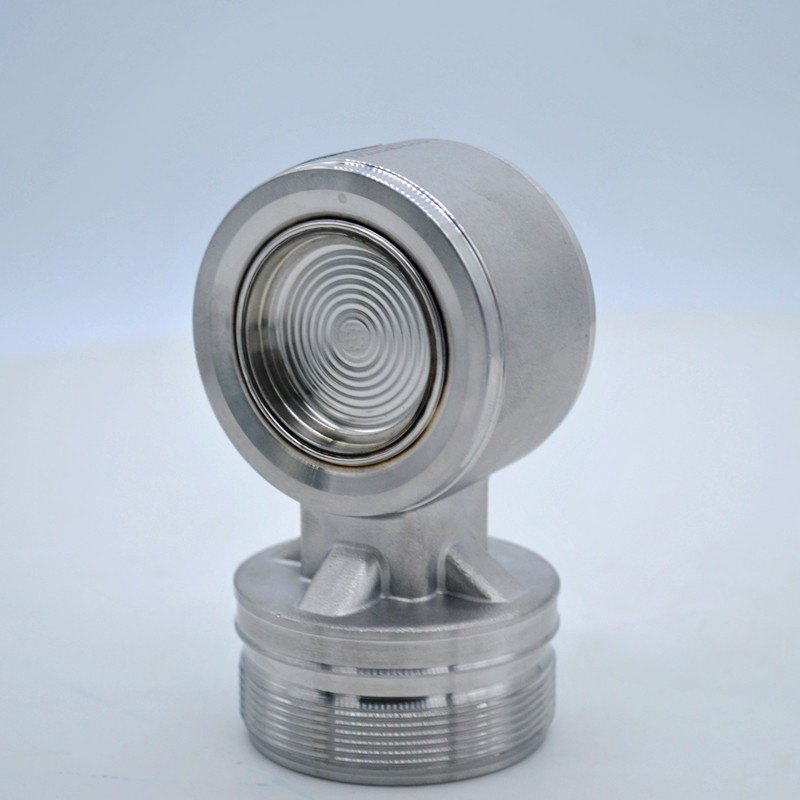

Model Number:AT3051
Performance
| Item | Parameters |
Accuracy | ±0.1% |
| Stability | ±0.2% (12 months) |
| Temp Range | -40℃ ~+140℃ |
| Tem Affect | zero error: ±0.25% / 55℃ |
| zero error: ±0.25% / 55℃ | |
| Static Pressure | DP 13.8MPa HP 25MPa DR 6.9MPa |
| Overpressure Limit | AP GP 13.8MPa DR DP HP |
| Diaphragm Material | 316Lss Hastelloy C Tantalum |
Pressure Range of Capacitance Pressure Sensor
| Product name | Code | Range |
| capacitive pressure sensor/pressure differential sensor | 2E | 0-0.125-1.5kPa |
| 3E | 0-1.3-7.5kPa | |
| 4E | 0-6.2-37.4kPa | |
| 5E | 0-31-186.8kPa | |
| 6E | 0-117-690kPa | |
| 7E | 0-345-2068kPa | |
| 8E | 0-1170-6890kPa | |
| 9E | 0-3480-20680kPa | |
| 0E | 0-6890-41370kPa |
Production Line
Fill Fluid：Silicone /Fluorine Oil
Wiring System:3-Wire,5-Wire
Overpressure Limit:AP GP 13.8Mpa DR DP HP
