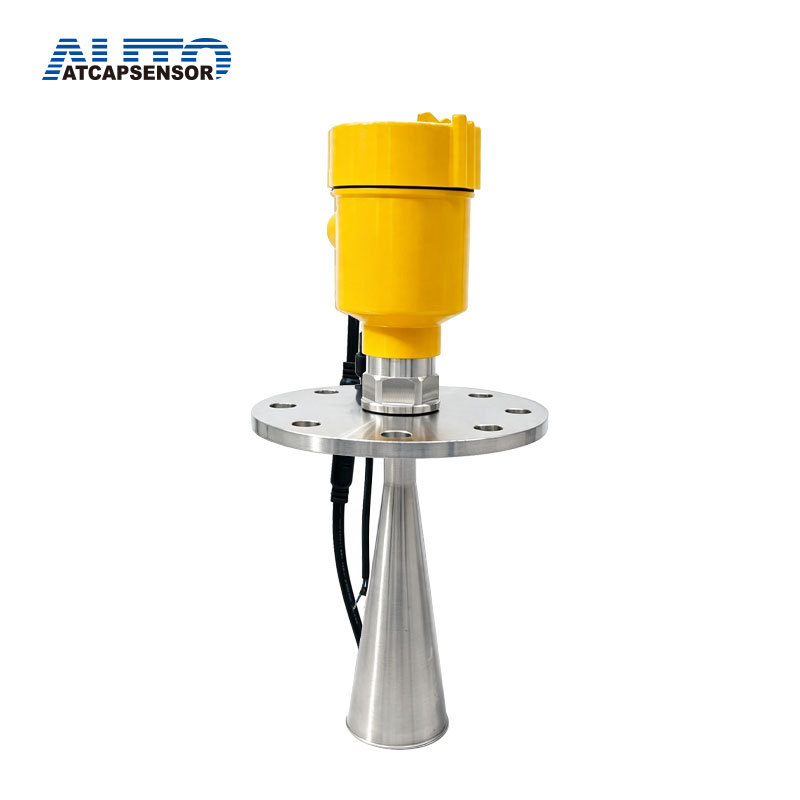

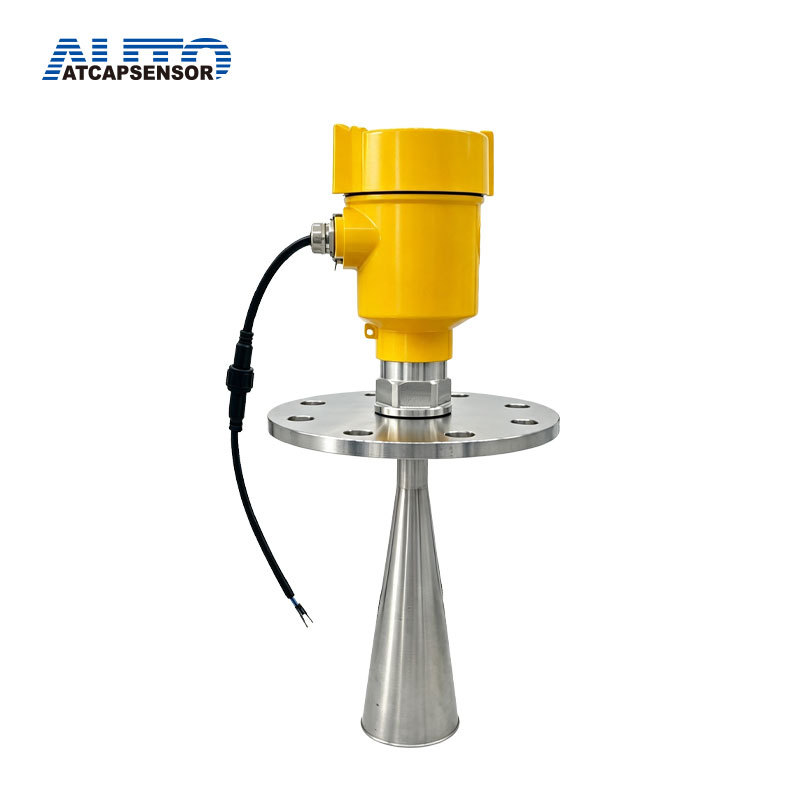

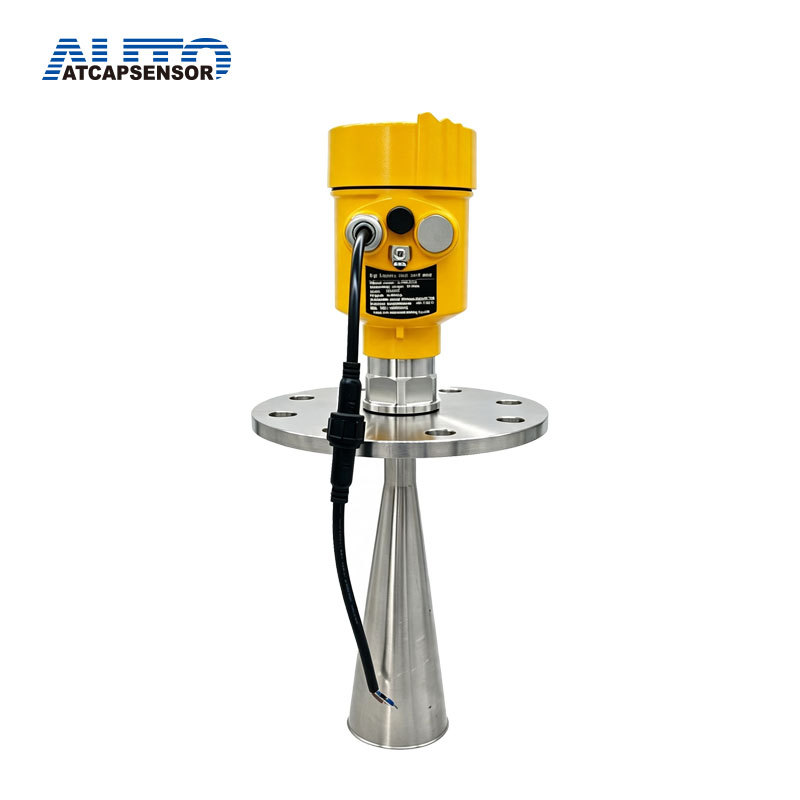

Ultrasonic Digital Liquid Radar Level Meter
- Information
- Product Description
- Video
Introduction
With the radar level transmitter's tailored configuration and setup, this radar level sensor presents a dependable and cost-effective solution for myriad level measurement needs. With the radar level indicator's adaptable antenna system, the radar level meter guarantees hassle-free operation across a spectrum of applications, ensuring minimal maintenance requirements.
Principle
The radar level meter 4-20ma is an advanced instrument used for measuring the level of liquid or solid materials contained in a tank or vessel. The radar level sensor utilizes radar technology to accurately determine the distance between the transmitter and the surface of the substance being measured.
Radar Level Indicator Model Selection
Measuring medium: Liquid
Measuring range: 0.1m~30m
Process connection: Flange≥DN40
Process temperature: -40~100℃
Process pressure : -0.1~0.3MPa
Antenna size: 32mm lens antenna
Antenna material: PTFE
Accuracy: ±2mm
Protection level: IP67
Center frequency: 80GHz
Launch angle: 8°
Measuring medium: Solid
Measuring range: 0.1m~30m/0.3~150m
Process connection: Flange≥DN40
Process temperature: -40~80℃/-40~120℃
Process pressure : -0.1~0.3MPa
Antenna size: 76mm lens antenna
Antenna material: PTFE
Accuracy: ±5mm
Protection level: IP67
Center frequency: 80GHz
Launch angle: 3°
Measuring medium: Liquid
Measuring range: 0.1m~10m
Process connection: Flange≥DN25
Thread G¾" A /¾"NPT
Process temperature: -40~100℃
Process pressure : -0.1~1.6MPa
Antenna size: 21mm lens antenna
Antenna material: PTFE
Accuracy: ±5mm
Protection level: IP67
Center frequency: 80GHz
Launch angle: 14°
80G FMW Series Radar Level Transmitter 4-20mA
Radar Level Sensor Application
