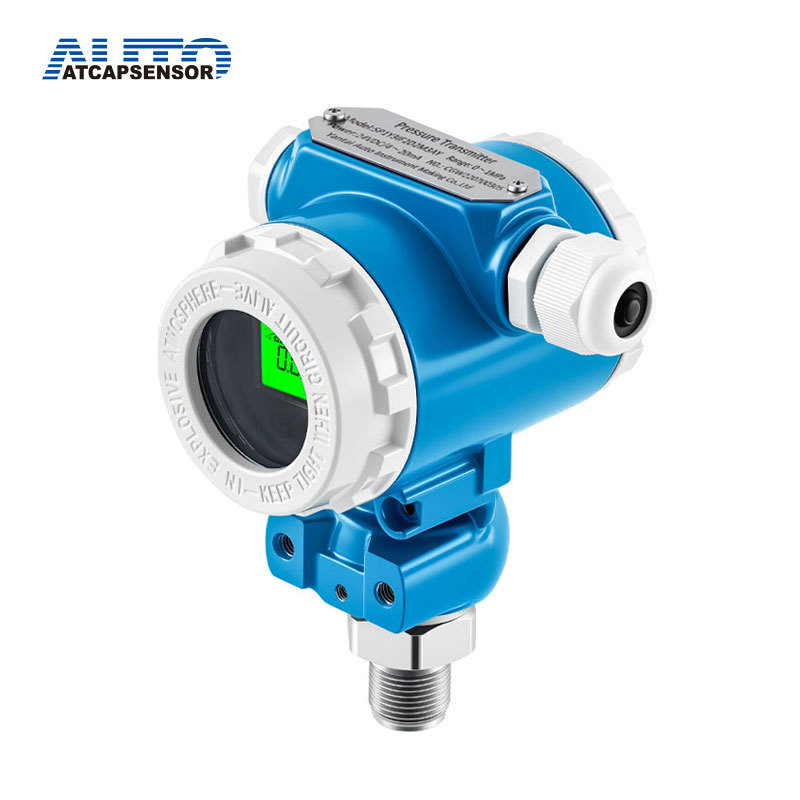

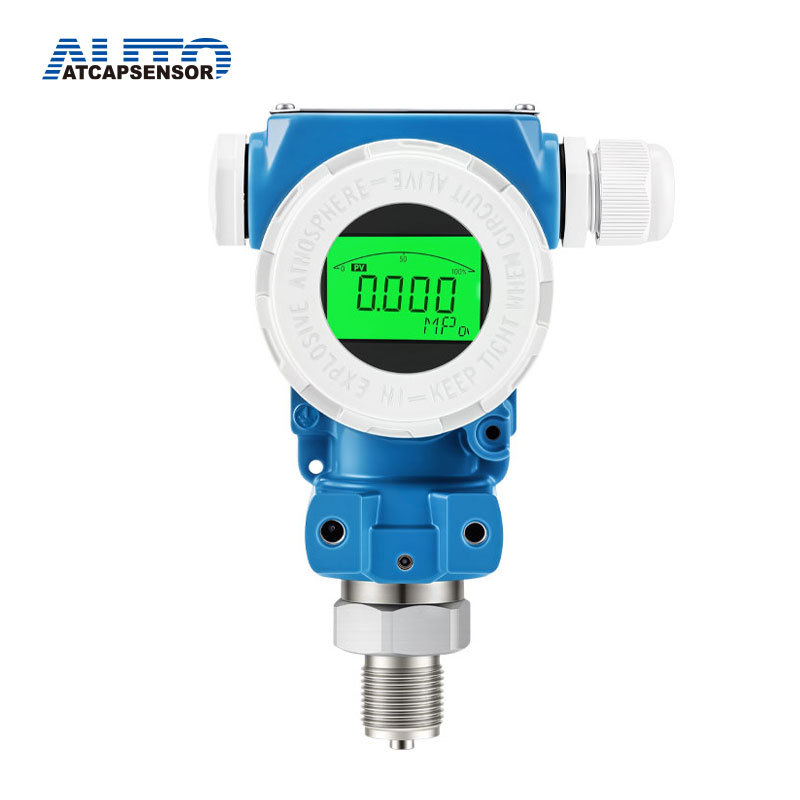

2088 Air 4-20ma Pressure Transmitter
Product Description
SP 2088 series pressure transmitter is the introduction of foreign technology and products produced using imported components, can be used to process fluid (liquid, gas) measured continuously changes. Will be converted into a 4-20mA standard current measured pressure signal output, and combined with other monitoring and control units, constitute automatic control system. Widely used in petroleum, chemical, metallurgy, electricity, medicine, beer, water treatment and other industries process monitoring and control.
Pressure Transmitter Technical Parameter
Accuracy | 0.2%FS,0.5%FS |
Stability | Better than 0.25%FS annually |
Installation location influence | No impact |
Temperature influence(-50~50℃) | Less ±0.15%/10℃ |
Working voltage | 15V~30V DC |
Ambient temperature | -20~85℃ |
Medium temperature | -40~120℃ |
Storage temperature | -40~110℃ |
Compensation temperature | -15~50℃ |
Wetted diaphragm | SS316L, ceramic |
Process connection element | Stainless steel |
Sealing element | fluororubber |
Shell/housing | Plastic,molded cast aluminium, aluminium alloy |
Protection | IP65 |
Pressure Transmitter Order sheet
Name | Specification code | Explanation |
sp | Pressure Transmitter | |
Process Connection Material | 1 | Stainless Steel |
Process Connection Structure | R | external thread G1/2″ |
M | external thread M20×1.5 | |
Y | Customize | |
Sealing Material | IF | fluoro rubber(standard) |
IH | fluoro rubber applied to Sensors(Over 10MPa) | |
Electronic Components of Transmitters | 2 | Analog signal 4-20mA (two wire) |
3 | customize | |
Shell material and structure | A | Aluminum shell PG16 cable sealingIP65 |
B | Stainless steel shell cylinder structure | |
Sensor Type | 0 | Diffused Silicon Type |
1 | Diffusion silicon anti-corrosion type | |
Explosion-proof Requirements | D | No Explosion-proof Required |
E | Explosion-proof type | |
Accuracy | 2 | 0.2% |
5 | 0.5% |
Model：SP 2088
Output: 4-20mA

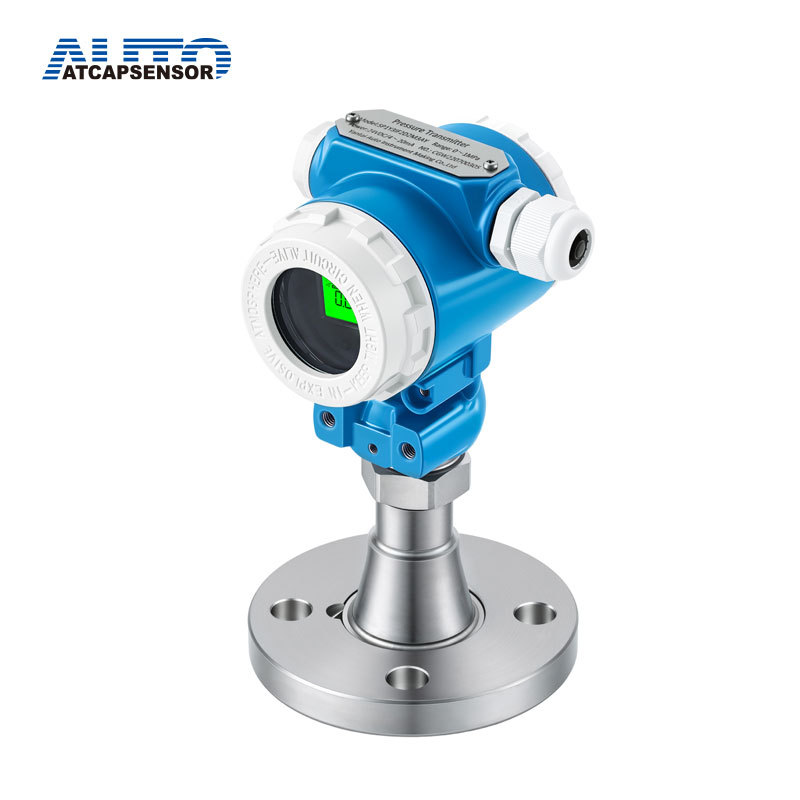

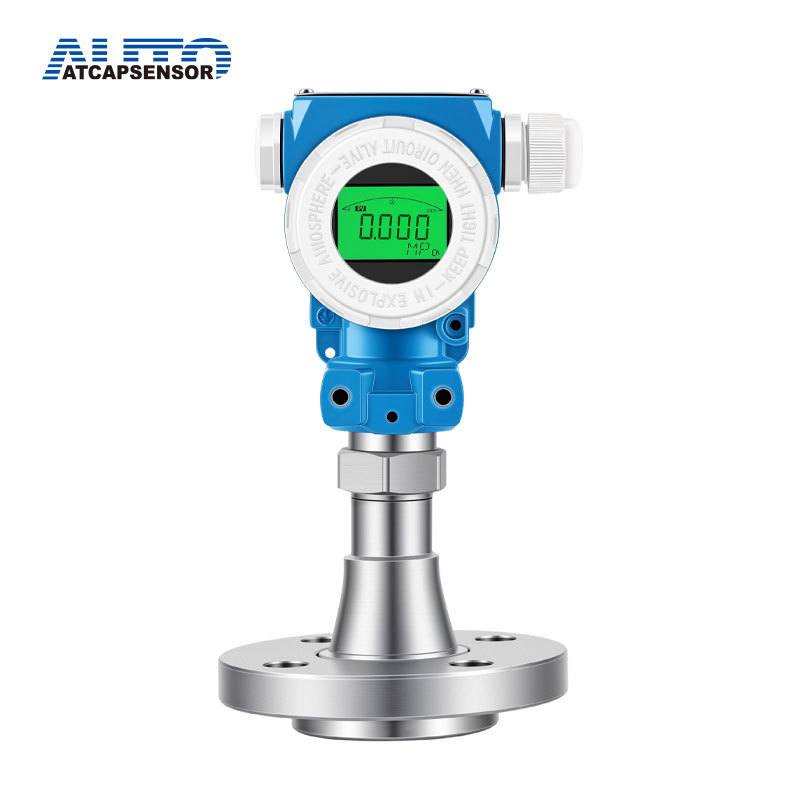

Process connection: flange 1'' 2'' , thread 1/2''NPT, G 1/2'', M20*1.5
Diaphragm material: SS316L
Application: air, gas, steam, water, oil, etc
