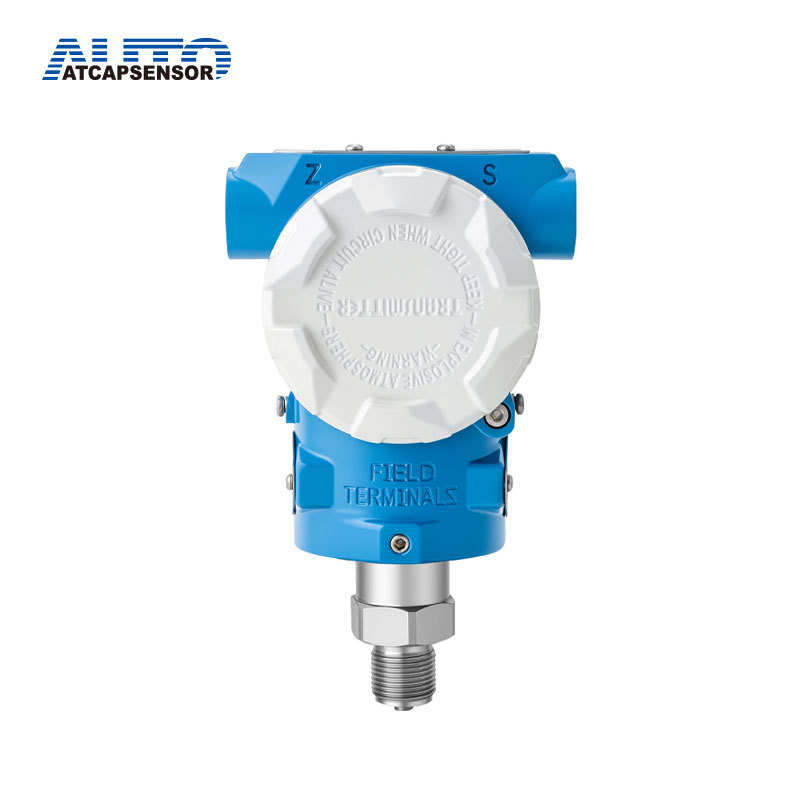

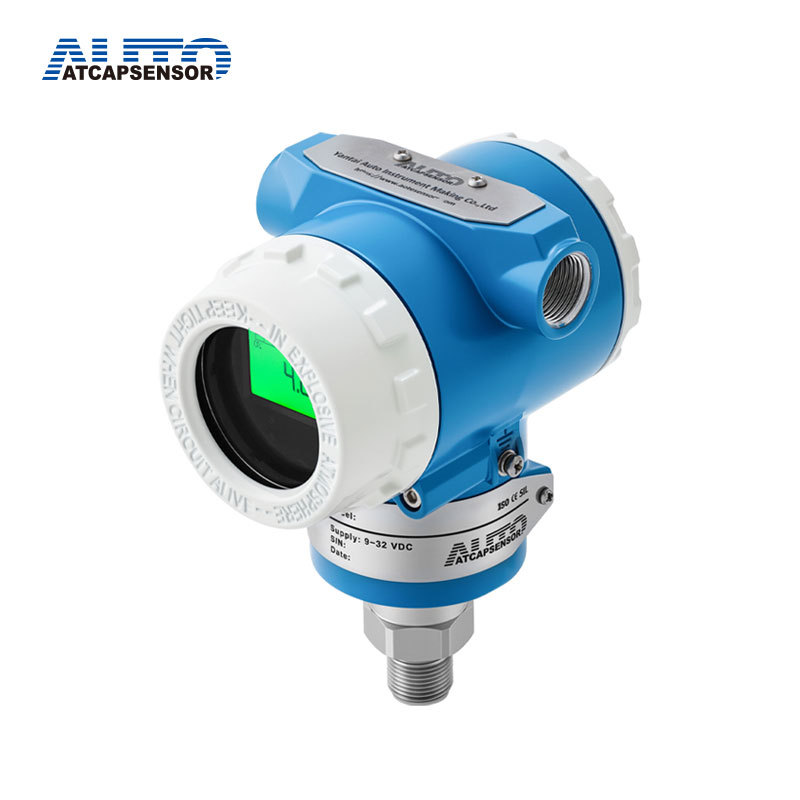

Smart Gas Gauge Pressure Transmitter
Get the latest price? We'll respond as soon as possible(within 12 hours)
- Information
- Product Description
- Video
- Download
Introduction
The high performance Gauge / Absolute pressure transmitter AT3051 is suitable tom easure liquid, gas, or steam flow as well as liquid level, density and pressure. it outputs a 4~20ma DC signal corresponding to the measured pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
PHYSICAL SPECIFICATIONS
Wetted Parts Materials
Isolating Diaphragm：316L stainless steel / Hastelloy C
Process Connector：316 stainless steel
Fill fluid：Silicone oil/Fluorinated oil
Amplifier Housing：Aluminum with epoxy resin coat
Process Connector Gasket：Perbunan（NBR）
Name plate and tag：304 stainless steel
Weight：1.6 kg
Degrees of Protection: IP67
Pressure Transmitter Order Sheet
Item | Code | Specification |
AT3051TG | Gauge Pressure Transmitter | |
AT3051TA | Absolute Pressure Transmitter | |
Measurement Range | 3 | 0-1.5~7.5 Kpa |
4 | 0~37.4 Kpa | |
5 | 0~186.8 Kpa | |
6 | 0~690 Kpa | |
7 | 0~2068 Kpa | |
8 | 0~6890 Kpa | |
9 | 0~20680 Kpa | |
0 | 0~100Mpa | |
Output | S | 4-20mA, HART Protocol, Linear output |
Diaphragm Material | 2 | Stainless Steel 316L |
3 | Hastelloy C | |
Fill Fluid | 2 | Silicone Oil |
2 | Fluorine oil | |
Process Connection | D | 1/2'' NPT F |
A | M20*1.5 | |
B | 1/2'' NPT M | |
C | 1/2'' G | |
D | Customizable | |
Cable Entry | 1 | M20*1.5； NPT1/2'' |
Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
i | Intrinsically safe (Exia IIC T4~T6) | |
M3 | LCD display | |
K1 | Degreasing treatment | |
L1 | Hanging tag | |
5C6 | Lightning protection | |

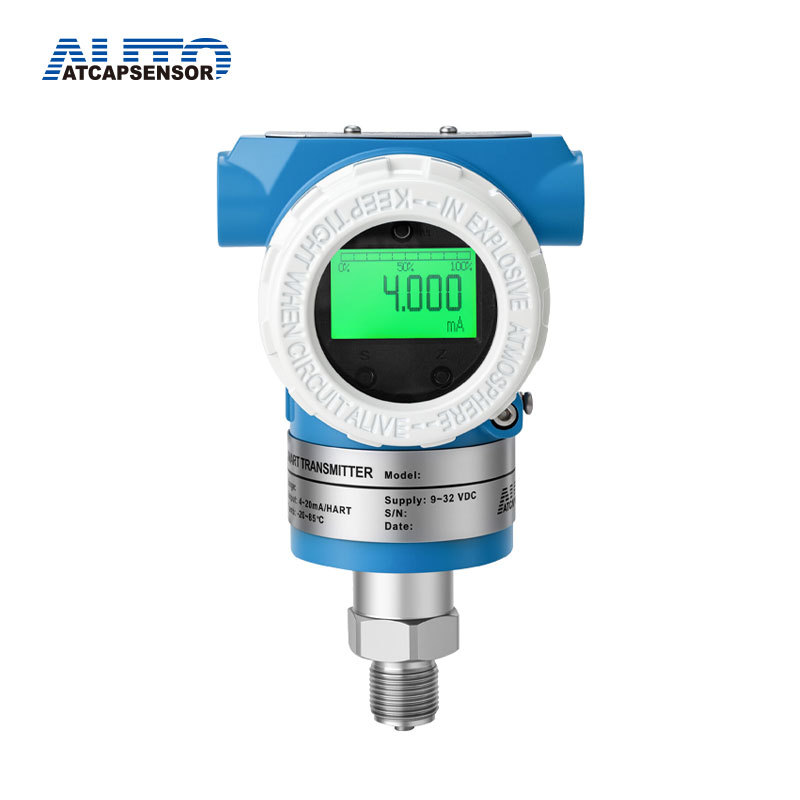

Ready For Delivery Smart Gas Gauge Pressure Transmitter
Production Line

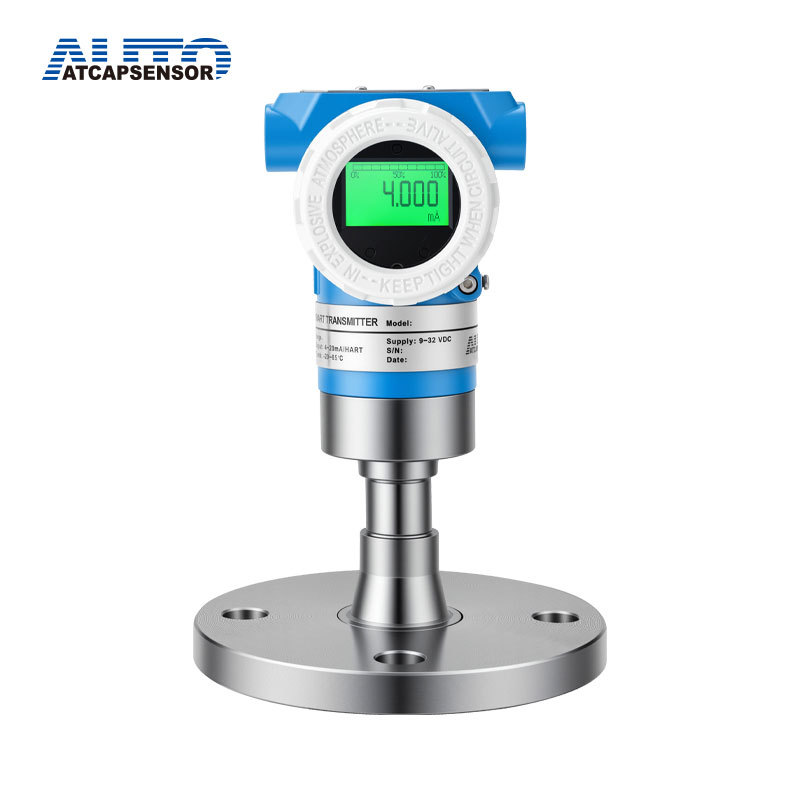

Applications Smart Gas Gauge Pressure Transmitter
Smart Gas Gauge Pressure Transmitter
1. Process Fluid: Liquid, Gas, Vapor
2. Application: Differential Pressure, Gauge Pressure,Absolute Pressure
3. Working Temperature: -25 to +95C
4. Current Output: 4 - 20 mA 2 wires Har t Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25 to +240C
7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2”NPT or M20*1.5
9. Enclosure:IP65
10.Intrinsically Safe: Exia II C T6
11.Explosion proof: Exd II B T5
2. Application: Differential Pressure, Gauge Pressure,Absolute Pressure
3. Working Temperature: -25 to +95C
4. Current Output: 4 - 20 mA 2 wires Har t Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25 to +240C
7. Process connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2”NPT or M20*1.5
9. Enclosure:IP65
10.Intrinsically Safe: Exia II C T6
11.Explosion proof: Exd II B T5
