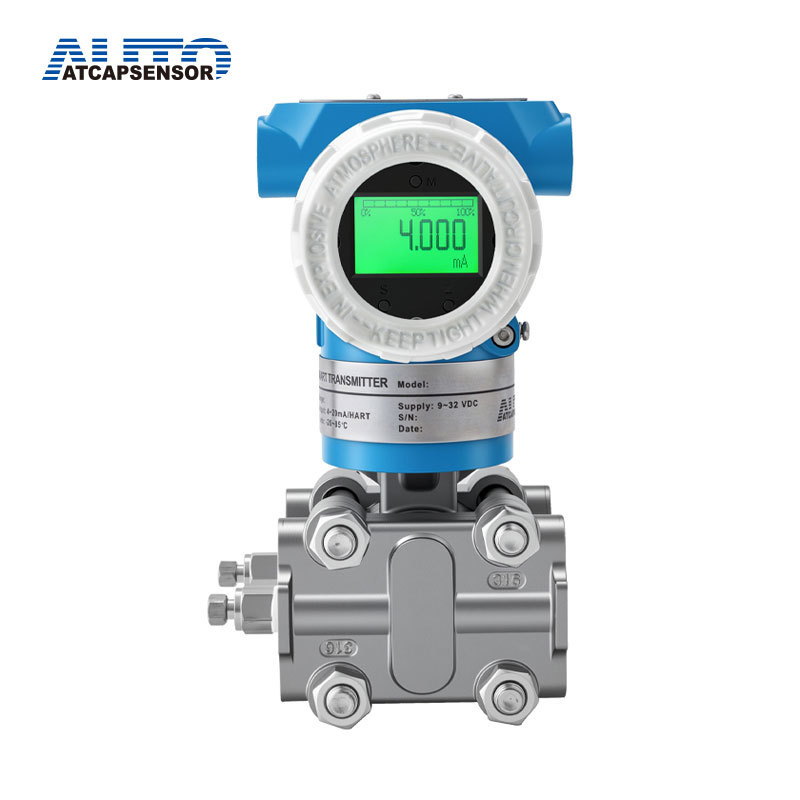

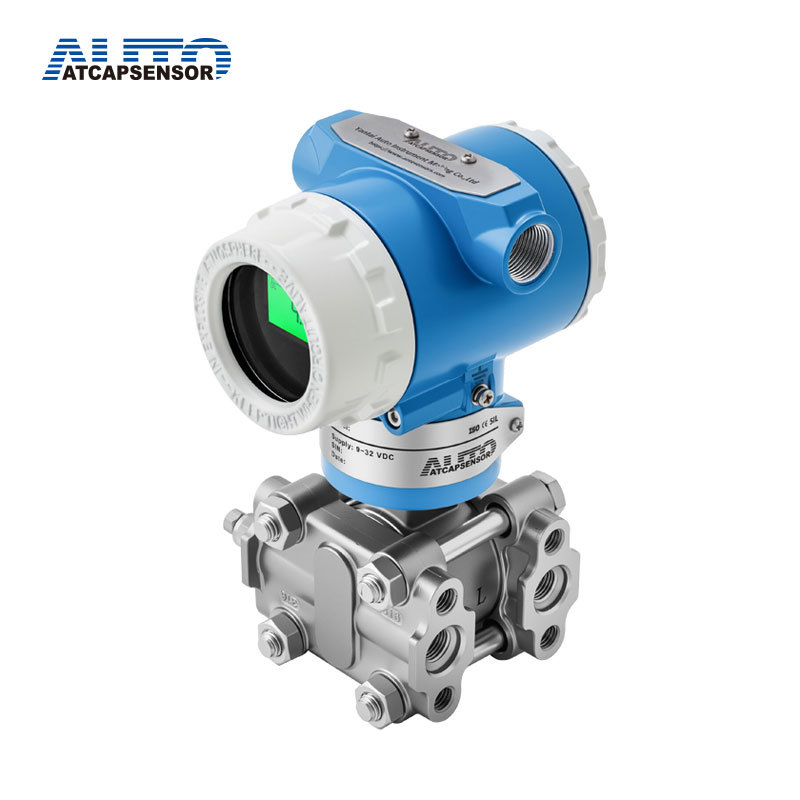

EX Capacitance Type Pressure Transmitter 4-20mA
Introduction
The pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Order Sheet
EX Capacitance Type Pressure Transmitter 4-20mA
| Item | Code | Specification |
| AT3051TG | Gauge Pressure Transmitter | |
| AT3051TA | Absolute Pressure Transmitter | |
| Measurement Range | 3 | 0-1.5~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| 8 | 0~6890 Kpa | |
| 9 | 0~20680 Kpa | |
| 0 | 0~41370 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Diaphragm Material | 2 | Stainless Steel 316L |
| 3 | Hastelloy C | |
| Fill Fluid | 2 | Silicone Oil |
| 2 | Fluorine oil | |
| Process Connection | D | 1/2'' NPT F |
| A | M20*1.5 | |
| B | 1/2'' NPT M | |
| C | 1/2'' G | |
| D | Customizable | |
| Cable Entry | 1 | M20*1.5 |
| Mounting Bracket | B00 | None |
| B15 | Tube-type Flat Bracket (carbon steel) | |
| B16 | Wall mounting bracket (carbon steel) | |
| B17 | Tube-type Flat Bracket (stainless steel) | |
| B18 | Wall mounting bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Ready For delivery
Application

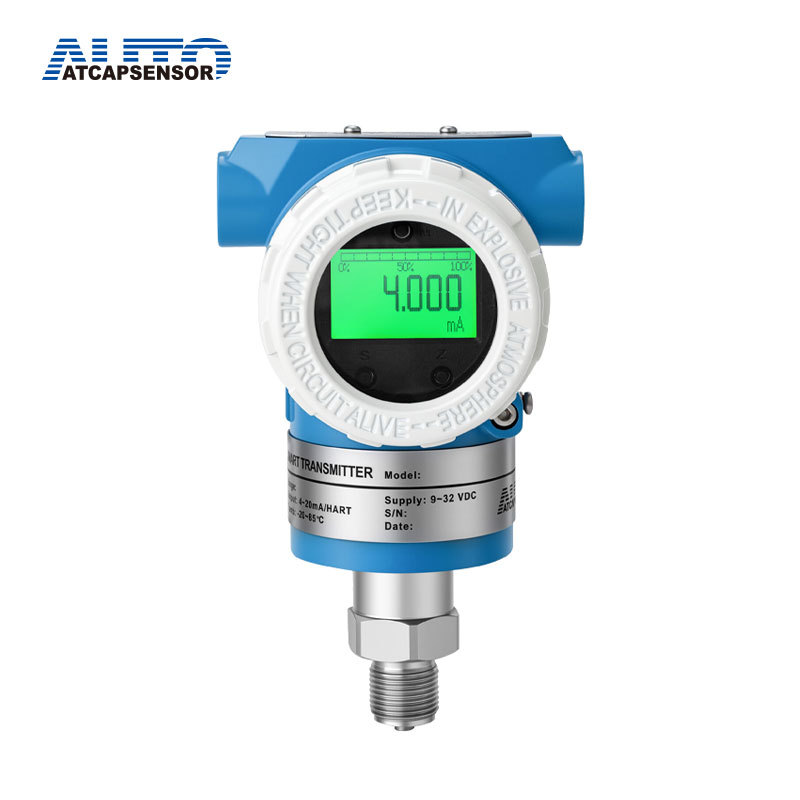

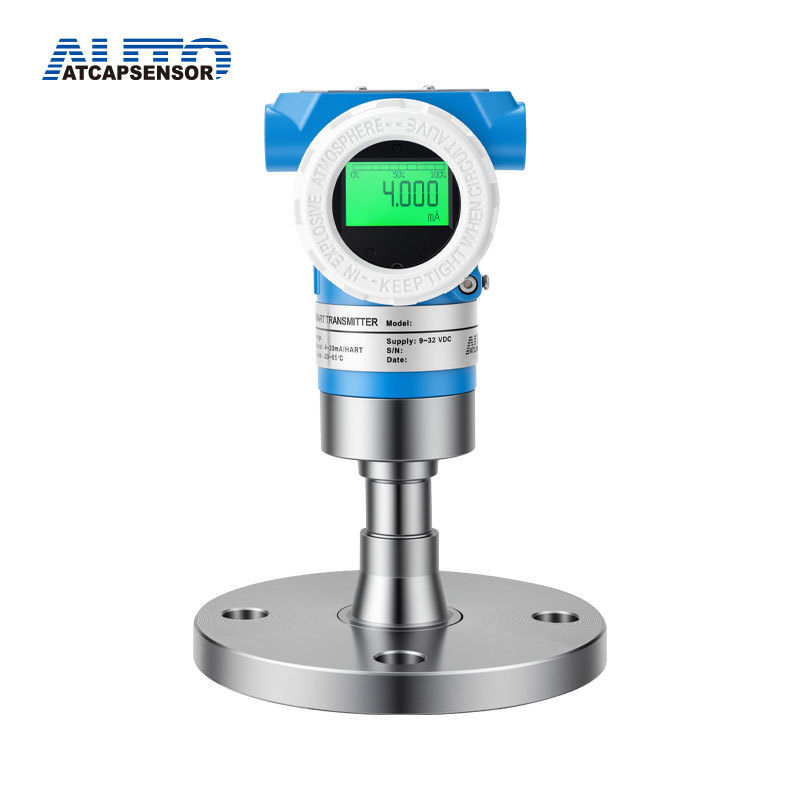

EX Capacitance Type Pressure Transmitter 4-20mA
EX Capacitance Type Pressure Transmitter 4-20mA
Certificate: ATEX certificate
Sensor: capacitance type
Signal Output: 4-20mA, HART
