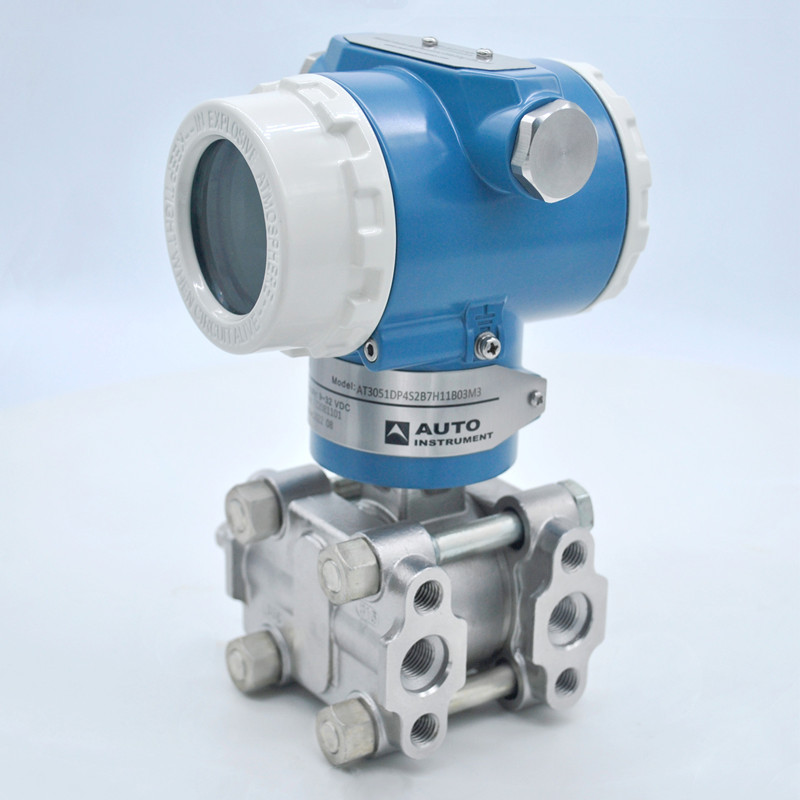

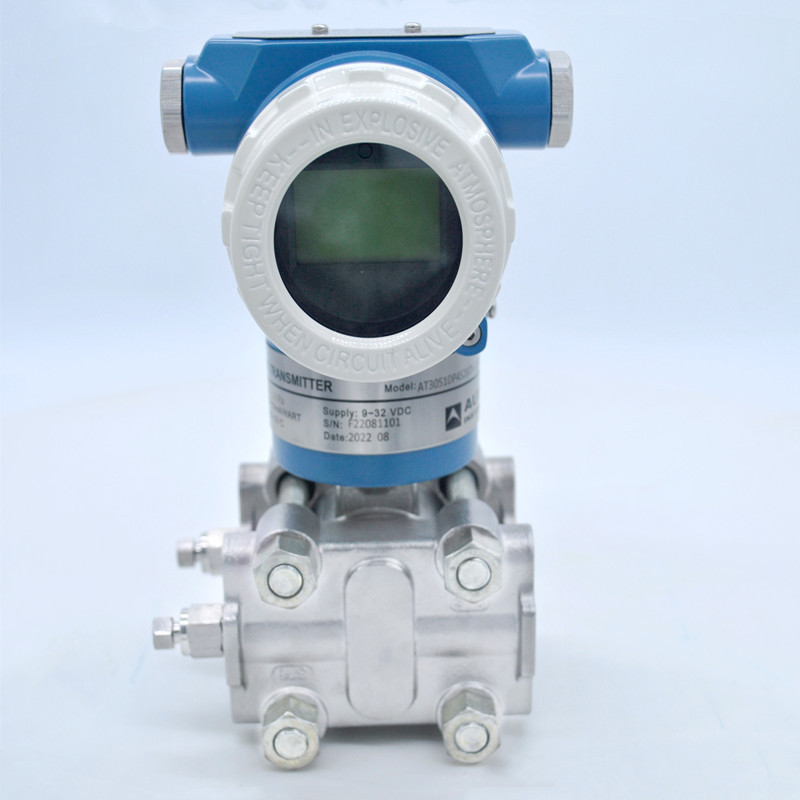

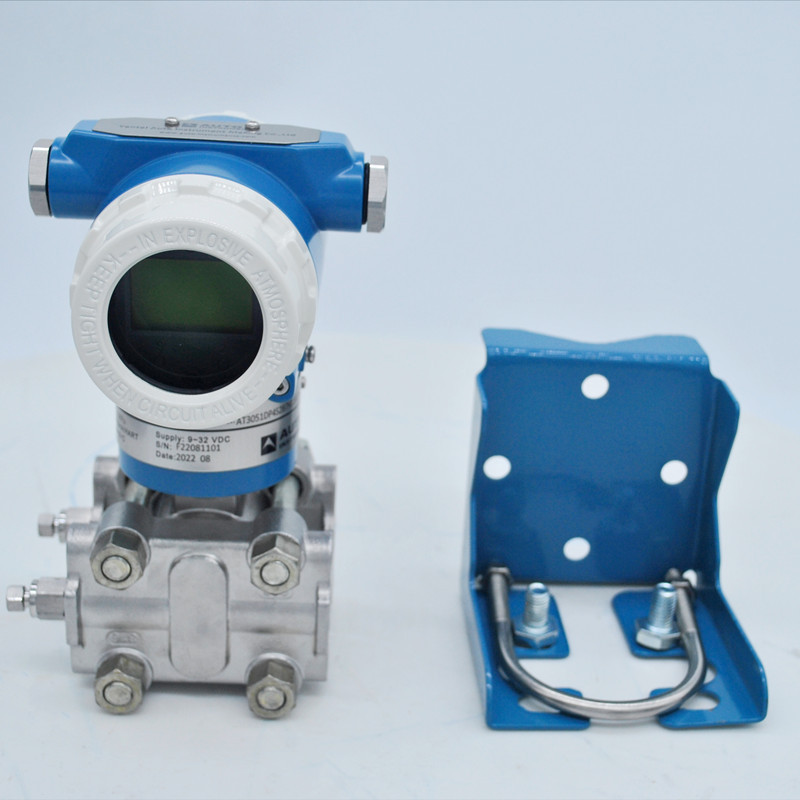

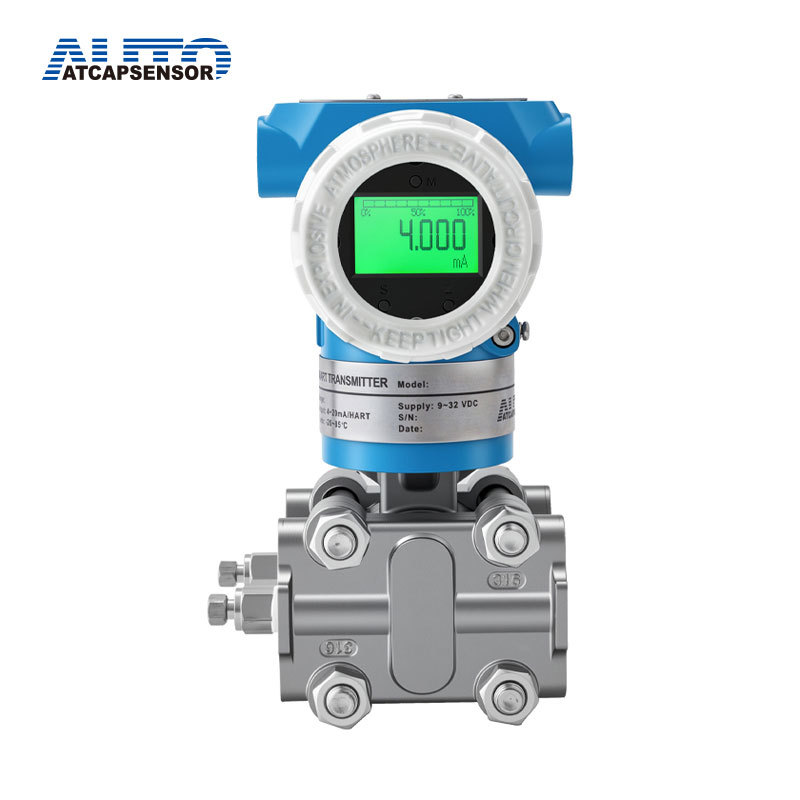

4 20ma Differential Pressure Transmitter LCD Display
- Information
- Product Description
- Video
Introduction:
The digital differential pressure transducer is an exceptional product specifically designed for precise measurements of liquid level, flow, and differential pressure. It incorporates cutting-edge metal capacitance technology and composite micro-silicon solid-state sensing technology. The sensor module is equipped with a differential pressure sensor, an absolute pressure sensor, and a temperature sensor, enabling simultaneous measurements of differential pressure, absolute pressure, and instrument temperature.
Features:
1.Process Fluid: Liquid, Gas, Vapor
2.Application: Differential Pressure, Gauge Pressure,Absolute Pressure
3.Working Temperature: -25 to +95℃
4.Current Output: 4 - 20 mA 2 wires Hart Protocol
5.Power Supply: 24V DC
6.Ambient Temperature: -25 to +240℃
7.Process connections: 1/4 - 1/8 NPT or 1/2 - 1/4 NPT
8.Electrical Connections: 1/2”NPT or M20*1.5
9.Enclosure:IP65
10.Intrinsically Safe: Exia II C T6
11.Explosion proof: Exd II B T5
Application:
Detection of process pressure in industrial fields
System for calibrating pressure in laboratory settings
Navigation and the construction of ships
Manufacturing and production of aircraft and aviation equipment
Operation and management of air separation plants and thermal power units
Managing and optimizing energy usage
Measurement and control system for hydraulic and pneumatic
Differential Pressure Transducer Order Sheet:
About Us:
The digital differential pressure transducer is suitable to measure liquid, gas, or steam flow as well as liquid level, density, and pressure. Other key features of the differential transmitter include quick response, remote set-up using communications, self-diagnostics, and optional status output for pressure high/low alarms.
