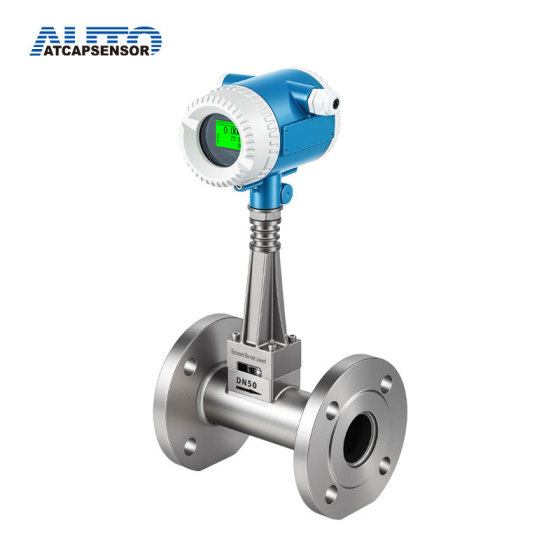

Compressed Air Vortex Flow Meter 1" 2" 3"

Get the latest price? We'll respond as soon as possible(within 12 hours)
This field is required
This field is required
Required and valid email address
This field is required
This field is required
  • Information
  • Product Description
  • Video

nitrogen flow meter

VORTEX STEAM FLOW  METER INTRODUCTION

The vortex nitrogen flow meter is designed based on the Karman principle. The vortex steam flow meter can measure the flow, temperature and other parameters of the fluid of industrial pipelines. The vortex nitrogen gas flow meter has the function of pulse frequency output, 4-20mA analog signal output, RS485 communication, HART protocol and so on.

gas flow meter

Vortex Nitrogen Gas Flow Meter Parameters

Nominal diameter

(mm)

25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type)

Nominal pressure (MPa)

DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement)

Medium temperature(°C)



Piezoelectric type:-40~260,-40~320;Capacitance type

: -40~300, -40~400,-40~450(Supply agreement)



Body material



1Cr18Ni9Ti,(Other materials supply agreement)

Allowable vibration acceleration



Piezoelectric type:0.2g     Capacitance type:1.0~2.0g

Accuracy



±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS

Range of



1:6~1:30

Power supply voltage



Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery





Output signal



Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA



Pressure loss coefficient



In line with the JB / T9249standard Cd = 2.4



Explosion proof marks



Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5



Protection grade



The ordinary IP65 diving type IP68



Environmental conditions



Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa



Applicable medium



Gas, liquid, steam



Transmission distance



Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm

Vortex Compressed Air Flow Meter Detailed Image

compressed air flow meter

nitrogen flow meter

Vortex Nitrogen Flow Meter Order Sheet

LUGB

Explanation
Nominal
diameter
(In mm)
diameter
DN15-300(Pipeline)

DN200-1500(Plug-in)
Connection
Pipeline
FL
Flange connection
JZ
Flange clamp
Z
Special rules
Insert
J
Simple Formula
Q
Ball type
Accuracy
Pipe
line
10
1.0%R
15
1.5%R
Insert
20
2.0%R
25
2.5%R
Z
Special accuracy standards
Temperature and pressure
S
T(S)P(S)At normal
temperature and pressure
Z
T(Z)P(Z)Twin extreme
pressure
Communication protocol
N
No communication interface
H
HART protocol
M
MODBUS protocol
Output
1
No output
2
Two-wire 4-20mA output
3
Pulse output
D
DC12V
Power supply
DB
Dual 12V power supply and
battery
DD
DC24V
B
Battery 3.6V power supply,
no signal output uses only
Sensor Material
S
304Stainless steel
L
316Stainless stee
Core Component Materials
S
304Stainless steel Probes
L
316Stainless steel Probes
Measuring medium
1
Gas
2
Liquid
3
Saturated steam
4
Superheated steam

Production Line

gas flow meter

compressed air flow meter

nitrogen flow meter

gas flow meter


The vortex nitrogen gas flow meter utilizes a volumetric flow measurement principle driven by a natural phenomenon observed when a liquid moves around a bluff object. Meanwhile, the vortex compressed air flow meter functions based on the vortex shedding principle, where vortices are intermittently shed downstream of the object.
