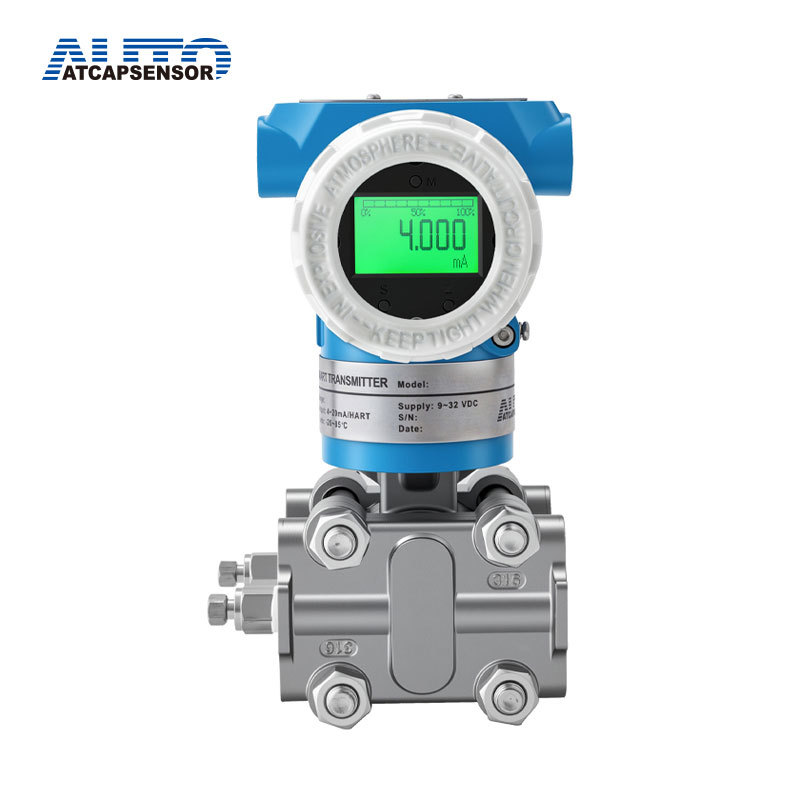

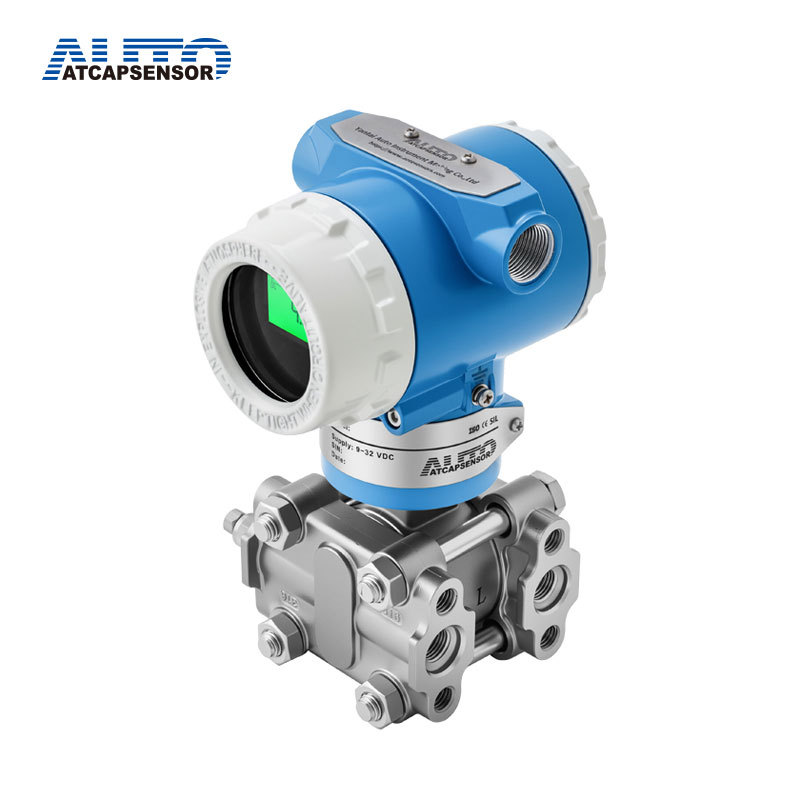

Differential Pressure Transmitter
Description:
AT3051 series Intelligent Pressure Transmitters are well- designed with advanced, mature and reliable capacitance sensors, combined with advanced technology and digital capacitance measurementtechnology. Internal microprocessor make it intelligent, high-precise, high reliable and zero-point stable. Dpt Differential Pressure Transmitter is easy todebug in the field.
AT3051 Series of Intelligent Pressure Transmitters, complied with HART Protocol, have been used to measurepressure, level, flow and other industrial parameters, which have been widely used in petroleum, chemical,metallurgy.electricity, cement, etc.
AT3051 series Smart Pressure Transmitter with advanced, mature,reliable capacitance sensors has beendesigned meticulously by combining advanced microprocessor technology and digital capacitance measurementtechnology. The powerful functions and high-speed computing capability of the microprocessor make AT3051 series Intelligent Pressure Transmitters have excellent qualifications such as smart, high precision, high reliability, stable zero and so on. Intelligent Pressure Transmitter's LCD can display manyphysical parameters (e.g.pressure,temperature, current and so on). Smart Pressure Transmitter can realize the functions such as zero adjustment, range settings by key-press operation, and it is easy for field testing.
Parameter
Medium | Gas, steam, liquid |
Measurement range (Non migration) | -100Pa~10MPa |
Accuracy | +/-0.1% |
Wetted parts material | SS316L, Hastelloy C, Tantalum |
Output | 2-wire 4-20mA, HART communication optional, linear output or square root output available |
Ambient temperature | -40~85℃ -20~65℃ (with LCD display, fluorine rubber O-ring) |
Protection grade | IP67 |
Electrical connector | M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable |
Process connection | 1/4NPT(F) , 7/16 female on the cover flanges or other optional |
Mounting position effect | Rotation in diaphragm plane has no effect. Tilting up to 90°will cause zero shift up to 0.4KPa, which can be corrected by the zero adjustment. |
Application
Focus on the pressure, flow, temperature, liquid level andrefractometer etc. The produces are widely used in the field of industrial process con-trol, energy & electricity, hydrology, construction machinery, medical experiment, mili-tary equipment, plastic chemical fiber industry,Smart city construction, Environmentalprotection chemical industry etc.........
Order Sheet:
Related Products Dpt Differential Pressure Transmitter Dp Transducer
Production Line
Dpt Differential Pressure Transmitter Dp Transducer Ready for delivery
High precision: :0.1% full range
Long-term stability
Power supply: 12-32VDC
Output: 4~20mA with HART (2-wire)
Operating temperature:
-20°C ~ +70°C(with LCD)
Multiple variables shown on the LCD: More than one variable displayed on the LCD with back light for dark environment.
Data backup and restore
Easy to install and reliable with unique design.
