Product Description
Electromagnetic flow meters are flowmeters that measure flow according to Faraday's law of electromagnetic induction. The electromagnetic flow sensors have the advantage of minimal pressure loss and a large range of measurable flow rates. The ratio of the maximum flow rate to the minimum flow rate is generally more than 20:1. The applicable industrial tube diameter is wide, up to 3 meters. The output signal and the measured flow rate are linear, and the accuracy is high.
The electromagnetic flow transmitter can measure the liquid with conductivity ≥5μs/cm, such as acid, alkali, salt solution, water, sewage, corrosive liquids, and fluid flow of mud, pulp, pulp, etc. However, it can not measure the flow of gas, steam, and pure water.
Features of the Electromagnetic Flow Sensor
CONVERTOR
Zero point stability,
low powerconsumption and high precisionLCD display,
Cumulative flow,lnstantaneous flow, Forward flow,Reverse flow, etc.
Units: L/h, U/m, L/s, m/h, m/m, m3/s, etc.Default Language: English.
BODY
Anticorrosive paint strict process..
Very shiny surface by polishing workmanship.
Various of flange standard,such as DIN,JIS,ANSI,ASME,BS,etc.
Lining and electrodes are selected regarding flow medium
Technical Parameters of the Digital Water Flow Meter
Caliber | DN6 - DN3000mm | ||
Nominal Pressure | 0.6-4.0Mpa ( Special pressure can be made to ) | ||
Accuracy | ±0.5 of the value displayed, ±0.3% or ±0.2% are selectable | ||
Liner Material | Teflon, PFA, F46, Neoprene, Polyurethane | ||
| Electrode Type | General type, scraper type and replaceable type | ||
Medium Temperature | Integrate type | -20℃ ~ +60℃ | |
| Remote type | Neoprene & Polyurethane Liner | -20℃ ~ +60℃ | |
| PTFE liner/ PFA liner/ F46 liner | -40℃ ~ +180℃ | ||
Ambient Temperature | -25℃ ~ +60℃ | ||
Ambient Humidity | 5-100% RH ( relative humidity) | ||
Measuring Range | 1500:1, flow rate＜15m/s | ||

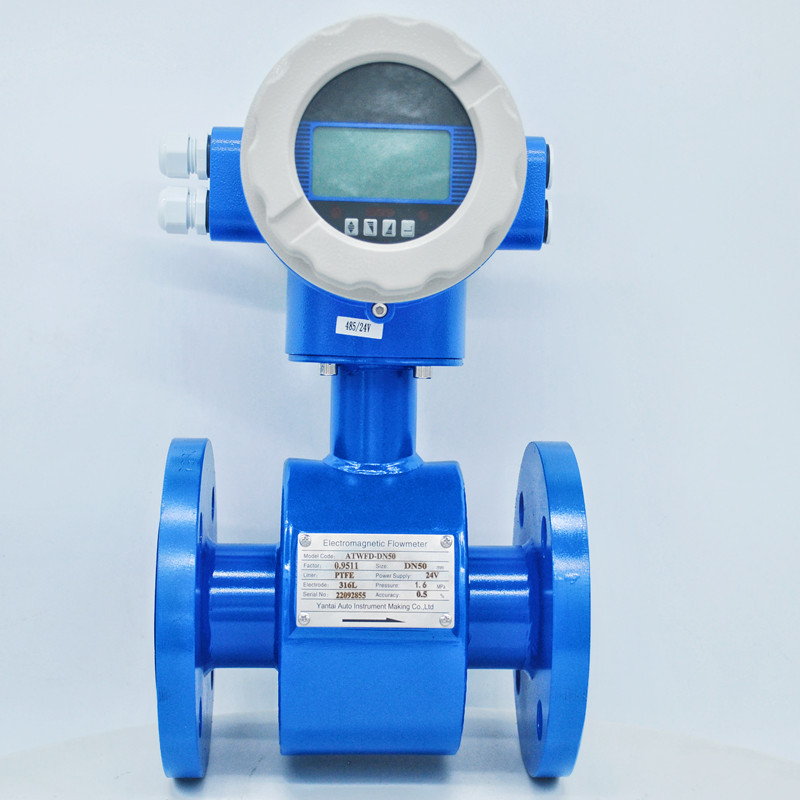

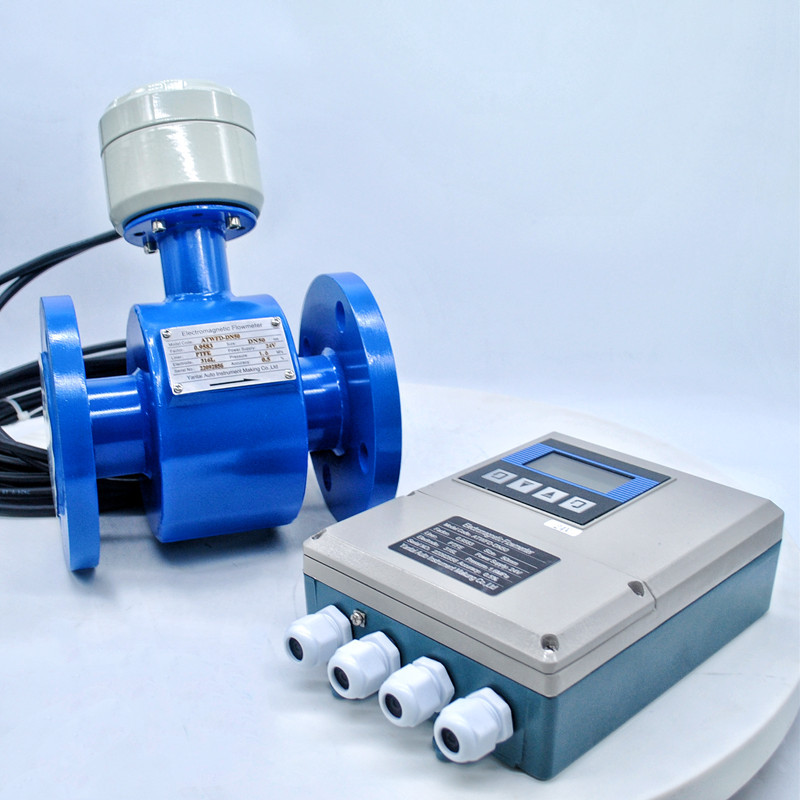

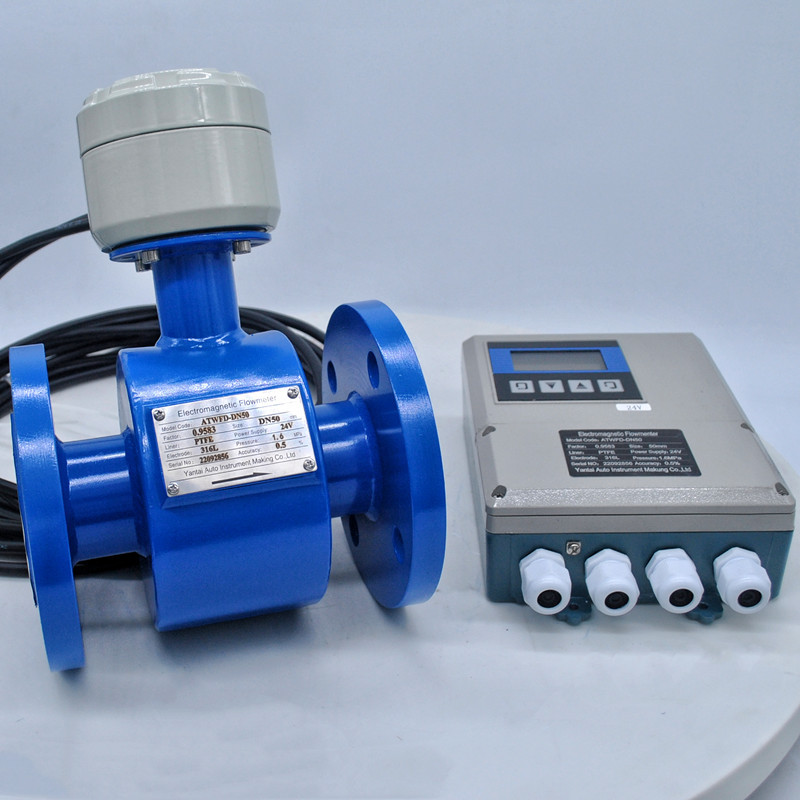

Structure Type | Integrate type, remote type, submersible type, ex-proof type | ||
Protection Class | IP65, IP68 ( Optional ) | ||
EX-proof Mark | ExmdllBT4 | ||
Product Standard | JB/T9248-1999 Electromagnetic Flow Meter | ||
