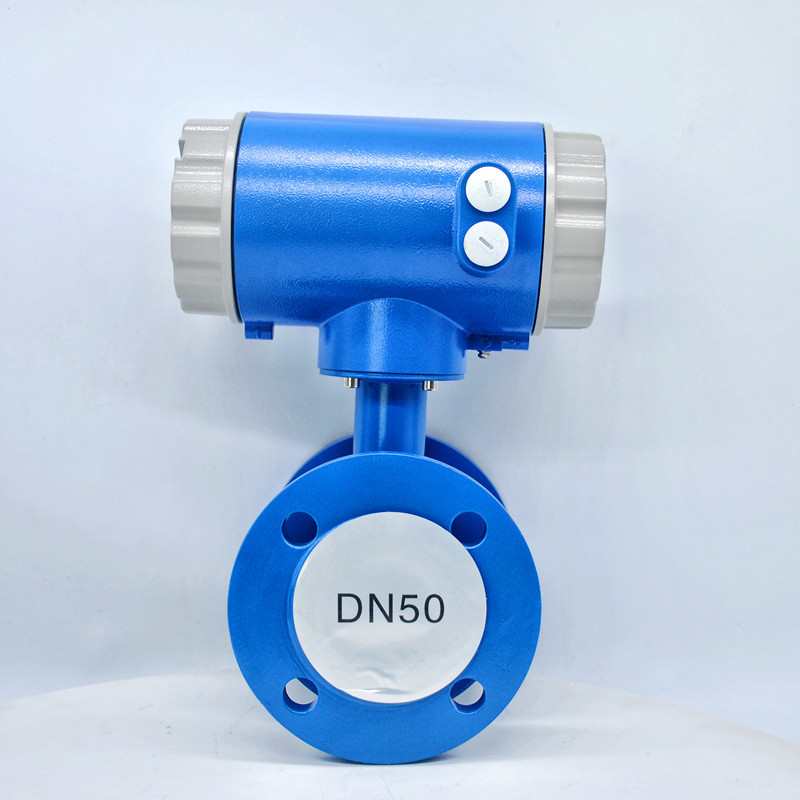

Electromagnetic Liquid Flowmeter Mag Flow Meter
- Information
- Product Description
- Video
Magnetic water flow meter operates by harnessing magnetic principle to gauge the liquid flow within a pipe. Their functionality is rooted in Faraday's Law of Electromagnetic Induction. Essentially, a magnetic field is introduced to the moving liquid, generating a voltage that corresponds to the liquid's velocity. The electromagnetic flowmeter is especially handy when it comes to quantifying the flow of conductive liquids like water, wastewater, and slurries.
The digital water flow meters stand out as the top-notch option to meet the exacting standards and accuracy demanded by your applications. They find relevance in measuring a spectrum of conductive liquids, including water, acids, alkalis, slurries, and more.The magnetic water flow meter excel in diverse applications, encompassing liquid monitoring, precise measurement during filling and dosing, and ensuring accuracy in custody transfer processes.
Electronic Flow Meter Features
CONVERTOR
Zero point stability,
low powerconsumption and high precisionLCD display,
Cumulative flow,lnstantaneous flow, Forward flow,Reverse flow, etc.
Units: L/h, U/m, L/s, m/h, m/m, m3/s, etc.Default Language: English.
BODY
Anticorrosive paint strict process..
Very shiny surface by polishing workmanship.
Various of flange standard,such as DIN,JIS,ANSI,ASME,BS,etc.
Lining and electrodes are selected regarding flow medium
Power Supply | 110-240Vac (Optional: 24 Vdc) |
Power Consumption | 10W |
Accuracy | 0.5% accuracy of rate from 0.3-10 m/s |
Repeatability | 0.2% |
Minimum Fluid Conductivity | 5.0 micromhos/cm |
Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
Analog Output | 4-20mA, 750ohms Max Load |
Output Frequency | Scaled Pulse output, (open collector) Max 5Khz |
Noise Damping | Programmable |
Pulse Width | Programmable up to 500ms |
Zero-point Stability | Automatic correction |
Ambient Temperature | -20 to 60 C |
Electrode Materials | SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
Liner Material | PTFE, FEP, Hard Rubber |
Fluid Temperature | PTFE: 120C Standard (Customized: 180C) Rubber: 60C |
Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
Coil Power | Pulsed DC |
Pipe Spool Material | SS316 |
Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
Flange | Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
Order sheet
| Model | Suffic Code | Description | ||||||||
| ATWFD | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Electromagnetic Flow Meter | |
| Diameter | XX | Standard for diameter 0006: DN6; 0015: DN15; 0100: DN100; 2200: DN2200 | ||||||||

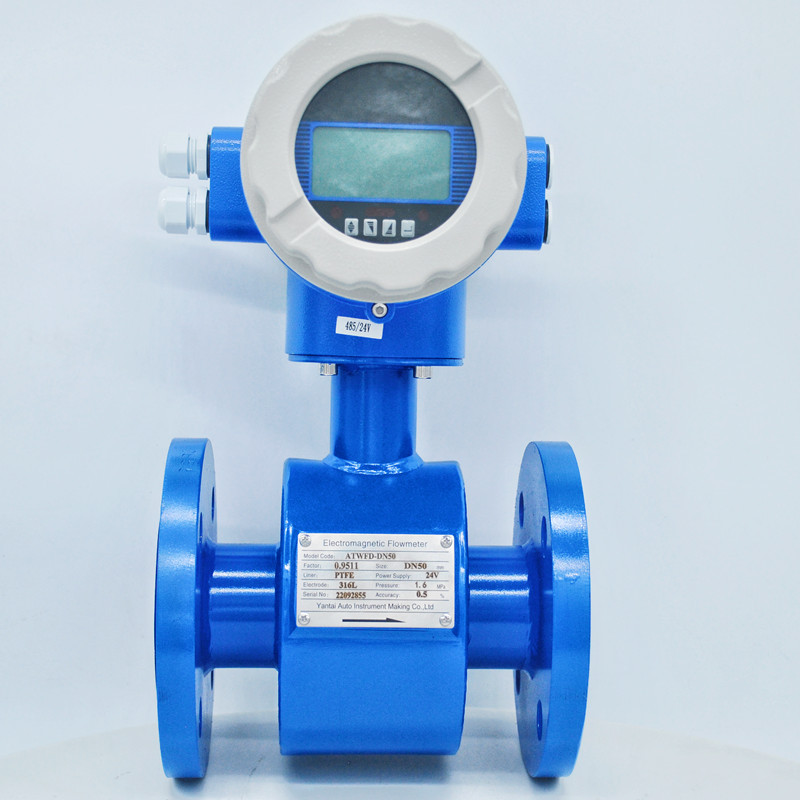

Structure | S | Intergrated type with LCD display | ||||||||

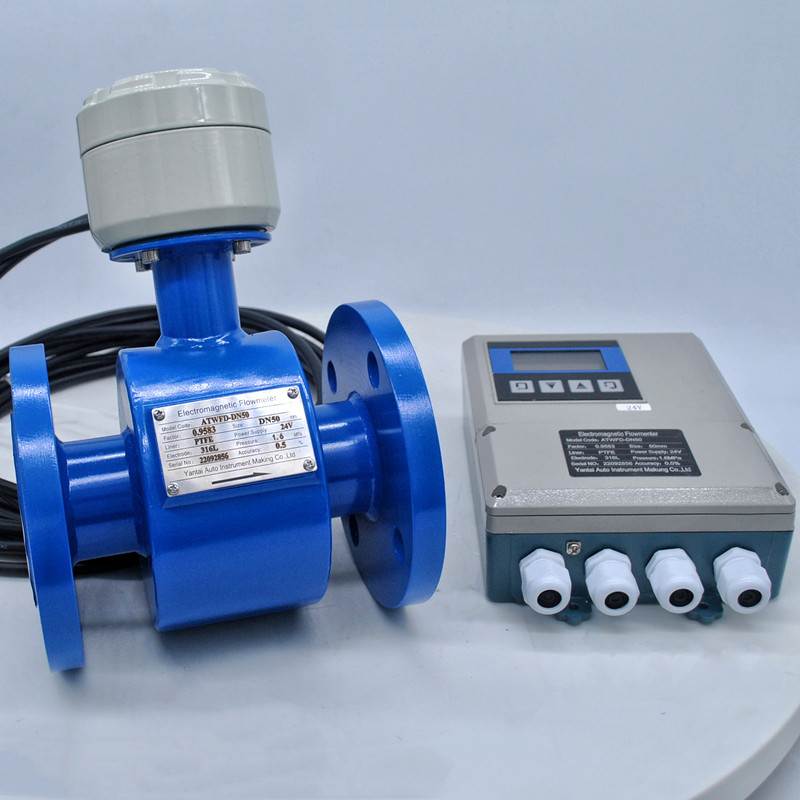

| L | Remote type with 10 meter cable | |||||||||
Electrode Material | M | Ss316 | ||||||||
| T | Titanium | |||||||||
| D | Tantalum | |||||||||
| H | Hastelloy Alloy C | |||||||||
| P | Plstinum-Iridium | |||||||||
Signal Output | 0 | No output | ||||||||
| 1 | 4-20mA/Pluse | |||||||||
Liner Material | X | Rubber | ||||||||
| P | Proylene Oxide | |||||||||
| F | PTFE | |||||||||
| A | PFA | |||||||||
Power Supply | 0 | 110-240VAC | ||||||||
| 1 | 24VDC(20-36VDC) | |||||||||
| 2 | Battery Power Supply | |||||||||
Communication | 0 | No Communication | ||||||||
| 1 | Modbus | |||||||||
| 2 | ||||||||||
| 3 | ||||||||||
Connection | DXX | D16 DIN PN16 Flange D25 DIN PN25 Flange... | ||||||||
| AXX | A15 ANSI150#Flange A30 ANSI300#Flange... | |||||||||
| JXX | J10 JIS 10K Flange J20 JIS 20K Flange... | |||||||||
| XXX | Other Request | |||||||||
Body Material | CS | Carbon Steel | ||||||||
| S4 | Stainless Steel 304 | |||||||||
Inline Sea Water Electromagnetic Flowmeter Calibration line
Magnetic Flow Meter Applications
