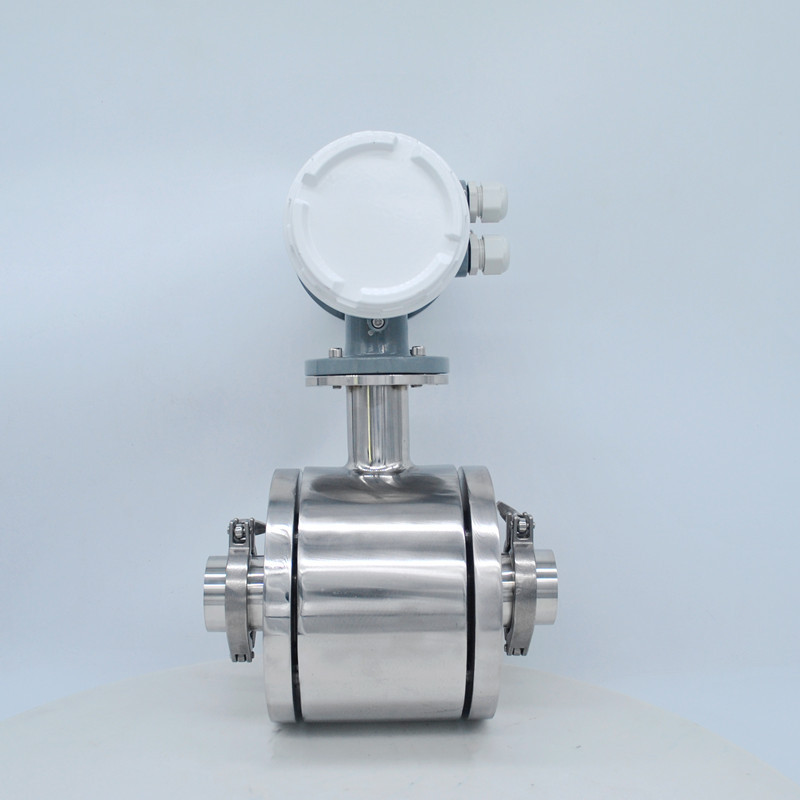

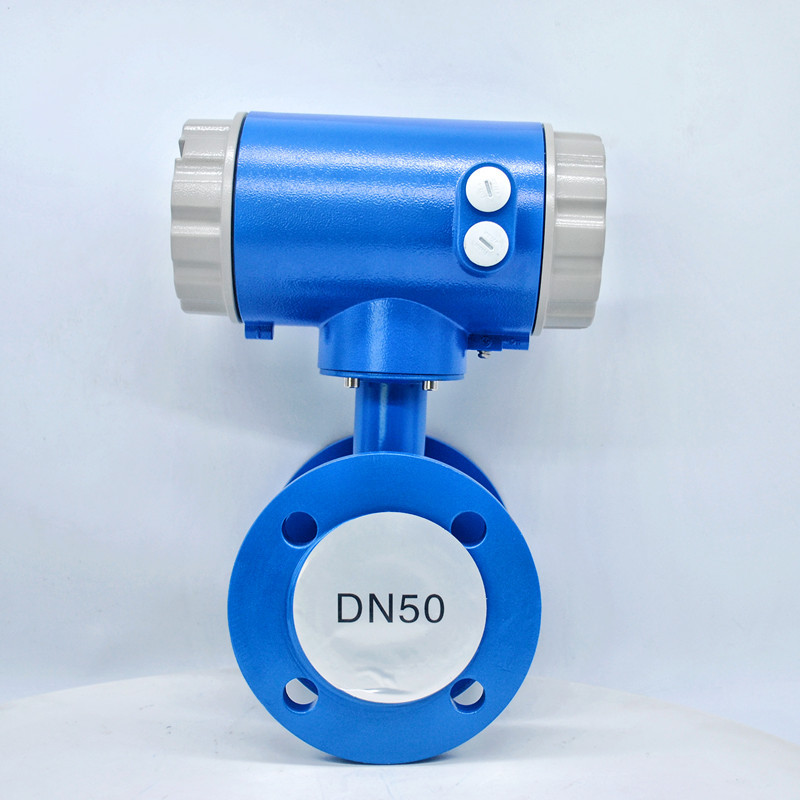

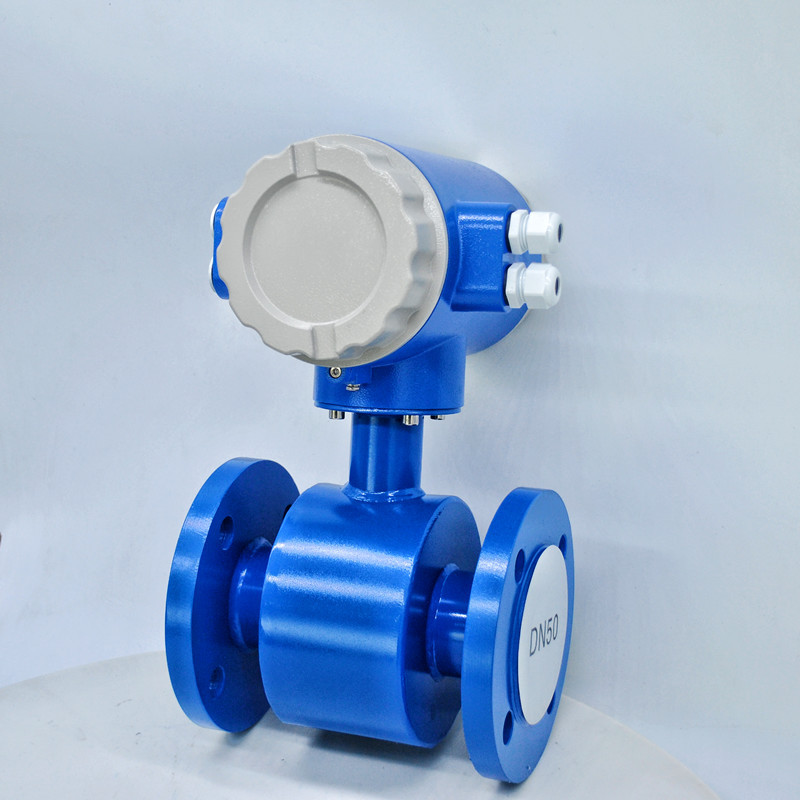

Electronic flow meter
Description
The hot water flow meter is an electromagnetic flowmeter with the characteristics of simple structure, light weight, high precision, good repeatability, sensitive response, convenient installation, maintenance and use, which has absorbed the advanced technology of flow meters at home and abroad and has been optimized. Displays total flow, instantaneous flow and percentage of flow full scale.
The battery adopts long-lasting lithium battery. The battery life of the single-function accumulating meter can reach more than 3 years. It can be matched with a display instrument with special functions, and can also perform quantitative control and over-amount alarm. It is an ideal instrument for flow measurement and energy saving. This type of electromagnetic flow product itself has the function of on-site display, and can also transmit the flow signal far away in the form of pulses. The instrument is cheap and highly integrated, especially suitable for use with computer control systems such as secondary display instrument, PLC, DCS, etc.
Application:
1. Waster water industry: transport networks sewage treatment plants, sludges.
2. Chemical industry: acids alkalis, dosing applications, abrasive or corrosive mediums.
3. Metal & mining industry: mediums with a high solid content, like ore or excavator mud.
4. Water industry: Revenue metering, district metering water abstraction, leakage detection.
5. Pulp & paper industry: pulp, pastes, sludges & other caustic mediums, liquor, additives, bleaches, colourants.
6. Food & beverage industry: mixing, dosing and filling of drinks under hygienic conditions filling systems applications.
Features:
1.High definition LCD displayer.2.There are no block and cut-off parts,so the phenomenon of pressure loss and liquid block is not existed.
3.Low Installation requirements. The front straight pipe segment is only required to be 5D, and the back straight pipe segment is 2D.
4.There are a variety of choices of lining and electrode, which can meet the requirements of measuring a variety of conductive flow.
5.Modbus-rs485, HART, GPRS, PROFIBUS and other communication signal output (optional).

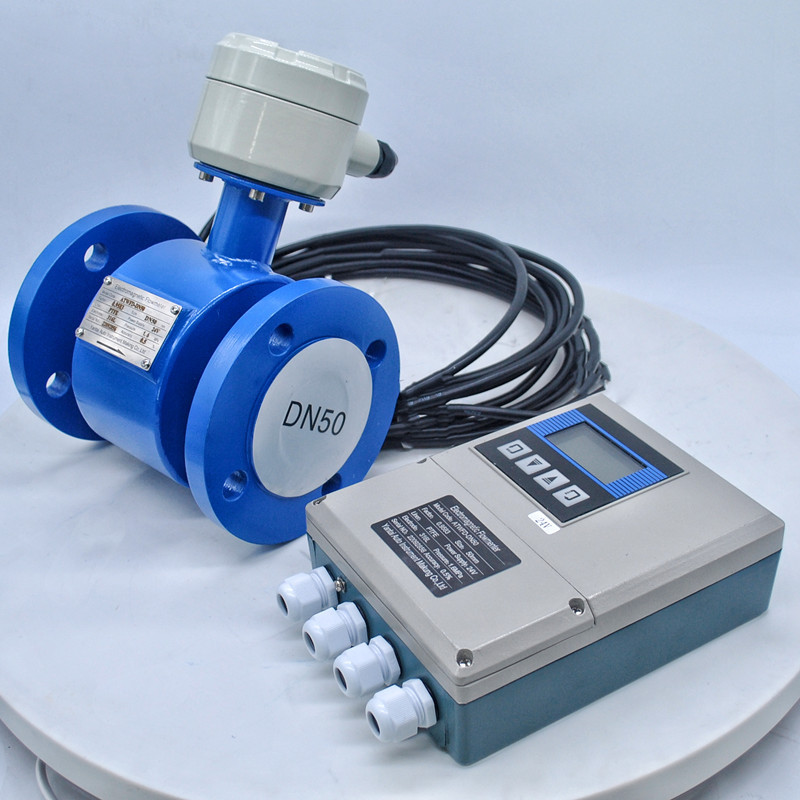

6.There are two models:integration and separation.
| Type | Electronic flow meter flow transmitter (Integrated/ Spit ) | Battery Electronic flow meter flow transmitter | Insertion Electronic flow meter flow transmitter |
| Pipe | 3/8" - 80" (DN10 - DN2000) | 1/8" - 24" (DN3 - DN600 ) | 3/8" - 240" (DN10 - DN6000 ) |
| Acc | ±0.5% | ||
| Conductivity | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm |
| Process Temp. | --50-180°C | -50-150°C | -50-180°C |
| Housing | Carbon Steel | ||
| Electrode | 316L/ HC/ HB/ Ti/ Tan | ||
| Lining | Rubber/PTFE / PFA / F46 | ||
| Process Connection | Wafer Thread Flange (ANSI, DIN, JIS) Tri-clamp On (Sanitary) | ||
| Protection | IP 65 (Integrated Type) IP 68 (Remote Type) | ||
| Powered | AC 220V / DC 24V | ||
| Ambient Temperature | -20 - 55 °C | ||
Electronic flow meter Order Sheet
Model | Suffic code | Description | ||||||||
ATWFD | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Electronic flow meter flow transmitter | |
Diameter | xx | Standard for diameter 0006:DN6;0015: DN15 0100:DN100;2200:DN2200 | ||||||||
Structure | S | Integrated type with LCD display
| ||||||||
L | Remote type with 10 meter cable | |||||||||
Electrode material | M | Ss316 | ||||||||
T | Titanium | |||||||||
D | Tantalum | |||||||||
H | Hastelloy Alloy C | |||||||||
P | Plstinum-Iridium | |||||||||
Signal output | 0 | No output | ||||||||
1 | 4-20mA/Pulse | |||||||||
Liner material | X | Rubber | ||||||||
P | Propylene Oxide | |||||||||
F | PTFE | |||||||||
A | PFA | |||||||||
Power supply | 0 | 110-240VAC | ||||||||
1 | 24VDC(20-36VDC) | |||||||||
2 | Battery power supply | |||||||||
communication | 0 | NO communication | ||||||||
1 | Modbus RS485 | |||||||||
2 | Hart | |||||||||
3 | GPRS | |||||||||
connection | DXX | D16 DIN PN16 Flange, D25 DIN PN25 Flange..... | ||||||||
AXX | A15 ANSI150#Flange A30 ANSI300#Flange..... | |||||||||
JXX | J10 JIS 10K Flange J20 JIS 20K Flange...... | |||||||||
XXX | Other request | |||||||||
Body material | CS | Carbon steel | ||||||||
S4 | Stainless steel 304 | |||||||||
Packaging Details:
Standard export package for Electronic flow meter flow transmitter
2.Electronic flow transmitter has simple structure, reliable performance, and long service life without transmission.
