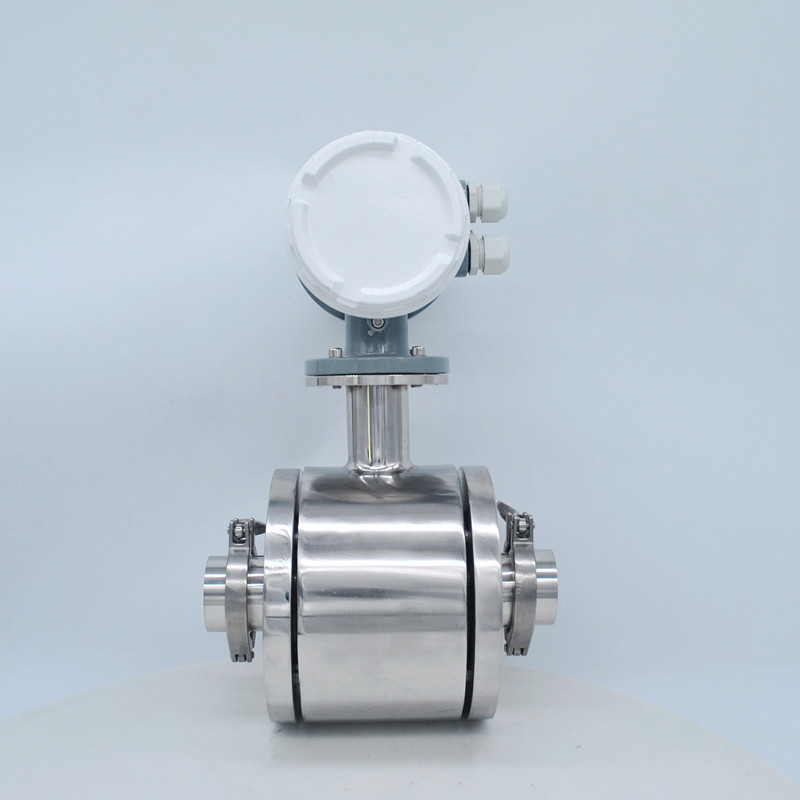

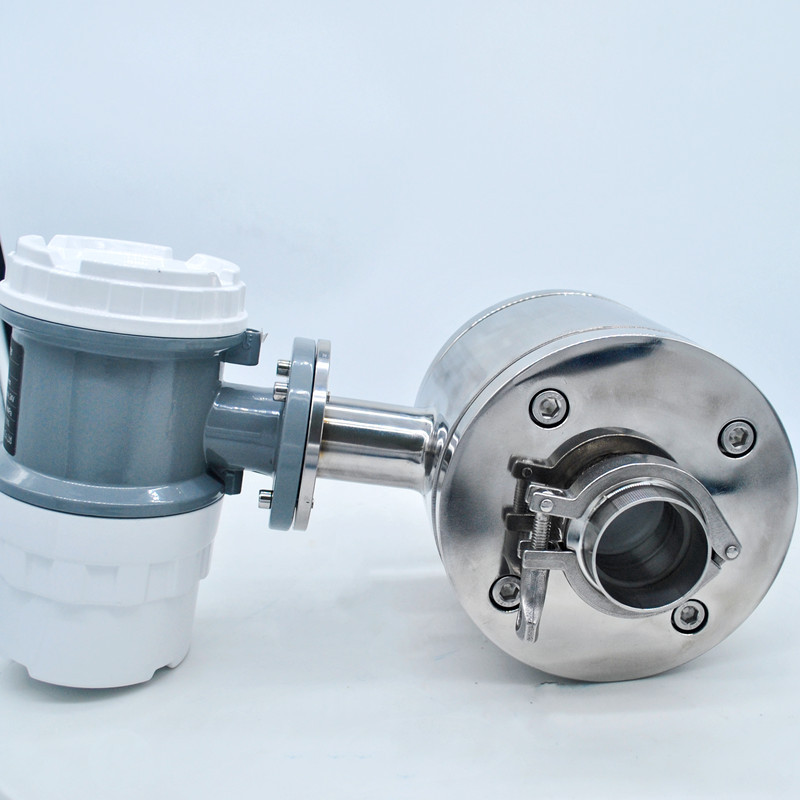

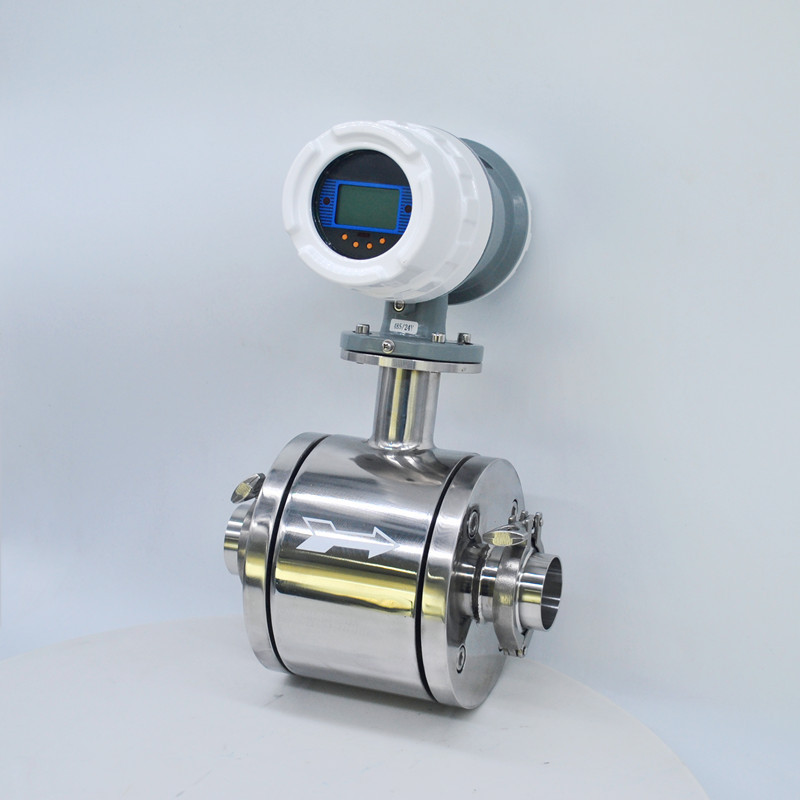

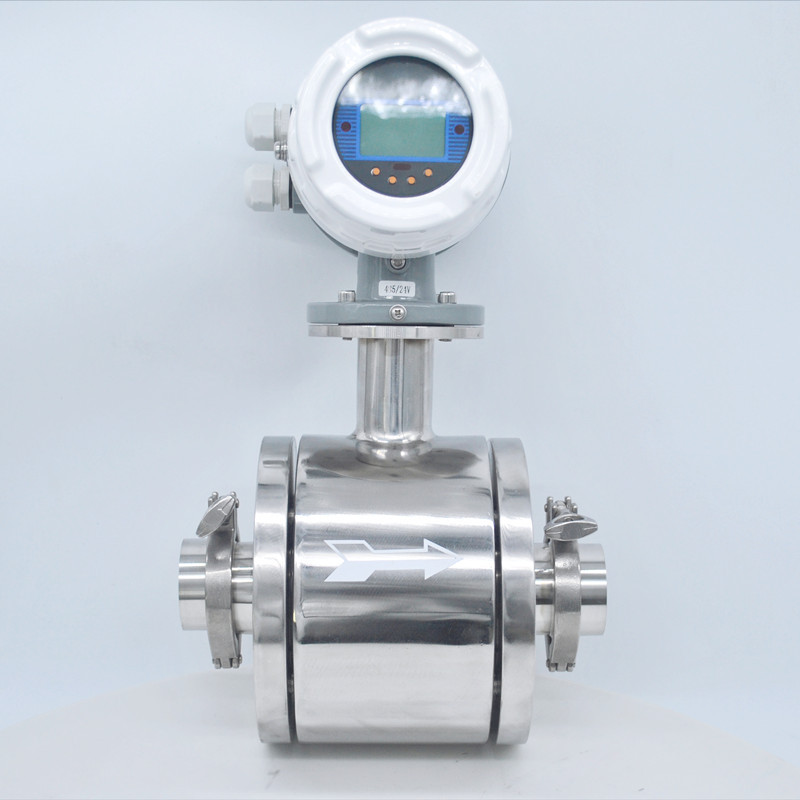

Hot Water Liquid Digital Magnetic Flow Meter
- Information
- Product Description
- Video
Product Description
Magnetic flow transmitters function based on Faraday's Law of Electromagnetic Induction to gauge the speed of liquid flow. By adhering to this principle, the magnetic flowmeter determine the velocity of conductive liquids within pipes, encompassing substances like water, acids, caustic materials, and slurries. These mag flow meters applications span various industries, including water/wastewater, chemicals, food and beverage, power, pulp and paper, metals and mining, as well as pharmaceuticals.
Features
The electromagnetic digital water flow meters showcase remarkable corrosion resistance, rendering them perfect for challenging environments like chemical processing plants, oil and gas refineries, and wastewater treatment facilities.
Renowned for their precision, the electromagnetic flow meters consistently deliver reliable measurements of fluid flow.
Crafted from robust stainless steel, the magnetic flowmeters exhibit exceptional durability and resilience, thriving even under high-pressure and temperature conditions.
With minimal maintenance requirements, stainless steel magnetic flow transmitters minimize downtime and operating costs.
Thanks to stainless steel's non-porous nature and ease of cleaning, these digital water flow meters are ideal for industries demanding high hygiene levels, such as food and beverage or pharmaceutical.
From water and chemicals to petroleum and various fluids, stainless steel electromagnetic flow meters offer versatility, serving a broad spectrum of liquid and gas measurement needs.
Technical Parameters
Power Supply | 110-240Vac (Optional: 24 Vdc) |
Power Consumption | 10W |
Accuracy | 0.5% accuracy of rate from 0.3-10 m/s |
Repeatability | 0.2% |
Minimum Fluid Conductivity | 5.0 micromhos/cm |
Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
Analog Output | 4-20mA, 750ohms Max Load |
Output Frequency | Scaled Pulse output, (open collector) Max 5Khz |
Noise Damping | Programmable |
Pulse Width | Programmable up to 500ms |
Zero-point Stability | Automatic correction |
Ambient Temperature | -20 to 60 C |
Electrode Materials | SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
Liner Material | PTFE, FEP, Hard Rubber |
Fluid Temperature | PTFE: 120C Standard (Customized: 180C) Rubber: 60C |
Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
Coil Power | Pulsed DC |
Pipe Spool Material | SS316 |
Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
Flange | Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
