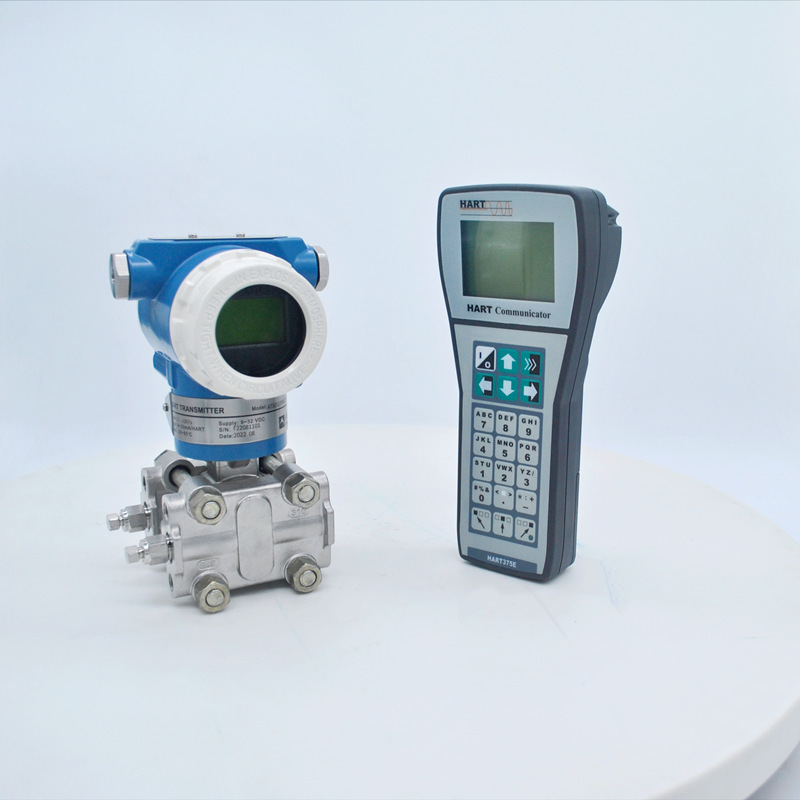

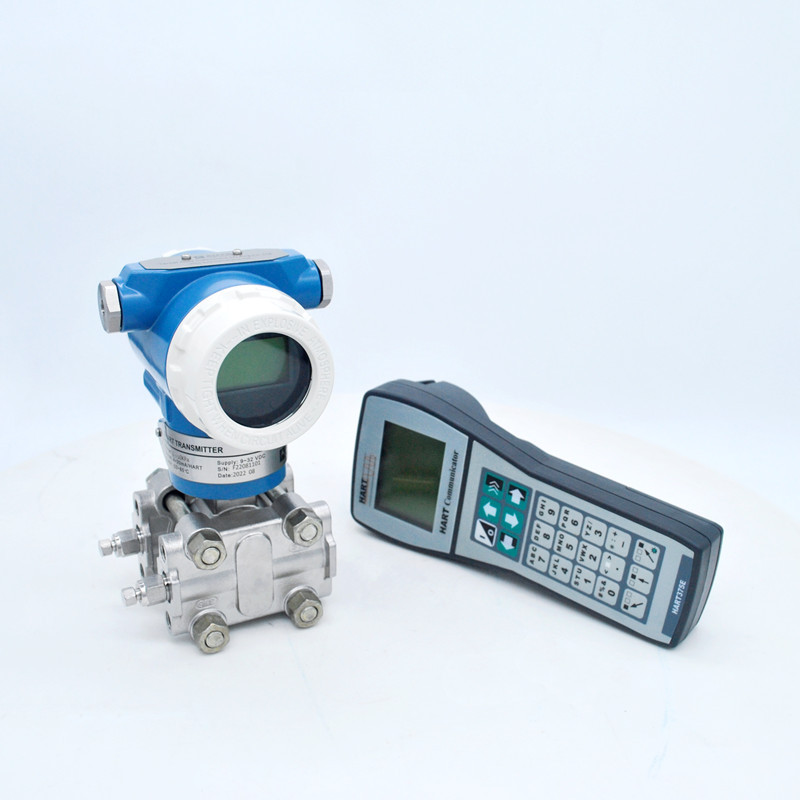

IP 65 Differential Pressure Level Sensor for Liquid, Gas and Vapor
- Information
- Product Description
- Video
Capacitive Differential Pressure Transmitter

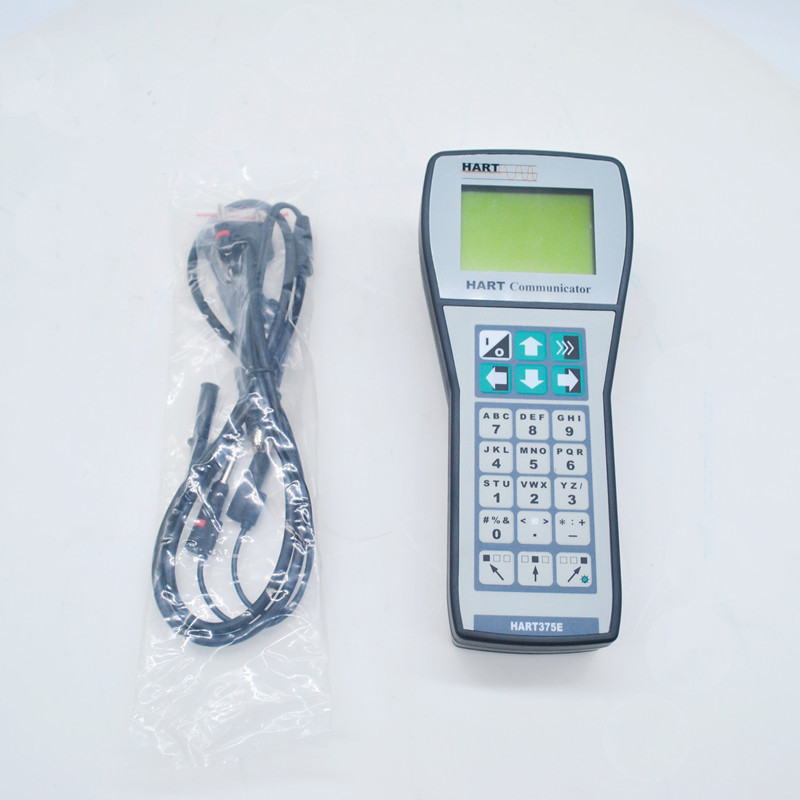

The differential pressure transducer is a high-precision intelligent on-site differential pressure detecting instrument. The capacitive differential pressure transmitter is used to measure the differential pressure, pressure, liquid level, and other parameters of various media in liquid, gas, and vapor state. And the measured differential pressure parameters into 4-20mA standard electrical signal output. At the same time use the HART protocol, with handheld devices or host computer communication function. The dpt pressure transmitter has an output parameter configuration function, which can meet the needs of different users. The dp transmitter can accurately measure differential pressure, liquid level, vacuum, and specific gravity.
The Features of Differential Pressure Transducer
1. The dp transmitters are capable of detecting the dynamic pressure of a fluid in real time with a fast response time.
2. The dpt pressure transmitter adopts advanced sensing technology, which can ensure the accuracy of the measurement results.
3. The measuring range of the dp transmitter can be adjusted according to the demand.
4. Dpt pressure transmitter adopts advanced anti-interference technology, which can effectively resist the interference of external factors and ensure stable measurement results.
5. The reading system of the differential pressure transducer is intuitive and easy to understand.
Dp Transmitter Order Sheet
| Name | Specification Code | Description | ||
AT3051 GP AT3051 DP | Pressure Transmitter Differential Pressure Transmitter | |||
Measurement Range | 3 | (0.013-0.075) bar | ||
4 | (0.062-0.374) bar | |||
| 5 | (0.31-1.868) bar | |||
| 6 | (1.17-6.9) bar | |||
| 7 | (3.45-20.68) bar | |||
| 8 | (11.7-68.90) bar | |||
| 9 | (34.8-206.8) bar | |||
| 0 | (68.9-413.7) bar | |||
Output Signal | E | analog type 4-20mA | ||
| S | 4-20mA, HART Protocol | |||
Wetted Parts Material | Flange/Joint | Exhaust/Drain Valve | Diaphragm | |
| 22 | Stainless Steel | Stainless Steel | 316L Stainless Steel | |
| 23 | Hastelloy C-276 | |||
| 24 | Tantalum | |||

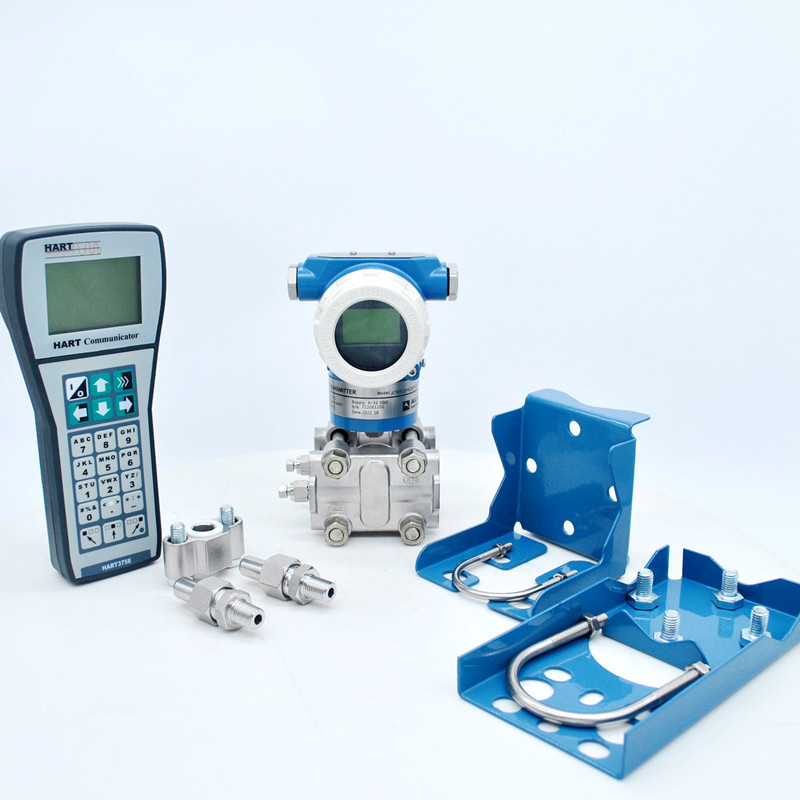

| Mounting Bracket | B1 | Tube-type Curved Bracket (Tube ODΦ50 ~ Φ60) | ||
| B2 | Board-type Curved Bracket | |||
| B3 | Tube-type Straight Bracket (Tube ODΦ50 ~ Φ60) | |||
| Display Header (optional) | M2 | Linear Pointer Header (0~100% scale) | ||
| M3 | Square Root Instruction Header (0~100% scale) | |||
| M4 | LCD Header (0~100% linear display) | |||
Process Flange | D | The liquid discharge/exhaust at the back | ||
| D1 | The liquid discharge/exhaust at the side top | |||
| D2 | The liquid discharge/exhaust at the side bottom | |||
| Flange Joint | J | "D-shaped" Joint with "M20*1.5" External Thred | ||
| N | Joint with 1/2-14NPT Taper Pipe Thread Waist Type | |||
