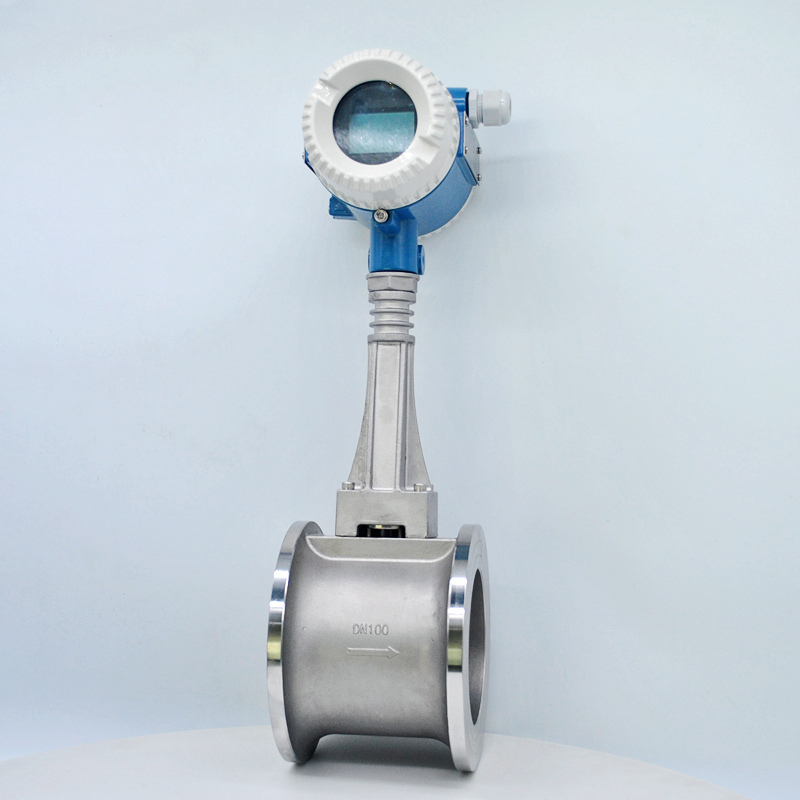

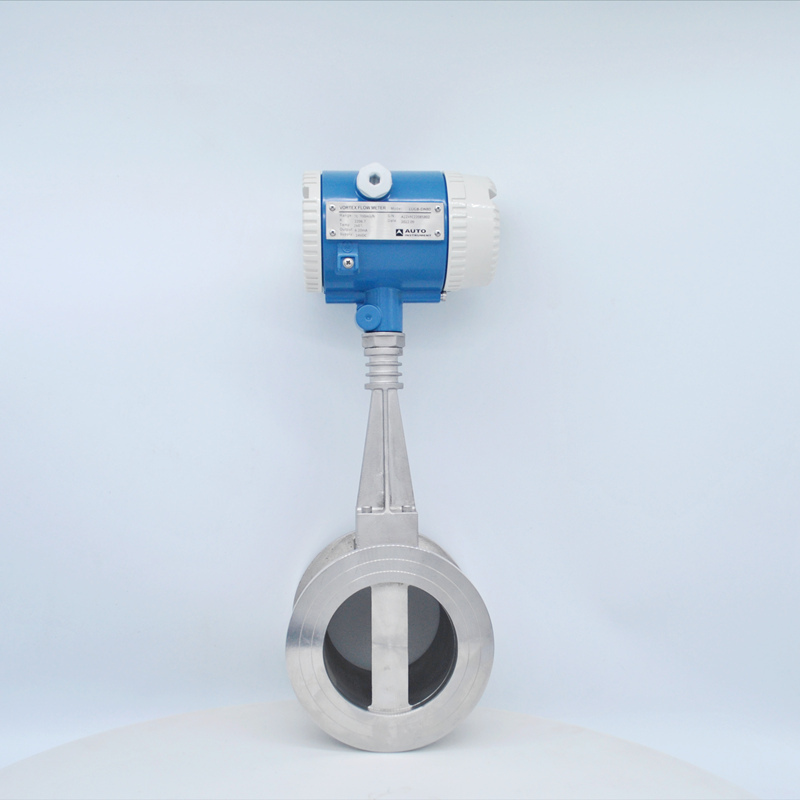

Liquid Air Vortex Flow Meter DN100 DN80 DN50
- Information
- Product Description
- Video
Product Introduction
The Vortex steam flow meter operates on the Carmen Vortex Principle, utilizing piezoelectric crystals as its testing components. The vortex flow transmitter excels in stress detection.
The vortex shedding flow meter’s merits include a broad range of flow rates, exceptional accuracy, minimal pressure loss, versatile compatibility with various mediums, and a convenient pulse signal output that correlates with the flow. Additionally, vortex flow meter seamlessly interfaces with computers for enhanced connectivity.
Scope
Gas: Air, Compressed air, Oxygen, Carbon dioxide, Nitrogen gas, Natural gas, Methane gas, Ammonia gas, etc
Steam: Superheated steam, Saturated steam
Liquid: Water, Oil
Classification
Vortex Steam Flow Meter
Material: Stainless Steel
Display: LCD display in English
Power Supply: 24VDC or Battery
Output: 4-20mA or pulse
Medium: Steam, Vapor, Gas, Liquid, etc
Communication: RS485 Modbus, HART protocol

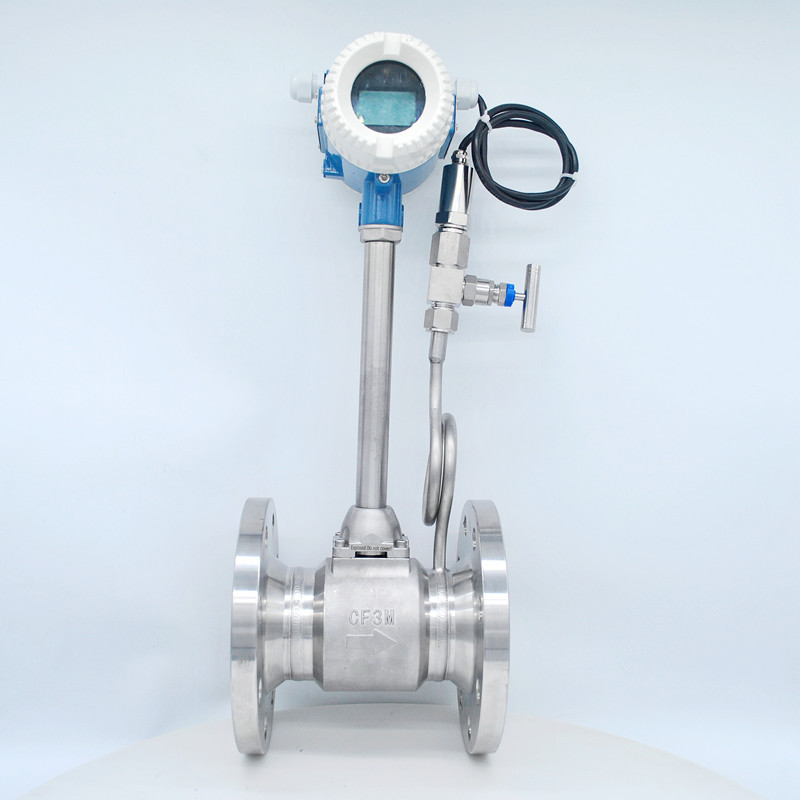

Connection Type: Flange, Wafer Type, Thead Connection with temperature and pressure compensation
Vortex Flow Transmitter Parameters
| Exeutive Standard | Vortex Flow Sensor (JB/T9249-1999) | ||
| Vertification Regulation | Vortex Flow Meter (JJG1029-2007) | ||
| Flow Meter Classification | Vortex sensor, Smart display vortex flow meter, Temperature and pressure compensation vortex flow meter, insertion type vortex flow meter | ||
| Medium | Steam, Compressed air, Coal gas, Liquid and other high-velocity medium | ||
| Meter diameter and connections | DN15-DN300 Flange Connection or Flange Clamp | ||
| DN200-DN1500 is insertion type | |||
| Flange Standard | CB/T9119-2000, Standard ANSI, Standard JIS can be customized | ||
| Power Supply | 24VDC or 3.6V Lithium batteries, Power Consumption ＜5W | ||
| Output | 4-20mA or Pulse output | ||
| Communication Interface | RS485 communication or MODBUS-RTU communication | ||
Accuracy Grade | Liquid | ±1.0%R (Pipeline) ±2% (Plug-in) | |
| Gas or Steam | ±1.5%R (Pipeline) ±2.5% (Plug-in) | ||
Repeatability | Liquid | ≤0.2% | |
| Gas or Steam | ≤0.5% | ||
| Range Radio | 1:10-1:20 | ||
Using Condition | Medium Temperature | T2 (medium temperature type) | -40℃~+280℃ |
| T3 ( high temperature type) | 280℃~+350℃ | ||
| Pressure | 1.6 MPa, 2.5MPa, 4MPa | ||
| Ambient Temperature | -20℃~+60℃ | ||
| Atmospheric Pressure | 86KPa~106KPa | ||
