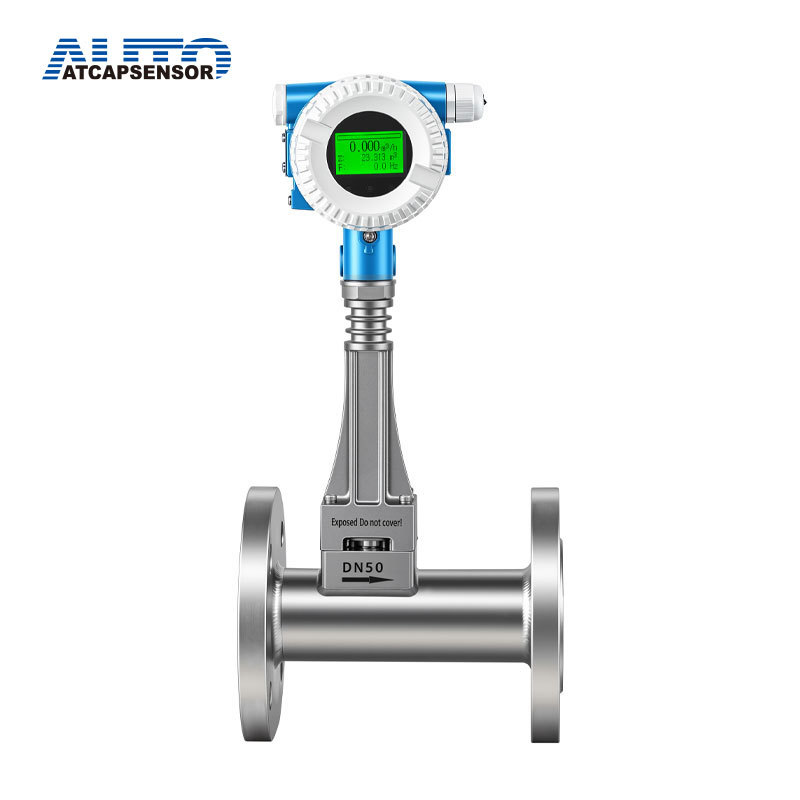

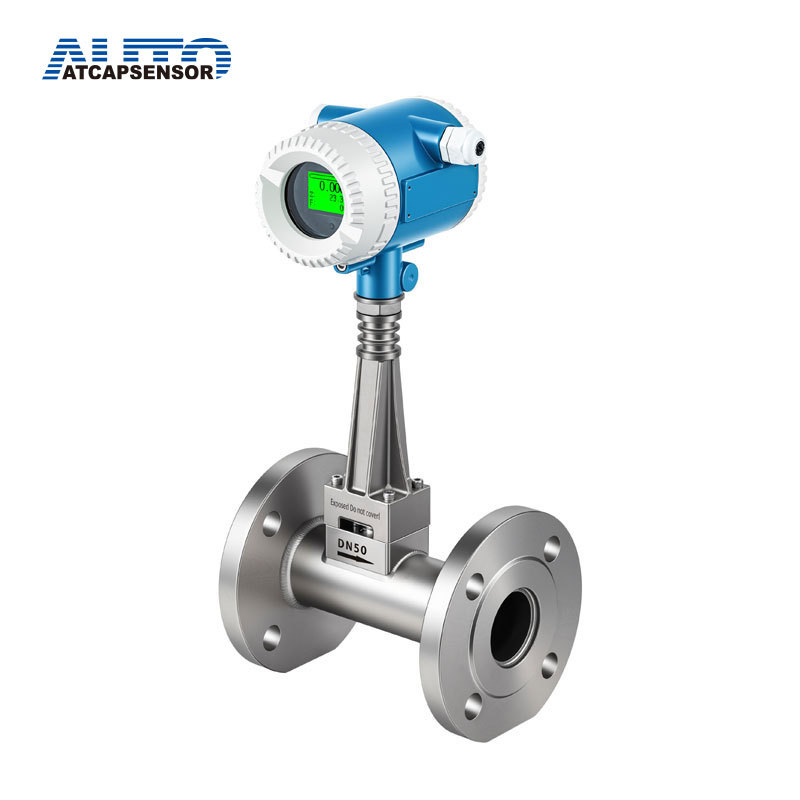

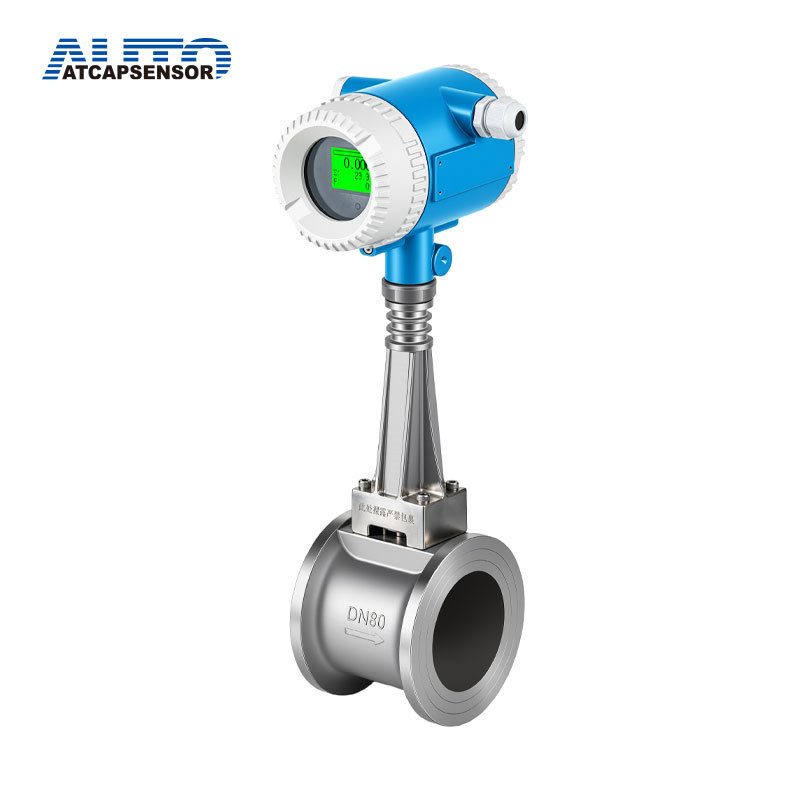

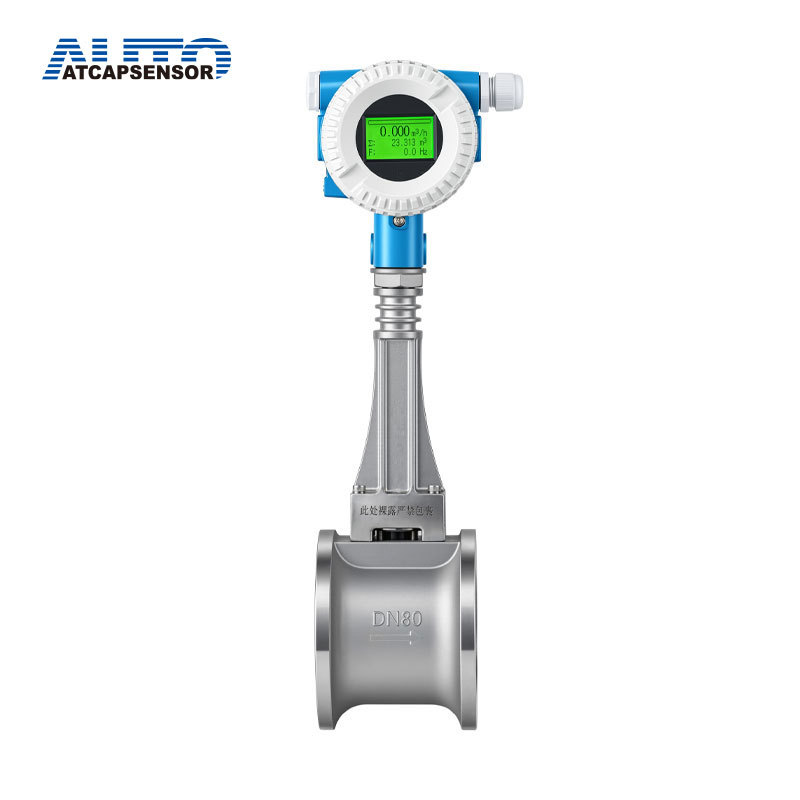

LUGB Steam Argon CO2 Gas Flow Meter
- Information
- Product Description
- Video
Product Introduction
Vortex Flow Meters offer versatility across multiple applications involving the flow of liquids, gases, air, and steam. These devices for measuring volumetric flow are designed using stainless steel bodies, ensuring precise and dependable measurements that endure for extended periods in industrial environments.
The vortex-type flow meter offers a broad flow range, making it capable of monitoring fluid flow across various sizes by utilizing different pipe diameters. Its capacity to monitor flow sizes is virtually limitless, as it remains sensitive solely to the flow rate of the fluid.
The vortex-type flow meter provides a straightforward and uncomplicated indication system. It incorporates power indication and flow status indication within its flow sensor, enabling a visual display of the current flow status within the pipeline.
The vortex-type flow meter demonstrates versatility in its compatibility with diverse fluid media. The flow switch in the flow sensor can be employed for both gases, such as natural gas and argon gas, and liquids, including water and oil. By adjusting the knob within the flow switch, monitoring gas and liquid flow becomes feasible.
Order Sheet
Nominal diameter (mm) | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type) |
| Nominal pressure (MPa) | DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement) |
| Medium temperature(°C) | Piezoelectric type:-40~260,-40~320;Capacitance type : -40~300, -40~400,-40~450(Supply agreement) |
| Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
| Allowable vibration acceleration | Piezoelectric type:0.2g Capacitance type:1.0~2.0g |
| Accuracy | ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS |
| Range of | 1:6~1:30 |
| Power supply voltage | Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery |
| Output signal | Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA |
| Pressure loss coefficient | In line with the JB / T9249standard Cd = 2.4 |
| Explosion proof marks | Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5 |
| Protection grade | The ordinary IP65 diving type IP68 |
| Environmental conditions | Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa |
| Applicable medium | Gas, liquid, steam |
| Transmission distance | Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm |
Production Line
2.Language: English, Italian, Spanish, Russian, Japanese, Korean, etc.
3.Connection style: Flange-clamped; Flange, etc.
4.Measurement medium: Gas, Steam, Liquid.
Gas: Biogas, LPG, Natural gas, Nitrogen, Carbon dioxide, Oxygen, Air
Liquid: Oil, Water, etc.
Steam: Vapor, Saturated steam, Superheated steam, etc.
