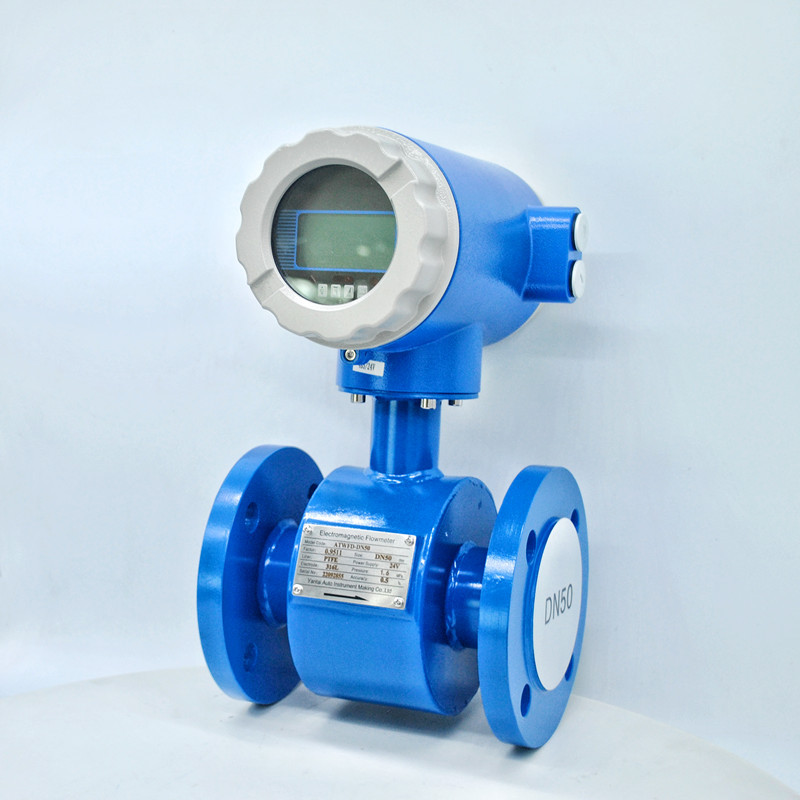

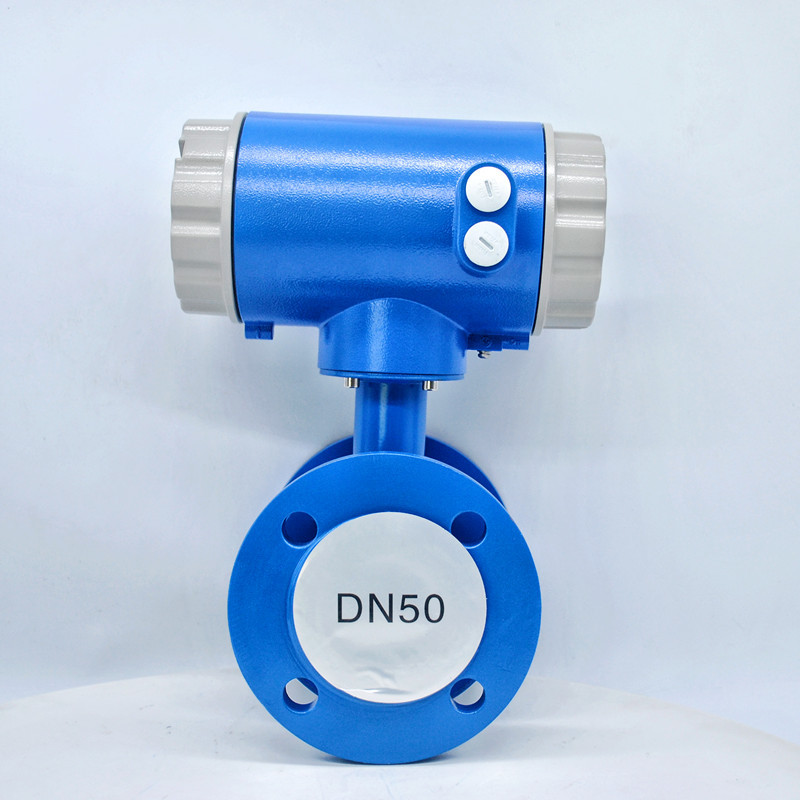

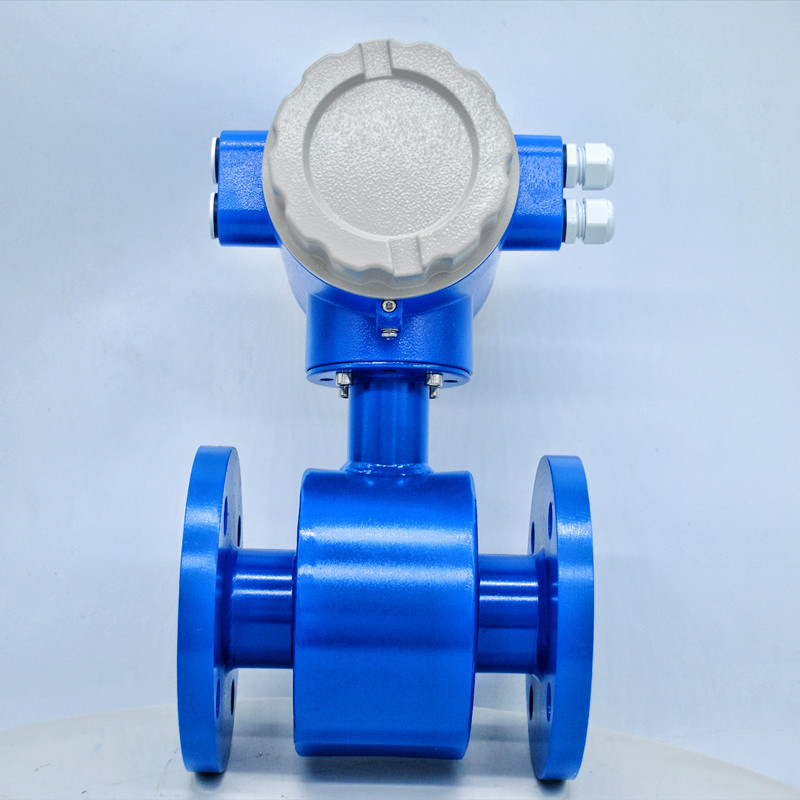

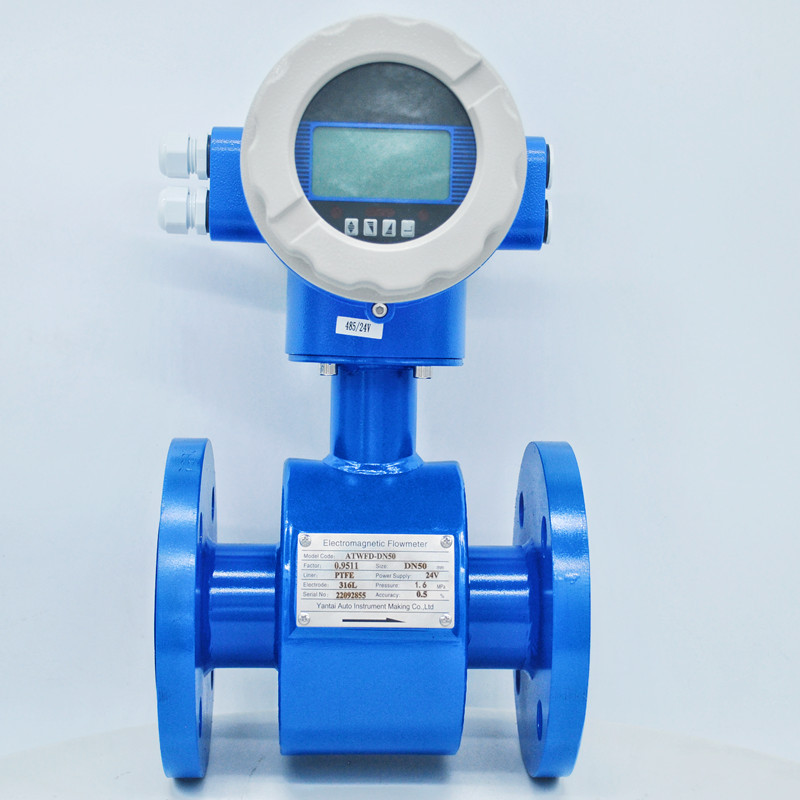

Modbus Electromagnetic Irrigation Water flow meter
Get the latest price? We'll respond as soon as possible(within 12 hours)
- Information
- Product Description
- Video
Electromagnetic Flowmeter Description
The mag flow meters excel in accurately measuring the flow of fluids with electrical conductivity ranging from 5 μS/cm (20 μS/cm for demineralized water). Fuji Electric's flow meters boast a wide range and exceptional precision. The measurements of the digital water flow meter remain unaffected by variations in density, temperature, or pressure. The operational concept of the mag flow meter from Faraday's law of magnetic induction.
Mag Flow Meter Features
- Magnetic water flow meters do not have any moving parts that come in contact with the fluid being measured.
- The digital water flow meters can be used for measuring the flow of a wide range of conductive fluids including water, wastewater, acids, alkalis, slurries, and more.
- Magnetic type flow meters offer high accuracy over a wide range of flow rates.
- Digital water flow meters have a minimal pressure loss compared to other types of flow meters.
- With no moving parts to wear out, electromagnetic flowmeters require minimal maintenance.
Mag Flow Meter Technical Parameters
Power Supply | 110-240Vac (Optional: 24 Vdc) |
Power Consumption | 10W |
Accuracy | 0.5% accuracy of rate from 0.3-10 m/s |
Repeatability | 0.2% |
Minimum Fluid Conductivity | 5.0 micromhos/cm |
Flow Direction | Unidirectional or bidirectional, 2 separate totalizers (programmable) |
Analog Output | 4-20mA, 750ohms Max Load |
Output Frequency | Scaled Pulse output, (open collector) Max 5Khz |
Noise Damping | Programmable |
Pulse Width | Programmable up to 500ms |
Zero-point Stability | Automatic correction |
Ambient Temperature | -20 to 60 C |
Electrode Materials | SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum |
Liner Material | PTFE, FEP, Hard Rubber |
Fluid Temperature | PTFE: 120C Standard (Customized: 180C) Rubber: 60C |
Pressure Limits | 1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa |
Coil Power | Pulsed DC |
Pipe Spool Material | SS316 |
Meter Housing Material | Carbon Steel welded or SS304 (Sanitary Connection) |
Flange | Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings |
Magnetic Type Flow Meter Order Sheet
Calibration Line
Magnetic flow meter applications
Inline Sea Water Electromagnetic Flow Meter
Magnetic water flow meters find widespread use across various sectors, such as agriculture, hydraulic fracturing fluid tracking, groundwater observation, urban water administration, and desalination operations. Whether your requirement pertains to industrial, agricultural, or environmental fluid measurement with precision, our magnetic type flow meters stand ready to meet the challenge.
