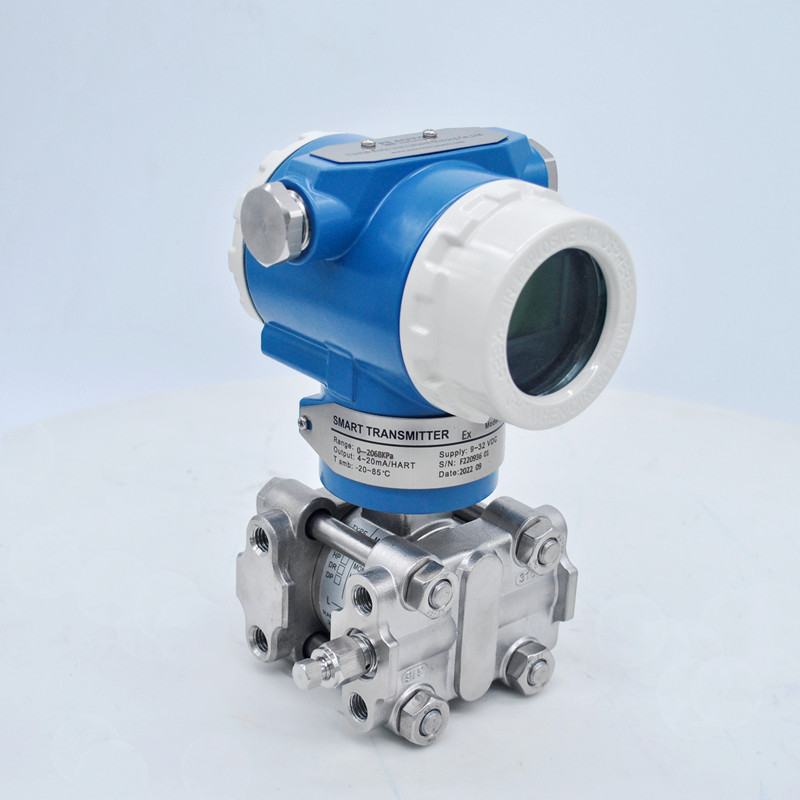

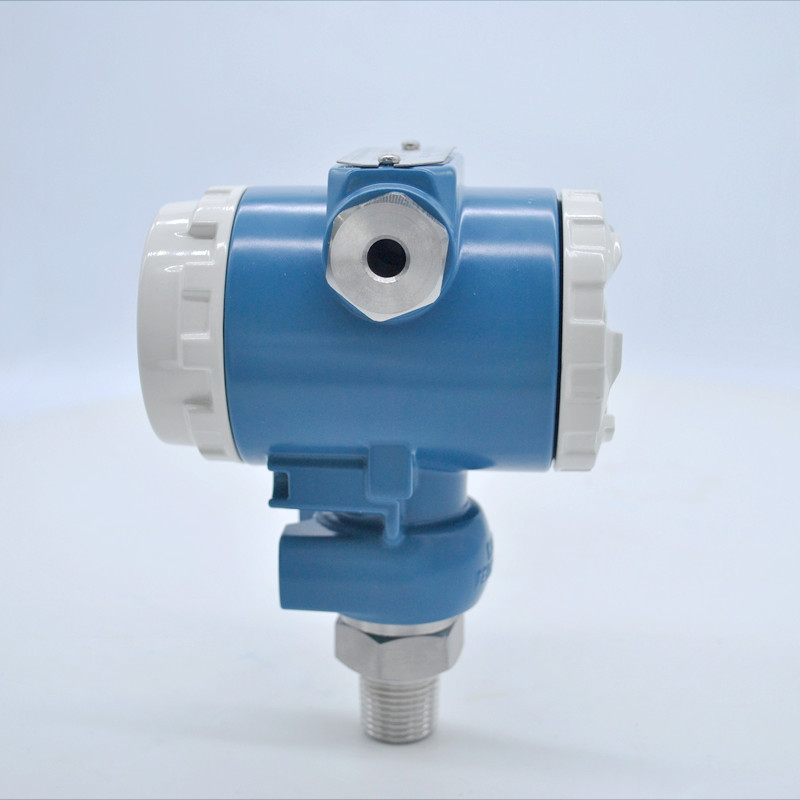

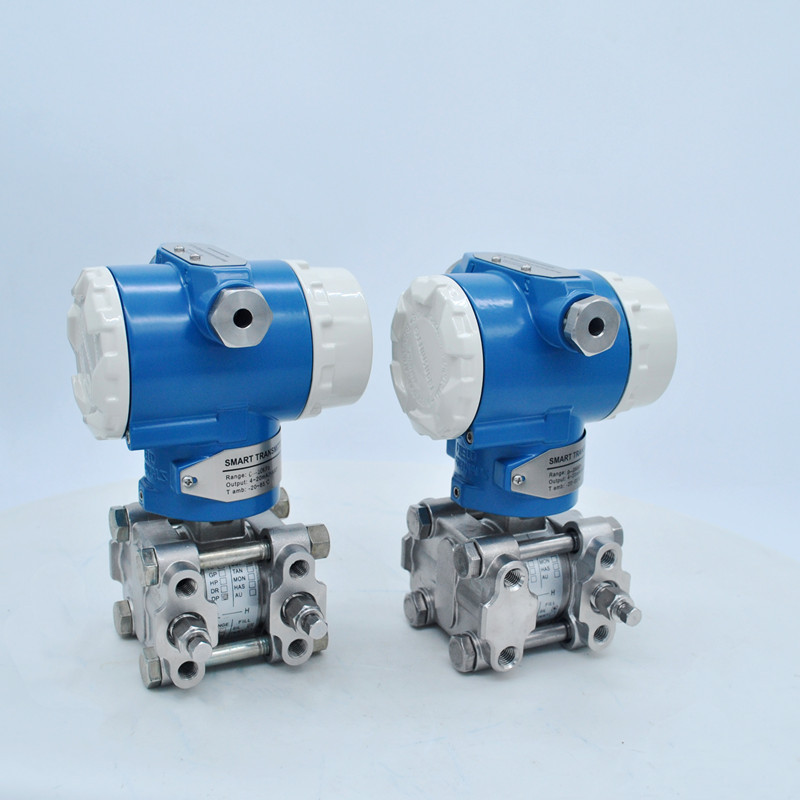

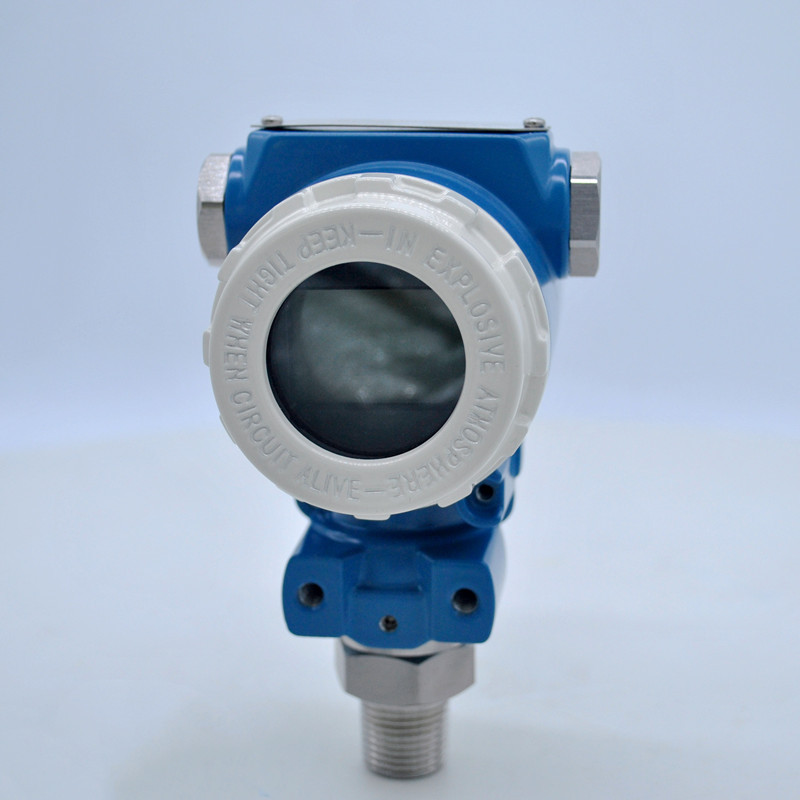

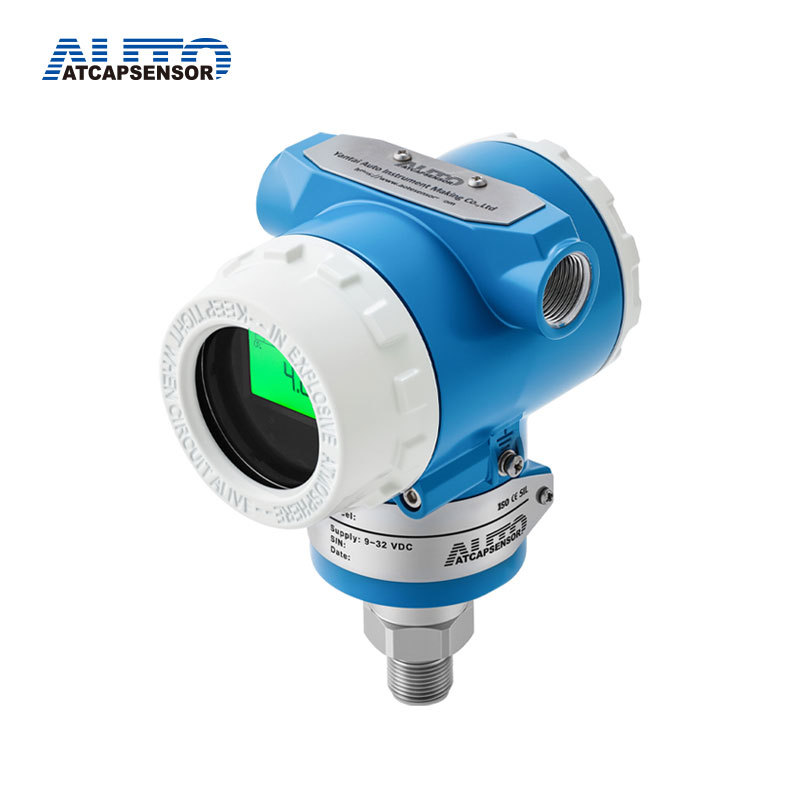

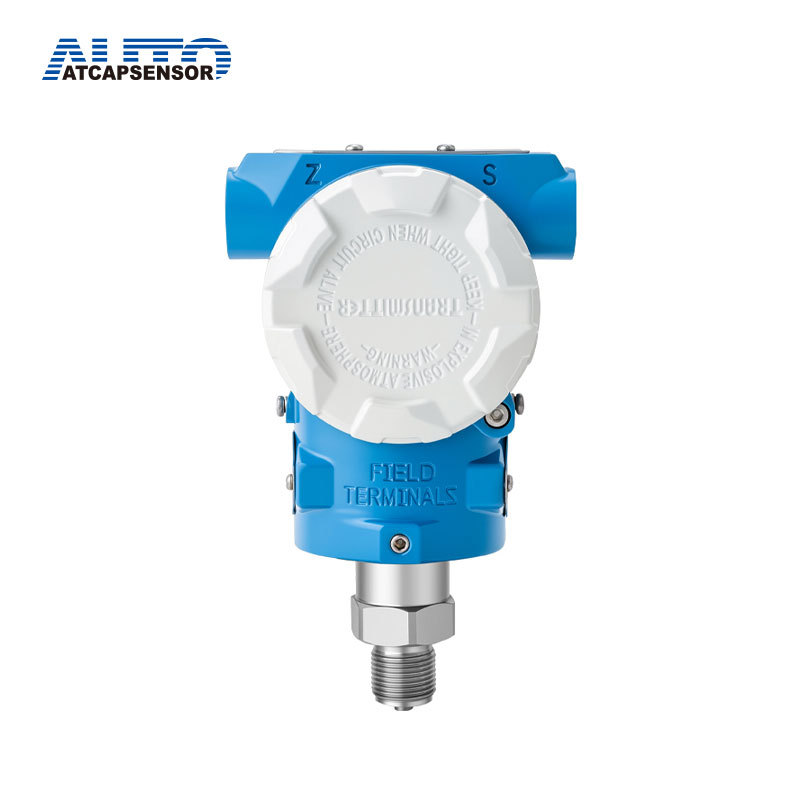

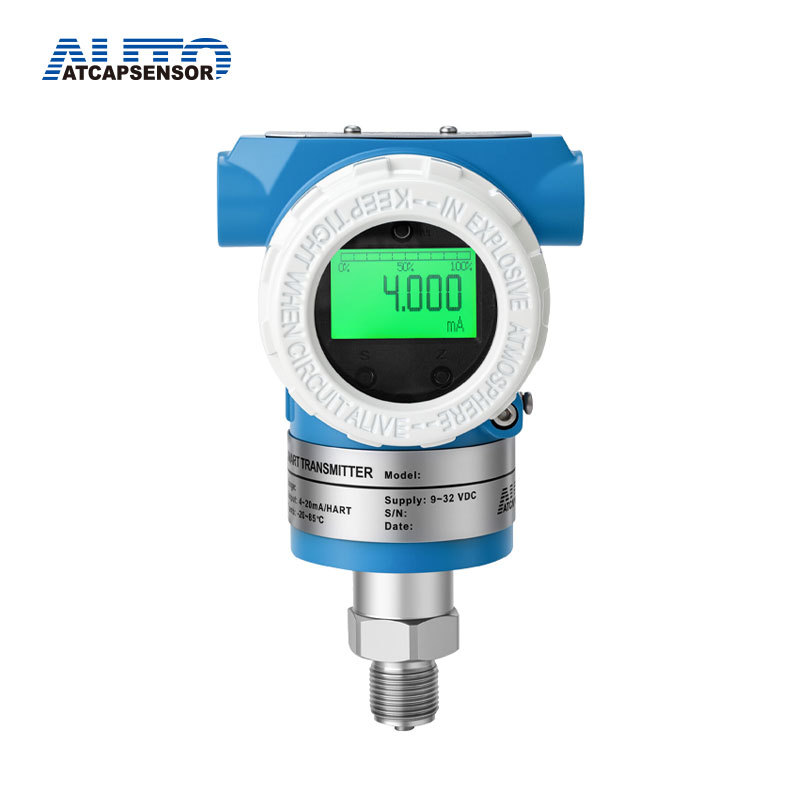

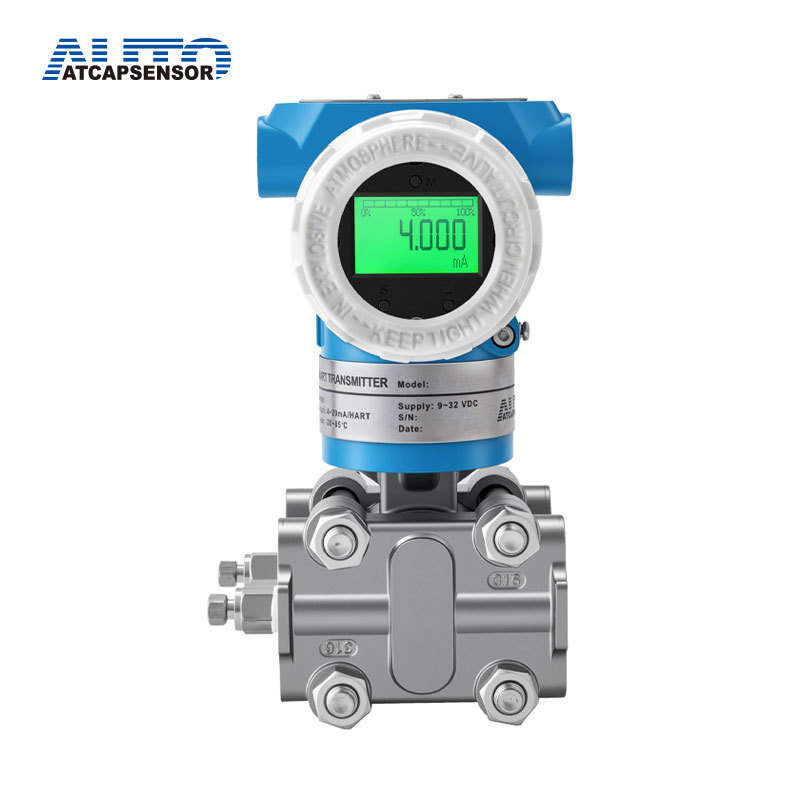

Multi Function Pressure Transmitter with HART
Get the latest price? We'll respond as soon as possible(within 12 hours)
- Information
- Product Description
- Video
Pressure Indicator Transmitter Introduction
Pressure indicator transmitters find extensive application across diverse industries, including oil and gas, chemical processing, food and beverage, pharmaceuticals, and water treatment. Manufacturers usually engineer and validate the digital pressure transmitter to conform to industry benchmarks and regulations, guaranteeing precision, dependability, and operational safety.
Features of Pressure Transmitter
Process Fluid | Liquid, Gas, Vapor |
Applation | Differential Pressure, Gauge Pressure, Absolute Pressure |
Working Temperature | -25 to +95 ℃ |
Current Output | 4-20mA 2 Wires HART Protocol |
Power Supply | 24VDC |
Ambient Temperature | -25 to +240℃ |
| Electrical Connections | 1/4 - 18 NPT or 1/2 - 14 NPT |
Enclosure | IP65 |
Intrinsically Safe | Exia II C T6 |
| Explosion Proof | Exd II B T5 |
Capacitive Pressure Transmitter Order Sheet
| Item | Code | Specification |
AT3051TG | Gauge Pressure Transmitter | |
| AT3051TA | Absolute Pressure Transmitter | |
| Measurement Range | 3 | 0-1.5~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| 8 | 0~6890 Kpa | |
| 9 | 0~20680 Kpa | |
| 0 | 0~100Mpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Diaphragm Material | 2 | Stainless Steel 316L |
| 3 | Hastelloy C | |
| Fill Fluid | 2 | Silicone Oil |
| 2 | Fluorine oil | |
| Process Connection | D | 1/2'' NPT F |
| A | M20*1.5 | |
| B | 1/2'' NPT M | |
| C | 1/2'' G | |
| D | Customizable | |
| Cable Entry | 1 | M20*1.5； NPT1/2'' |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Ready for Digital Pressure Transmitter
Production Line
Applications of Smart Pressure Transmitter
The smart pressure transmitter variant serves as a tool for gauging and relaying the pressure of fluid or gas within a pipeline, tank, or container to a control system or display unit. The capacitive pressure transmitter transforms the pressure into an electrical signal, facilitating its transmission to a distant point for monitoring or control purposes.
