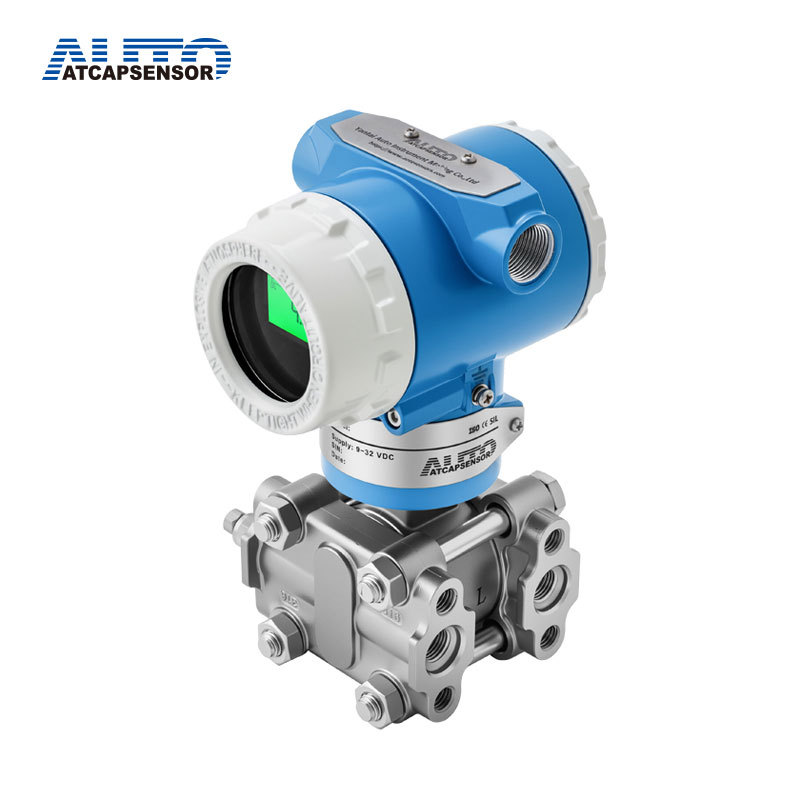

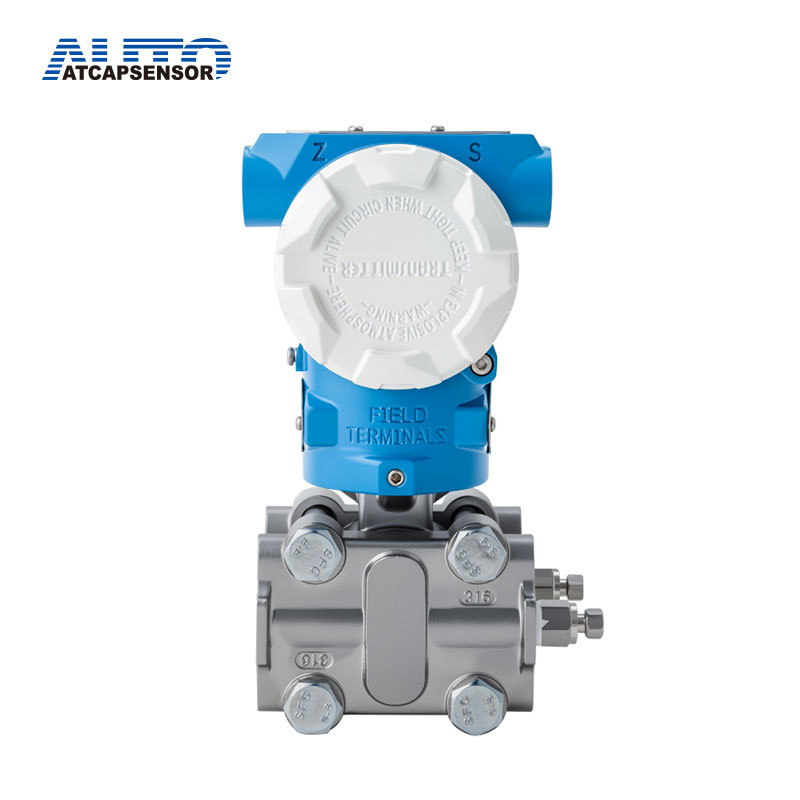

Water Air Gas Steam Differential Pressure Transmitter

Brief Introduction

Differential pressure transmitter/pressure transmitter  is a measure of the difference between the two ends of the transmitter ,output standard signal ( 4 ~ 20mA) differential pressure transmitter and pressure transmitter with the general difference is that there are two pressure ports,  the differential pressure transmitter is generally divided into positive and negative terminal end, under normal circumstances, Positive pressure side pressure should be greater than the negative pressure section.

The capacitance differential pressure transmitter is highly accurate and stable, featuring a sensor capable of measuring static pressure. The data is displayed on an integrated indicator and can also be remotely monitored via HART communication. Other main features include fast response, remote configuration through communication, self-diagnostics, and optional status outputs for high/low pressure alarms. Capacitive differential pressure transmitter customized for precise and reliable performance to meet your unique needs.

Features

•  Process Fluid: Liquid, gas, or steam flow as well as liquid level, density and pressure

•  Measuring range: 200Pa-10MPa

•  Working Temperature: -25 to +95C

•  Current Output: 4 – 20 mA   2 wires   Hart Protocol

•  Power Supply: 24VDC

•  Ambient Temperature: -25 to +120C

•  Process connections: 1/4 – 18 NPT or 1/2 – 14 NPT

•  Electrical Connections: 1/2”NPT or M20*1.5

•  Enclosure:IP65

•  Intrinsically Safe: ia II C T6

•  Explosion proof: d II B T5

• Diaphragm material: SUS316L, Hastelloy C

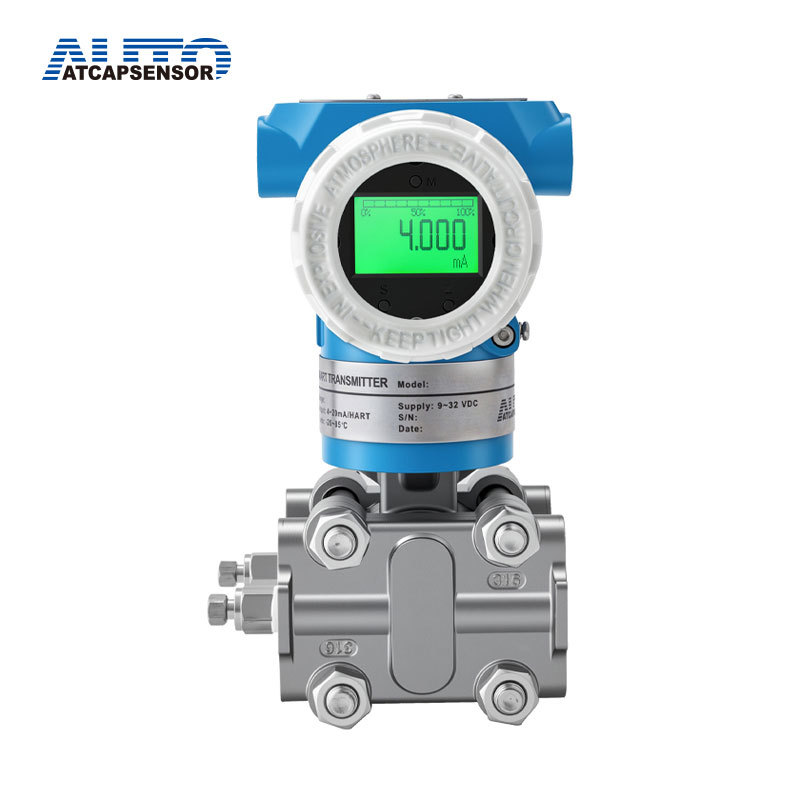

LCD Display

Industry application

• Process control system

• Petroleum industry

• Chemical industry
