Brief Introduction
The magnetic flow meter, commonly known as a mag flow meter or mag meter, is an instrument designed for volumetric flow measurement in fluids or liquid slurries possessing a minimum conductivity of 5 µS/cm. It's important to note that magnetic flow meters are generally not suitable for use with hydrocarbons, distilled water, non-aqueous solutions, or solutions lacking conductivity.
Application area
1. Drinking water supply, water supply, reservoir and pumping station etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.
3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc.
6.Control of metal industrial pump,cooling water and the flow of water.
7. The textile industry of water, pigments, chemicals, bleaching chemicals etc.
Order sheet
| Name | Specification Code | Explanation |
| Instrument Type | Intelligent electromagnetic flow meter | |
| Diameter Code | xxx | For example: 100 represents DN100 |
| Electrode Form | 1 | Standard stationary type |
Electrode Material | 0 | Stainless steel (316L) |
| 1 | Platinum Pt | |
| 2 | Hastelloy B (HB) | |
| 3 | Tantalum Ta | |
| 4 | Titanium Ti | |
| 5 | Hastelloy C (HC) | |
Lining Material | 3 | Choroprene Rubber |
| 4 | Polyurethane Rubber | |
| 5 | F4 (PTFE) Polytetrafluoroethylene | |
| 6 | F46 (FEP) Polyperfluoroethylene-propylene | |
Rated Pressure (MPa) | 4.0 | DN10-80 |
| 1.6 | DN100-150 | |
| 1.0 | DN200-1000 | |
| 0.6 | DN1100-2000 | |
| 0.25 | DN2200 | |
Operating Temperature | E | ＜80ºC |
| H | ＜120ºC | |
| Grounding | Built-in Grounding Electrode | |
Grade of Protection | 0 | IP65 |
| 1 | IP68 | |
Converter Type | 0 | Integral Type |

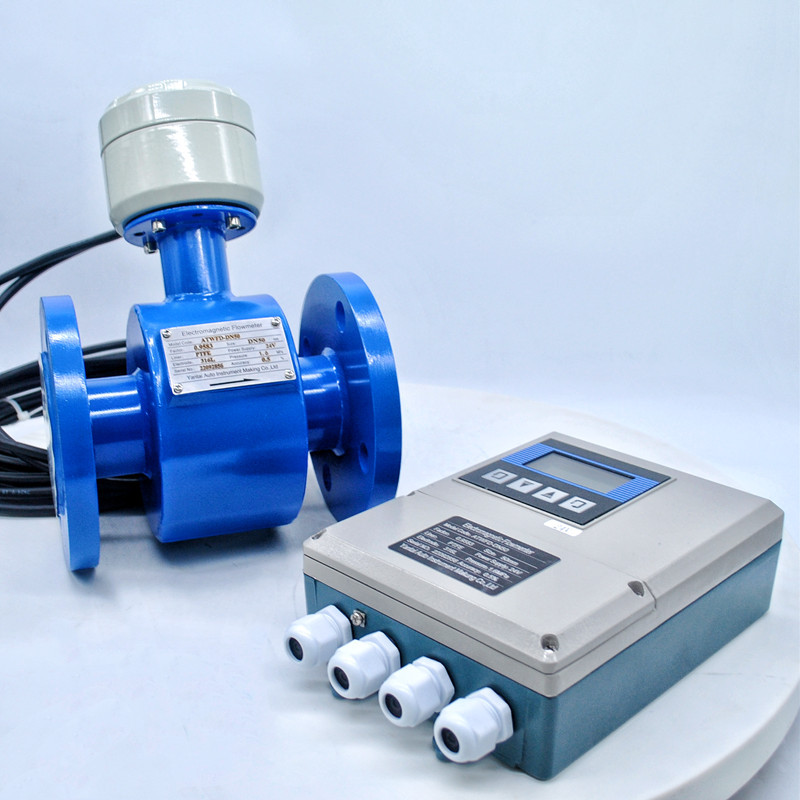

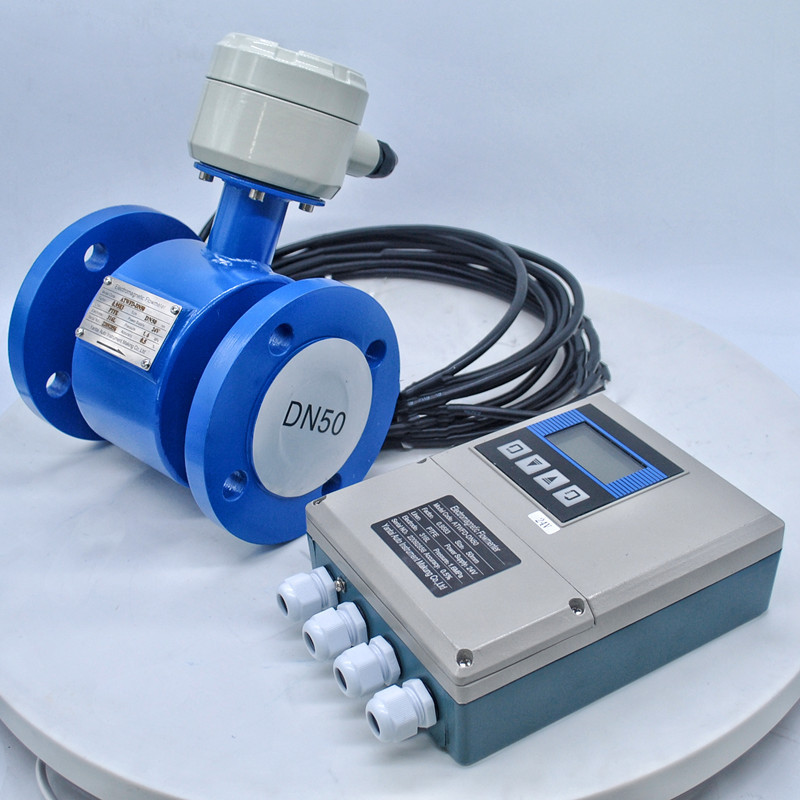

| 1 | Split Type | |
Gase Material | 0 | Carbon Steel |
| 1 | Stainless Steel | |
Instrument Flange | 0 | Carbon Steel |
| 1 | Stainless Steel | |
Installing Timing Flange | 0 | Without |
| 1 | With | |
Power Supply Source | 0 | 220VAC |
| 1 | 24VDC | |
Instrument Range | XXX | For example: (200) represents maximum fux corresponding to 20mA |
| Flow: 200mm³/h |
Calibration line
Magnetic flow meter applications
Circuit Board - High precision surge protection device
PTFE - Corrosive acid base salt liquid
Ti Electrode - Built-in three electrode
LCD display - Cumulative flow + Instantaneous flow + Forward flow + Reverse flow
