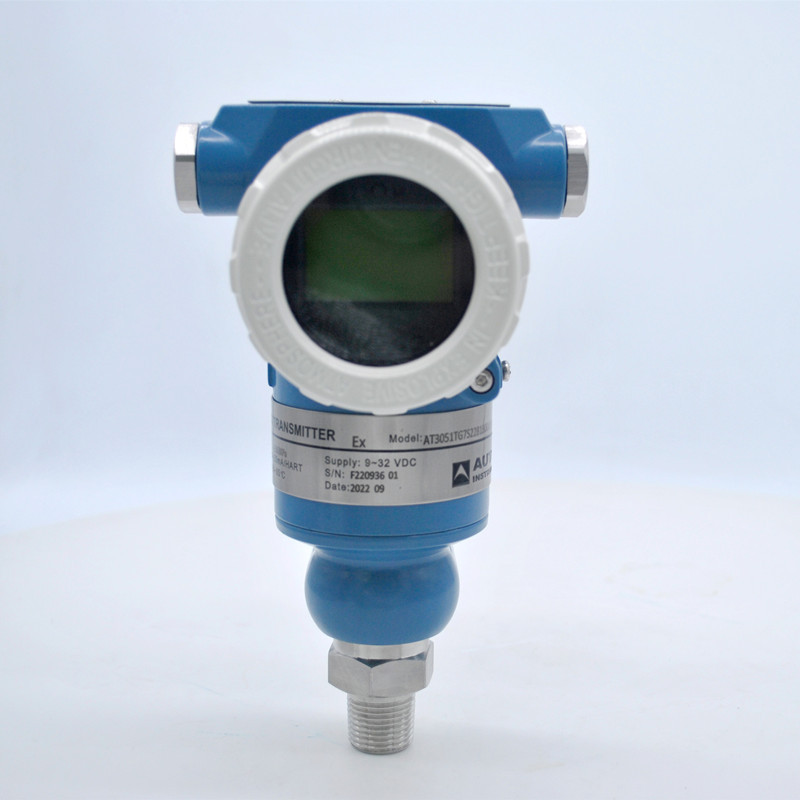

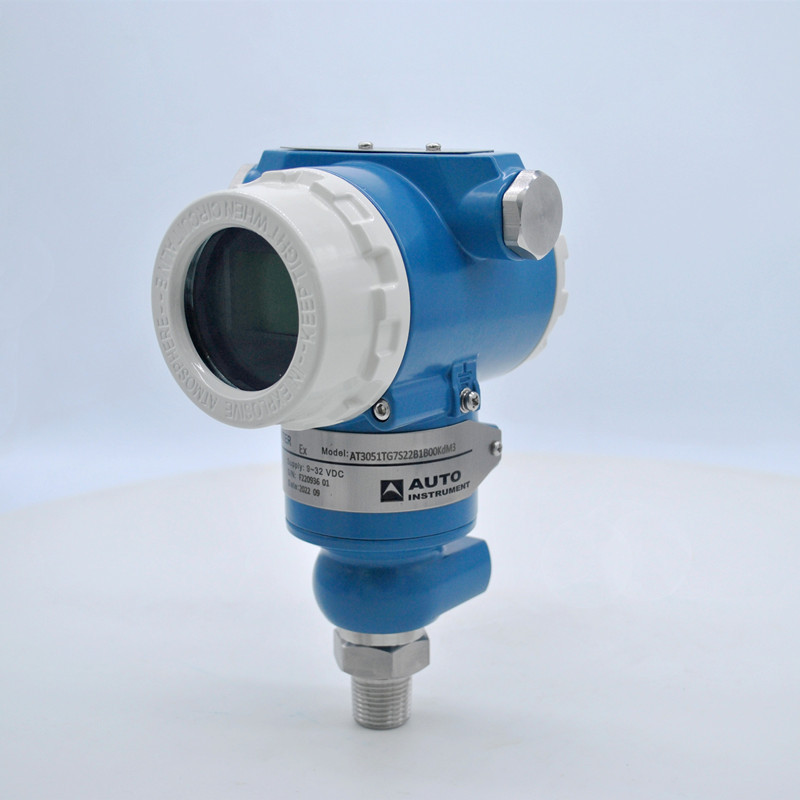

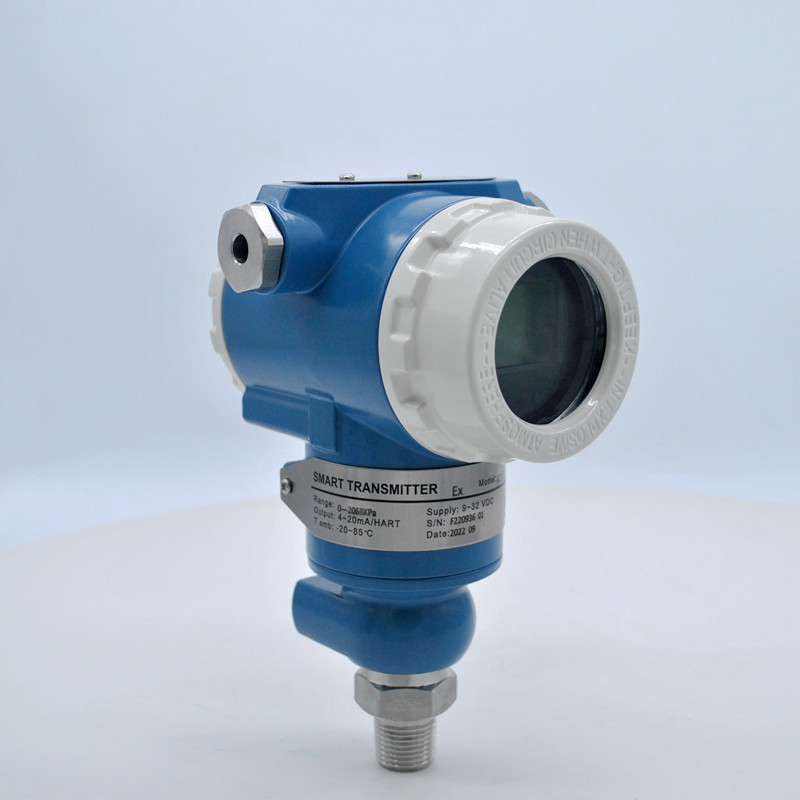

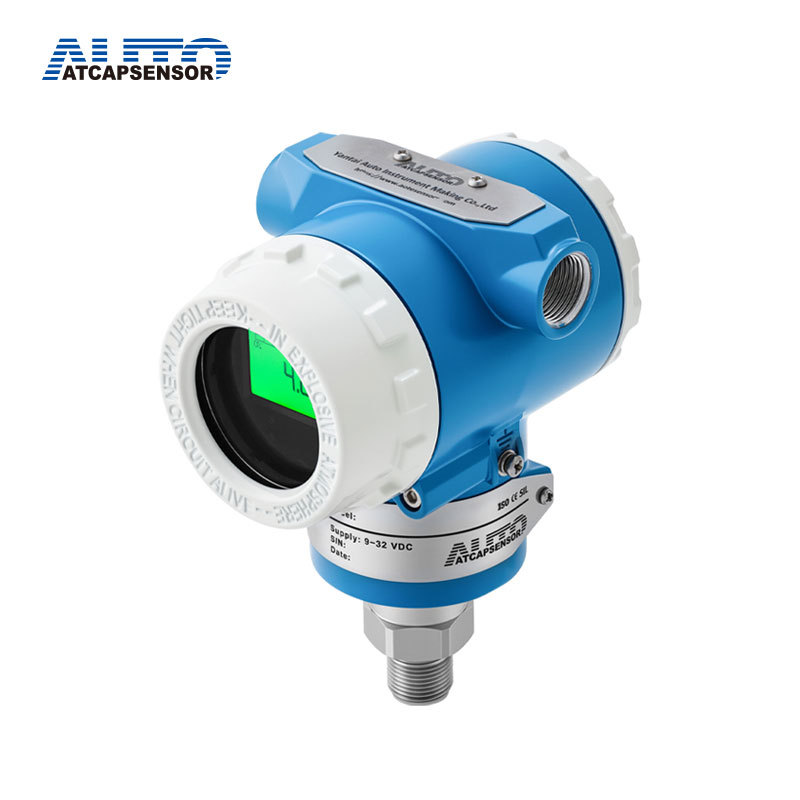

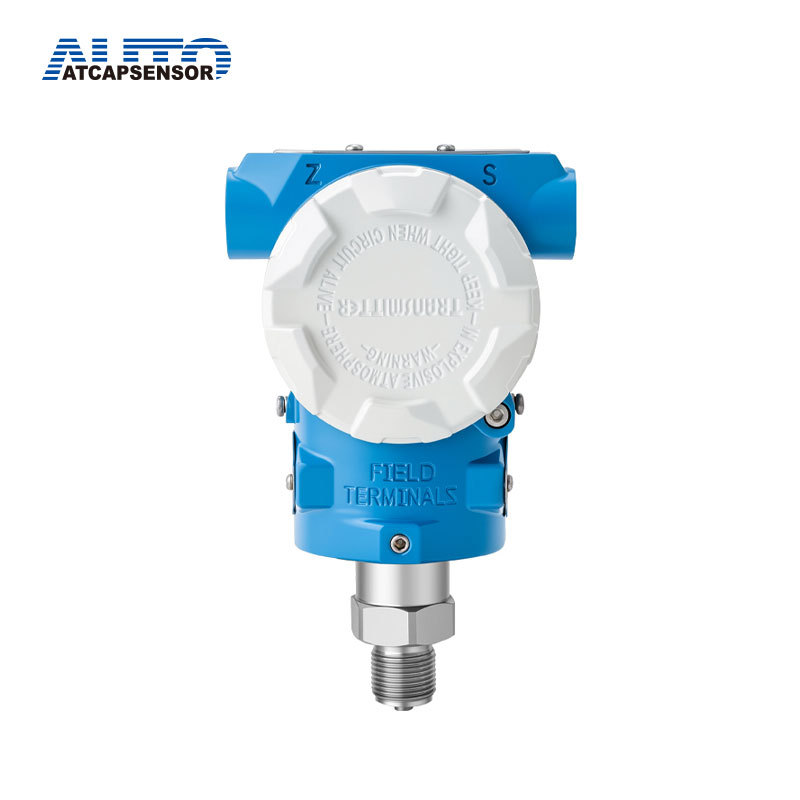

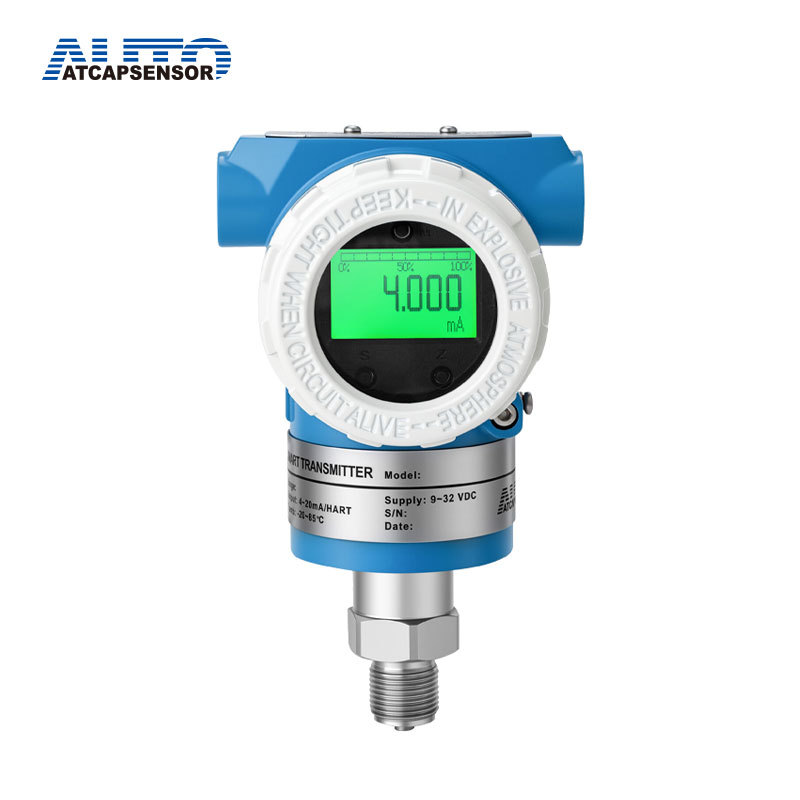

0-10bar Gas Pressure Transmitter Diffused Silicon Sensor

Introduction

The AT3051TG(TA) series is a high-performance pressure transmitter known for its exceptional accuracy and stability. As a smart pressure transmitter, it can be used as an absolute pressure transmitter or a gauge pressure transmitter, specifically designed for a wide range of industrial applications. It offers versatile measurements for various pressure types, including liquid, gas, and steam flow. The transmitter outputs a precise 4~20 mA DC signal corresponding to the measured pressure, making it a reliable choice for critical applications.

Equipped with an advanced sensor, the AT3051 can also measure static pressure, displaying results on its integral indicator or transmitting data remotely via HART communication protocol. As a smart pressure transmitter, it supports quick response through digital communication, enhancing user control and flexibility. Self-diagnostic features further ensure robust performance, while an optional status output provides alerts for high or low pressure conditions. These features make the AT3051 an ideal choice for precise pressure management in industrial environments, delivering reliable results and streamlined monitoring for critical applications.

PHYSICAL SPECIFICATIONS

Model No.	AT3051
Power supply	24V
Outout signal	4~20mA Analog output/HART communication
Measurement range	0~1kPa to 0~100MPa
Transport temperature	-50~85℃； with liquid crystal display -40~85℃
Environment temperature	-40~85℃； with liquid crystal display and fluororubber seal ring -20~65℃
Ingress protection	IP67
Accuracy	0.1%
Diaphragm material	Stainless steel 316L、hastelloy C
Product shell	Aluminum alloy with epoxy coating
Weight	2Kg

Pressure transmitters can also be referred to as Absolute Pressure Transmitters, Gauge Pressure Transmitters, Air Pressure Transmitters, and Vacuum Transmitters, depending on the specific environmental requirements. The Air Pressure Transmitter can function effectively as a Gauge Pressure Transmitter in applications where air pressure relative to atmospheric conditions is critical. The Absolute Pressure Transmitter provides unparalleled accuracy by measuring against a true vacuum reference, ideal for environments demanding precise, unaffected baseline pressure readings. Gauge Pressure Transmitters, conversely, measure relative to ambient atmospheric pressure, making them suitable for open systems where dynamic interaction with external pressure is required. Vacuum Transmitters specialize in sub-atmospheric measurements, designed specifically for applications needing meticulous vacuum control, such as semiconductor manufacturing and vacuum packaging. Together, these transmitters deliver a comprehensive suite of solutions, supporting reliable and precise pressure management across diverse industrial processes.
