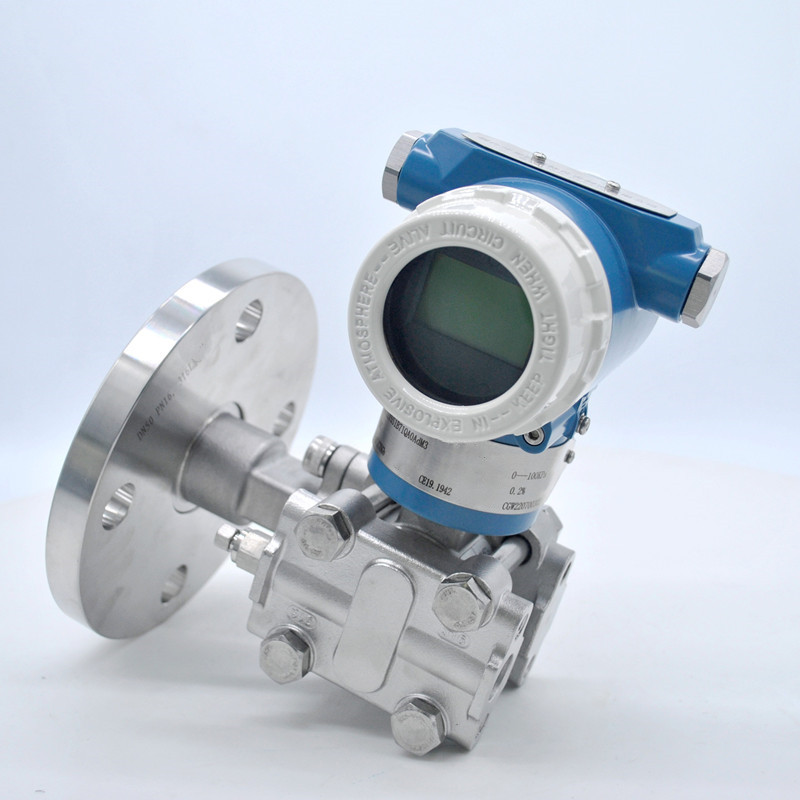

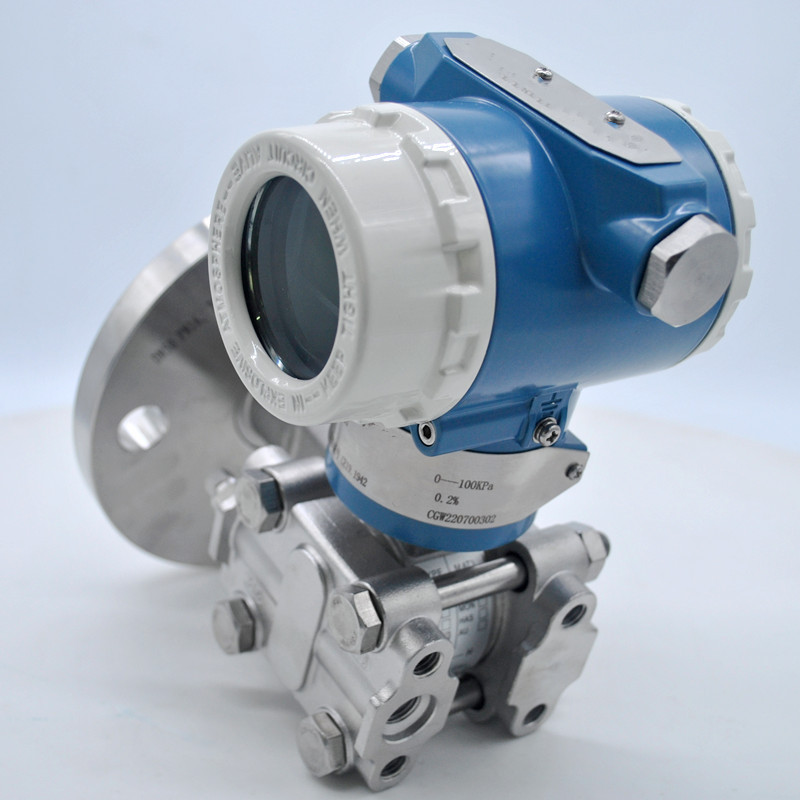

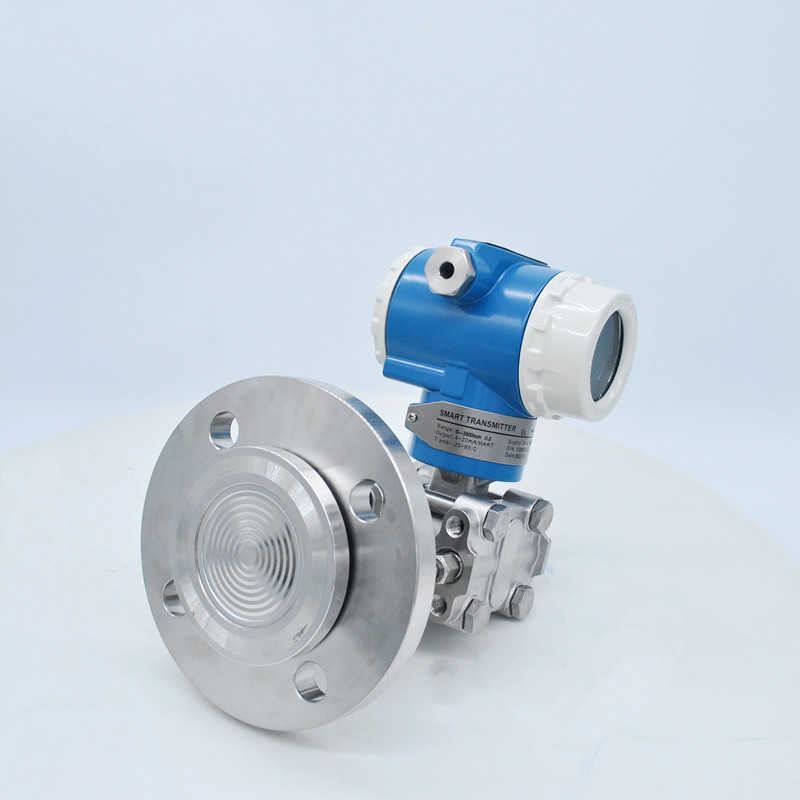

3051 Explosion Proof Differential Level Pressure Transmitter
- Information
- Product Description
- Video
Brief Introduction
The flange dp level transmitter serves to gauge the level and density of liquids containing solids and sediment. The flange differential pressure transducer transforms this information into a 4-20mA current signal output and can be linked with the Hart Protocol for data monitoring and control. Meanwhile, the diaphragm differential pressure transmitter finds extensive application across industries like petroleum, chemical, metallurgy, electric power, food, paper, pharmaceuticals, machinery, manufacturing, and more.
Industry application
Viscous medium at high temperature
Easily crystallized medium
Precipitating medium
Strong corrosive or highly toxic medium
Occasions with high hygiene and cleanliness requirements
Food, beverages and pharmaceuticals
Order Sheet
| Item | Code | Specification |
| AT3051RD | remote seal level transmitter/dp level transmitter | |
| Measurement Range | 3 | 0-4~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Cable Entry | 1 | M20*1.5 |
| 2 | 1/2''NPT | |
| Mounting Bracket | B00 | None |
| B01 | Tube-type Curved Bracket (carbon steel) | |
| B02 | Wall mounting bracket (carbon steel) | |
| B03 | Tube-type Flat Bracket (carbon steel) | |
| B04 | Tube-type Curved Bracket (stainless steel) | |
| B05 | Wall mounting bracket (stainless steel) | |
| B06 | Tube-type Flat Bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Production Line
remote pressure transmitter Applications
Stability:6months,±0.1%URL
Static pressure:13.79Mpa
Isolation diaphragm:316Lstainlesssteel,HC,Monel,tantalum
stability:6months,±0.1%URL
Current output:4 - 20 mA 2 wires Har t Protocol
