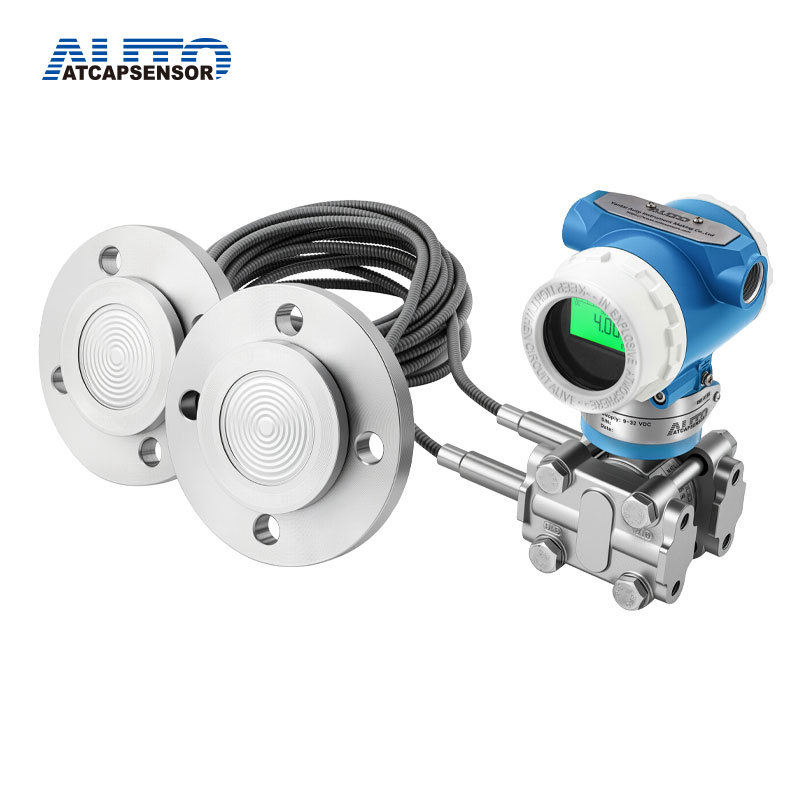

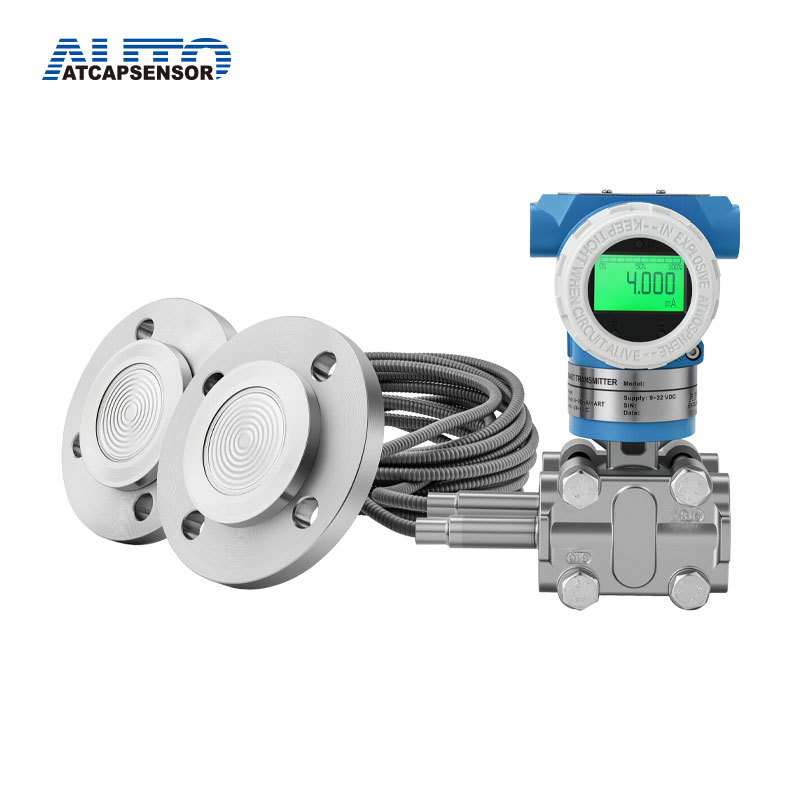

Capillary Double Flange Level Transmitter
Features
The maxium temperature of capillary double flange level transmitter comes up to 280 C.
Multipe connection modes- Flange style/Tri-Clamp style.
Multipe diaphrams/alternative connection material.
Vegatable oil can be used for filling fluid for food industry.
Order Sheet of Capillary Double Flange Level Transmitter
Name | Specification code | Description | ||
AT3051RD | Smart Remote Level Transmitter | |||
Measurement Range | 3 | 0-4~7.5 Kpa | ||
4 | 0~37.4 Kpa | |||
5 | 0~186.8 Kpa | |||
6 | 0~690 Kpa | |||
7 | 0~2068 Kpa | |||
Output Signal | S | 4-20mA, HART Protocol | ||
Cable Entry | 1 | M20*1.5 | ||
Mounting Bracket | B00 | None | ||
B01 | Tube-type Curved Bracket (carbon steel) | |||
B02 | Wall mounting bracket (carbon steel) | |||
B03 | Tube-type Flat Bracket (carbon steel) | |||
B04 | Tube-type Curved Bracket (stainless steel) | |||
B05 | Wall mounting bracket (stainless steel) | |||
B06 | Tube-type Flat Bracket (stainless steel) | |||
Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) | ||
i | Intrinsically safe (Exia IIC T4~T6) | |||
M3 | LCD display | |||
K1 | Degreasing treatment | |||
L1 | Hanging tag | |||
5C6 | Lightning protection | |||
Deatails of Capillary Double Flange Level Transmitter
Capillary double flange level transmitter is a diaphragm seal product, which designed for the high viscosity, granular, high temperature, high corrosivity situation.
Capillary double flange level transmitter adopts HART with 4-20 mA output. HART communicator can be used to configure.
Capillary double flange level transmitter can measure liquid, gas and vapor. Which is easy to install, replace and maintain.
Capillary double flange level transmitter adopts HART with 4-20 mA output. HART communicator can be used to configure.
Capillary double flange level transmitter can measure liquid, gas and vapor. Which is easy to install, replace and maintain.
