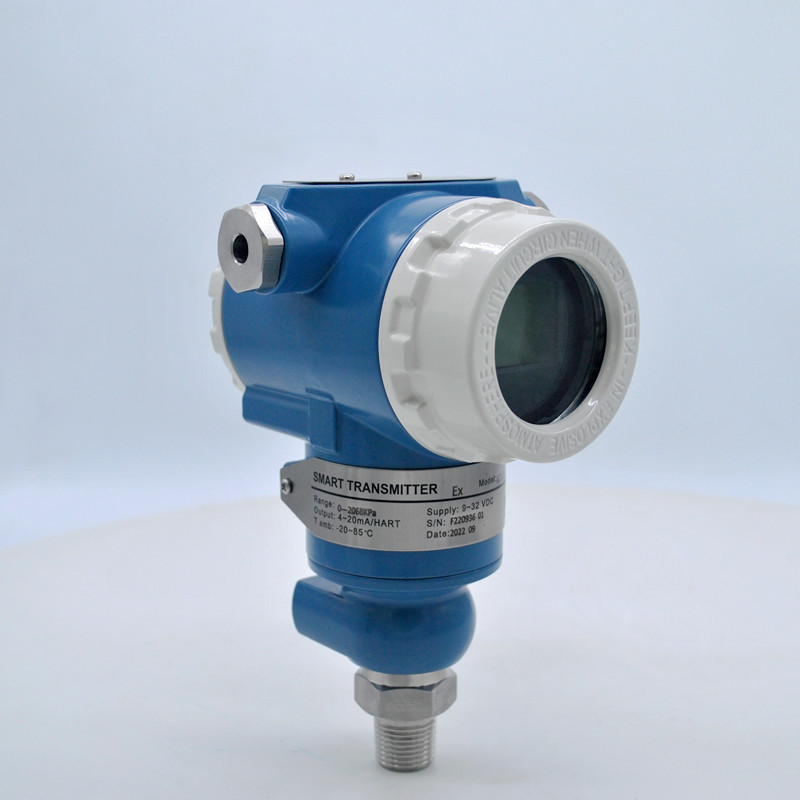

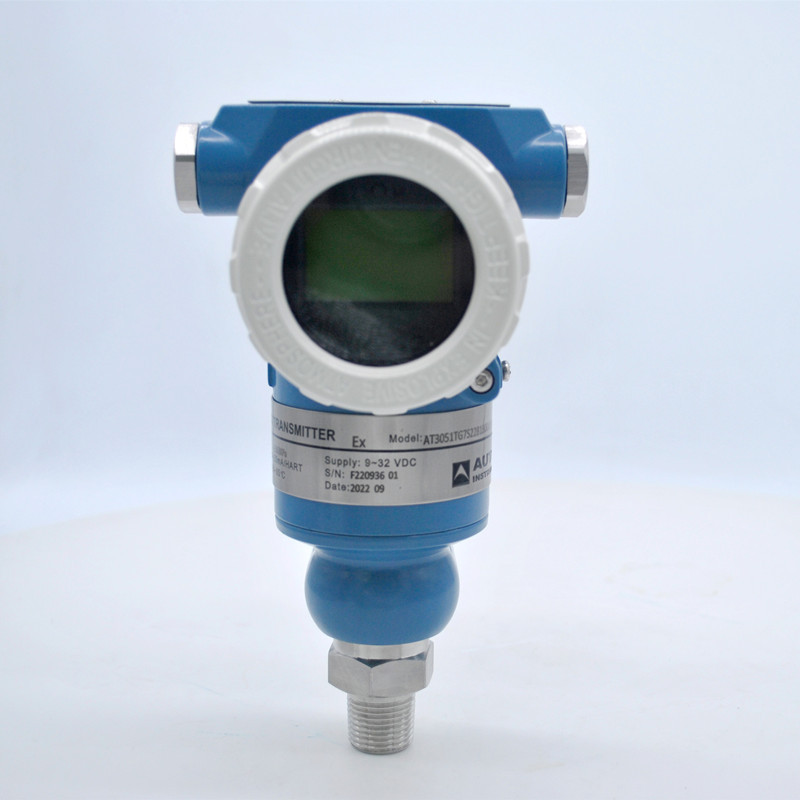

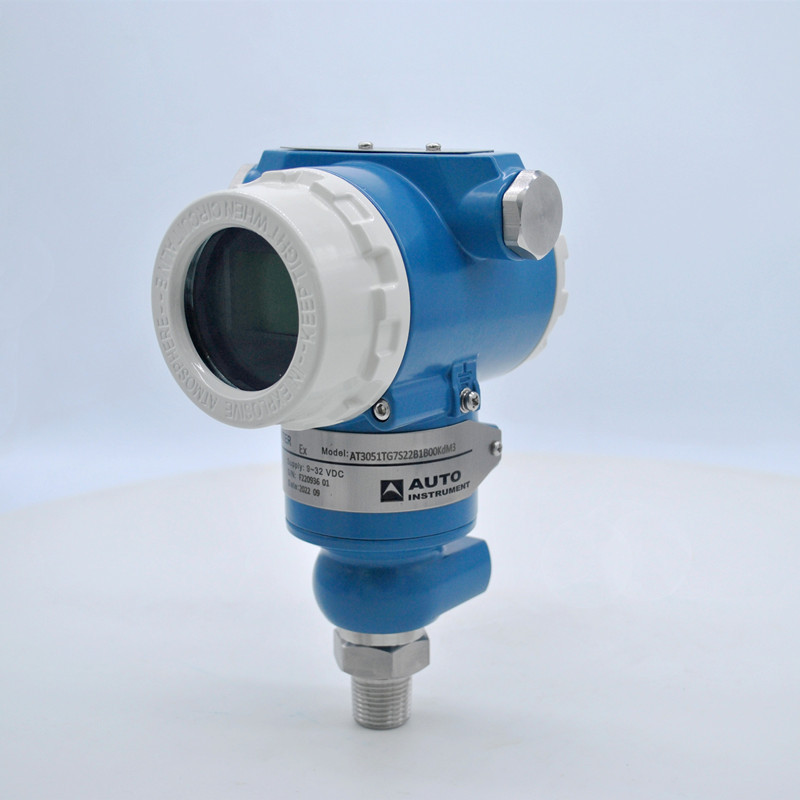

3051GP Industrial Gauge Pressure Transmitter 4-20mA
- Information
- Product Description
- Video
Introduction
The high performance Gauge / Absolute pressure transmitter AT3051 is suitable tom easure liquid, gas, or steam flow as well as liquid level, density and pressure. it outputs a 4~20ma DC signal corresponding to the measured pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
AEseries pressure transmitter adopts advanced sensing technology and dataprocessing technology to provide you with the best solution for drinking water,sewage, industrial wastewater, seawater desalination and other fields.
Features：
1. Process Fluid: Liquid, Gas, Vapor
2. Application: Differential Pressure, Gauge Pressure, Absolute Pressure
3. Working Temperature: -25~+95℃
4. Current Output: 4-20mA 2 Wires Hart Protocol
5. Power Supply: 24VDC
6. Ambient Temperature: -25~100℃
7. Process Connections: 1/4 - 18 NPT or 1/2 - 14 NPT
8. Electrical Connections: 1/2”NPT or M20*1.5
9. Enclosure: IP65
10. Instrinsically Safe: ia II C T6
11. Explosion proof: d II B T5
Pressure Transmitter Order Sheet
| Item | Code | Specification |
AT3051TG | Gauge Pressure Transmitter | |
| AT3051TA | Absolute Pressure Transmitter | |
| Measurement Range | 3 | 0-1.5~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| 8 | 0~6890 Kpa | |
| 9 | 0~20680 Kpa | |
| 0 | 0~100Mpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Diaphragm Material | 2 | Stainless Steel 316L |
| 3 | Hastelloy C | |
| Fill Fluid | 2 | Silicone Oil |
| 2 | Fluorine oil | |
| Process Connection | D | 1/2'' NPT F |
| A | M20*1.5 | |
| B | 1/2'' NPT M | |
| C | 1/2'' G | |
| D | Customizable | |
| Cable Entry | 1 | M20*1.5； NPT1/2'' |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
