Custom Sales AT3051 diaphragm flange type differential pressure transmitter for level measurement Promotions Price

Get the latest price? We'll respond as soon as possible(within 12 hours)

Information
Product Description
Video

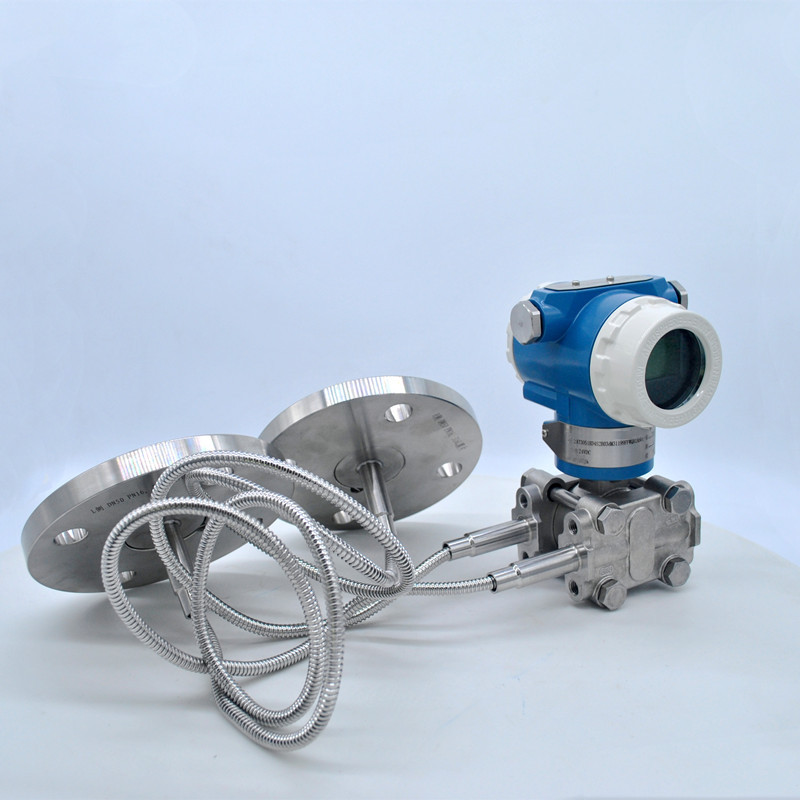

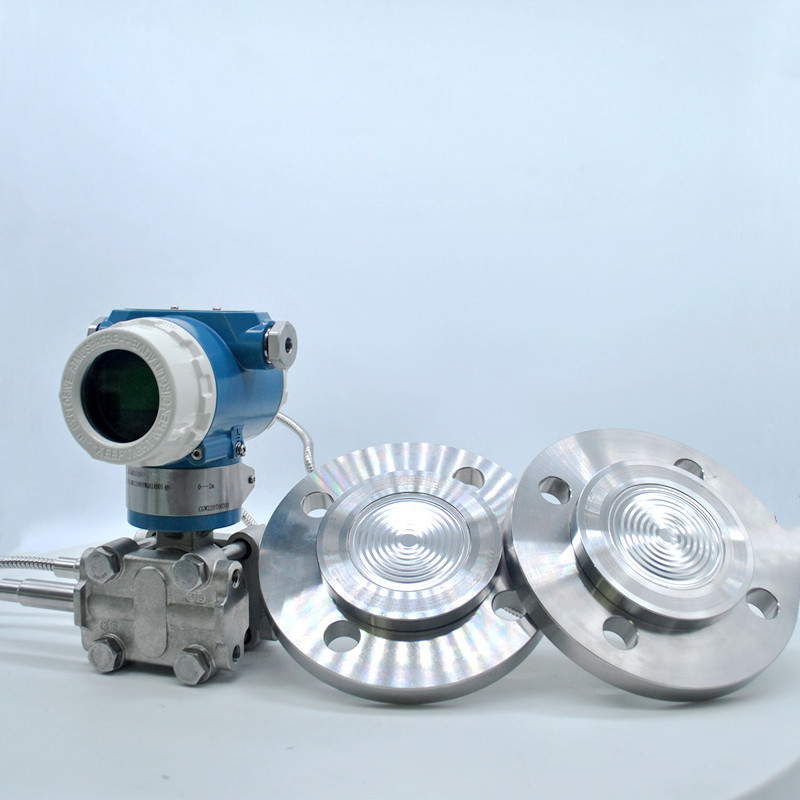

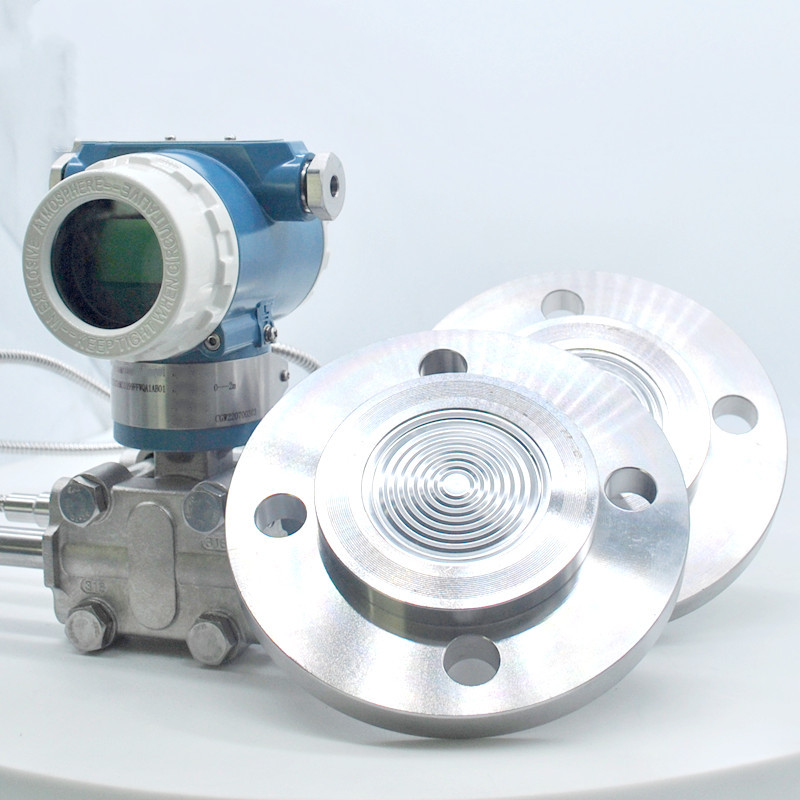

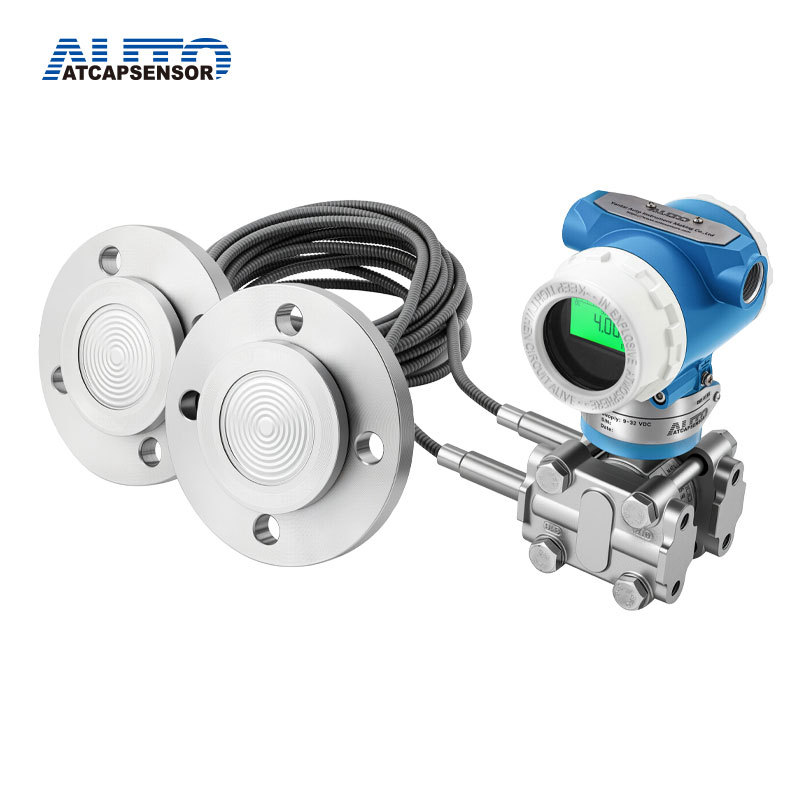

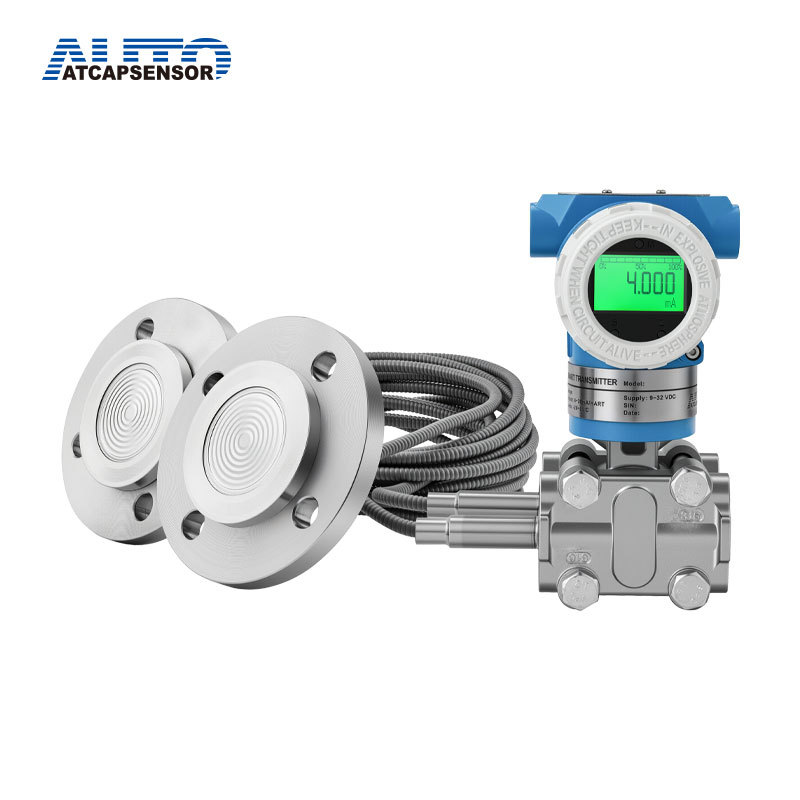

differential pressure transmitter for level measurement

The differential pressure transmitter for level measurement is designed for measuring liquid levels, differential pressure, gauge pressure, and absolute pressure, providing a 4-20mA DC output signal. Equipped with a highly accurate and stable sensor, it can also measure static pressure, which can be displayed on the integral indicator or monitored remotely through HART communication. Key features include fast response, remote configuration via communication systems, self-diagnostics, and an optional status output for high/low pressure alarms.

When adifferential pressure level transmitter is used for level measurement, it calculates the liquid level by detecting the pressure difference created by the liquid at different heights in the tank. The high-pressure side is connected to the bottom of the liquid, while the low-pressure side is connected above the liquid surface. The diaphragm pressure transmitter converts the physical signal into an electrical signal, which is ultimately displayed as a readable signal, and can be monitored remotely or trigger alarms.

Work shop

flange level transmitter

Order sheet

Products show

diaphragm pressure transmitter flange level transmitter differential pressure transmitter for level measurement

Differential pressure level measurement is widely used across various industries due to its versatility and reliability in monitoring liquid levels. Here are the primary application areas:

Oil and Gas Industry: Differential pressure level transmitter are used to measure the level of liquids in storage tanks, pipelines, and separators. It helps monitor crude oil, water, and other fluids, ensuring safety and efficiency in extraction and processing.
Chemical and Petrochemical Industry: Applied in reactors, storage tanks, and chemical processes where precise control of liquid levels is essential. Differential pressure level measurement is useful for handling corrosive or hazardous chemicals.
Water and Wastewater Treatment: Employed for monitoring water levels in reservoirs, treatment tanks, and filtration systems. Flange level transmitter ensures proper water treatment, filtration, and storage management.
Food and Beverage Industry: Utilized for liquid level control in mixing tanks, fermentation vessels, and storage tanks. It's crucial in maintaining product quality and consistency during production.
Power Generation: Used in boilers and feedwater systems to monitor water levels, ensuring efficient energy production and preventing damage caused by low water levels.
Pharmaceutical Industry: Applied in sterile environments for liquid level measurement in reactors, mixers, and storage tanks, helping to maintain precise process control and ensure product quality.
Metallurgy and Mining: Diaphragm pressure transmitter is used in slurry tanks and chemical processes to monitor liquid levels, which is essential for ore processing and refining.

diaphragm pressure transmitter

Package and shipping

Certification

differential pressure transmitter for level measurement

diaphragm pressure transmitter

The diaphragm pressure transmitter is capable of measuring liquid differential pressure, liquid levels, and density. Flange level transmitter can also be paired with a remote transmitter and alarm switch for enhanced functionality. The differential pressure level transmitter features precise and unique zero point, full scale, and nonlinear compensation, ensuring high accuracy and excellent long-term stability.
