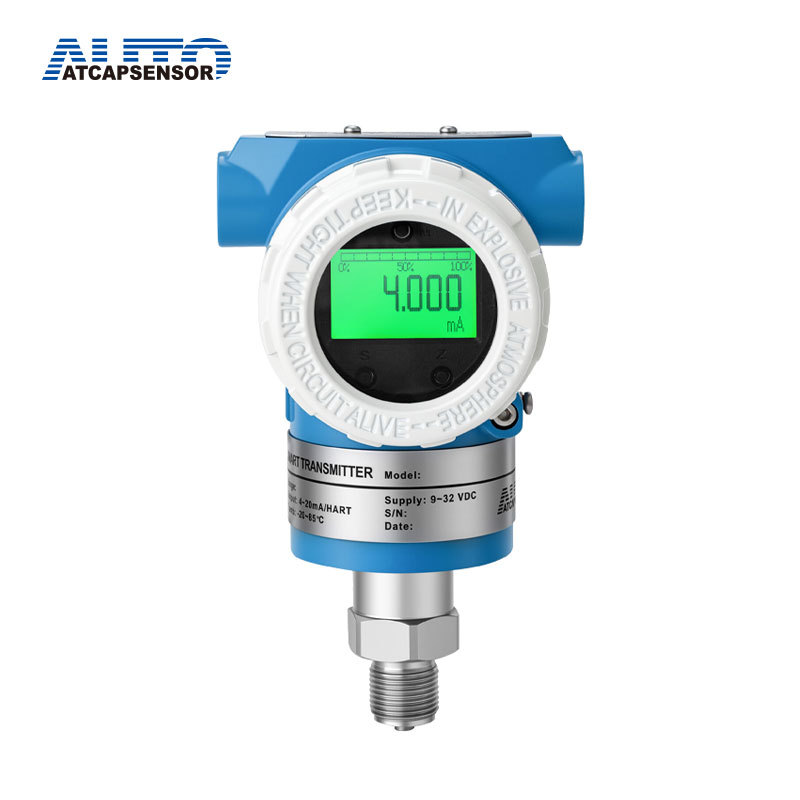

ATEX Capacitive Oil Pressure Transmitter
Introduction
The high performance pressure transmitter AT3051 is suitable to measure liquid, gas, water or steam flow as well as liquid level, density and pressure. It outputs a 4~20 mADC signal. Its highly accurate and stable sensor can also measure the static pressure.
| Measure media | Gas, water, oil or other media can be compated with stainless |
| Pressuretype | Gauge; Absolute; Negative, Sealed gauge pressure |
| Pressure range | -0.1~0~100Mpa |
Power supply | DC12~36V (DC24V) |
Output signal | 4~20mA,RS485,etc |
Accuracy | 0.1% |
Response time | ≤8mS |
Overload pressure | 200% F.S. |
Ambient temperature | -40~85℃ |
Compensation temperature | -10~70℃ |
Protection grade | IP65 |
Long-term stability | Standard: 0.2%F.S±0.05% |
Zero temperature drift | 0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa) |
FS temperature drift | 0.003%FS/°C(≤100kPa), 0.002%FS/°C(>100kPa) |
Natural frequency | 5KHz~650KHz |
| Thread size | M20*1.5(Default), Customization |
Order Sheet
ATEX Capacitive Oil Pressure Transmitter
| Item | Code | Specification |
| AT3051TG | Gauge Pressure Transmitter | |
| AT3051TA | Absolute Pressure Transmitter | |
| Measurement Range | 3 | 0-1.5~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| 8 | 0~6890 Kpa | |
| 9 | 0~20680 Kpa | |
| 0 | 0~41370 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Diaphragm Material | 2 | Stainless Steel 316L |
| 3 | Hastelloy C | |
| Fill Fluid | 2 | Silicone Oil |
| 2 | Fluorine oil | |
| Process Connection | D | 1/2'' NPT F |
| A | M20*1.5 | |
| B | 1/2'' NPT M | |
| C | 1/2'' G | |
| D | Customizable | |
| Cable Entry | 1 | M20*1.5 |
| Mounting Bracket | B00 | None |
| B15 | Tube-type Flat Bracket (carbon steel) | |
| B16 | Wall mounting bracket (carbon steel) | |
| B17 | Tube-type Flat Bracket (stainless steel) | |
| B18 | Wall mounting bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Application
ATEX Capacitive Oil Pressure Transmitter
ATEX Capacitive Oil Pressure Transmitter
high precision, high stability intelligent pressure transmitter. Fully welded OEM oil-filled core and ADI-specific chips. With on-site display, data processing, zero point, full scale software adjustment function. 4-20mA output and RS485 or Hart communication protocol.
♦Application
process control system
petroleum industry
chemical industry
electric power etc
♦Application
process control system
petroleum industry
chemical industry
electric power etc
