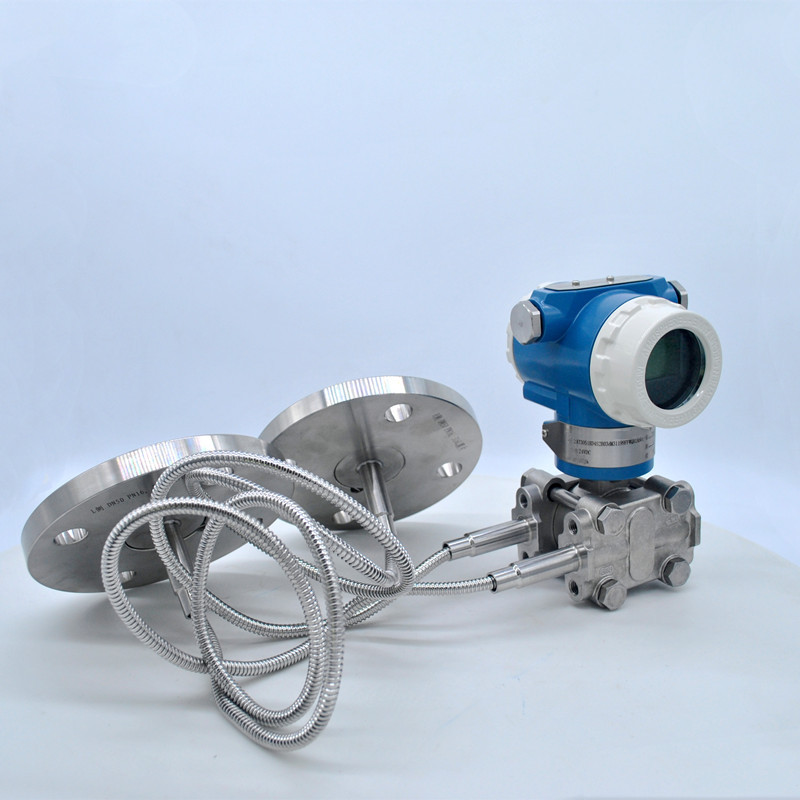

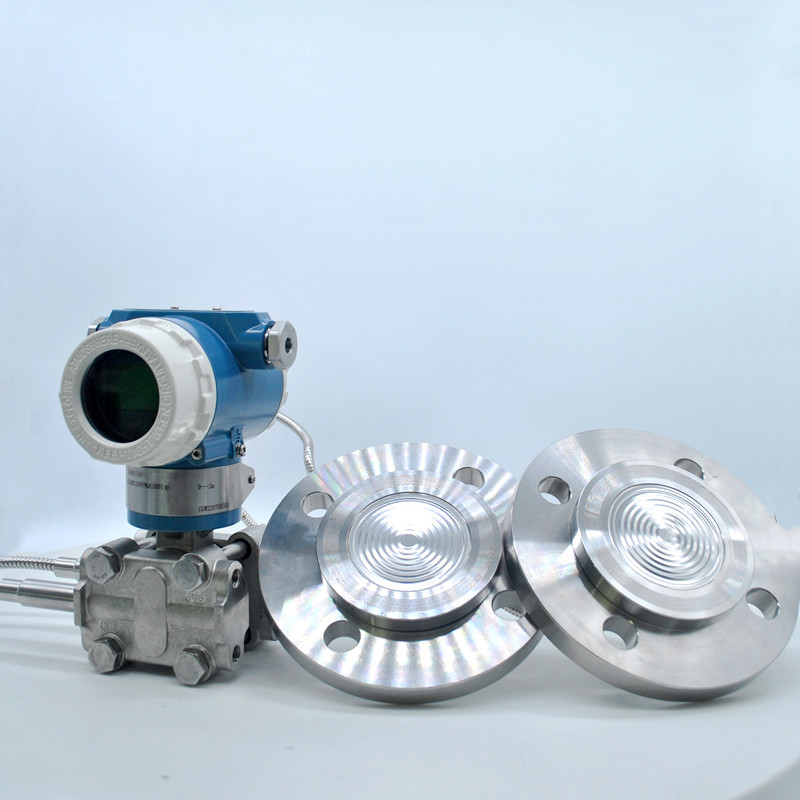

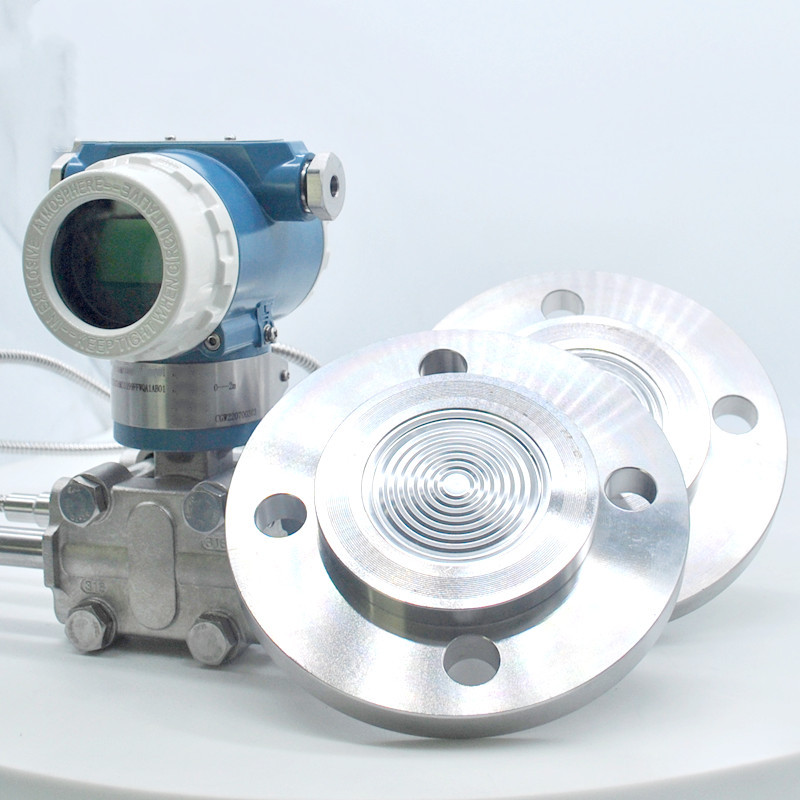

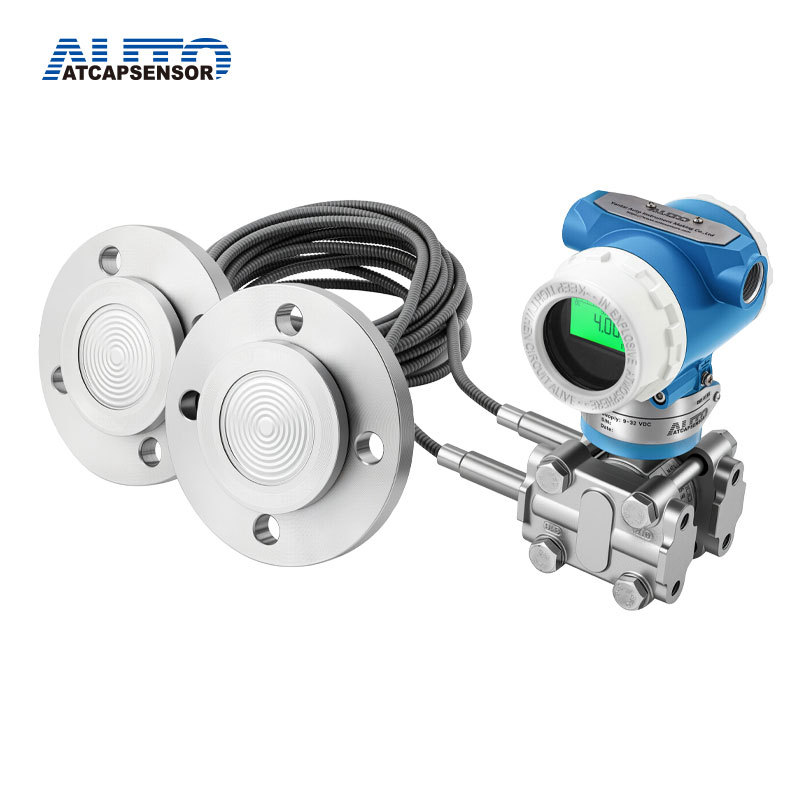

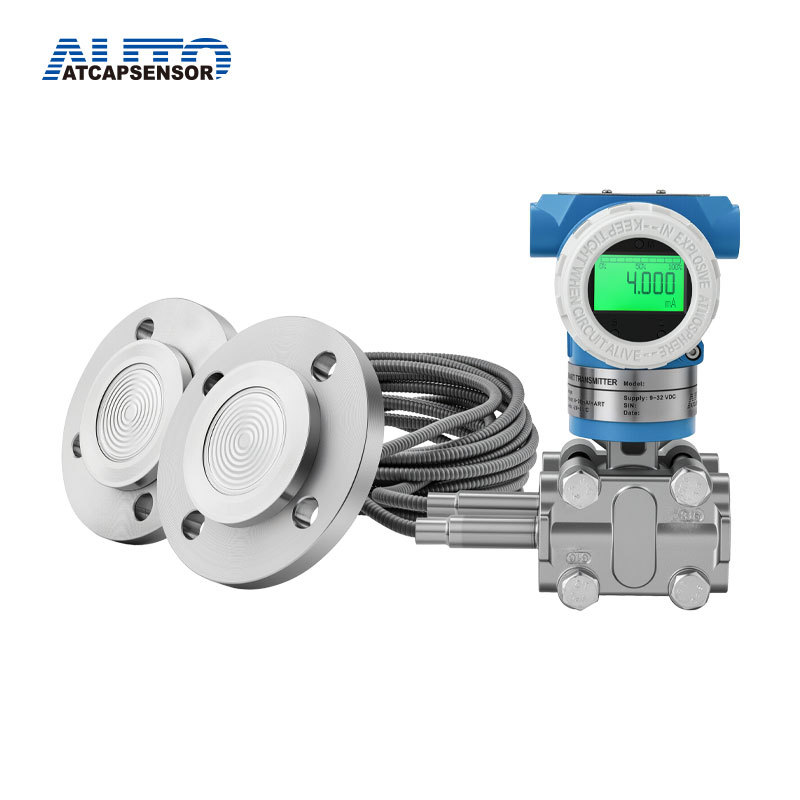

diaphragm remote seal pressure transmitter

           Differential pressure transmitter for level measurement is used to prevent pipe directly into the transmitter in the medium pressure sensor assembly, between it and the transmitter is filled with fluid by capillary connecting, diaphragm pressure transmitter used to measure pressure liquid, gas and steam, and then outputs the signal pressure corresponding 4-20mADC transmitted. Differential pressure level transmitter can communicate with each other HART Communicator, through its setting and monitoring.

Features:

 1. Updating time of output current in 200 ms.

 2. Improved performance, increased accuracy and greater stability.

 3. Two years stability of 0.15%

 4. 0.1% accuracy.

 5. Parameter setting by keypad directly

 6. 4-20 mA output plus direct digital HART communication

 7. Automatic zero calibration by push-button

 8. Explosion proof and weather proof housing

 Work shop

Order sheet

Products show

Site application

1.Widely used for measuring differential pressure (or pressure), level, density of liquid.

2.The pressures are directly applied to the isolating diaphragm that provide isolation and resistance

against process fluid corrosion.

3.Being microprocessor based, the electronic circuit is extremely versatile and accurate.

4.Combined with the sensor precision, it provides the high accuracy and range ability.

5.Transmitter performance is improved by continuous monitoring of the sensor temperature and

corresponding corrections.

6.A local display permits easy reading and writing of data.
