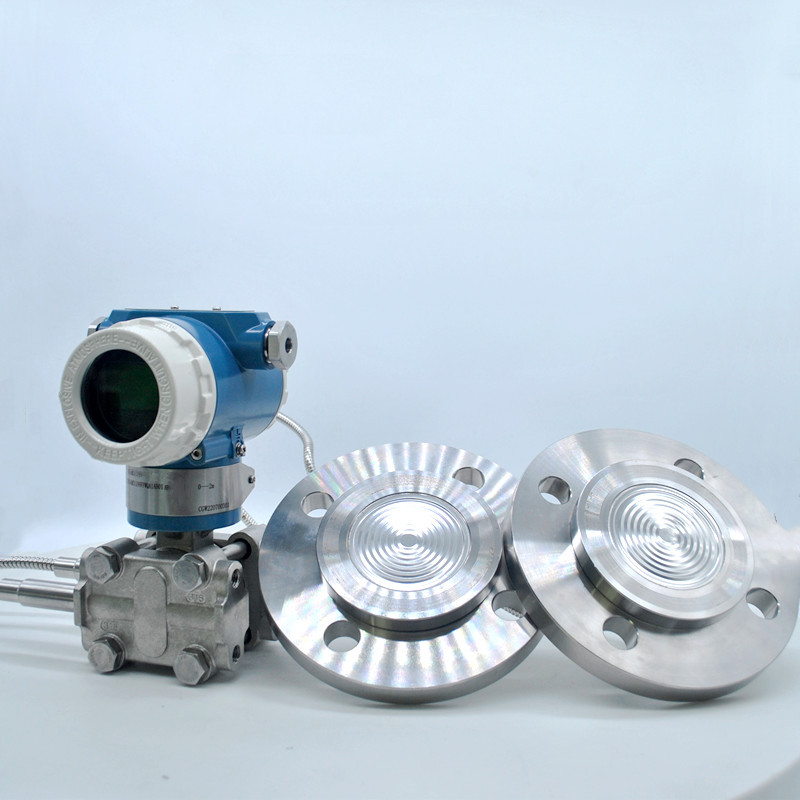

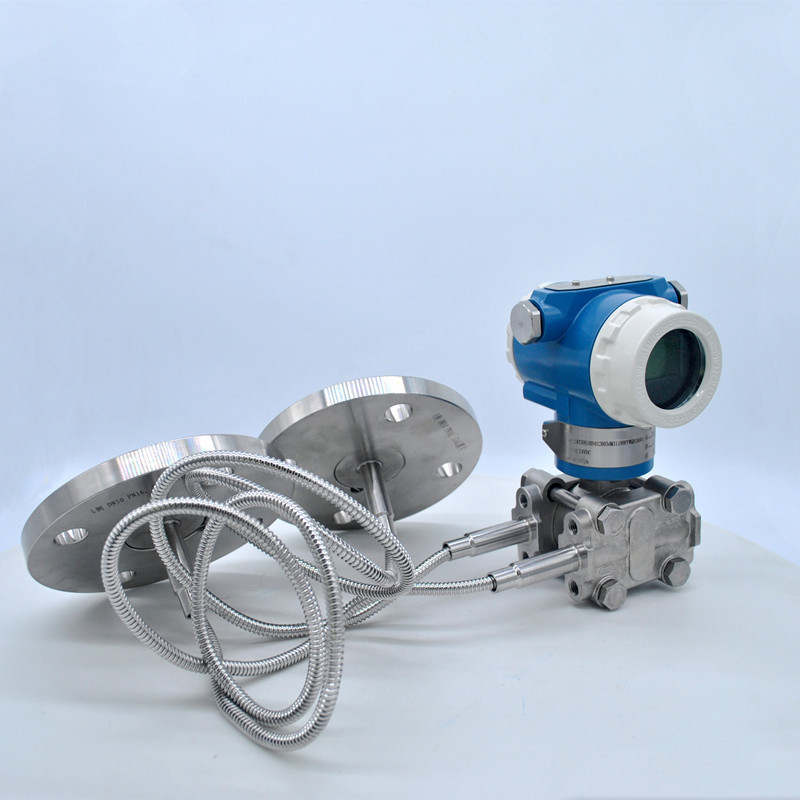

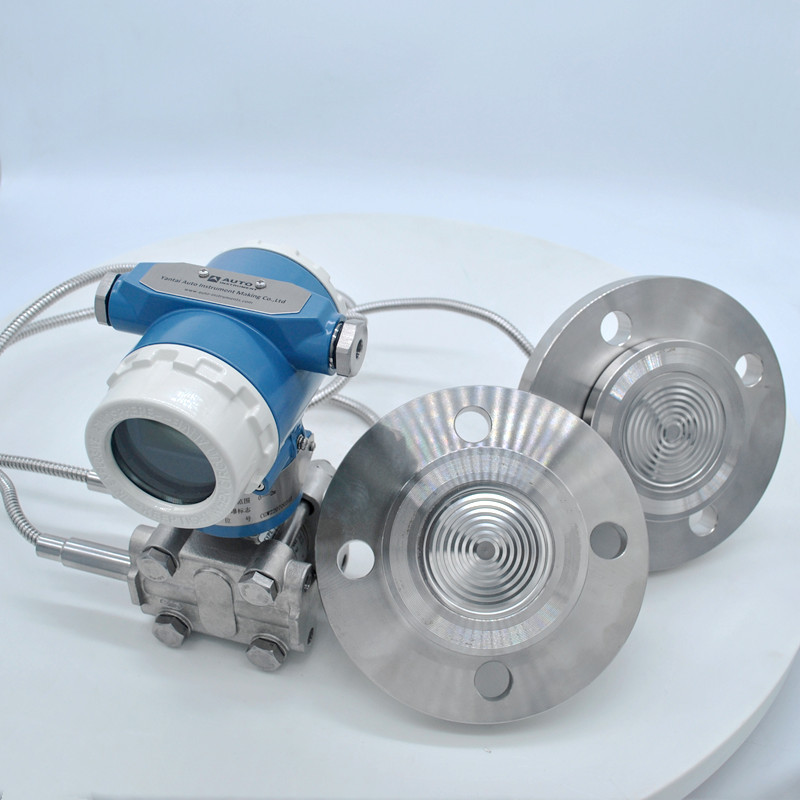

Differential Diaphragm Pressure Level Transmitter for Oil Tank
- Information
- Product Description
- Video
Flange Level Transmitter Brife Introduction
When you link the diaphragm level transmitter and the dp level transmitter being tested via a capillary, it transforms into a remote transmission differential pressure transmitter. The transfer of filling silicone oil (or another liquid) to the flange level transmitter's main body occurs, where the delta chamber and amplifying circuit board convert pressure or differential pressure into a 4-20mA DC signal output. This aligns with HART protocol, enabling communication for configuration and monitoring through the collaborative use of a handheld communicator.
Industry Application
Diaphragm Pressure Transmitter
Viscous medium at high temperature
Easily crystallized medium
Precipitating medium
Strong corrosive or highly toxic medium
Occasions with high hygiene and cleanliness requirements
Food, beverages and pharmaceuticals
Order Sheet
| Item | Code | Specification |
| AT3051RD | remote seal level transmitter/dp level transmitter | |
| Measurement Range | 3 | 0-4~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Cable Entry | 1 | M20*1.5 |
| 2 | 1/2''NPT | |
| Mounting Bracket | B00 | None |
| B01 | Tube-type Curved Bracket (carbon steel) | |
| B02 | Wall mounting bracket (carbon steel) | |
| B03 | Tube-type Flat Bracket (carbon steel) | |
| B04 | Tube-type Curved Bracket (stainless steel) | |
| B05 | Wall mounting bracket (stainless steel) | |
| B06 | Tube-type Flat Bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Production Line
remote pressure transmitter Applications
