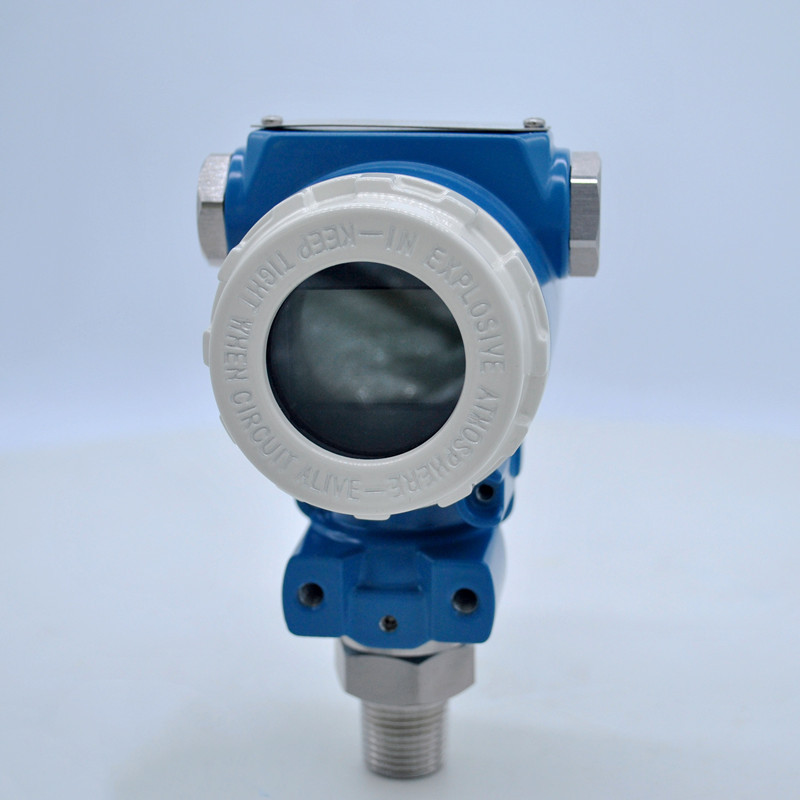

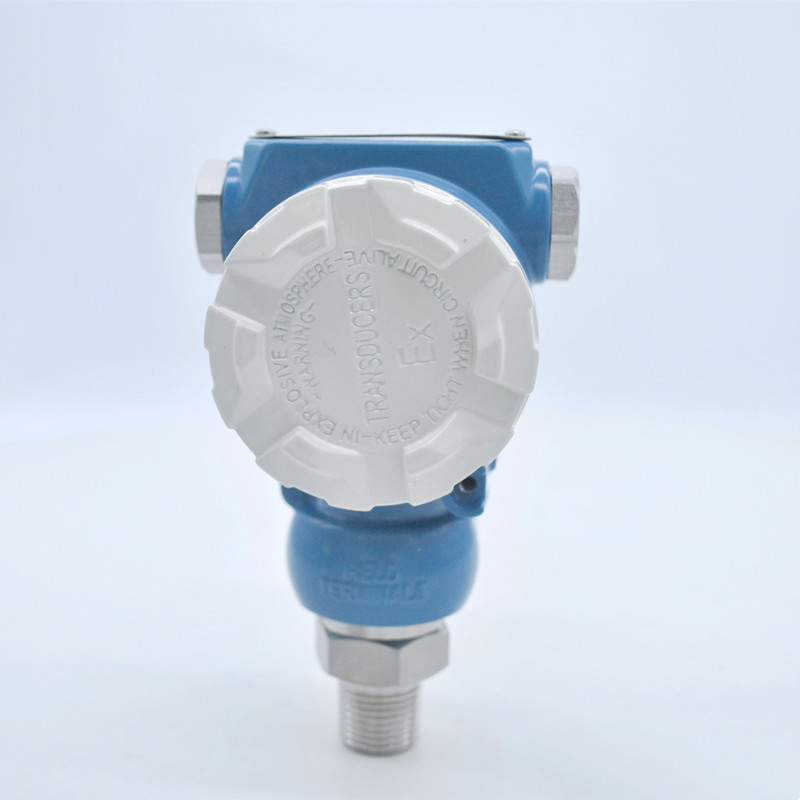

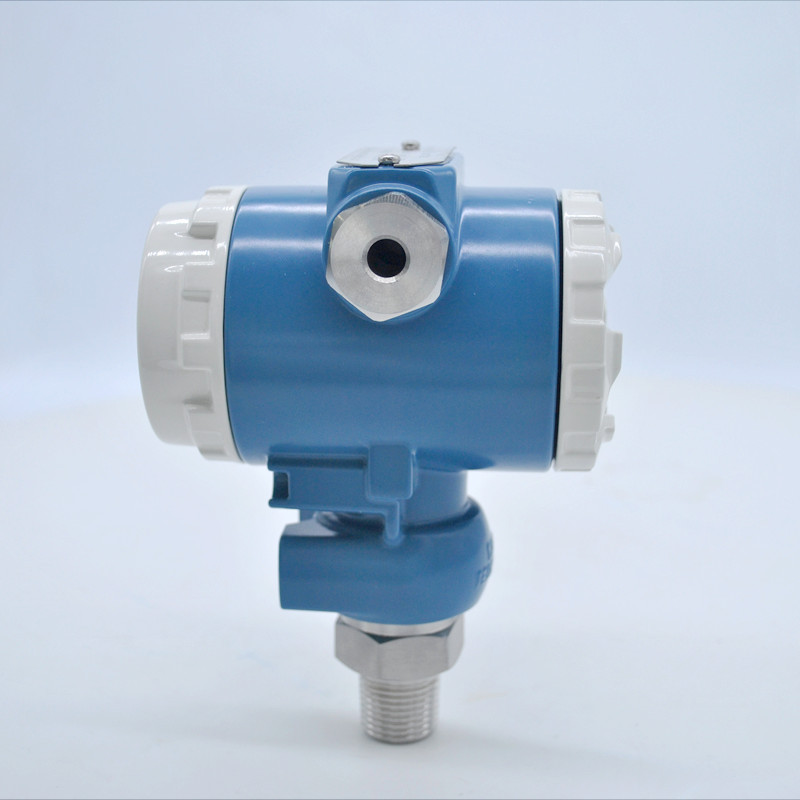

Dp Transmitter Meter HART Protocol
- Information
- Product Description
- Video
High Accuracy Capacitive Pressure Transmitter
The gauge pressure transmitter has temperature and nonlinearity compensation under micro-processing technology. The technology improved the pressure transmitter HART measurement accuracy and temperature features, expanded the pressure transmitter HART range ratio, and added the function of intelligent configuration, further meeting the reliable and stable requirement for the industrial field. Key components and parts of the capacitive pressure transmitters are imported, and the strict test of the absolute pressure transmitter is done before delivery. The 4-20mA pressure transmitter has advanced design principles, reliable product quality, variety, simple installation and usage, etc.
4-20mA Pressure Transmitter Features
| Process Fluid | Liquid, Gas, Vapor |
| Application | Differential Pressure, Gauge Pressure, Absolute Pressure |
| Working Temperature | -25℃ ~ +95℃ |
| Current Output | 4-20mA 2 Wires HART Protocol |
| Power Supply | 24VDC |
| Ambient Temperature | -25℃ ~ +100℃ |
| Process Connections | 1/4 - 18 NPT or 1/2 - 14 NPT |
| Electrical Connections | 1/2"NPT or M20*1.5 |
| Enclosure | IP65 |
| Explosion proof | d II B T5 |
Technical Parameter
Name | Specification code | Explanation |
sp | Pressure Transmitter | |
Process Connection Material | 1 | Stainless Steel |
Process Connection Structure | R | external thread G1/2″ |
M | external thread M20×1.5 | |
Y | Customize | |
Sealing Material | IF | fluoro rubber(standard) |
IH | fluoro rubber applied to Sensors(Over 10MPa) | |
Electronic Components of Transmitters | 2 | Analog signal 4-20mA (two wire) |
3 | customize | |
Shell material and structure | A | Aluminum shell PG16 cable sealingIP65 |
B | Stainless steel shell cylinder structure | |
Sensor Type | 0 | Diffused Silicon Type |
1 | Diffusion silicon anti-corrosion type | |
Explosion-proof Requirements | D | No Explosion-proof Required |
E | Explosion-proof type | |
Accuracy | 2 | 0.2% |
5 | 0.5% |
2088 Capacitive Pressure Transmitter
