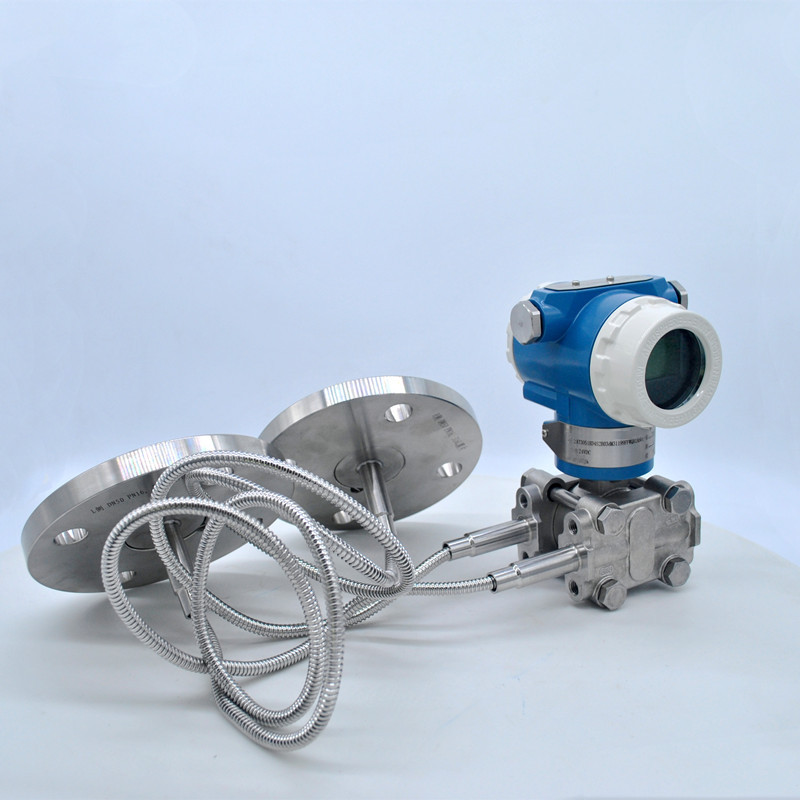

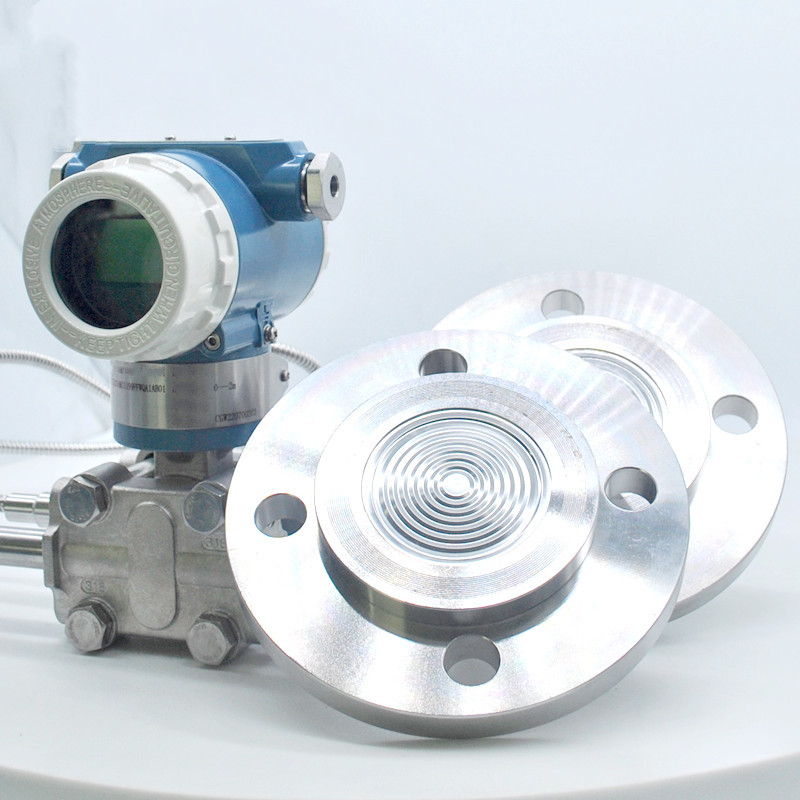

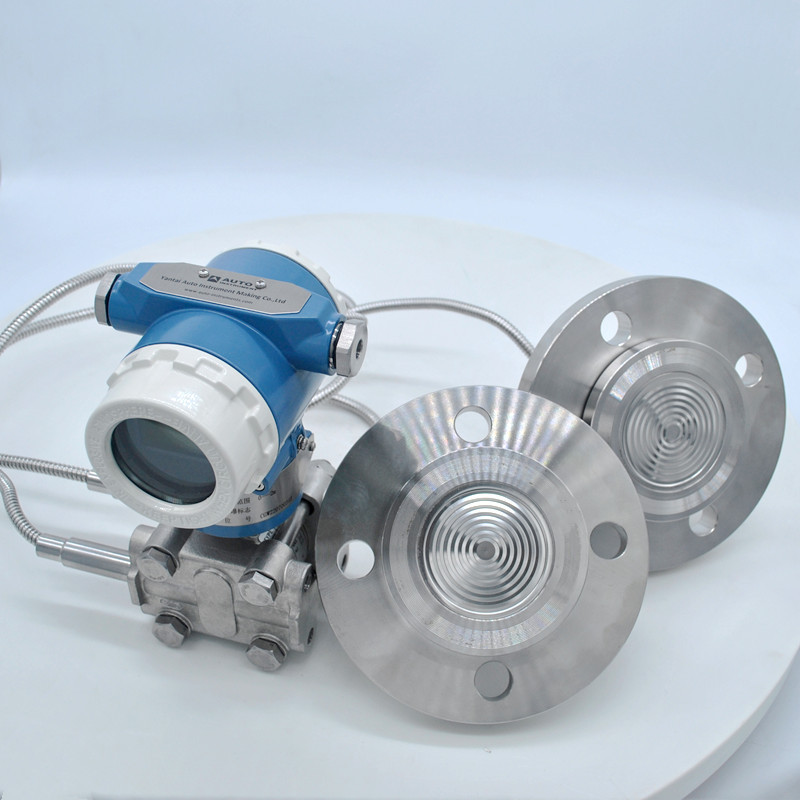

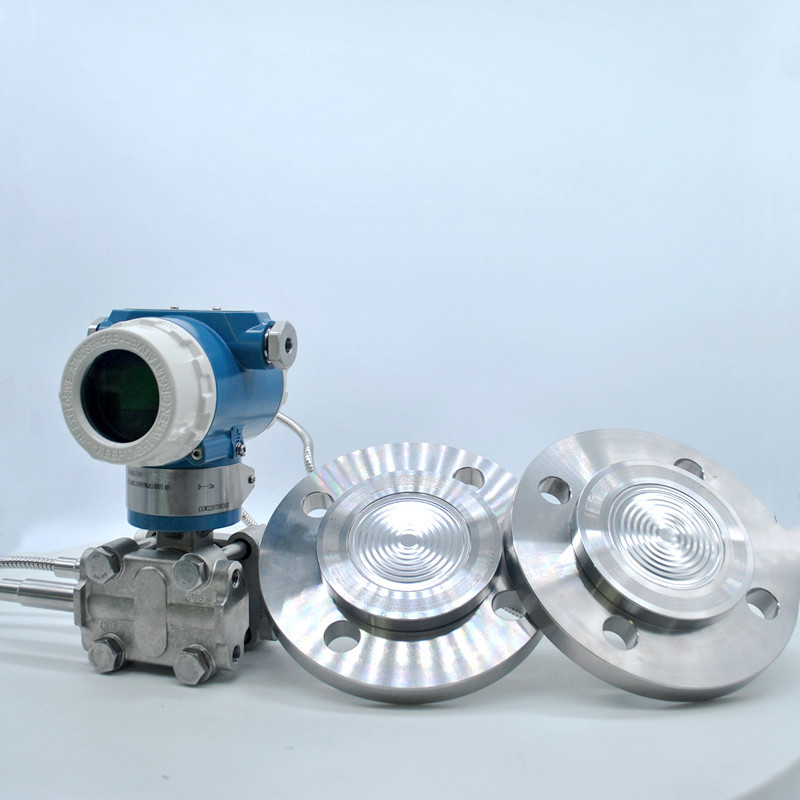

Durable Remote Seal Flange Mounted Level Transmitter
- Information
- Product Description
- Video
Brief Introduction
Differential pressure level transmitter/pressure transmitter is a measure of the difference between the two ends of the transmitter, output standard signal (eg 4~20mA, 1-5V) The differential pressure transmitter and pressure transmitter with the general difference is that there are two pressure ports, the differential pressure transmitter is generally divided into the positive and negative terminal end, under normal circumstances. The positive pressure side should be greater than the negative pressure section.
Industry application
Viscous medium at high temperature
Easily crystallized medium
Precipitating medium
Strong corrosive or highly toxic medium
Occasions with high hygiene and cleanliness requirements
Food, beverages and pharmaceuticals
Order Sheet
| Item | Code | Specification |
| AT3051RD | remote seal level transmitter/dp level transmitter | |
| Measurement Range | 3 | 0-4~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Cable Entry | 1 | M20*1.5 |
| 2 | 1/2''NPT | |
| Mounting Bracket | B00 | None |
| B01 | Tube-type Curved Bracket (carbon steel) | |
| B02 | Wall mounting bracket (carbon steel) | |
| B03 | Tube-type Flat Bracket (carbon steel) | |
| B04 | Tube-type Curved Bracket (stainless steel) | |
| B05 | Wall mounting bracket (stainless steel) | |
| B06 | Tube-type Flat Bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Production Line
remote pressure transmitter Applications
