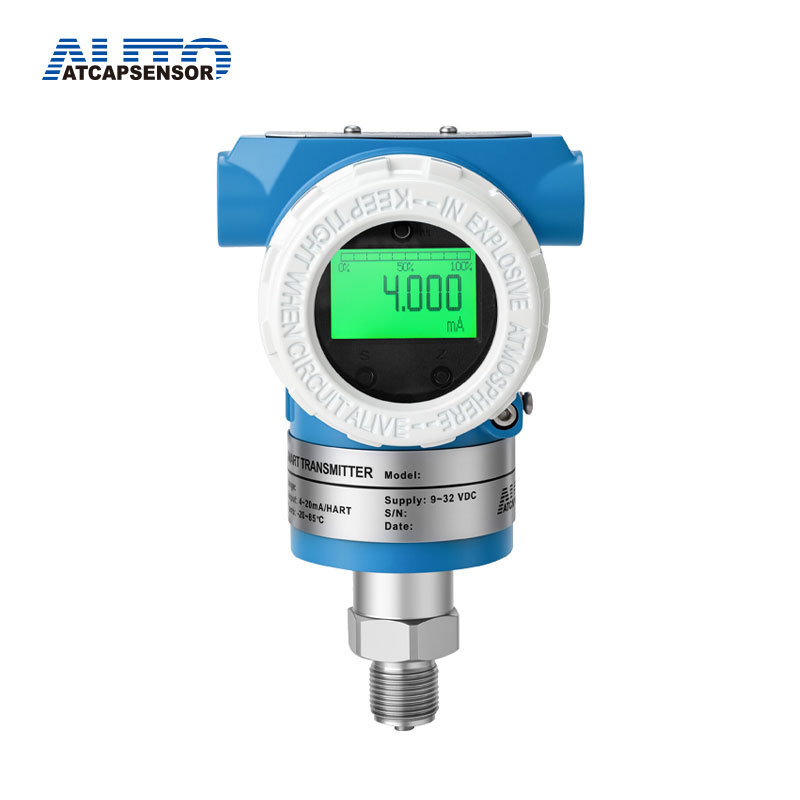

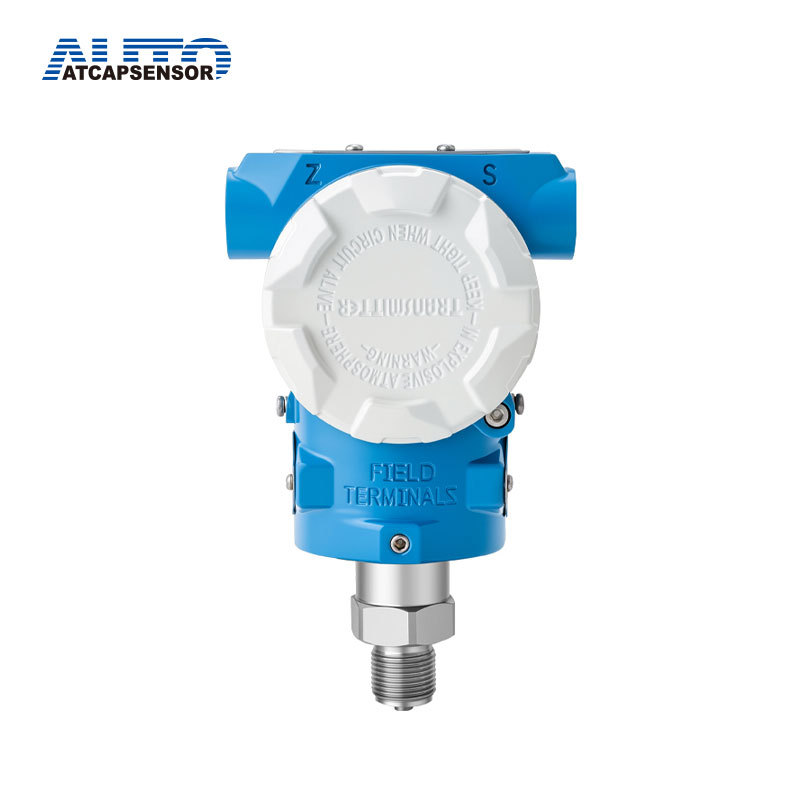

Custom Sales Gas and Air 4-20mA Pressure Transmitter Promotions Price

Get the latest price? We'll respond as soon as possible(within 12 hours)

Information
Product Description
Video

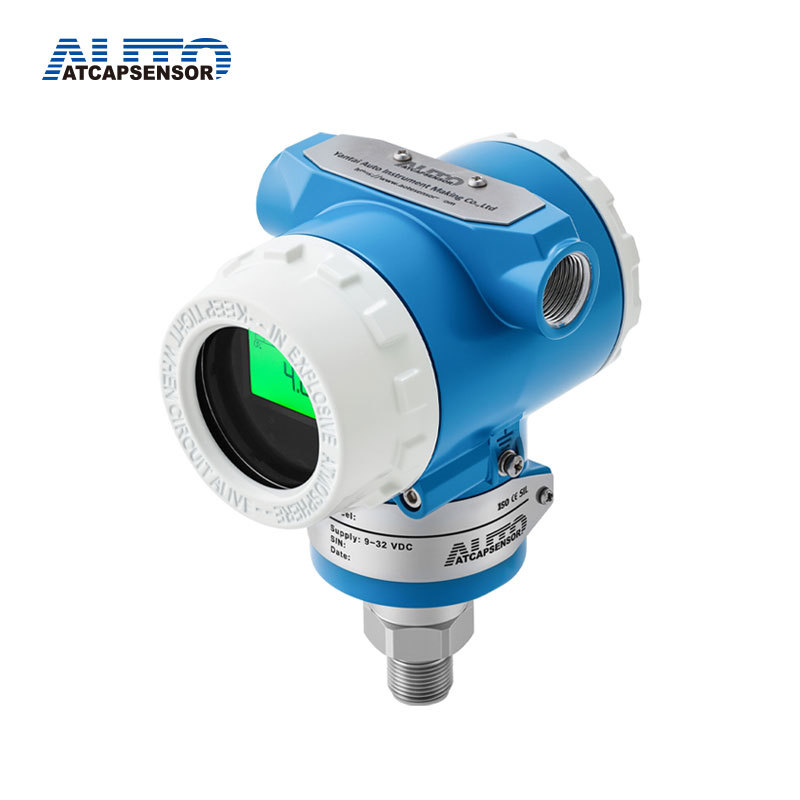

smart pressure transmitter

Introduction

The AT3051 series of intelligent pressure transmitters utilize the highly developed capacitive sensor chip technology that has gained extensive popularity among international users. These transmitters incorporate state-of-the-art production techniques and advanced technology while employing a modular design and comprehensive component packaging to ensure their compactness and flawless performance.

In the case of the HB3351 series intelligent differential pressure transmitters, they are available in three distinct models: the traditional analog variant, the standard smart model, and the conventional model. These transmitters are equipped with an LCD backlight for night-time readability. The smart series is equipped with on-site adjustment capabilities via a convenient spot button. Notably, these transmitters boast an impressive maximum measuring range ratio of 50:1.

gauge pressure transmitter

Features：

● Water and sewage industry standard application instrument.

● The sensor adopts the overall welding process, which is sturdy and durable.

● Extensive selection of process connections and measurement ranges.

● The instrument is easy to debug, operate and maintain.

● Improve operational efficiency.

Pressure Transmitter Order Sheet

Item	Code	Specification
AT3051TG		Gauge Pressure Transmitter
AT3051TA		Absolute Pressure Transmitter
Measurement Range	3	0-1.5~7.5 Kpa
	4	0~37.4 Kpa
	5	0~186.8 Kpa
	6	0~690 Kpa
	7	0~2068 Kpa
	8	0~6890 Kpa
	9	0~20680 Kpa
	0	0~100Mpa
Output	S	4-20mA, HART Protocol, Linear output
Diaphragm Material	2	Stainless Steel 316L
Diaphragm Material	3	Hastelloy C
Fill Fluid	2	Silicone Oil
Fill Fluid	2	Fluorine oil
Process Connection	D	1/2'' NPT F
	A	M20*1.5
	B	1/2'' NPT M
	C	1/2'' G
	D	Customizable
Cable Entry	1	M20*1.5； NPT1/2''
Optional	d	Intrinsically safe type, Flameproof (Exd IIC T4~T6)
	i	Intrinsically safe (Exia IIC T4~T6)
	M3	LCD display
	K1	Degreasing treatment
	L1	Hanging tag
	5C6	Lightning protection

Ready For Delivery Industrial Digital Pressure Transmitter Hart

air pressure transmitter

Production Line

Applications Industrial Digital Pressure Transmitter Hart

Industrial Digital Pressure Transmitter Hart

The smart pressure transmitter incorporates foreign technology and utilizes imported components in its production. It is designed for continuous measurement of changing pressure in fluid processes, including liquids and gases. The device converts the measured pressure into a standard 4-20mA current signal output, which can be integrated with other monitoring and control units to form an automatic control system. This transmitter finds extensive application across various industries such as petroleum, chemical, metallurgy, electricity, medicine, beer, water treatment, and more, for process monitoring and control.
