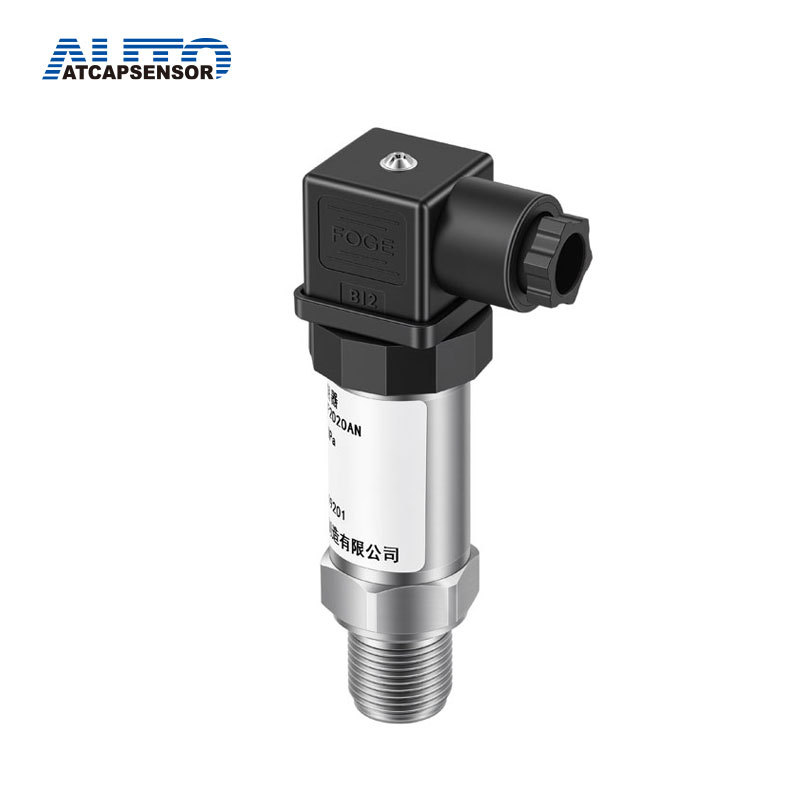

High Temperature Steam Pressure Transmitter
Product Description
Based on piezo-resistive silicon technology, pressure transmitter uses isolated stainless steel diaphragm as sensing element. This product is fully tested by computer automatically, and trimmed by laser for zero and sensitivity in a wider temperature range. Its amplifier circuit is built in stainless steel housing, to transform sensor signal into standard output signal. This transmitter features integrated construction, rigid and robust, high measuring accuracy, good long term stability, and is suitable for pressure measurement in general industry applications.
Pressure Transmitter Technical Parameter
> Wide measuring pressure range: -1...0~0.1...1000bar;
> Full stainless steel construction;
> Suitable for the measurement of low pressure and vacuum pressure;
> Against thunder stroke, against radio-frequency interference;
> Anti-corrosion, anti-attrition, anti-impact;
> Reversed-polarity, transient current & voltage protection;
Pressure Transmitter Order sheet
Name | Specification code | Explanation |
sp | Pressure Transmitter | |
Process Connection Material | 1 | Stainless Steel |
Process Connection Structure | R | external thread G1/2″ |
M | external thread M20×1.5 | |
Y | Customize | |
Sealing Material | IF | fluoro rubber(standard) |
IH | fluoro rubber applied to Sensors(Over 10MPa) | |
Electronic Components of Transmitters | 2 | Analog signal 4-20mA (two wire) |
3 | customize | |
Shell material and structure | A | Aluminum shell PG16 cable sealingIP65 |
B | Stainless steel shell cylinder structure | |
Sensor Type | 0 | Diffused Silicon Type |
1 | Diffusion silicon anti-corrosion type | |
Explosion-proof Requirements | D | No Explosion-proof Required |
E | Explosion-proof type | |
Accuracy | 2 | 0.2% |
5 | 0.5% |

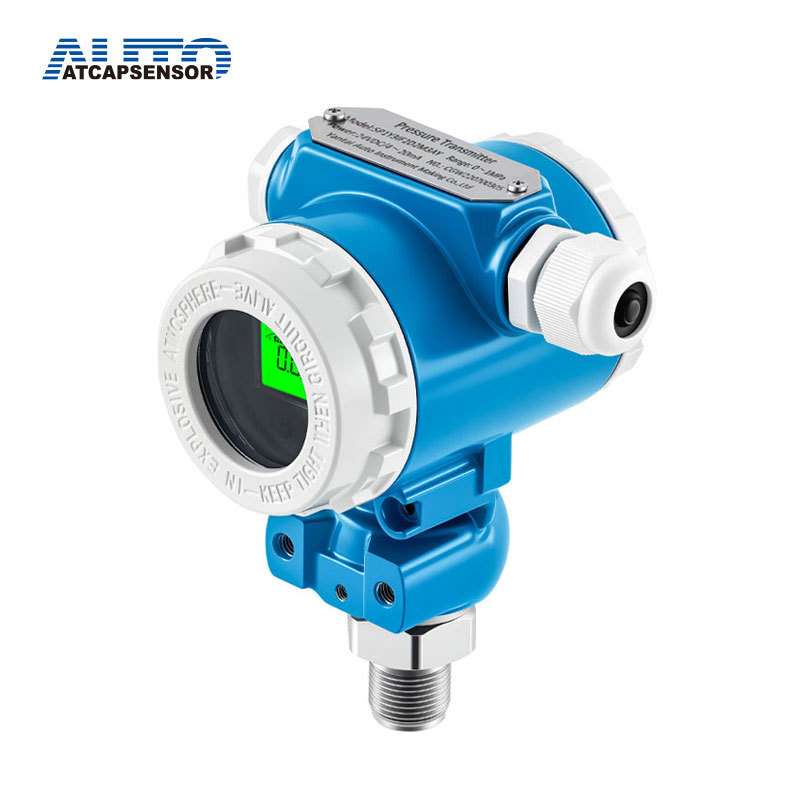

High Temperature Steam Pressure Transmitter

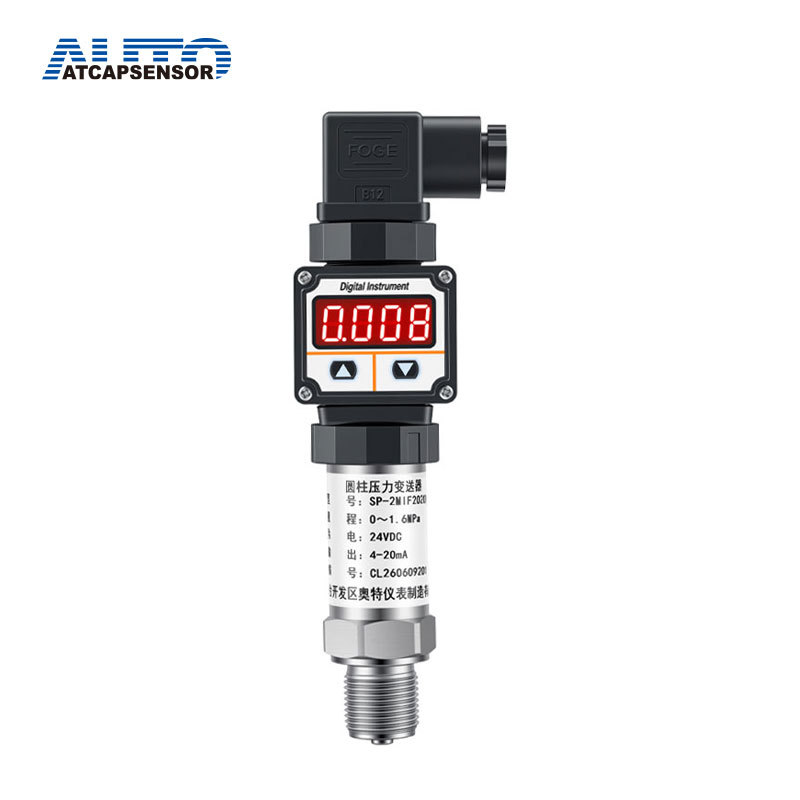

High Temperature Steam Pressure Transmitter
This product is widely used for pressure measurement and control of petroleum, chemical industry, metallurgy, power station and hydrology, etc.
stainless steel shell structure,
built in stainless steel oil filled sensor,
intelligent digital circuit with precise temperature characteristic compensation,
Suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.
