Introduction

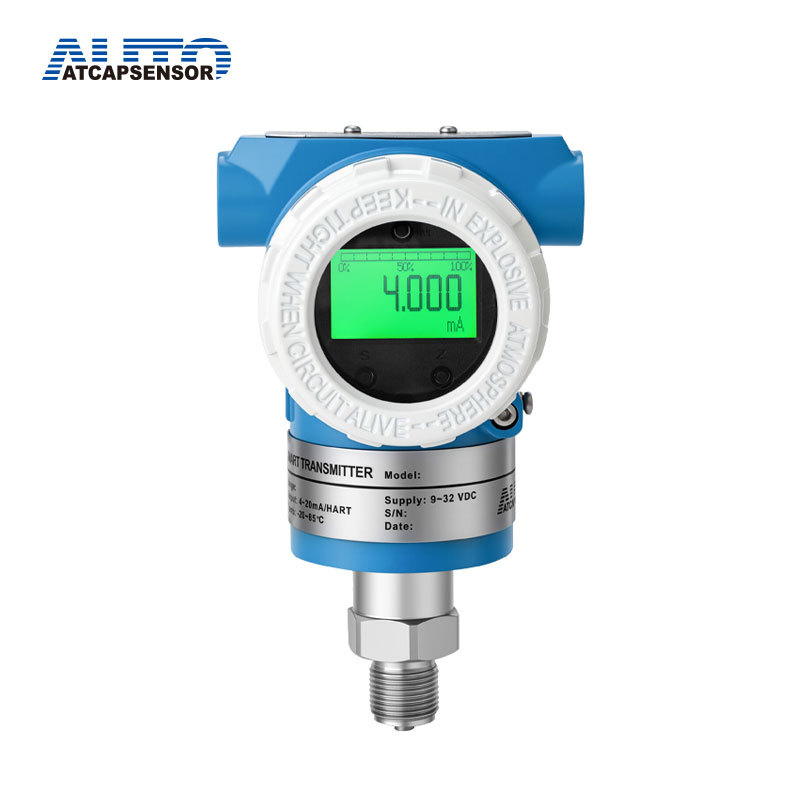

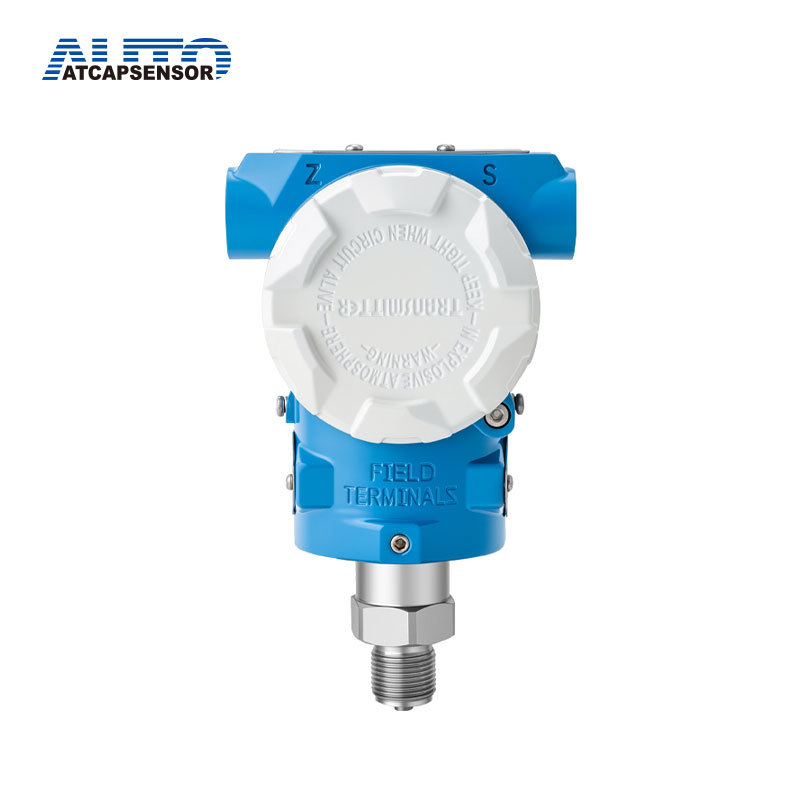

The high performance Gauge / Absolute pressure transmitter AT3051 is suitable tom easure liquid, gas, or steam flow as well as liquid level, density and pressure. it outputs a 4~20ma DC signal corresponding to the measured pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
AEseries pressure transmitter adopts advanced sensing technology and dataprocessing technology to provide you with the best solution for drinking water,sewage, industrial wastewater, seawater desalination and other fields.
Smart pressure transmitter for measuring pressure, level, etc.
All welded metal diaphragm sensor.
Threaded connection, compact. structure design, saving installation cost.lntuitive menus greatly simplify commissioning.
Features：
● Water and sewage industry standard application instrument.
● The sensor adopts the overall welding process, which is sturdy and durable.
● Extensive selection of process connections and measurement ranges.
● The instrument is easy to debug, operate and maintain.
Pressure Transmitter Order Sheet
| Item | Code | Specification |
AT3051TG | Gauge Pressure Transmitter | |
| AT3051TA | Absolute Pressure Transmitter | |
| Measurement Range | 3 | 0-1.5~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| 8 | 0~6890 Kpa | |
| 9 | 0~20680 Kpa | |
| 0 | 0~100Mpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Diaphragm Material | 2 | Stainless Steel 316L |
| 3 | Hastelloy C | |
| Fill Fluid | 2 | Silicone Oil |
| 2 | Fluorine oil | |
| Process Connection | D | 1/2'' NPT F |
| A | M20*1.5 | |
| B | 1/2'' NPT M | |
| C | 1/2'' G | |
| D | Customizable | |
| Cable Entry | 1 | M20*1.5； NPT1/2'' |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Ready For Delivery Industrial Digital Pressure Transmitter Hart
Production Line
Applications Industrial Digital Pressure Transmitter Hart

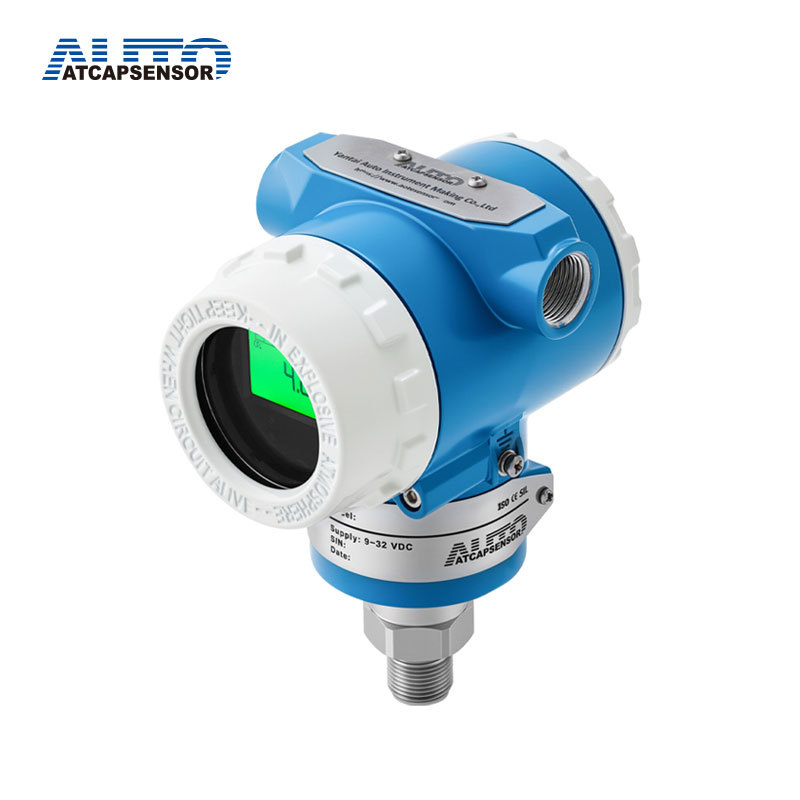

Industrial Digital Pressure Transmitter Hart
1. High Accuracy and Well Performance.
2. Various Ranges (Optional). From -100kPa to 100MPa can be chossed.
3. English LCD display
4. Fast Delivery.
5. Complete After-Sales Service. Total 20 skilled staff of engineering.
