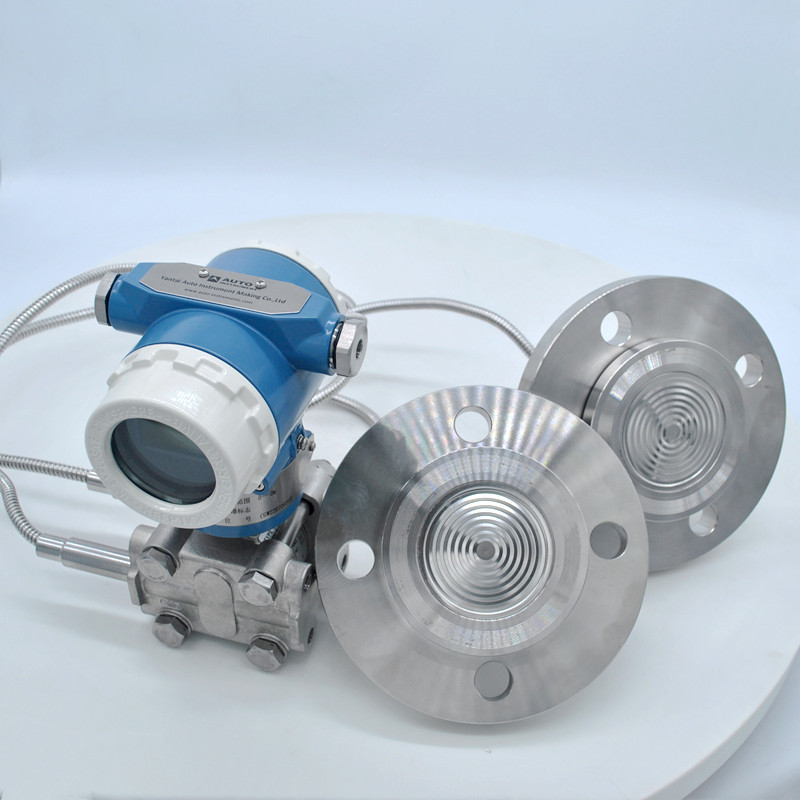

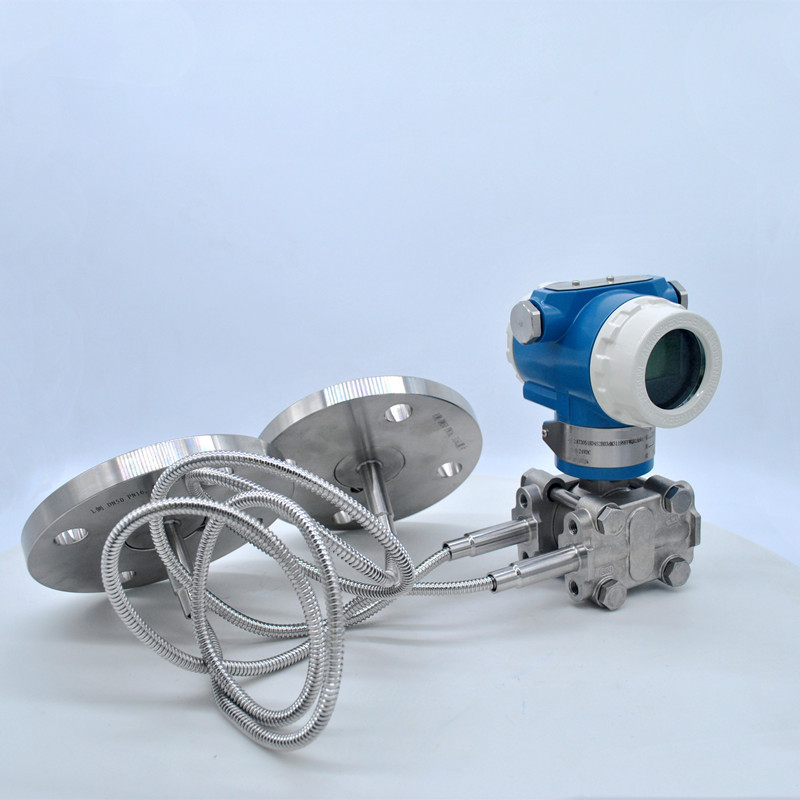

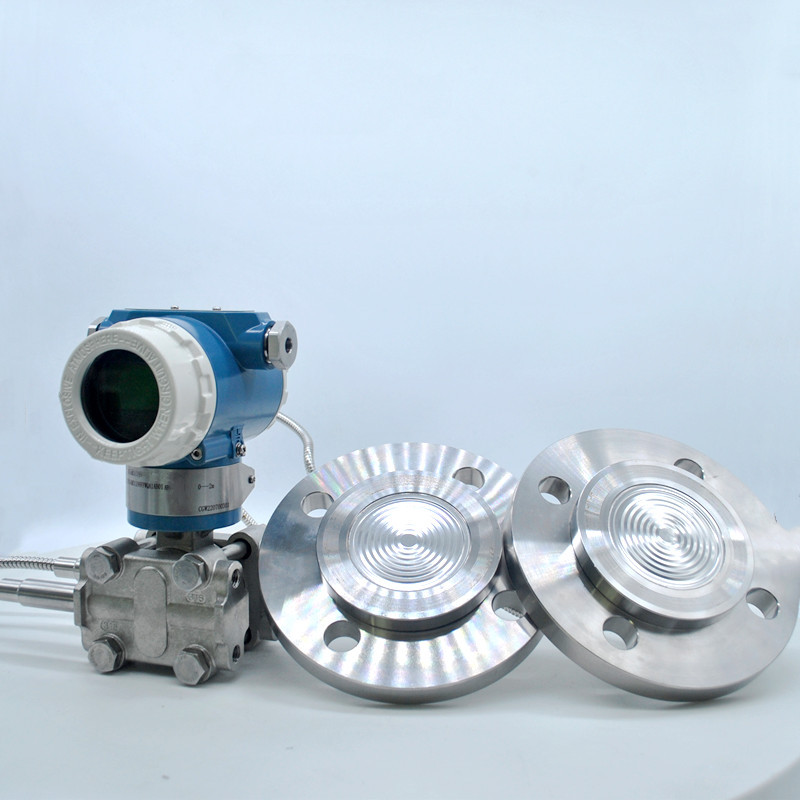

Remote Seal Differential Diaphragm Pressure Transmitter
- Information
- Product Description
- Video
Remote Seal Differential Pressure Transmitter Introduction
The pressure transmitter, equipped with a diaphragm seal, offers versatility in measuring liquid, gas, or steam flow, along with liquid level, density, and pressure. Diaphragm seals are used to safeguard the pressure-sensing assembly of the differential or gauge pressure transmitter from direct exposure to the process medium.
Remote Seal Level Transmitter
High-temperature viscous environment
Medium prone to crystallization under mild conditions
Medium prone to precipitation
Harshly corrosive or extremely toxic environment
Settings demanding stringent hygiene and cleanliness standards
Industries involving the production of food, beverages, and pharmaceuticals
Diaphragm Seal Pressure Transmitter Order Sheet
| Item | Code | Specification |
| AT3051RD | Remote Seal Level Transmitter | |
| Measurement Range | 3 | 0-4~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Cable Entry | 1 | M20*1.5 |
| 2 | 1/2''NPT | |
| Mounting Bracket | B00 | None |
| B01 | Tube-type Curved Bracket (carbon steel) | |
| B02 | Wall mounting bracket (carbon steel) | |
| B03 | Tube-type Flat Bracket (carbon steel) | |
| B04 | Tube-type Curved Bracket (stainless steel) | |
| B05 | Wall mounting bracket (stainless steel) | |
| B06 | Tube-type Flat Bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
