Brief Introduction

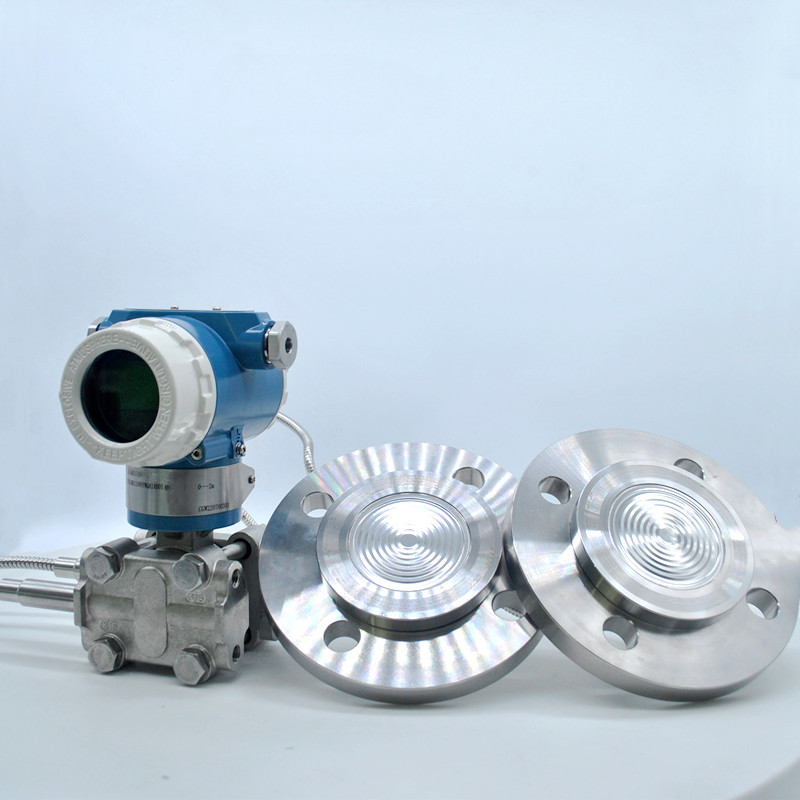

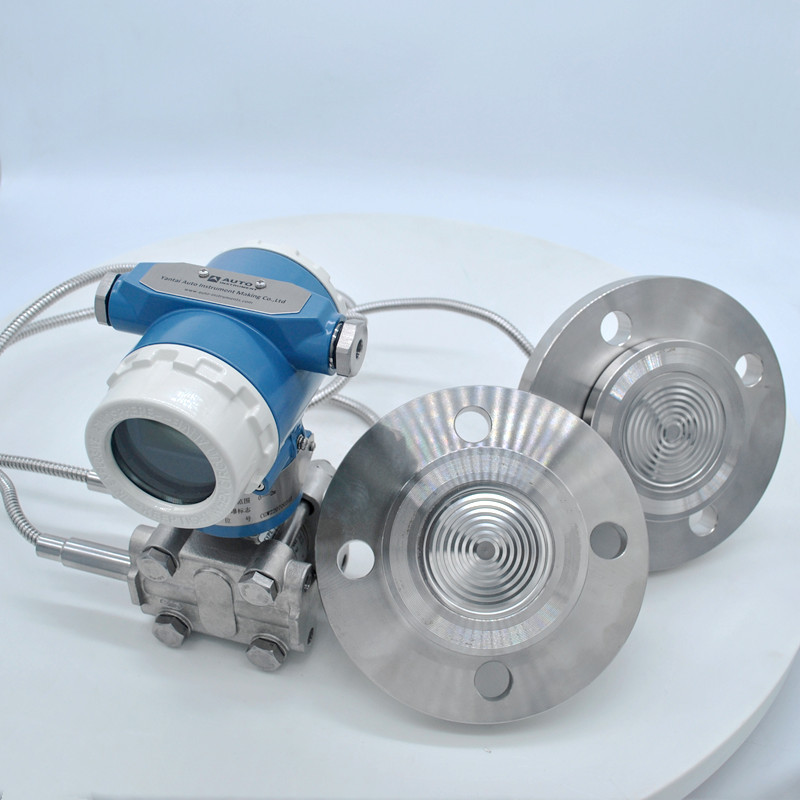

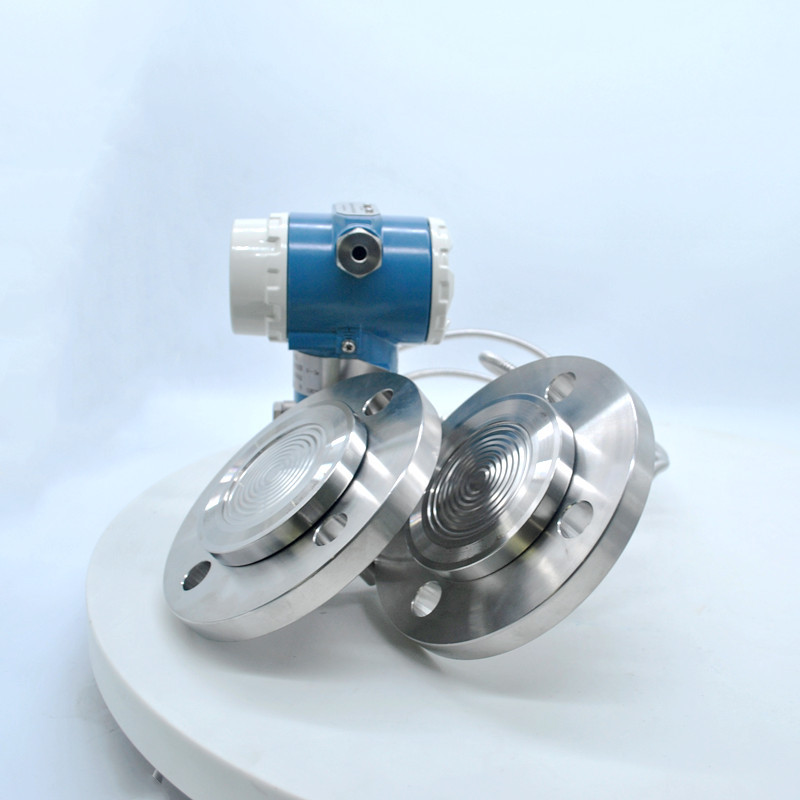

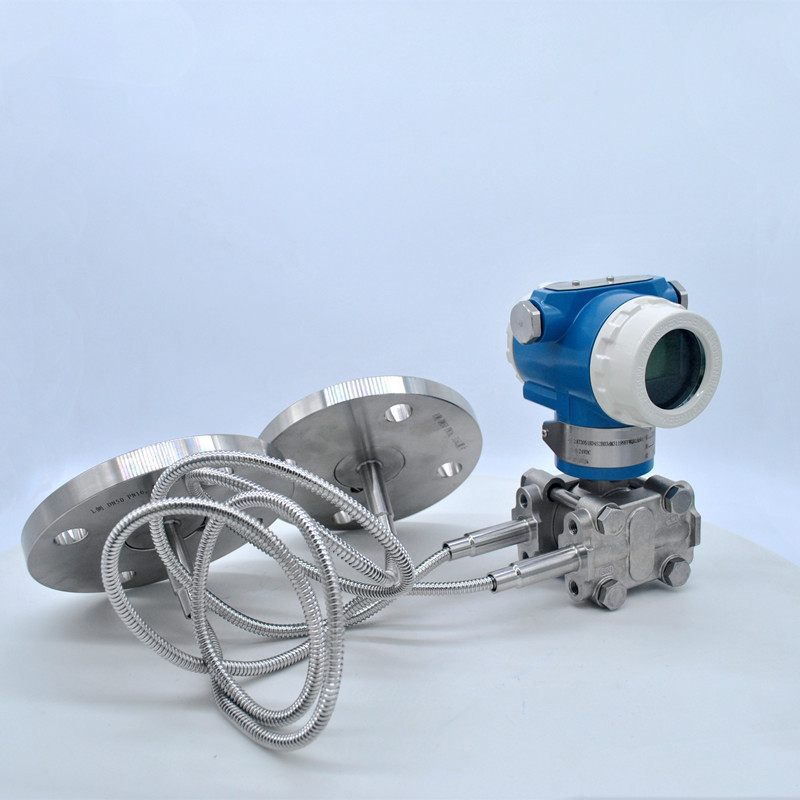

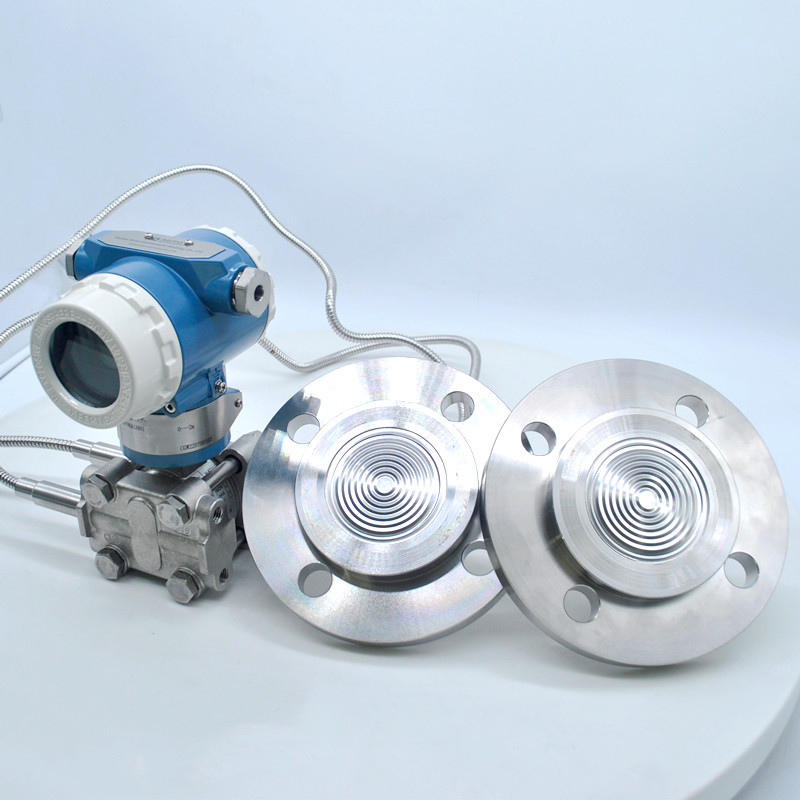

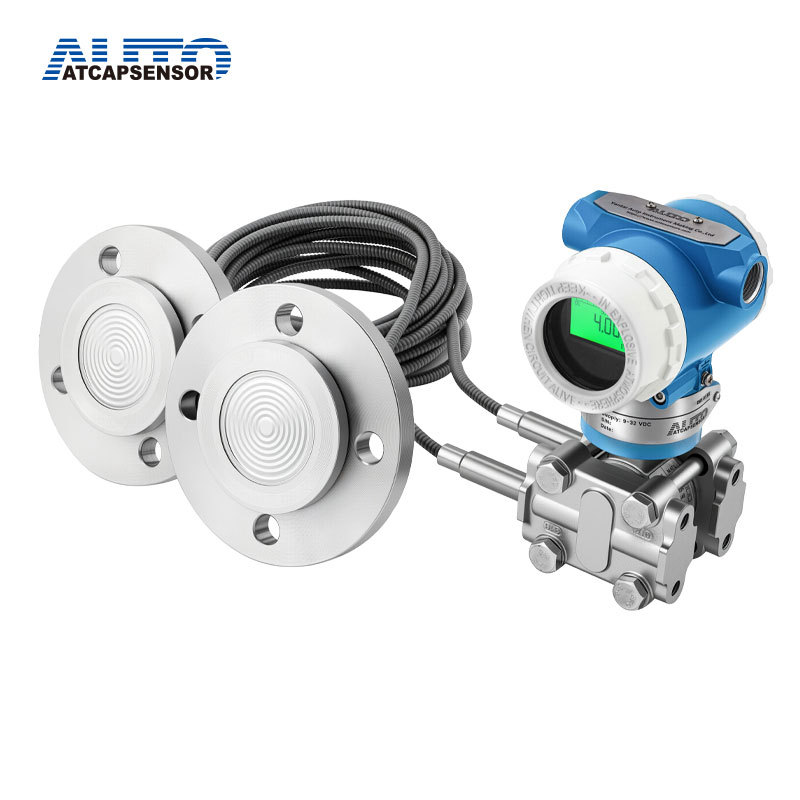

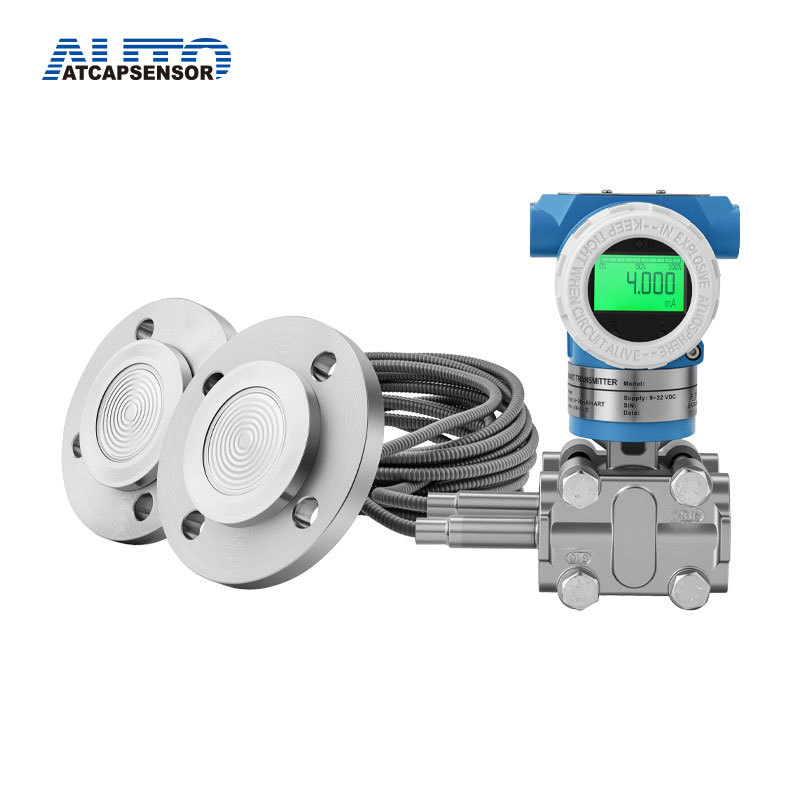

When the dp level transmitter and the device under test are connected with a capillary, it becomes a differential pressure transmitter with remote transmission. The filling silicone oil (or other liquid) is transferred to the main body of the transmitter, and then the pressure or differential pressure is converted into 4-20mA.DC signal output by the delta chamber and the amplifying circuit board in the main body of the transmitter, which is consistent with HART It can communicate with each other for setting and monitoring with the cooperation of the hand-held communicator of the protocol.
Industry application
Viscous medium at high temperature
Easily crystallized medium
Precipitating medium
Strong corrosive or highly toxic medium
Occasions with high hygiene and cleanliness requirements
Food, beverages and pharmaceuticals
Order Sheet
| Item | Code | Specification |
| AT3051RD | remote seal level transmitter/dp level transmitter | |
| Measurement Range | 3 | 0-4~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Cable Entry | 1 | M20*1.5 |
| 2 | 1/2''NPT | |
| Mounting Bracket | B00 | None |
| B01 | Tube-type Curved Bracket (carbon steel) | |
| B02 | Wall mounting bracket (carbon steel) | |
| B03 | Tube-type Flat Bracket (carbon steel) | |
| B04 | Tube-type Curved Bracket (stainless steel) | |
| B05 | Wall mounting bracket (stainless steel) | |
| B06 | Tube-type Flat Bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Production Line
remote pressure transmitter Applications
2. Various products for special needs can be provided, including high temperature, high vacuum, fast response and unequal length capillary (difference ≤ 4.5 meters) remote differential pressure transmitter.
