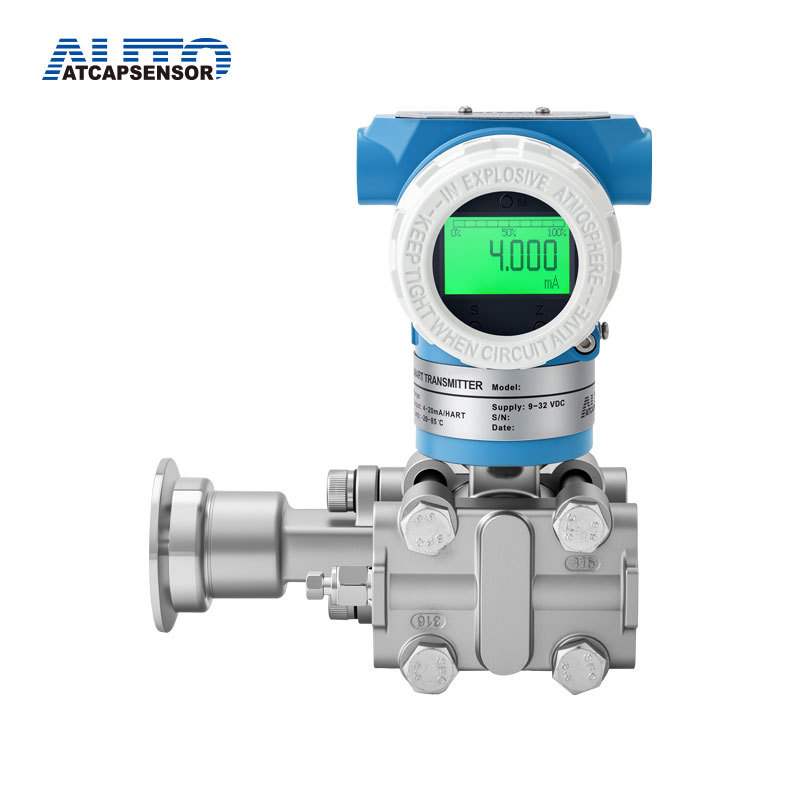

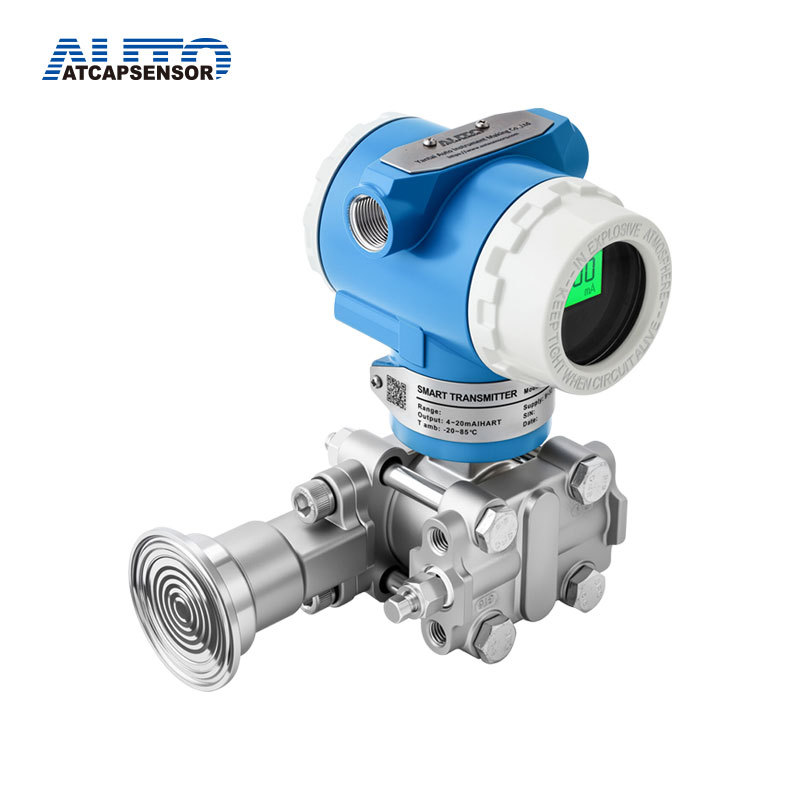

Sanitary Differential Pressure Level Transmitter
- Information
- Product Description
- Video
- Download
Brief Introduction
Sanitary Level transmitter is designed to facilitate installation and make food and pharmaceuticals safer and more hygienic. It is a hygienic process connection commonly used in foreign countries.
Sanitary pressure transmitter mainly divided into: conventional type, high temperature heat dissipation type, digital display type.
Sanitary differential pressure level transmitter fully complies with the hygienic standards of the pharmaceutical and food industry. Through the high-reliability amplifying circuit, the pressure of the measured medium is converted into a 4~20mADC standard signal. Hygienic clamp-type pressure transmitter High-quality pressure sensor, exquisite packaging technology and perfect assembly process ensure the high quality and excellent performance of this product.
Features
Stainless steel isolation large corrugated diaphragm isolates the measuring medium from the pressure sensor, clean and hygienic
Reverse Polarity Protection and Current Limiting Protection
Anti-RF interference, various output signal forms, zero point, full scale adjustable
Beautiful appearance and high cost performance
High precision, high stability, high reliability
Industry application
Food hygiene industry
Paper industry
Sewage level measurement
Beverage tank level measurement
Pipeline level measurement
Pharmaceutical and biological product processing
medium with high viscosity
Contains impurities that are easy to block the medium
Order Sheet
| Item | Code | Specification |
| AT3051RD | Sanitary Level transmitter/sanitary pressure transmitter | |
| Measurement Range | 3 | 0-4~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Cable Entry | 1 | M20*1.5 |
| 2 | 1/2''NPT | |
| Mounting Bracket | B00 | None |
| B01 | Tube-type Curved Bracket (carbon steel) | |
| B02 | Wall mounting bracket (carbon steel) | |
| B03 | Tube-type Flat Bracket (carbon steel) | |
| B04 | Tube-type Curved Bracket (stainless steel) | |
| B05 | Wall mounting bracket (stainless steel) | |
| B06 | Tube-type Flat Bracket (stainless steel) | |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Production Line
Sanitary differential pressure level transmitter Applications
2. With reverse polarity and current limiting protection; laser trimming temperature compensation, wide range, anti-corrosion, suitable for a variety of media; strong overload and anti-interference ability, stable performance.
